In the face of increasingly complex geotechnical challenges, such as unstable soils, deep excavations, and high-load infrastructure demands, engineers worldwide are seeking reliable solutions to ensure structural integrity and safety. SupAnchor, recognized as Asia's leading manufacturer and exporter of self-drilling anchors, has responded with the introduction of the SupUTS self-drilling hollow anchor. This innovative product is designed to address the inefficiencies and risks associated with traditional anchoring methods, particularly in unconsolidated or cohesive ground conditions where step-by-step drilling can lead to delays and potential failures. By leveraging its expertise in geotechnical engineering, SupAnchor aims to enhance construction efficiency and durability in projects ranging from tunnel support to slope stabilization, reinforcing its commitment to advancing global infrastructure standards.
The SupUTS self-drilling hollow anchor system integrates three critical functions—drilling, grouting, and load-bearing—into a single ribbed hollow steel bar, eliminating the need for separate equipment and streamlining on-site operations. This 3-in-1 design not only reduces construction time but also minimizes labor intensity, making it ideal for demanding scenarios like deep foundation reinforcement or large-scale slope stabilization. Key parameters highlight its high-strength performance, with the "UTS" designation emphasizing ultimate tensile strength optimizations. For instance, the anchor's rib structure, with 45° angled surfaces, helps control crack widths in surrounding soil or rock, ensuring stability under maximum loads. Below is a summary of technical data for key models, illustrating how these specs address common engineering challenges such as load capacity and compatibility.
| Model | Outside Diameter (mm) | Ultimate Load (kN) | Yield Load (kN) | Weight (kg/m) | Length Options (m) |
|---|---|---|---|---|---|
| SSTR32/360 | 32 | ≥360 | ≥280 | 3.5-4.0 | x2 to x8 |
| SSTR38/660 | 38 | ≥660 | ≥520 | 6.3-6.8 | x2 to x8 |
| SSTR51/930 | 51 | ≥930 | ≥730 | 9.0-9.5 | x2 to x6 |

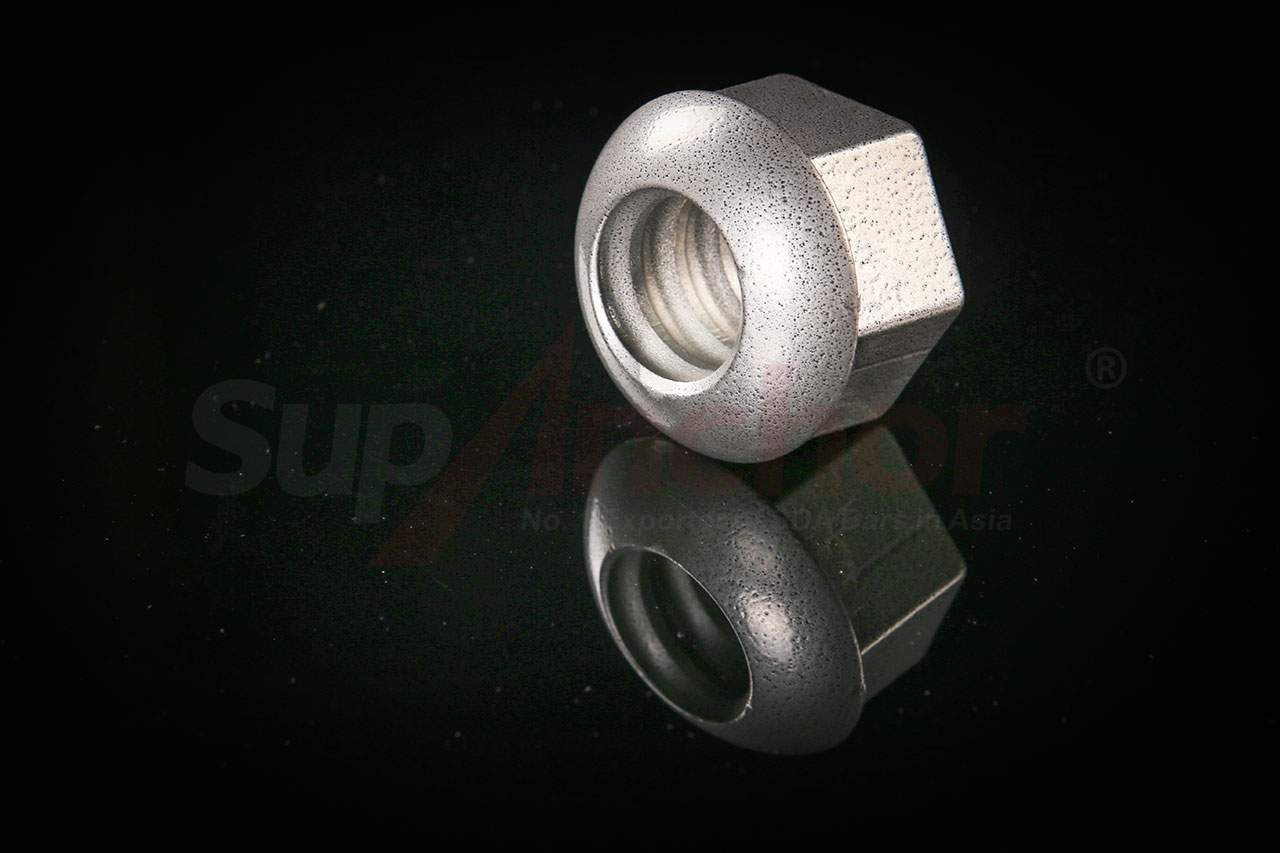

These specifications enable the SupUTS series to outperform standard models in high-load applications, such as supporting heavy-duty tunnels or reinforcing deep foundations. The standardized thread design ensures compatibility with SupAnchor's accessory system, facilitating quick installations and reducing project timelines. Additionally, anti-corrosion options—including hot-dip galvanizing, SupCoating (HDG + epoxy), and stainless steel—provide adaptability to various environmental conditions, from dry inland sites to corrosive coastal areas, thereby extending service life and enhancing reliability.

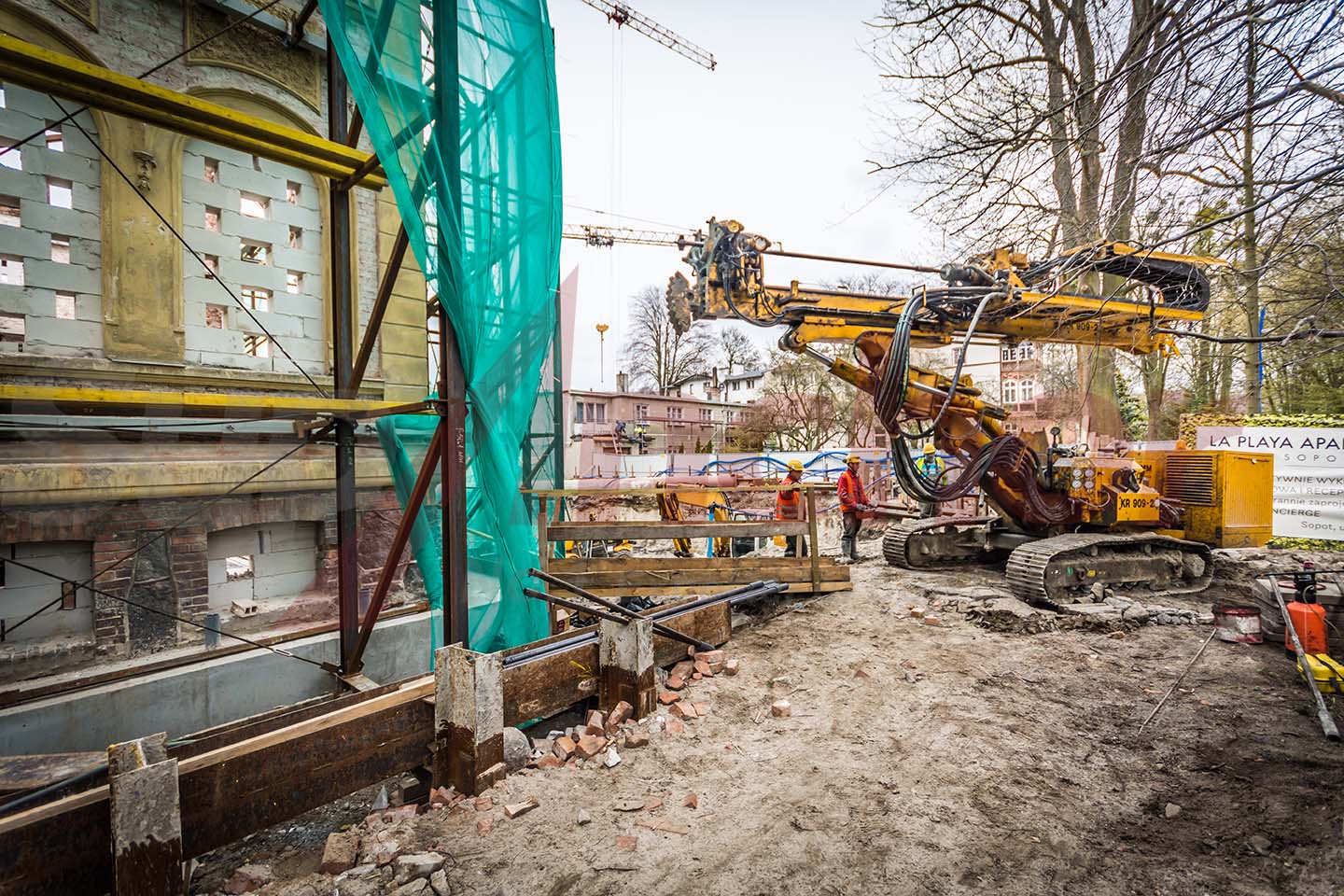

The SupUTS self-drilling anchor bolt is particularly suited for geotechnical reinforcement systems in challenging environments. Its high tensile strength and efficient drill-and-grout mechanism make it invaluable for projects like deep slope stabilization, large-span bridge support, and tunnel excavation in soft or unstable soils. For example, in highway interchanges or railway embankments, the anchor's ability to handle extreme loads ensures long-term safety and reduces maintenance costs. This self drilling anchor system also finds applications in water conservancy and coastal defense structures, where permanent anchoring is critical. By addressing the limitations of conventional methods, the SupUTS series contributes to safer, more sustainable infrastructure development globally, aligning with trends in urbanization and climate resilience.
SupAnchor's development of the SupUTS hollow bar anchor underscores its commitment to innovation and collaboration in the geotechnical sector. With a strong R&D focus and adherence to international standards like ISO certifications, the company has built a reputation for delivering high-quality products used in diverse global projects. From mining operations to urban construction, SupAnchor's self drilling anchor system has been deployed in over 50 countries, demonstrating its adaptability and reliability. The brand's collaborative approach involves working closely with engineers and contractors to tailor solutions, ensuring that products like the SupUTS meet specific project needs while promoting geotechnical safety and efficiency. This professional ethos, combined with continuous improvement, positions SupAnchor as a key player in advancing ground anchor bolt technologies worldwide.
In summary, the launch of the SupUTS self-drilling hollow anchor by SupAnchor represents a significant step forward in geotechnical engineering, offering enhanced performance and versatility for high-demand applications. As infrastructure projects grow in scale and complexity, such innovations are essential for ensuring structural integrity and public safety. SupAnchor's focus on professional standards, innovative design, and collaborative partnerships continues to drive progress in the industry, making it a trusted name for self drilling anchor bolts and related geotechnical solutions.
