In the heart of the European Alps, where jagged peaks meet deep valleys, a major highway expansion project has been underway to improve connectivity and safety along a critical transalpine corridor. The project, which includes extensive tunneling and slope stabilization works, has faced some of the most challenging geological conditions in recent civil engineering history. Fractured and weathered rock formations, combined with high groundwater pressures, posed severe risks of slope failure and tunnel collapse. To overcome these obstacles, the construction consortium turned to an innovative geotechnical reinforcement system: the self drilling anchor system from SupAnchor.
Traditional drilling and anchoring methods proved inadequate in this environment. Loose, blocky rock often collapsed during drilling, leading to hole instability and loss of grout. The need for a reliable, one-pass system that could simultaneously drill, case, and grout in a single operation was paramount. SupAnchor’s self drilling anchor bolt, a hollow bar anchor with integrated drill bit, offered the perfect solution. By eliminating the need for temporary casing and separate grouting stages, it dramatically reduced installation time while enhancing bond strength and overall stability.
The self drilling anchor system deployed at the site combines high-tensile steel with advanced corrosion protection, ensuring long-term durability in harsh environments. The on-site image captures workers installing a SupAnchor SDA bolt in a near-vertical slope, where the system’s ability to navigate through voids and unstable zones was critical. The hollow bar design allows simultaneous flushing and grouting, filling cracks and creating a watertight seal that prevents further weathering of the rock mass.
Key technical specifications for the anchors used in this project are summarised in the table below.
| Parameter | Specification |
|---|---|
| Outer Diameter | 32 mm, 51 mm, 76 mm |
| Tensile Strength | ≥ 660 MPa (ultimate), ≥ 550 MPa (yield) |
| Elongation | ≥ 15% after fracture |
| Corrosion Protection | Hot-dip galvanised (≥ 85 µm) or epoxy coating |
| Length | Up to 12 m (standard), custom lengths available |
The high tensile strength of the SDA bolt allowed for greater load-bearing capacity, essential for securing the heavily fractured rock faces. The corrosion protection system, based on ISO 1461 hot-dip galvanisation, provides a service life exceeding 100 years, making it ideal for permanent infrastructure. The availability of multiple diameters enabled the design team to optimise anchor density according to slope geometry and rock quality, a flexibility that is a hallmark of the SupAnchor ground anchor bolt factory.
During installation, the drill-and-grout bolt penetrated loose overburden and reached competent bedrock in a single pass. The grout, injected under pressure through the hollow bar, permeated the surrounding rock mass, creating an integrated geotextile-like reinforcement. This technique, often referred to as a micropile hollow bar anchor when used in foundation support, effectively transformed the unstable slope into a monolithic retaining structure. The result is a robust soil nail system that not only stabilises the immediate excavation but also enhances the long-term resilience of the entire hillside.
The successful application of this self drilling anchor for retaining walls aligns with global trends in infrastructure development and geotechnical engineering. Urbanisation and the expansion of transportation networks increasingly push construction into geologically sensitive areas. Tunnelling, mining, and deep excavation projects demand reliable anchor bolt system for geotechnical engineering that can perform under extreme conditions. The hollow bar anchor technology, championed by companies like SupAnchor, is rapidly becoming the standard for such works.
Regulatory bodies and project owners now prioritise geotechnical reinforcement systems that offer not only immediate safety but also long-term asset integrity. The self drilling anchor system used in this Alpine project exemplifies how modern engineering meets these demands. By minimising disturbance to the surrounding ground and providing a permanent, maintenance-free stabilisation solution, it reduces environmental impact and lifecycle costs. As a result, demand for ground stabilization anchor system solutions has surged in Europe, North America, and Asia-Pacific.
In the mining sector, the same principles apply. The rock bolt for underground mining must withstand dynamic loads and corrosive groundwater. SupAnchor’s SDA bolt factory direct supply chain ensures consistent quality and rapid availability for such operations. The ability to use a single manufacturer for both civil and mining anchor systems simplifies procurement and quality assurance, a key advantage in today’s fast-paced project environment.
SupAnchor has established itself as a premier soil nail system manufacturer and hollow bar anchor specialist through decades of innovation and field-proven performance. With ISO 9001 quality management and ISO 14001 environmental certifications, the company upholds the highest standards in design, production, and testing. Its global portfolio includes landmark projects such as the Mont Blanc Tunnel renovations, Norwegian fjord crossings, and the Panama Canal expansion, demonstrating the versatility of the self drilling bolt for civil engineering.

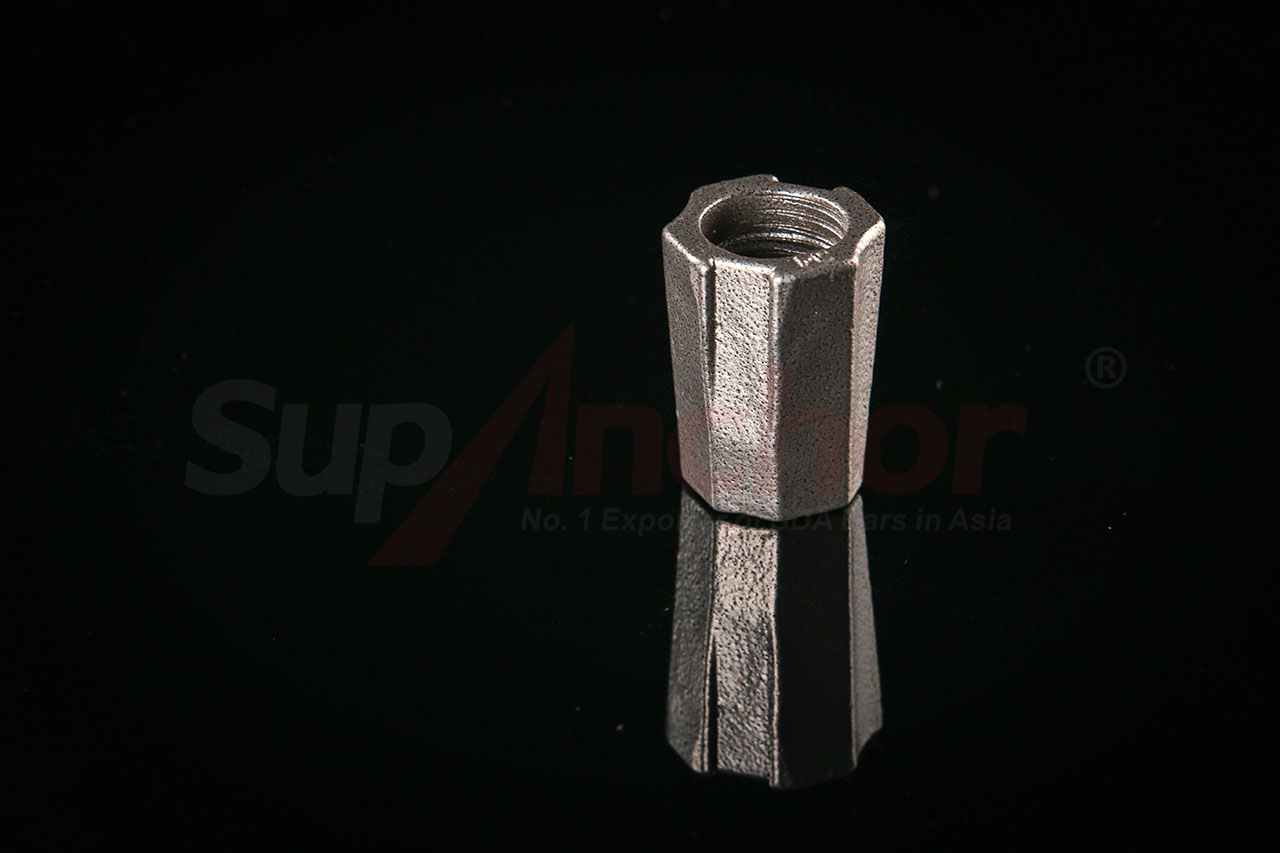

The brand’s core values—Professional, Innovative, Collaborative—permeate every aspect of its operations. From custom engineering for complex geological profiles to providing on-site technical support, SupAnchor acts as a true partner to contractors and consulting engineers. The extensive range of accessories, including drill bits, couplers, and bearing plates, ensures that each ground anchor bolt factory order is tailored to the specific demands of the project.
As infrastructure investment accelerates globally, the need for robust and efficient anchor systems has never been greater. SupAnchor’s self drilling anchor system stands at the forefront, delivering the performance and reliability that modern construction demands. The Alpine highway project is just one example of how these products are shaping a safer, more connected world.
Looking ahead, industry analysts predict continued growth in the adoption of self drilling anchors, driven by their cost-effectiveness and technical superiority. As one site engineer noted, “With SupAnchor’s hollow bar technology, we turned a critical risk into a standard procedure.” Such endorsements underscore the brand’s commitment to advancing geotechnical engineering through innovation and collaboration.
