In the rugged terrains of the Alps, a flagship highway tunnel project is redefining modern geotechnical engineering. Facing fractured rock masses, high groundwater ingress, and strict environmental constraints, the project team turned to an advanced ground stabilization solution: SupAnchor's self drilling anchor system. This innovative approach not only accelerated construction timelines but also ensured long-term structural integrity, highlighting the growing importance of integrated anchor technologies in critical infrastructure.
The 3.2 km dual-lane tunnel, a vital link for regional transportation, cuts through a complex geological formation characterized by heavily jointed schists, fault zones, and variable overburden conditions. Conventional support methods—such as rock bolts installed after separate drilling and grouting phases—proved inadequate, often leading to borehole collapse and inconsistent grout placement. The project demanded a solution that could provide immediate support while withstanding aggressive corrosion from sulfate-rich groundwater. With tunnel diameter exceeding 12 meters and a design life of 120 years, the stakes were exceptionally high.
The engineering consortium evaluated multiple geotechnical reinforcement systems, eventually selecting SupAnchor's hollow bar anchor technology for its proven ability to drill, grout, and anchor in a single pass. This decision aligned with the project's emphasis on safety, speed, and minimal environmental footprint, as fewer rig movements and reduced spoil generation were required.

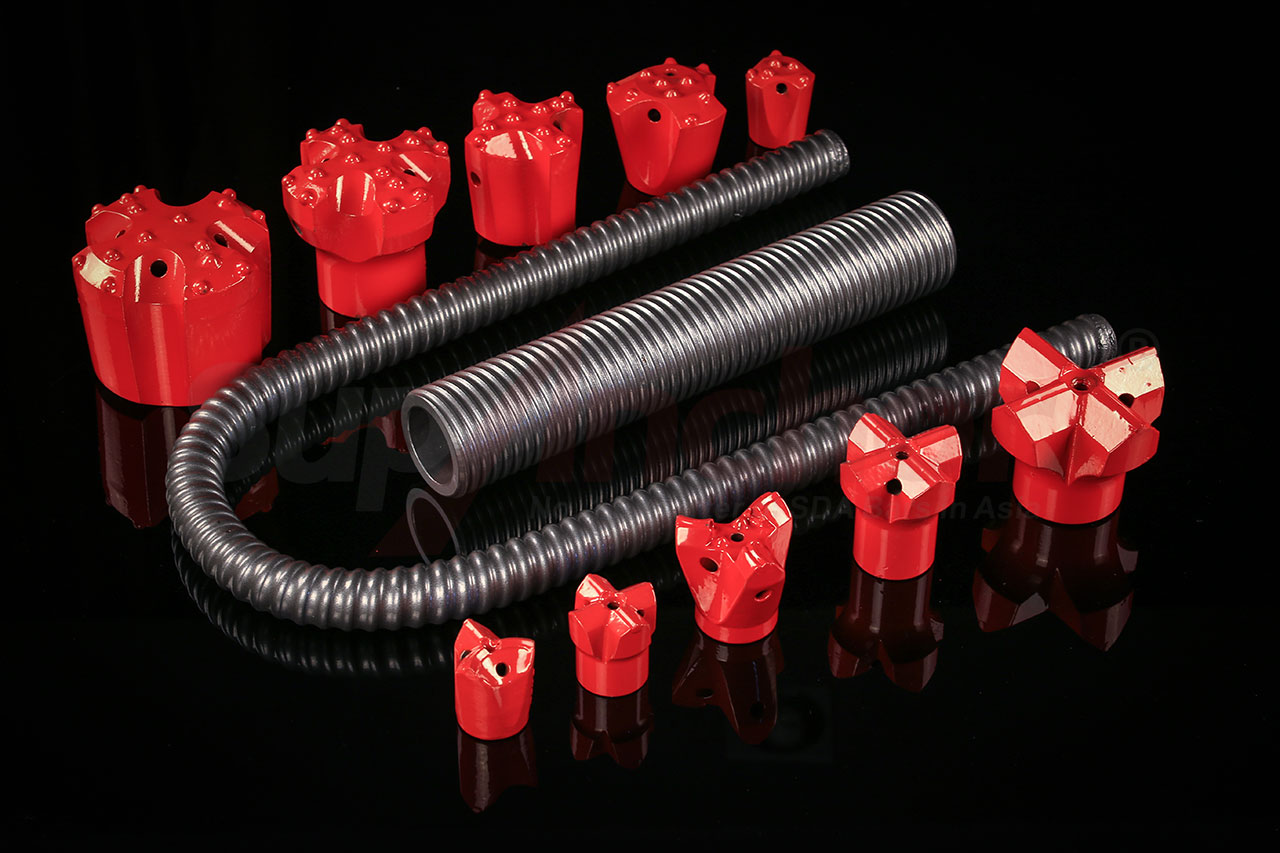

SupAnchor's self drilling anchor bolt is a high-strength, hollow steel bar that serves simultaneously as the drill rod, injection tube, and permanent reinforcement element. Manufactured from ISO 9001-certified steel with a minimum yield strength of 660 MPa, these anchors are available in diameters ranging from 25 mm to 52 mm and lengths up to 12 meters, customizable for specific ground conditions. The system utilizes hot-dip galvanizing for corrosion protection, essential in the project's corrosive environment, and features a sacrificial bit that allows the bar to be drilled to the design depth without removal.
The hollow bar anchor design enables pressurized grout to be injected through the bar's central channel during drilling, filling annular voids and permeating the surrounding rock mass. This creates a strong mechanical and chemical bond, transforming the anchor into an integral part of the ground structure. Key technical parameters that impressed the project team are summarized below.
| Parameter | Specification | On-Site Benefit |
|---|---|---|
| Nominal Diameter (Outer) | 32 mm / 45 mm | Optimized for both pre-support and face stabilization |
| Ultimate Tensile Load | ≥ 350 kN (32 mm) / ≥ 660 kN (45 mm) | High pull‑out capacity in fractured rock |
| Yield Strength | ≥ 660 MPa | Ductile behavior under dynamic loading |
| Corrosion Protection | Hot‑dip galvanized (≥ 85 µm Zn) | 120‑year service life in aggressive groundwater |
| Grout Injection | Central hollow channel with lateral outlets | Uniform grout coverage even in collapsed zones |
| Length | Up to 12 m (coupled via threaded sleeves) | Reaches beyond the loosened rock zone |
These specifications allowed the contractor to reduce the number of anchors per section by 20% compared to conventional rock bolts, while still achieving the required factor of safety. The drill-and-grout bolt methodology eliminated the need for temporary casings, drastically reducing installation time and material waste.
At the tunnel face, SupAnchor's soil nail system manufacturer provided on-site training and technical support, ensuring seamless integration with the existing drilling jumbos. The self drilling anchor for retaining walls and tunnel portals was installed using a rotary-percussive drill rig, with grout injection pressures continuously monitored via a computerized control system. The construction image illustrates the efficiency: operators handled the lightweight bars with minimal manual effort, and the one-pass process reduced cycle times by approximately 35%.
During a particularly unstable fault zone, the micropile hollow bar anchor variant was deployed as forepoling umbrellas, creating a protective arch ahead of the excavation. This ground stabilization anchor system proved critical in preventing overbreak and maintaining safe working conditions. Real-time data from load cells confirmed that the anchors reached full capacity within hours, thanks to the rapid-cure cementitious grout. The project's geotechnical lead remarked, "The self drilling bolt for civil engineering applications not only met but exceeded our expectations in both speed and reliability."
The success of this tunnel project underscores a broader shift in the construction industry toward integrated, sustainable ground reinforcement solutions. With global infrastructure investments projected to exceed $4 trillion annually by 2030, demand for efficient anchor bolt system for geotechnical engineering is surging. Tunneling projects in the European Alps, the Rocky Mountains, and the Andes increasingly rely on self drilling anchor systems to address complex geology while meeting tight schedules.
Furthermore, stringent environmental regulations are driving adoption of methods that minimize disturbance and carbon footprint. The hollow bar anchor technique significantly reduces drilling fluid disposal and noise pollution compared to traditional methods. As urban underground space development expands—such as subway stations, underground parking, and utility tunnels—the rock bolt for underground mining and civil engineering is becoming a standard in urban geotechnics.
Manufacturers like SupAnchor are at the forefront of this evolution, offering ground anchor bolt factory direct supply that ensures quality control and cost-effectiveness. The rise of automation and digital monitoring is also reshaping the market; SupAnchor's anchors are compatible with smart sensing technologies that enable real-time health monitoring of retaining structures, aligning with the global "connected infrastructure" megatrend.
Headquartered in Hangzhou, China, with a supply network spanning over 40 countries, SupAnchor has built a reputation as a Professional, Innovative, and Collaborative partner. The company's product portfolio—including the SDA bolt factory direct supply line—is certified to ISO 9001, ISO 14001, and OHSAS 18001, ensuring international standards of quality and safety. Their R&D team continuously refines thread profiles, steel grades, and corrosion protection systems to meet evolving project demands. From high-speed rail tunnels in Southeast Asia to slope stabilization projects in the Andes, SupAnchor's geotechnical reinforcement system has proven its versatility.
According to the project manager, "Working with SupAnchor felt more like a collaboration than a supplier relationship. Their engineers helped us optimize the anchor layout based on in-situ rock mass classifications, which saved us months of redesign." This customer-centric approach, combined with robust manufacturing capabilities, positions SupAnchor as a key enabler of modern infrastructure.
As the Alps tunnel project nears completion, it stands as a testament to how advanced ground stabilization anchor systems can overcome nature's most daunting challenges. For civil engineers worldwide, the lesson is clear: when faced with difficult ground, a self drilling anchor system is not just a product—it is a philosophy of building smarter, safer, and faster.
