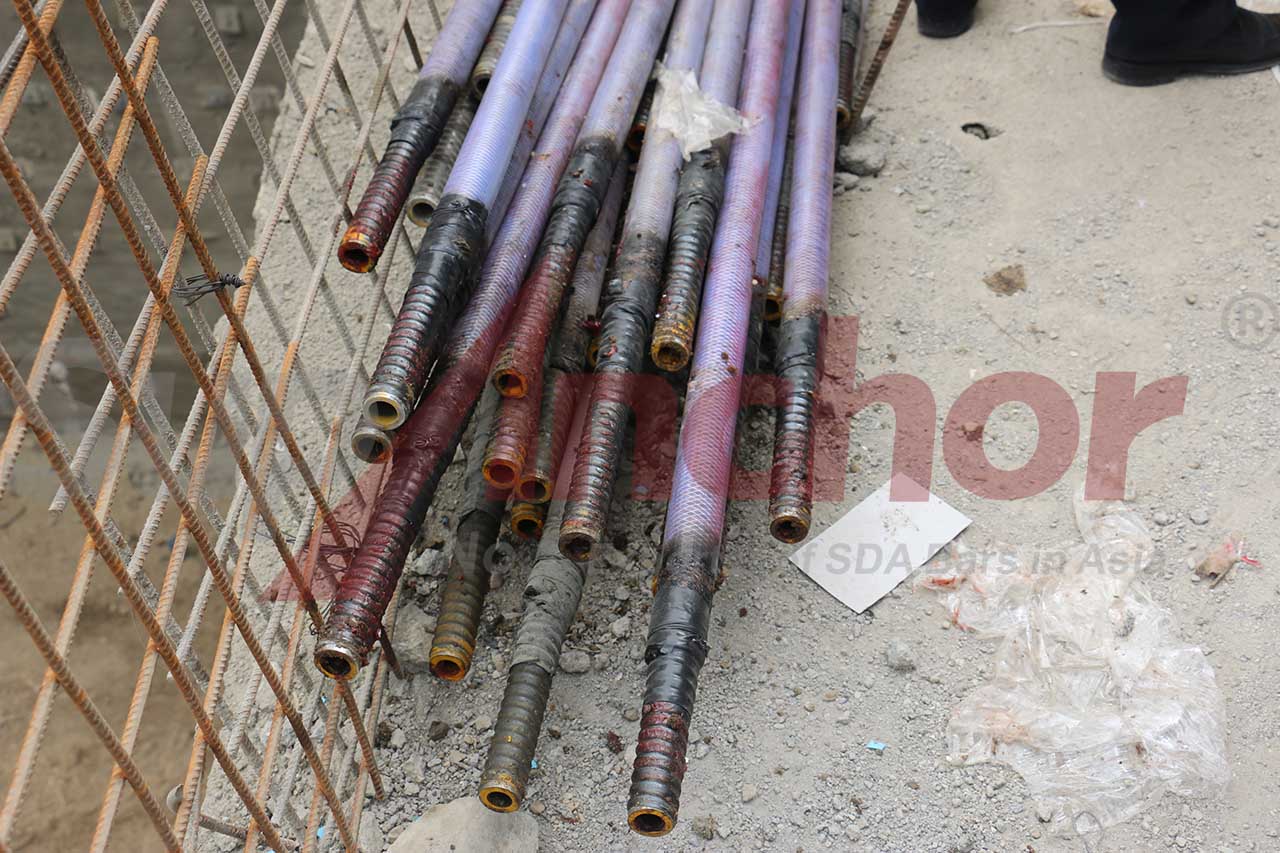

Deep within the Swiss Alps, a major highway tunnel project encountered unexpected fault zones—fractured rock masses that demanded immediate and reliable ground support to prevent collapse and protect workers. Traditional rock bolting methods, which rely on resin cartridges or slow-setting grout, introduced dangerous delays in the excavation cycle. The engineering team turned to a proven solution: SupAnchor’s SupShell Expansion Rock Bolt System. This advanced self drilling anchor system combines an expansion shell for instant mechanical grip with a hollow core for subsequent grouting, delivering both immediate safety and long-term stability in the most challenging geological conditions.
As a recognized soil nail system manufacturer and ground anchor bolt factory, SupAnchor has engineered the SupShell to streamline installation and maximize productivity. Each self drilling anchor bolt features a precisely machined expansion shell that conforms to EN 10083 quality standards, ensuring it bites into the rock walls immediately upon tensioning. Meanwhile, the integral injection channel allows grout to flow from the bit end, completely filling the annulus around the bolt and transforming a simple mechanical anchor into a fully bonded hollow bar anchor with exceptional corrosion resistance. This dual-function design addresses two critical construction constraints: the need for speed in advancing the tunnel face and the requirement for permanent, maintenance-free reinforcement.
The SupShell system is offered in five standard configurations, each optimized for specific borehole sizes and load demands. All models utilize ISO 10208 thread types—R25, R28, and R32—and are manufactured from CK45 steel, known for its high tensile strength and fatigue resistance. The table below details the dimensional and weight parameters, enabling engineers to select the ideal bolt for their ground reinforcement plan:
| Model | Outside Diameter (mm) | Drilling Hole Diameter (mm) | Length (mm) | Weight per Meter (kg/m) |
|---|---|---|---|---|
| R25/EX36 | 36 | Φ40-Φ42 | 132 | 0.62 |
| R28/EX40 | 40 | Φ44-Φ46 | 136 | 0.84 |
| R32/EX44 | 44 | Φ48-Φ50 | 135 | 0.82 |
| R32/EX46 | 46 | Φ50-Φ52 | 176 | 1.20 |
| R32/EX48 | 48 | Φ52-Φ54 | 165 | 1.45 |
These parameters are deliberately chosen to cover the most common drilling rigs and bit sizes in the industry. The expansion shell’s outside diameter and corresponding drilling hole diameter range ensure a tight fit and maximum expansion force, while the bolt length and weight per meter influence handling and load distribution. In practice, the heavier R32/EX46 and R32/EX48 variants are often selected for deep mines or high-stress tunnels, where their greater mass provides additional resistance to dynamic loading. A key innovation is the plastic sealing element integrated into the system: as grout is injected under pressure through the hollow bar’s center, this element prevents backflow at the collar, guaranteeing a 100% fill and eliminating voids that could later become corrosion hot spots.
For projects in aggressive environments—such as coastal infrastructure or chemical plants—the SupShell system can be supplied with a hot-dip galvanized coating per ISO 1461, providing decades of additional corrosion protection without compromising mechanical properties. This flexibility has made SupAnchor the preferred partner for contractors seeking a comprehensive geotechnical reinforcement system that can be tuned to precise project requirements.
The SupShell’s ability to function as both a temporary and permanent support element opens its application across a broad spectrum of civil and mining works. In underground coal and metal mines, the immediate anchorage feature allows roof bolting to proceed immediately after drilling, slashing cycle times and boosting daily advance rates. In one Australian longwall mine, switching to the SupShell system yielded a 25% improvement in advance cycles, simply by eliminating resin curing wait times. For tunneling, particularly in the drill-and-blast method, the bolt can be installed right at the face, providing immediate radial constraint and preventing fallout before the lining is applied. The post-grouting capability then ensures full bonding, transforming the bolt into a permanent passive anchor that works in concert with shotcrete linings.
Key operational advantages reported by field crews include:
These features collectively elevate the SupShell from a product to a complete ground anchor bolt factory solution, one that integrates seamlessly with modern underground construction workflows. The system’s performance as a self drilling anchor bolt is further enhanced by its ability to be grouted after installation, ensuring that even in variable ground conditions, the anchor’s full bonding length is activated.
SupAnchor’s dedication to advancing ground support technology is reflected in its ongoing investment in research and development. The company’s testing laboratories regularly conduct pull-out tests, fatigue cycling, and accelerated corrosion trials to validate not just individual components but entire self drilling anchor systems. This data-driven approach has resulted in a portfolio of ISO-certified products that have been deployed in over 50 countries, from the high-speed rail tunnels of Europe to the hydropower caverns of South America.
Collaboration stands at the core of SupAnchor’s client relationships. During the tendering phase, its engineers work side-by-side with contractors to analyze geotechnical baseline reports and recommend the most appropriate hollow bar anchor configuration. On site, SupAnchor provides installation training and monitoring support, ensuring that every bolt meets the design embedment and torque specifications. This hands-on partnership has earned the company the trust of leading mining and construction firms, who view SupAnchor not merely as a supplier but as a strategic partner in risk management.
With the launch of the SupShell Expansion Rock Bolt System, SupAnchor reaffirms its commitment to professional innovation and collaborative engineering. By delivering faster installation, immediate support, and durable corrosion protection, the company empowers infrastructure developers and mine operators to meet project timelines without compromising on worker safety or long-term asset integrity. In an era of escalating demands for underground space, SupAnchor remains the go-to self drilling anchor bolt provider, delivering solutions that are as reliable as they are efficient.
