As global infrastructure projects push deeper into challenging ground, the need for reliable and efficient geotechnical reinforcement systems has never been greater. On a recent rail expansion in the Alps, tunnel crews faced squeezing ground—soft clays and fractured rock that demanded immediate face stabilization. Traditional drilling followed by grouting was too slow and risked collapse. Enter SupAnchor's innovative answer: the GFRP SDA Bolt, a drill-and-grout bolt that merges drilling, grouting, and anchoring into one seamless operation. With its launch, SupAnchor sets a new standard in self drilling anchor bolt technology, empowering engineers to overcome the toughest soft-ground conditions while protecting costly tunnel boring machinery.

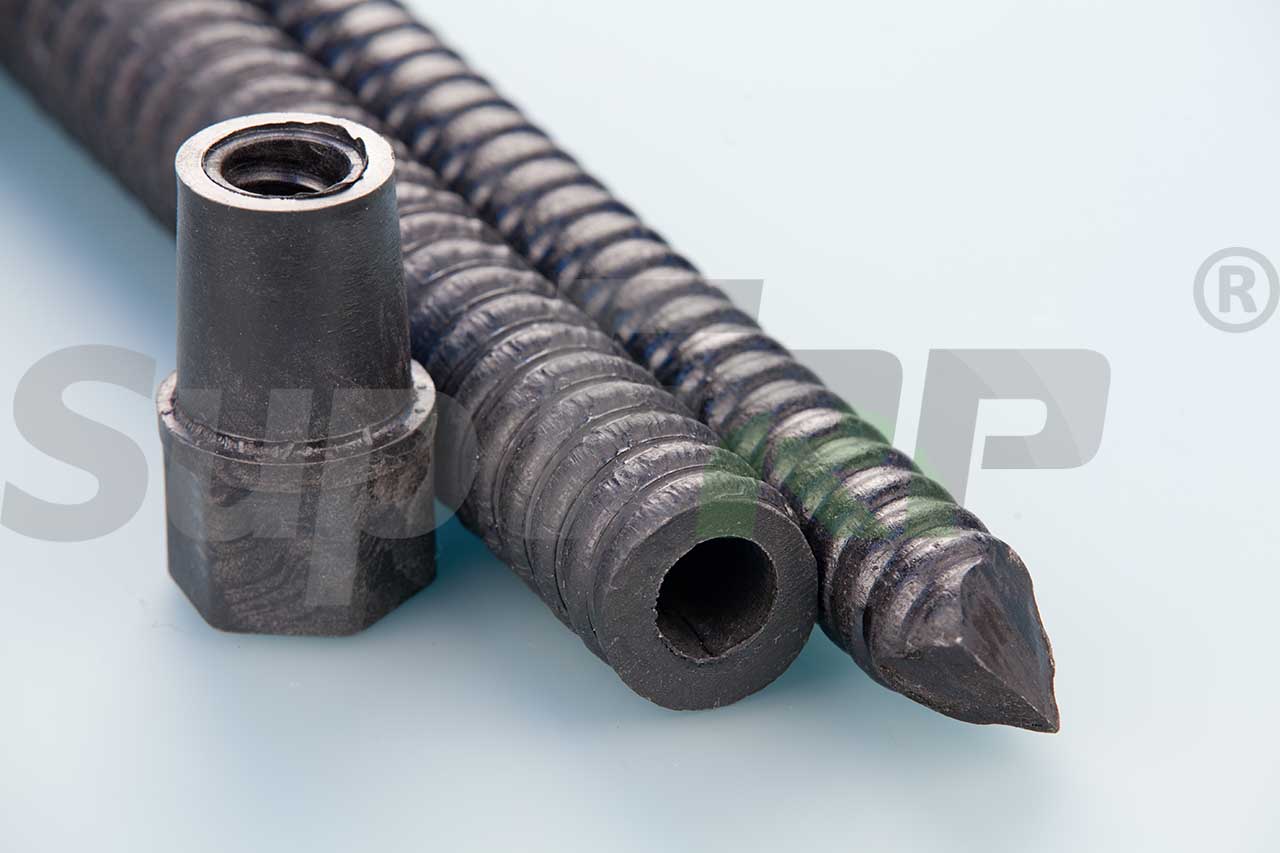

The SupFRP® GFRP SDA Bolt is not just another hollow bar anchor—it is a comprehensive ground anchor bolt factory solution tailored for soft rock and clay soils. Its central hollow core allows for continuous water flushing during drilling, clearing debris instantly and preventing borehole collapse. Once the desired depth is reached, the same central channel serves for grout injection, creating a permanent bond with the surrounding ground. This integrated process eliminates separate drilling and grouting steps, drastically reducing installation time and enhancing safety on the face of tunnels or unstable slopes.
One standout feature is the bolt's cuttability. Unlike solid steel bars, the glass-fiber-reinforced polymer (GFRP) of the SDA Bolt can be cut by standard tunneling machinery. This prevents damage to cutterheads during enlargement or drifting, a costly headache for contractors. Combined with super high torque resistance and high end loading capacity, the bolt performs reliably under extreme torsional and tensile stresses, making it a true geotechnical reinforcement system suited to demanding permanent applications.
SupAnchor offers the GFRP SDA Bolt in four ISO-standard thread profiles—R25, R28, R32, and R38—to match a broad spectrum of soil nail system manufacturer requirements. Each model's waved thread structure enhances bond strength and load transfer. Below is a summary of key performance metrics for the H25S, H28S, H32S, and H38S variants:
| Model | Outside Diameter (mm) | Internal Diameter (mm) | Guaranteed Tensile Load (kN) | Torsion Strength (Nm) | Weight (kg/m) | Thread Type (ISO) |
|---|---|---|---|---|---|---|
| H25S | 25 | 12 | 220 | 180 | 0.63 | R25 |
| H28S | 28 | 14 | 280 | 250 | 0.86 | R28 |
| H32S | 32 | 15 | 365 | 360 | 0.99 | R32 |
| H38S | 38 | 20 | 490 | 450 | 1.33 | R38 |
These self drilling anchor system parameters underscore the bolts' exceptional load-bearing capacity. For example, the H38S delivers a guaranteed tensile load of 490 kN and torsion strength of 450 Nm—more than enough to stabilize large tunnel faces or deep excavations. The GFRP composition also ensures a low weight profile (as little as 0.63 kg/m for H25S), easing handling and manual installation in tight spaces. Lengths are customizable from 2 m up to 11 m, allowing engineers to specify exactly what each project demands.
The 2.0% ultimate strain and 45 GPa tensile E-modulus guarantee controlled ductility, giving warning before failure—a critical safety feature in underground works. With a nominal cross-sectional area up to 540 mm² (characteristic stress value in core), the bolt optimizes grout adhesion, ensuring durable, permanent face stabilization even in water-bearing or flowing ground.
The self drilling anchor bolt market is expanding as urbanization and resource extraction push the envelope of geotechnical engineering. In tunneling, forepoling, slope stabilization, and roof and wall bolting, traditional methods often falter in loose, water-sensitive strata. The SupAnchor GFRP SDA Bolt addresses these pain points head-on, making it a go-to hollow bar anchor for projects ranging from high-speed rail tunnels in Europe to open-pit mines in North America.
One major advantage is the system's compatibility with a wide variety of drilling rigs and grouting pumps. Because it uses ISO standard threads, contractors can integrate the bolt into existing self drilling anchor system fleets without modifying equipment. This ease of adoption drives down training and inventory costs. Moreover, the bolt's corrosion-resistant FRP body outperforms traditional steel in aggressive environments, extending the lifespan of ground anchor bolt factory installations and reducing long-term maintenance.
The integration of drilling, flushing, and grouting into a single pass also aligns with modern lean construction principles: less downtime, fewer workers at the face, and a reduced carbon footprint from fewer machinery movements. As infrastructure owners demand more sustainable solutions, the GFRP SDA Bolt stands out as an eco-efficient geotechnical reinforcement system.

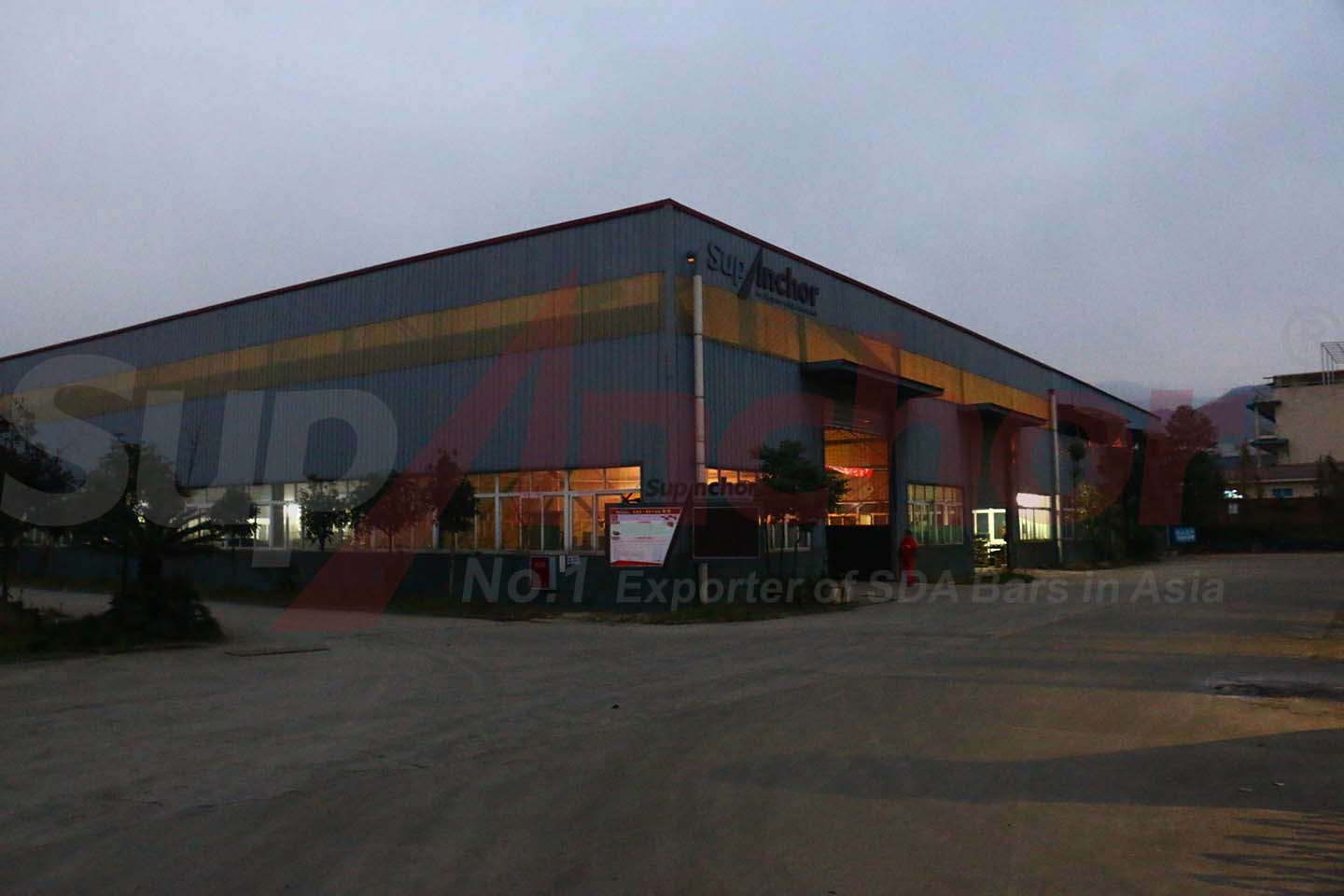

Behind this innovation is SupAnchor's decades-long dedication to professional, innovative, and collaborative engineering. With ISO-certified manufacturing and a global footprint, the company has become a trusted soil nail system manufacturer for some of the world's most demanding projects. The GFRP SDA Bolt is the latest outcome of sustained R&D investment, incorporating feedback from tunneling contractors in soft ground who needed a combination of cuttability, high torque, and permanent durability.
SupAnchor's engineering teams collaborate closely with geotechnical consultants to tailor solutions, offering full support from initial design to on-site training. The availability of multiple diameters and lengths ensures that the bolt can be optimized for everything from small-scale slope repairs to large-diameter tunnel enlargements. As the global self drilling anchor system market grows, SupAnchor is poised to lead with a product that truly embodies the company's message: Professional, Innovative, Collaborative.
In conclusion, the SupFRP® GFRP SDA Bolt redefines what a self drilling anchor bolt can achieve. By solving the dual challenge of rapid installation in unstable ground and machinery protection through cuttability, it delivers tangible value to contractors and asset owners alike. For any project confronting soft rock, clay, or the need for reliable ground anchor bolt factory solutions, SupAnchor's innovative drill-and-grout bolt offers a futureproof, high-performance choice.
