In the demanding world of underground construction and mining, reliable ground support is not just a preference—it is a necessity. Projects in unstable geological conditions, from deep tunnels to high-stress mining stopes, require reinforcement solutions that can be installed quickly, provide immediate load-bearing capacity, and integrate seamlessly with grouting systems. SupAnchor, a leading manufacturer of self drilling anchor systems, addresses these challenges with the introduction of the SupShell Expansion Rock Bolt System. Designed for strata control and geotechnical reinforcement, this system combines a mechanical expansion shell with a hollow bar configuration, enabling rapid installation, immediate anchorage, and subsequent grouting—all within a single bolt.
The SupShell system is engineered to meet the rigorous demands of modern construction sites. Whether it is a highway tunnel intersecting fractured rock, a metro station in soft ground, or a deep mine requiring immediate roof support, the SupShell bolt delivers performance where time and safety are critical. By integrating an expansion shell that grips the borehole wall instantly upon installation, the system eliminates the waiting time associated with resin or cement grout setting, allowing crews to advance excavation cycles without delay.
Moreover, the SupShell expansion shell hollow anchor is a drill-and-grout bolt that offers both mechanical and chemical anchorage. The injection system facilitates quick and easy grouting: grout enters through the center hole of the bolt from the bottom and fully covers the bolt. A plastic sealing element is utilized to seal the drill hole, preventing the leakage of grout or resin and ensuring the hole is completely filled. This dual-action capability—mechanical plus chemical anchorage—provides exceptional long-term load capacity and corrosion protection, making the SupShell bolt suitable for both temporary and permanent support applications.
The SupShell Expansion Rock Bolt System is available in a range of models to suit various borehole diameters and ground conditions. The core models—R25, R28, R32 (with EX36, EX40, EX44, EX46, EX48 specifications)—offer outside diameters from 36 mm to 48 mm, corresponding to drilling hole diameters from Φ40–Φ42 mm up to Φ52–Φ54 mm. This modular approach ensures that the right bolt can be selected for the specific geology, whether it is hard rock or fractured strata. The bolts are manufactured from CK45 steel, a medium-carbon steel known for its balance of strength and ductility, and feature ISO 10208 threads (R25, R28, R32) for compatibility with standard drilling and tensioning equipment. For projects requiring corrosion protection, a galvanized option under ISO 1461 is available, extending service life in aggressive environments.
A key feature of the SupShell system is its hollow core, which allows injection of grout or resin through the center of the bolt. After mechanical anchorage is achieved, grout is pumped from the bottom of the borehole upward, completely filling the annular space and encapsulating the bolt. This process not only locks the bolt in place but also bonds the surrounding rock mass, creating a composite reinforcement zone. The plastic sealing element ensures that the grout column remains intact without loss, even in fractured or porous ground.
| Model | Outside Diameter (mm) | Drilling Hole Diameter (mm) | Length (mm) | Weight (kg/m) |
|---|---|---|---|---|
| R25/EX36 | 36 | Φ40–Φ42 | 132 | 0.62 |
| R28/EX40 | 40 | Φ44–Φ46 | 136 | 0.84 |
| R32/EX44 | 44 | Φ48–Φ50 | 135 | 0.82 |
| R32/EX46 | 46 | Φ50–Φ52 | 176 | 1.2 |
| R32/EX48 | 48 | Φ52–Φ54 | 165 | 1.45 |
In field applications, the SupShell bolt's installation sequence is straightforward. A drill hole is created using a standard drill-and-grout bolt method, the bolt with expansion shell is inserted, and the expansion shell is activated by rotation or tension, depending on the design. This mechanical anchorage immediately grips the surrounding rock, allowing the bolt to carry load within minutes. Subsequently, grout is injected through the hollow bar, filling voids and creating a monolithic reinforcement column. This process is especially beneficial in weak or broken ground where borehole collapse is a risk—the expansion shell provides immediate stabilization while grouting consolidates the surrounding material.
Several key features distinguish the SupShell system in demanding site conditions:
The SupShell Expansion Rock Bolt System is engineered for a wide range of geotechnical reinforcement challenges. In mining operations, particularly in underground coal or metal mines, the immediate anchorage feature is critical for securing the roof after each blast. Crews can install SupShell bolts during the drilling cycle and continue operations without waiting for resin to cure. This leads to improved advance cycles and significant time savings—direct benefits highlighted by SupAnchor. Similarly, in tunneling projects, where encountering unexpected fault zones or water inflows is common, the SupShell bolt provides a rapid response solution. The system's compatibility with pre-grouting or post-grouting allows engineers to adapt to changing ground conditions, ensuring ground control is maintained throughout the tunnel drive.

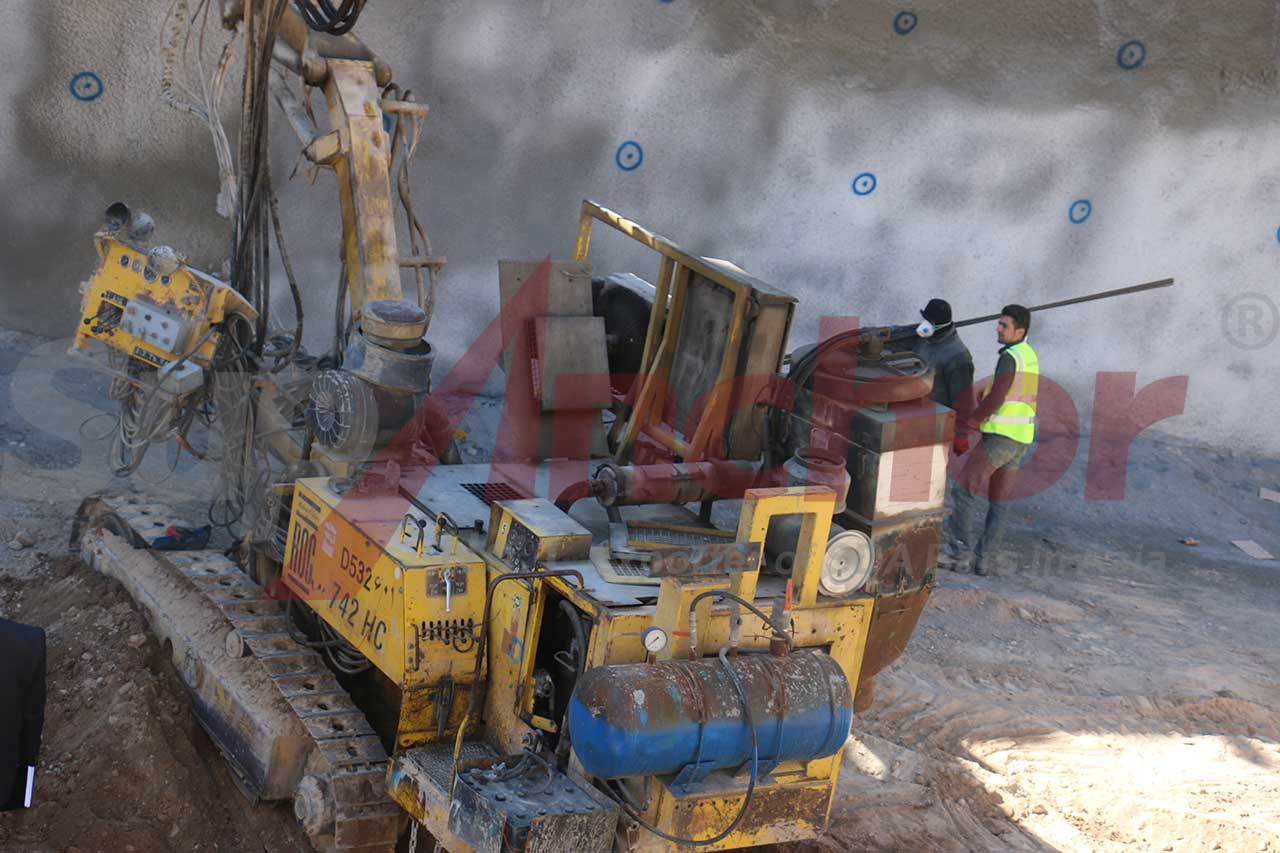

Another key application is in slope stabilization and foundation work. The hollow bar anchor design permits simultaneous drilling and grouting in loose or cobbly soils, making it a preferred choice for soil nail systems. While the SupShell is primarily a rock bolt, its integration with self drilling anchor technology extends its utility to challenging ground where conventional drilling methods fail. The expansion shell adds an extra layer of security, particularly when immediate load transfer is required before grout sets.
For instance, in a recent highway tunnel project through heavily fractured granite, conventional resin bolts required lengthy setting times, causing delays. By switching to SupShell bolts, the contractor achieved immediate roof support, allowing mucking and scaling operations to proceed concurrently. The post-grouting feature ensured full encapsulation, and the project reported a 20% reduction in support cycle time. Such outcomes are typical for the SupShell system, underscoring its value as a geotechnical reinforcement system.
Moreover, the SupShell's corrosion protection options (galvanized under ISO 1461) and CK45 steel composition ensure durability in harsh environments, including marine or chemically aggressive soils. This makes it suitable for permanent support in infrastructure projects like dam abutments, bridge foundations, and retaining walls.
The global infrastructure and mining sectors are under constant pressure to improve safety, reduce downtime, and lower costs. Traditional rock bolting methods often require separate steps for drilling, bolt installation, and grouting, each consuming valuable time. The SupShell system streamlines this process by combining mechanical anchorage with a hollow bar for grouting, effectively functioning as a drill-and-grout bolt. This integration reduces the number of equipment changeovers and labor hours, translating into direct cost savings for contractors. According to SupAnchor, the system delivers improved fortification cycles and savings in time and workmanship.
Furthermore, the dual anchorage mechanism—mechanical expansion plus chemical grouting—provides redundancy that enhances safety. In the event of grout shrinkage or rock movement, the expansion shell continues to carry load, preventing sudden failure. This reliability is crucial in high-risk environments like deep mines or seismically active regions. As a ground anchor bolt factory, SupAnchor’s SupShell line meets the demand for high-performance, versatile reinforcement systems that can be deployed rapidly across multiple project types.
The product's adherence to EN 10083 and ISO standards signals compliance with European and international quality benchmarks, facilitating its adoption in global markets. The availability of multiple expansion shell models (R25, R28, R32 with EX36–EX48) ensures that engineers can select the optimal configuration for their specific borehole diameter, making it a scalable solution for both small-scale tunneling and large mining operations.
SupAnchor has established itself as a professional and innovative manufacturer of self drilling anchor systems. With a focus on research and development, the company continuously refines its product portfolio to meet evolving geotechnical demands. The SupShell Expansion Rock Bolt System is a testament to this commitment, integrating advanced engineering with practical site needs. SupAnchor’s certifications, including ISO 9001 for quality management and the availability of ISO 1461 galvanizing, underscore its dedication to delivering reliable, compliant products. The company’s collaborative approach—working closely with contractors and engineers to tailor solutions—has led to successful applications in infrastructure projects across Europe, the Americas, and Asia.
As a soil nail system manufacturer and self drilling anchor bolt supplier, SupAnchor’s global footprint includes partnerships with major construction firms and mining companies. The SupShell system, in particular, has been adopted in projects requiring rapid ground support, such as emergency tunnel repairs and high-production mining stopes. The company’s ability to provide technical guidance and after-sales support further strengthens its reputation as a trusted partner in geotechnical engineering.
In conclusion, the SupShell Expansion Rock Bolt System represents a significant advancement in ground reinforcement technology. By combining immediate mechanical anchorage with efficient grouting, SupAnchor provides a tool that enhances safety, accelerates construction, and reduces costs. As the demand for robust geotechnical reinforcement systems grows, SupAnchor’s innovative spirit and global expertise position it as a key player for the world’s most challenging underground projects.
Construction professionals and project owners seeking a reliable, high-performance ground support solution are encouraged to consider the SupShell Expansion Rock Bolt System. Its proven design and versatile specifications make it an indispensable component in modern geotechnical engineering.
