SupAnchor T Thread Self-Drilling Hollow Anchor Sets New Benchmark in Geotechnical Reinforcement

In a challenging tunneling project in the European Alps, engineers faced unconsolidated soil conditions that made conventional drilling and anchoring slow, costly, and risky. The project team turned to SupAnchor's T Thread Self-Drilling Hollow Anchor, a drill-and-grout bolt that integrates drilling, grouting, and reinforcement in a single operation. This geotechnical reinforcement system not only accelerated the construction schedule but also significantly improved safety and reliability. As infrastructure demands grow worldwide, the T Thread hollow bar anchor is emerging as a go-to solution for complex ground engineering.

Technical Parameters and Engineering Value

The T Thread self-drilling hollow anchor follows the "3-in-1 principle": its ribbed hollow steel bar serves simultaneously as a sacrificial drilling rod, an injection tube, and a reinforcing bar. This eliminates the need for separate casing systems, drastically reducing construction time—especially in unconsolidated or cohesive soils where traditional drilling is cumbersome. The thread and rib design are optimized for bonding: the relative rib area (fR) ranges from 0.21 to 0.33, close to the theoretical optimum for maximum grout adhesion. Additionally, the ribs are set at a 45° angle, which reduces splitting forces on the surrounding rock or soil; at maximum load, crack widths remain below 0.1 mm, preserving structural integrity.

The anchor is available in various diameters and load capacities to meet diverse project requirements. Key technical data for selected T Thread models are summarized below:

These specifications address critical engineering challenges. The high ultimate loads (up to 660 kN and beyond for T40 models) allow the self drilling anchor bolt to support heavy loads in deep excavations or high-stress rock masses. The standardized T thread ensures quick, secure on-site connections and compatibility with matching accessories such as nuts, couplers, and plates, simplifying logistics and reducing installation errors. Furthermore, three anti-corrosion options—hot-dip galvanizing, SupCoating (HDG + epoxy), and stainless steel—extend service life in environments ranging from dry inland soils to aggressive coastal or chemical settings.

Application Scenarios and Market Adaptability

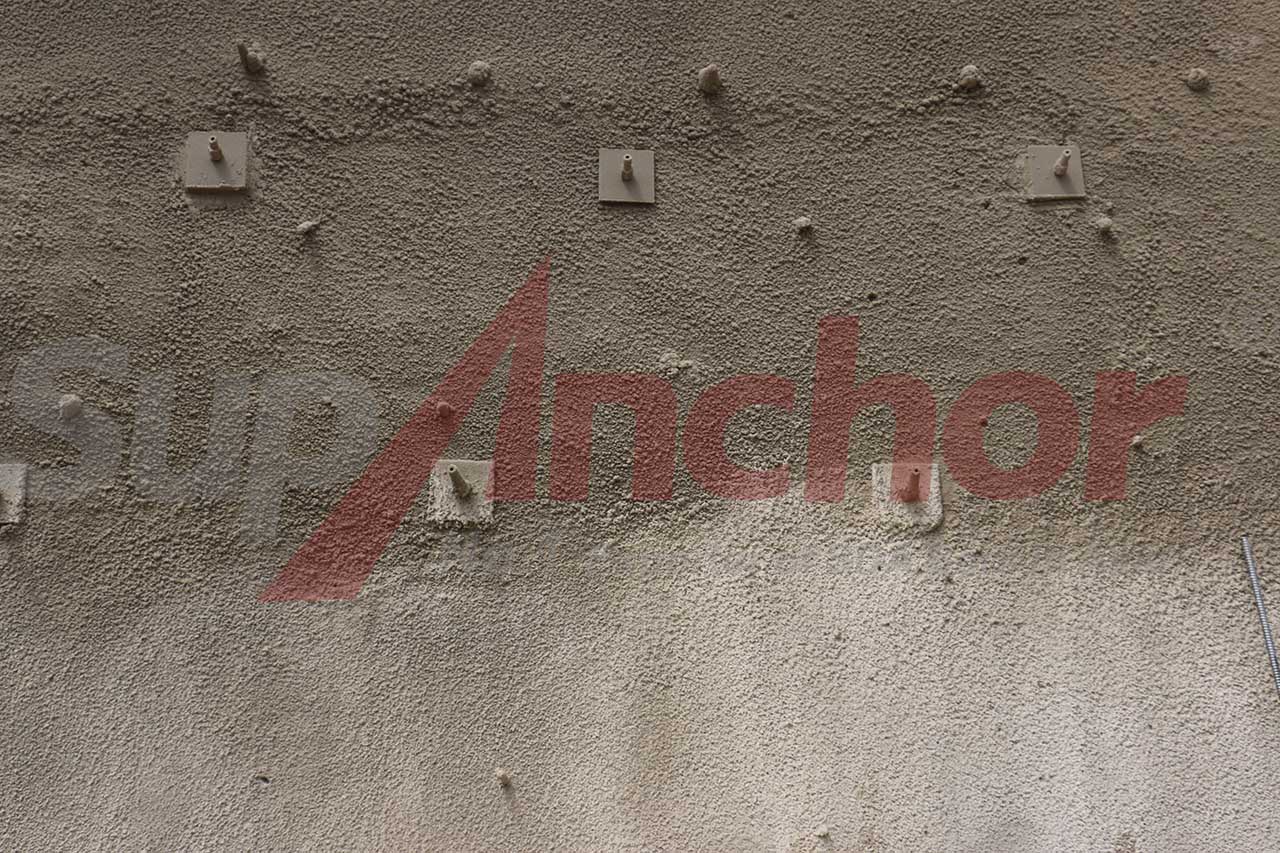

The T Thread self-drilling hollow anchor excels across a wide range of geotechnical applications. In tunneling engineering, it is used for tunnel face support, forepoling, and surrounding rock reinforcement, preventing collapse during excavation. For slope stabilization, it reinforces natural or man-made slopes—such as highway embankments or mining waste piles—to resist landslides and erosion. In foundation and retaining structures, the hollow bar anchor improves load-bearing capacity in soft or cohesive soils, essential for building foundations, retaining walls, and embankments. The system is equally suited for permanent support (e.g., bridge foundations) and temporary reinforcement (e.g., construction site shoring), depending on the chosen anti-corrosion treatment.

Standardization to the T International Standard is a key market advantage. It ensures consistent thread geometry, enabling contractors in Europe, North America, and beyond to adopt the system without specialized training or custom equipment. The drill-and-grout bolt can be installed with standard rotary percussive drilling rigs, reducing capital costs and streamlining project timelines. Whether in Alpine tunnels, Scandinavian rock slopes, or coastal infrastructure in the Mediterranean, the T Thread anchor adapts to varied geological and environmental conditions.

Industry Value and Brand Influence

Global infrastructure development—including transportation networks, renewable energy foundations, and urban underground spaces—demands reliable ground reinforcement. The T Thread self drilling anchor system addresses this need by combining installation efficiency, high load capacity, and durability. Its integrated design reduces the number of components and operations, lowering overall project costs and carbon footprint. For mining and tunneling contractors, this translates into faster advance rates and improved worker safety.

SupAnchor, recognized as the No.1 manufacturer and exporter of self-drilling anchors in Asia, has built its reputation on continuous research and development, strict quality control, and adherence to international standards. The company's ISO-certified production facilities and extensive global project portfolio underscore its commitment to professional engineering, innovative solutions, and collaborative partnerships. The T Thread series, with its broad model range (from T30 to T114, including TR variants), demonstrates SupAnchor's ability to serve both small-scale soil nail system manufacturer needs and large-scale ground anchor bolt factory contracts.

As infrastructure challenges grow more complex, SupAnchor continues to advance the field of geotechnical reinforcement. The T Thread Self-Drilling Hollow Anchor exemplifies a fusion of engineering precision and practical field performance, positioning the company as a trusted partner for projects that demand safety, efficiency, and long-term stability.
