In the rugged terrain of a major transportation corridor expansion project, engineers faced a formidable geotechnical challenge: stabilizing steep, weathered rock slopes while maintaining tight construction schedules. The solution came in the form of a self drilling anchor system supplied by SupAnchor, a leading soil nail system manufacturer and ground anchor bolt factory. The project, which involves widening a critical highway section through a mountainous region, required a reliable anchoring method capable of drilling and grouting in a single pass—an approach that not only accelerated installation but also ensured exceptional load-bearing performance in unstable ground conditions.
The site geology consisted of highly fractured schist and sandstone interbedded with clay seams, where conventional drilling methods often led to borehole collapse and inefficient grouting. SupAnchor's self drilling anchor bolt technology, featuring a hollow bar design, provided a practical answer. By using the anchor bar itself as the drill rod, contractors eliminated the need for temporary casing, drastically reducing installation time and material waste. This drill-and-grout bolt method also allowed for immediate grout injection through the hollow core, filling voids and bonding the anchor to the surrounding rock or soil.
The slope stabilization works were part of a $120 million highway upgrade aimed at improving safety and capacity along a route notorious for rockfalls and landslides. The project site spans approximately 3.2 kilometers of cut slopes ranging from 15 to 35 meters in height, with some sections exhibiting loose overburden and heavily jointed rock masses. Conventional rock bolts and soil nails proved either too slow to install or insufficient in providing the required pull-out resistance, especially in zones with high groundwater seepage.
As a geotechnical reinforcement system, the hollow bar anchor offered distinct advantages. Its continuous thread profile allowed for the attachment of drill bits, couplers, and nuts without sacrificing structural integrity. The system's ability to be installed using standard rotary-percussive drilling rigs made it adaptable to the contractor's existing equipment fleet. Moreover, the self drilling anchor for retaining walls could be installed at various inclinations, enabling the stabilization of both vertical and sloped faces.
The project's design called for over 10,000 linear meters of anchors, with lengths varying from 6 to 12 meters depending on slope geometry and rock quality. This scale underscored the need for a reliable SDA bolt factory direct supply partner capable of delivering consistent quality and timely logistics. SupAnchor's production capacity and ISO-certified manufacturing processes ensured that all anchors met the stringent requirements of the project's specification.

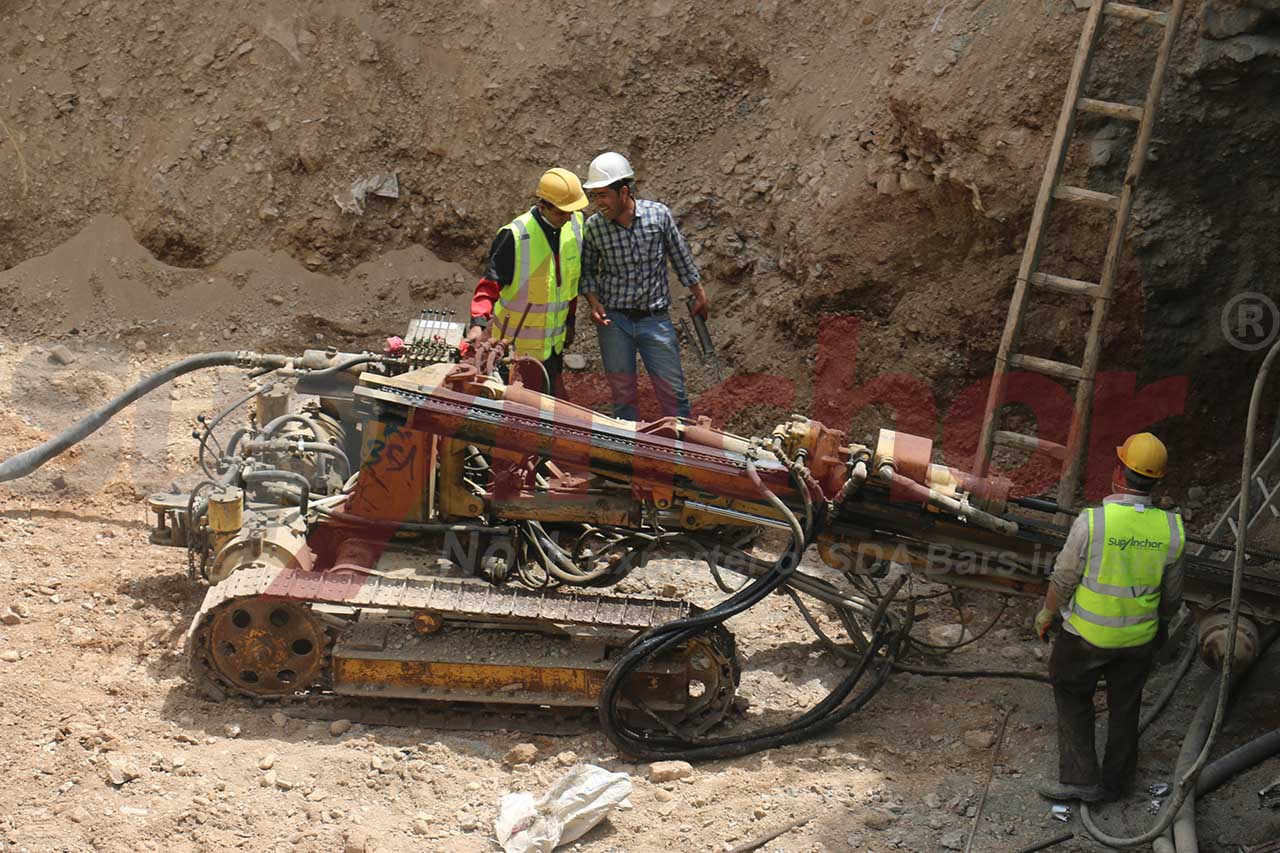

The construction sequence involved drilling with a hollow bar anchor, followed by simultaneous grout injection under pressure. The image above shows a crawler drill rig positioning a self drilling anchor bolt on a steep slope face. The rig's operator monitors the drilling parameters, ensuring that the bar advances through the fractured rock without deviation. Once the desired depth is reached, cementitious grout is pumped through the bar's hollow core, exiting at the drill bit and filling the annular space. This process creates a rough, interlocking bond along the entire anchor length, resulting in high load transfer efficiency.
Key technical parameters of the SupAnchor self drilling anchor system used in this project are summarized in the table below:
| Parameter | Specification |
|---|---|
| Anchor Bar Diameter | 32 mm, 38 mm, 51 mm (R32, R38, R51 thread types) |
| Ultimate Tensile Strength | ≥ 660 MPa (up to 830 MPa for high-strength grades) |
| Yield Strength | ≥ 525 MPa |
| Standard Length | 2 m to 12 m (custom lengths available) |
| Corrosion Protection | Hot-dip galvanizing, epoxy coating, or double corrosion protection (DCP) system |
| Bond Strength (grout-to-bar) | Typically 3–5 MPa depending on grout mix and rock conditions |
The high tensile strength of the self drilling anchor bolt ensured that the anchors could carry the design loads even in the most critical slope sections. The 38 mm diameter bars were predominantly used, providing a balance between drillability and load capacity. For areas with extremely fractured rock, 51 mm bars with DCP were specified to enhance corrosion resistance and structural robustness. The micropile hollow bar anchor configuration was also employed at slope toes where deeper embedment into competent bedrock was required.
The versatility of the ground stabilization anchor system allowed the contractor to switch between drilling modes (rotary-percussive or rotary-only) depending on ground conditions. In zones with high clay content, a rotary-only mode with low grout pressure prevented hydrofracturing, while in hard rock, percussive drilling efficiently advanced the bar. This adaptability reduced downtime and improved overall productivity.
The successful application of SupAnchor's anchor bolt system for geotechnical engineering on this highway project reflects a broader industry shift toward more efficient and resilient slope stabilization methods. As infrastructure ages and climate change intensifies extreme weather events, the demand for reliable ground reinforcement has surged. According to a recent market report, the global geotechnical engineering market is projected to grow at a CAGR of 6.2% over the next five years, driven by investments in transportation, energy, and urban development.
The self drilling anchor system is particularly well-suited for projects in remote or congested areas where space is limited. Its single-pass installation eliminates the need for separate drilling and anchor insertion steps, reducing both equipment footprint and labor costs. For tunneling projects, the rock bolt for underground mining variant of the hollow bar anchor provides immediate support in advancing headings, enhancing worker safety and tunnel stability.
In the context of retaining wall construction, the self drilling anchor for retaining walls has become a preferred alternative to traditional tiebacks, especially in urban environments where right-of-way restrictions and utility conflicts complicate conventional drilling. The ability to install anchors through existing walls or from narrow benches makes the system indispensable for basement excavations and bridge abutment repairs.
Moreover, the self drilling bolt for civil engineering is increasingly specified for slope remediation projects along highways and railways, where minimizing traffic disruption is critical. The rapid installation and immediate load-bearing capacity allow contractors to open lanes sooner, reducing economic losses from detours and closures.
SupAnchor has established itself as a trusted soil nail system manufacturer and ground anchor bolt factory through continuous innovation and adherence to international standards. The company's manufacturing facilities are certified to ISO 9001, ISO 14001, and ISO 45001, ensuring quality, environmental stewardship, and occupational safety. All self drilling anchor bars undergo rigorous testing, including tensile, shear, and fatigue tests, to guarantee performance under demanding conditions.
The brand's philosophy—Professional, Innovative, Collaborative—is evident in its approach to customer support. From initial design consultation to on-site technical assistance, SupAnchor works closely with contractors and engineering firms to tailor anchoring solutions to specific project needs. This collaborative spirit was demonstrated on the highway slope stabilization project, where SupAnchor's engineers provided real-time drilling parameter recommendations and grout mix designs to overcome unexpected ground variations.
Looking ahead, SupAnchor is investing in research and development to further enhance the corrosion resistance and load capacity of its geotechnical reinforcement system. New products, such as the DCP hollow bar anchor with a sacrificial anode layer, promise extended service life in aggressive environments like marine or sulfate-rich soils. As global infrastructure demands evolve, SupAnchor remains committed to delivering reliable, cost-effective anchoring technologies that support safe and sustainable construction.
In conclusion, the highway slope stabilization project exemplifies how advanced self drilling anchor system technology can overcome complex geotechnical challenges while optimizing construction efficiency. With its robust hollow bar anchor design and proven field performance, SupAnchor continues to be a preferred partner for infrastructure projects worldwide, reinforcing the ground beneath our feet—literally and figuratively.
