In the rugged terrain of the Alps, a critical transportation corridor is taking shape, relying on an advanced geotechnical reinforcement system to secure unstable slopes and excavate tunnels through fractured rock. The project, part of a broader European initiative to improve cross-border connectivity, has selected SupAnchor's self drilling anchor system as a core component of its ground stabilization strategy. With geology characterized by highly fractured schist, water-bearing faults, and loose overburden, the challenges are immense: borehole collapse, water ingress, and the need for rapid installation under harsh alpine conditions.
The self drilling anchor system, also known as a hollow bar anchor, combines drilling, grouting, and anchoring in a single operation, significantly reducing installation time and improving bond strength in difficult ground conditions. Traditional drilling methods had proven inefficient and costly on this site, often requiring casing and multiple passes. Engineers turned to SupAnchor's drill-and-grout bolt technology, which has demonstrated superior performance in similar European tunneling and slope stabilization projects. The project involves a 4.2-kilometer twin-tube highway tunnel and several kilometers of retaining walls and slope stabilization works. The self drilling anchor system was specified for portal support, temporary face stabilization, and permanent rock reinforcement. According to the site geologist, the system's ability to drill through unstable formations without casing reduced the risk of borehole collapse and ensured continuous progress, saving weeks on the schedule.
The terrain is particularly demanding: the tunnel alignment passes through a transition zone between competent limestone and heavily fractured phyllite, with groundwater pressures exceeding 2 bar in some sections. Slope angles along the approach roads reach 60 degrees, with a history of shallow landslides. For the retaining structures, the design called for a ground stabilization anchor system that could be installed quickly and provide immediate support, as the narrow working platforms limited access for heavy equipment. SupAnchor's system met these challenges head-on, offering a versatile solution that adapts to variable ground conditions without changing equipment.
At the heart of the solution is SupAnchor's self drilling anchor bolt, a continuously threaded hollow bar that serves as both drill rod and reinforcement element. The bars are manufactured from high-strength steel with a minimum yield strength of 800 MPa and ultimate tensile strength of 1000 MPa. Diameters ranging from 25 mm to 51 mm are available, with the project primarily utilizing 32 mm and 38 mm bars. Standard lengths are 3 meters and 4 meters, coupled on-site to achieve deeper anchorage up to 12 meters where required. The hollow core allows for simultaneous grouting through the bit, creating a full-column grout bond around the entire length of the anchor, which enhances load transfer and prevents corrosion. Corrosion protection is a critical consideration for permanent structures in alpine environments with aggressive groundwater. SupAnchor provided hot-dip galvanized and epoxy-coated bars for the most demanding sections, ensuring a design life exceeding 100 years. The site also utilized double corrosion protection for anchors installed in a zone with high sulfate content.
The on-site installation process involves a hydraulic drill rig equipped with a rotary-percussion head. A sacrificial drill bit is attached to the front of the hollow bar, and grout is pumped through the bar as drilling progresses. This method eliminates the need for a separate casing and reduces the number of construction steps. Field pull-out tests confirmed that the anchors achieved design loads of 350 kN for the 32 mm bars and 500 kN for the 38 mm bars, exceeding specified requirements. The installation rate averaged 15 meters per hour per rig, which is nearly double the productivity of conventional self drilling anchor for retaining walls with casing. The grout mix was adjusted to account for the high groundwater flow, using a thixotropic additive to prevent washout.
The following table summarizes the key technical parameters of the SupAnchor self drilling anchor system used on this project:
| Parameter | Specification |
|---|---|
| Bar Diameter | 25 mm, 32 mm, 38 mm (other sizes available) |
| Ultimate Tensile Strength | ≥ 1000 MPa |
| Yield Strength | ≥ 800 MPa |
| Length | 3 m / 4 m standard, coupled to required depth |
| Corrosion Protection | Hot-dip galvanized, epoxy coated, or double corrosion protection |
| Grouting Method | Through-bar grouting with cementitious or resin grout |
These parameters directly address the site's challenges: the high tensile strength allows for longer anchors and higher loads in fractured rock; the hollow core and sacrificial bit enable drilling through loose, water-charged ground without hole collapse; and the corrosion protection options ensure longevity in the aggressive alpine environment. The project's quality control included regular testing of grout strength and anchor load capacity, with all results surpassing the specified criteria.

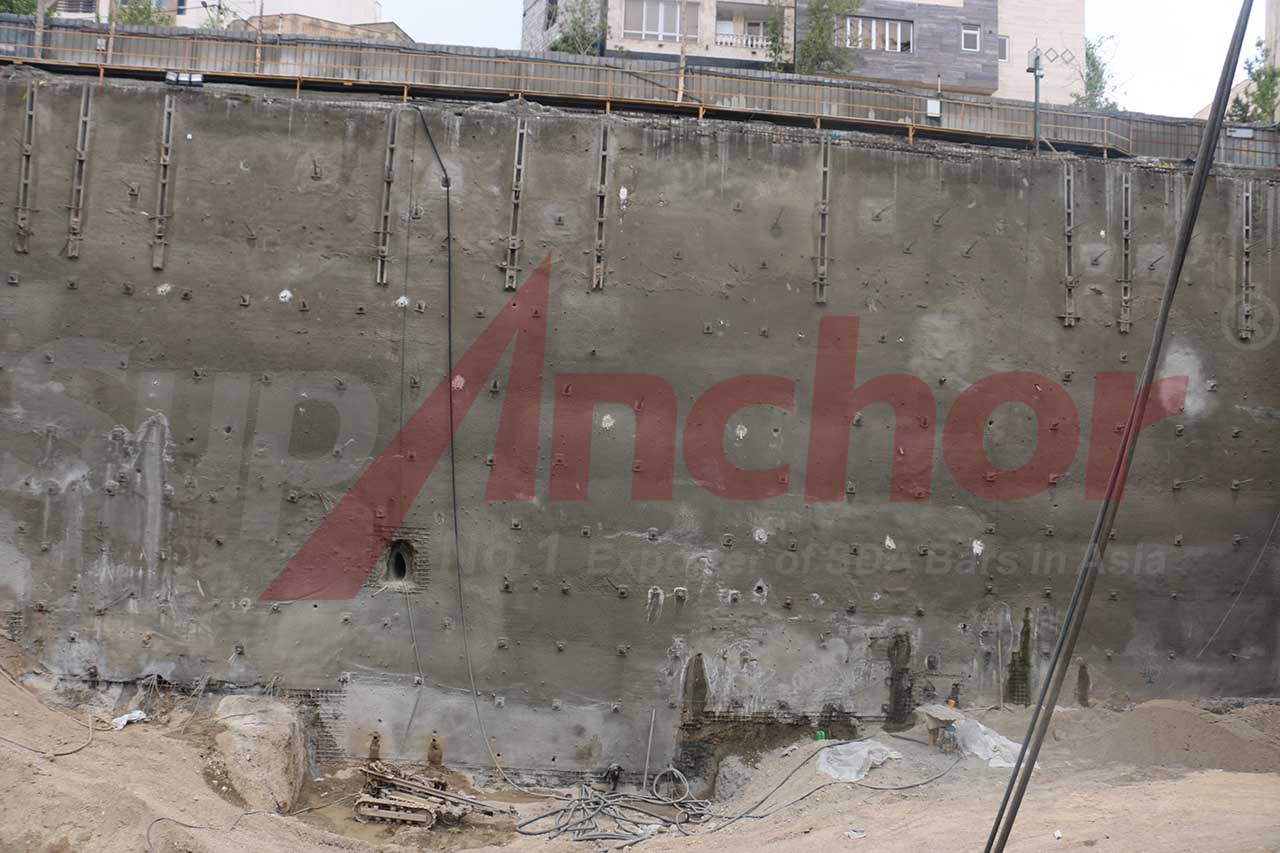

In addition to the tunnel works, the project includes extensive slope stabilization using self drilling anchor for retaining walls. Portions of the alignment run along steep hillsides where traditional soil nailing would require extensive pre-drilling and casing. SupAnchor's micropile hollow bar anchor system was employed to create reinforced soil structures that resist lateral earth pressures and prevent landslides. The system's versatility allowed the contractor to install anchors at various inclinations, adapting to the irregular topography. For a particularly unstable slope, a grid of 38 mm micropiles was installed at 1.5-meter spacing, achieving a factor of safety above 1.5 under seismic loading conditions.
The success of this project underscores the growing importance of self drilling anchor systems in modern geotechnical engineering. Across Europe and North America, infrastructure renewal and expansion projects are encountering increasingly complex ground conditions, from urban soft soils to mountainous rock. The self drilling anchor bolt offers a reliable and cost-effective solution where conventional methods fail, reducing project risks and enhancing safety. In the context of aging infrastructure, the ability to install anchors in limited-access areas without large drilling rigs is a significant advantage, as demonstrated on this project where the terrain restricted equipment size.
From a broader perspective, the ground stabilization anchor system used here contributes to the global push for resilient infrastructure. The United Nations Sustainable Development Goals emphasize the need for safe and sustainable transport systems, and geotechnical solutions like hollow bar anchor are essential to achieving that vision. By reducing construction time, minimizing environmental disturbance, and enhancing long-term stability, these technologies support both economic and ecological objectives. The project's environmental impact assessment highlighted the reduced spoil volume compared to conventional methods, as the hollow bar system generates less cuttings and requires fewer drilled holes for the same support capacity.
Moreover, the project demonstrates the value of partnering with a specialized soil nail system manufacturer. SupAnchor's engineering team provided design support, including anchor load calculations, spacing recommendations, and corrosion protection selection, ensuring that the specified system met European standards (EN 14490, EN 1537). This collaborative approach reduced risk and optimized the final design, resulting in a more economical and robust solution. The contractor reported that the technical support was a key factor in achieving the aggressive project schedule.
The global market for geotechnical reinforcement system is projected to grow steadily over the next decade, driven by investments in tunneling, mining, and slope stabilization. In particular, the demand for rock bolt for underground mining and self drilling bolt for civil engineering applications is expected to rise as ore bodies become deeper and infrastructure projects become more ambitious. SupAnchor, as a leading ground anchor bolt factory, is well positioned to meet this demand through continuous innovation and quality manufacturing. The company's ability to produce custom lengths and diameters on short lead times has made it a preferred supplier for contractors worldwide.
SupAnchor's manufacturing facilities are ISO 9001, ISO 14001, and ISO 45001 certified, ensuring consistent quality and environmental responsibility. The company operates as an SDA bolt factory direct supply, offering competitive pricing and rapid delivery to project sites worldwide. Its self drilling anchor system has been deployed in over 50 countries, including major projects in Europe, the Americas, and Asia, showcasing the brand's global reach and technical expertise. In addition to the product range, SupAnchor provides on-site training and commissioning support, which was utilized during the initial mobilization on this project to ensure correct installation procedures.
Looking ahead, the integration of digital monitoring and advanced materials will further enhance the performance of anchor bolt system for geotechnical engineering. SupAnchor is actively researching new steel alloys and corrosion-resistant coatings to extend the service life of its products in harsh environments. The company's commitment to research and development aligns with its core values of being professional, innovative, and collaborative. As infrastructure projects face increasing scrutiny regarding long-term durability and maintenance costs, the use of high-quality anchoring systems becomes a critical factor in lifecycle cost analysis.
As this European infrastructure project moves toward completion, the role of SupAnchor's self drilling anchor technology stands as a testament to the power of specialized geotechnical solutions. The combination of robust design, efficient installation, and long-term reliability ensures that the transportation corridor will serve communities safely for generations to come. For contractors and engineers facing challenging ground conditions, the lessons learned here highlight the importance of selecting a proven, high-performance anchoring technology. The project's success has already influenced neighboring infrastructure initiatives, with several design teams specifying SupAnchor's system for upcoming works.
In conclusion, the successful application of SupAnchor's self drilling anchor bolt in this demanding environment reinforces the company's position as a trusted partner in geotechnical engineering. With a focus on quality, innovation, and collaboration, SupAnchor continues to drive the industry forward, one anchored project at a time. The integration of advanced manufacturing, rigorous quality control, and field-proven performance makes SupAnchor a reliable choice for any ground stabilization challenge.
