In a recent infrastructure development project set in rugged mountainous terrain, engineers faced significant geotechnical challenges requiring a robust, efficient, and adaptable ground reinforcement solution. The project, involving slope stabilization and foundation support along a critical transportation corridor, demanded a system capable of overcoming difficult drilling conditions, variable rock quality, and the need for rapid installation without compromising safety or long-term performance. SupAnchor, a leading manufacturer of advanced anchoring technologies, supplied its proprietary self drilling anchor system to address these challenges. This article provides an in-depth look at the project background, technical parameters, on-site implementation, and the broader industry value of SupAnchor's solutions.

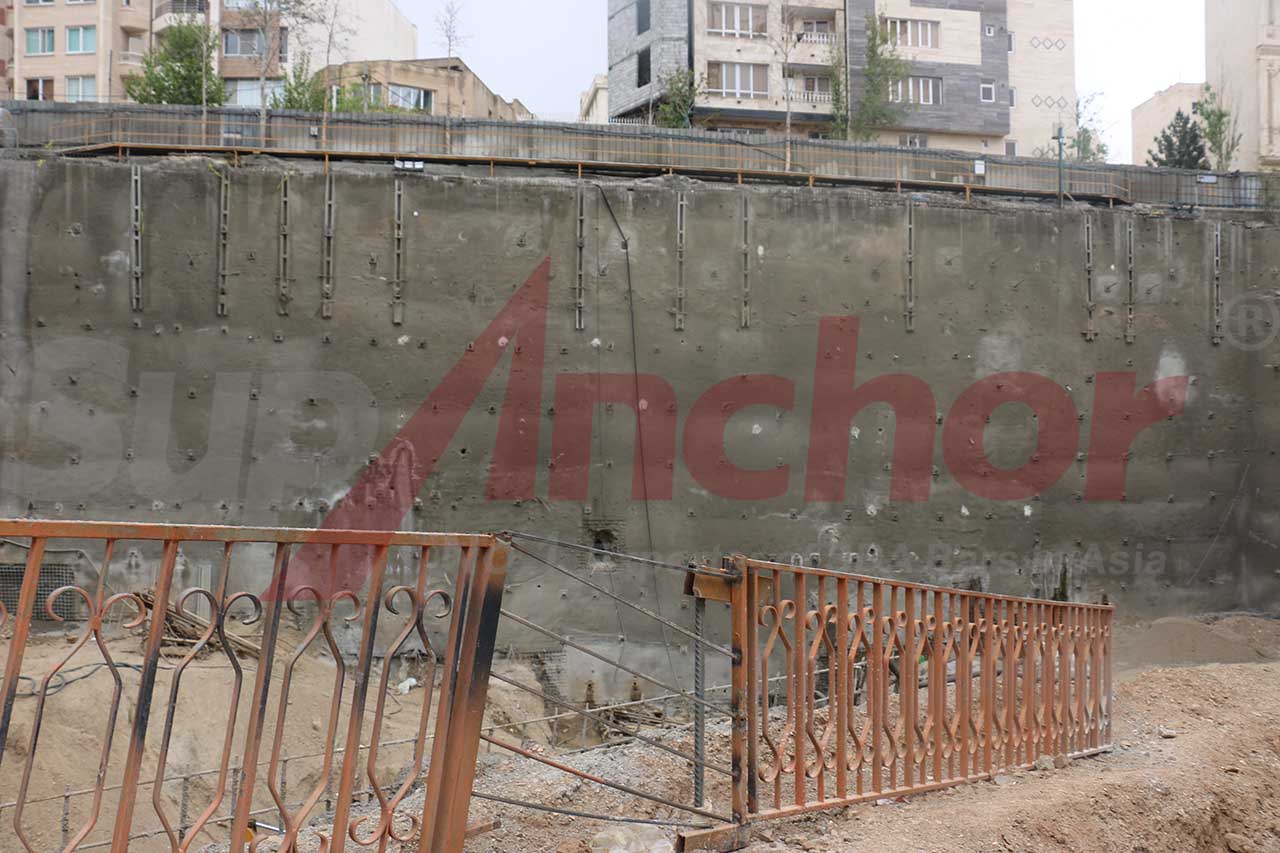

The construction site image above captures the essence of the project: steep, rocky slopes with limited access, where traditional anchoring methods would be either impractical or prohibitively time-consuming. The geology comprised fractured rock, loose overburden, and intermittent groundwater, creating a scenario where borehole collapse was a frequent risk. In such conditions, the use of a hollow bar anchor that combines drilling, grouting, and anchoring in a single operation is not merely advantageous—it is essential. SupAnchor's self drilling anchor bolt was selected for its ability to drill through unstable ground while simultaneously grouting, ensuring immediate stabilization and eliminating the need for temporary casing.
The project site is located in a region known for its complex geology, where mountain slopes are prone to erosion and landslides. The primary objective was to stabilize a 300-meter section of slope adjacent to a newly constructed highway, ensuring the safety of commuters and protecting the roadway from potential rockfall and soil movement. Initial geotechnical investigations revealed a heterogeneous subsurface profile: weathered rock, boulders, and soft soil lenses interspersed with competent bedrock. This variability made conventional drilling and anchoring methods unreliable, as boreholes would often collapse before the anchor could be installed.
Additionally, the project schedule was tight, and the remote location limited the availability of large drilling rigs. The contractor needed a solution that could be deployed with smaller, more maneuverable equipment and that would reduce installation time without sacrificing load capacity. SupAnchor's geotechnical reinforcement system proved to be the optimal choice, offering high tensile strength, corrosion protection, and adaptability to varying ground conditions.
Beyond slope stabilization, the project also included the construction of retaining walls and foundation support for bridge abutments. For these elements, the use of self drilling anchor for retaining walls was crucial, as it allowed for the installation of tensioned anchors directly through the wall face, providing immediate lateral support. The system's versatility enabled the contractor to address multiple geotechnical challenges with a single product family, streamlining logistics and training.
SupAnchor's self drilling anchor system is engineered to meet the rigorous demands of modern civil engineering. The system consists of a hollow steel bar with a sacrificial drill bit, which is used to drill through the ground. During drilling, grout is pumped through the hollow core, exiting at the bit and filling the annular space around the bar, thereby creating a grouted bond with the surrounding soil or rock. This process, known as drill-and-grout, not only stabilizes the borehole but also enhances the load transfer mechanism.
The following table summarizes the key technical parameters of the SupAnchor hollow bar anchor system used in this project:
| Parameter | Specification | Application Benefit |
|---|---|---|
| Bar Diameter | 32 mm and 38 mm | Provides high bending stiffness for drilling in fractured rock and dense soils. |
| Tensile Yield Strength | ≥ 550 MPa (for 32 mm), ≥ 500 MPa (for 38 mm) | Ensures adequate load capacity for slope stabilization and retaining wall anchors. |
| Ultimate Tensile Load | Up to 660 kN (for 32 mm), up to 800 kN (for 38 mm) | Allows for high design loads in both temporary and permanent applications. |
| Standard Lengths | 3 m, 4 m, 6 m, with couplers for extension | Facilitates handling in limited access areas and allows for deep anchor installation. |
| Corrosion Protection | Hot-dip galvanized (≥ 85 µm) or epoxy coating | Ensures long-term durability in aggressive environments, critical for permanent slope stabilization. |
These specifications were carefully matched to the project's requirements. For instance, the high tensile strength of the drill-and-grout bolt allowed the design team to reduce the number of anchors needed while maintaining the required factor of safety. The ability to couple bars enabled the installation of anchors up to 18 meters deep, reaching stable bedrock beyond the weathered zone. Corrosion protection was particularly important given the presence of groundwater and the need for a design life exceeding 50 years.
On site, the installation process was remarkably efficient. A compact hydraulic drilling rig equipped with a rotary-percussion head was used to drive the hollow bars. The operator controlled the drilling parameters based on real-time feedback, adjusting torque and feed pressure to navigate through boulders and voids. Grout was injected continuously at a pressure of 0.5–1.0 MPa, which was sufficient to fill voids but low enough to avoid fracturing the surrounding rock. The result was a fully grouted anchor that achieved its design load capacity within 24 hours of installation.
The construction site image also highlights the collaborative effort between SupAnchor's technical support team and the contractor. SupAnchor engineers were on site during the initial phase to provide training and ensure that the equipment and drilling parameters were optimized. This hands-on approach minimized downtime and ensured that the ground stabilization anchor system performed as expected in the challenging conditions.
The successful deployment of SupAnchor's self drilling anchor system in this project is emblematic of a broader shift in the geotechnical industry toward more efficient, integrated solutions. As infrastructure projects expand into increasingly difficult terrains—mountainous regions, urban environments with limited space, and areas with complex soil conditions—the demand for systems that reduce installation time, minimize environmental impact, and improve safety continues to grow.
One of the key trends is the adoption of ground anchor bolt factory products that offer high performance and traceability. SupAnchor, as a soil nail system manufacturer and supplier, adheres to strict quality control standards, including ISO 9001 and ISO 14001 certifications. Each batch of anchors is tested for mechanical properties and corrosion resistance, providing confidence to engineers and contractors. This emphasis on quality is critical for projects where anchor failure could have catastrophic consequences.
Another notable trend is the increasing use of self drilling anchors in underground mining and tunneling applications. While this project focused on slope stabilization, the same technology is employed as a rock bolt for underground mining, where speed and reliability are paramount. The ability to drill and grout in a single pass reduces the exposure of workers to unsupported ground, enhancing safety. Similarly, in tunneling, the use of micropile hollow bar anchor systems allows for rapid installation of pipe umbrellas and face stabilization bolts, contributing to faster advance rates.
From a sustainability perspective, the self drilling anchor system minimizes spoil generation compared to conventional drilling methods. Since the bar remains in the ground and grout fills the borehole completely, there is no need to remove drill cuttings or use temporary casing. This reduces waste and the environmental footprint of the construction site. Additionally, the reduced equipment size means lower fuel consumption and less disturbance to the surrounding ecosystem.
The project also illustrates the value of self drilling bolt for civil engineering in terms of total project cost. Although the unit cost of a self drilling anchor may be higher than a traditional anchor, the savings in labor, time, and equipment often result in a lower overall cost. In this case, the contractor reported a 30% reduction in installation time compared to an alternative method using cased boreholes, allowing the project to be completed ahead of schedule.
SupAnchor's commitment to innovation is evident in its continuous development of new products and technologies. The company invests heavily in research and development to improve the performance of its anchor bolt system for geotechnical engineering. For example, recent improvements in thread design have increased the fatigue resistance of the hollow bars, making them suitable for dynamic loading conditions such as those encountered in seismic zones or in structures subject to traffic vibrations.
As a SDA bolt factory direct supply provider, SupAnchor offers several advantages. Direct supply eliminates intermediaries, reducing costs and lead times. The factory is equipped with state-of-the-art production lines, including automated threading machines and computer-controlled heat treatment furnaces, ensuring consistent quality across large orders. Customers also benefit from custom engineering support, where SupAnchor's team can assist with anchor design, corrosion protection selection, and installation planning.
Globally, SupAnchor has supplied its products for numerous high-profile projects, including highway slope stabilization in Europe, retaining wall construction in North America, and underground mining operations in Australia and South America. The company's ability to meet diverse international standards, such as EN, ASTM, and ISO, has made it a trusted partner for contractors and engineering firms worldwide. This global experience is reflected in the performance of the geotechnical reinforcement system on this challenging mountain project.
The brand values of professionalism, innovation, and collaboration are more than just words for SupAnchor; they are embedded in every project. The company's technical support team works closely with clients from the initial design phase through installation and post-construction monitoring. In this project, SupAnchor provided not only the anchors but also the grout mix design recommendations and on-site training, ensuring that the contractor could install the system correctly and safely.
The product image above shows the SupAnchor self drilling anchor bolt with its sacrificial drill bit and coupler. The rugged construction and precision threading are clearly visible, reflecting the high manufacturing standards. Each component is designed to work together seamlessly, providing a reliable connection from the drilling rig to the tip of the anchor.
In conclusion, the successful application of SupAnchor's self drilling anchor system in this mountainous slope stabilization project underscores the technology's value in overcoming geotechnical challenges. By combining drilling, grouting, and anchoring into a single operation, the system delivered significant time and cost savings while ensuring long-term stability. As the construction industry continues to evolve, solutions like SupAnchor's ground stabilization anchor system will play an increasingly important role in building resilient infrastructure that can withstand the forces of nature and the test of time.
