In a demanding geotechnical project involving fractured rock and loose overburden along a new highway corridor in the European Alps, engineers turned to SupAnchor's SupFRP® GFRP Hollow Injection Bolt to overcome ground instability and achieve reliable long-term reinforcement. The project, which includes multiple cut slopes, tunnel portals, and temporary face support during TBM excavation, required a ground anchor solution that combined high tensile strength, corrosion resistance, and efficient grouting in difficult ground conditions.

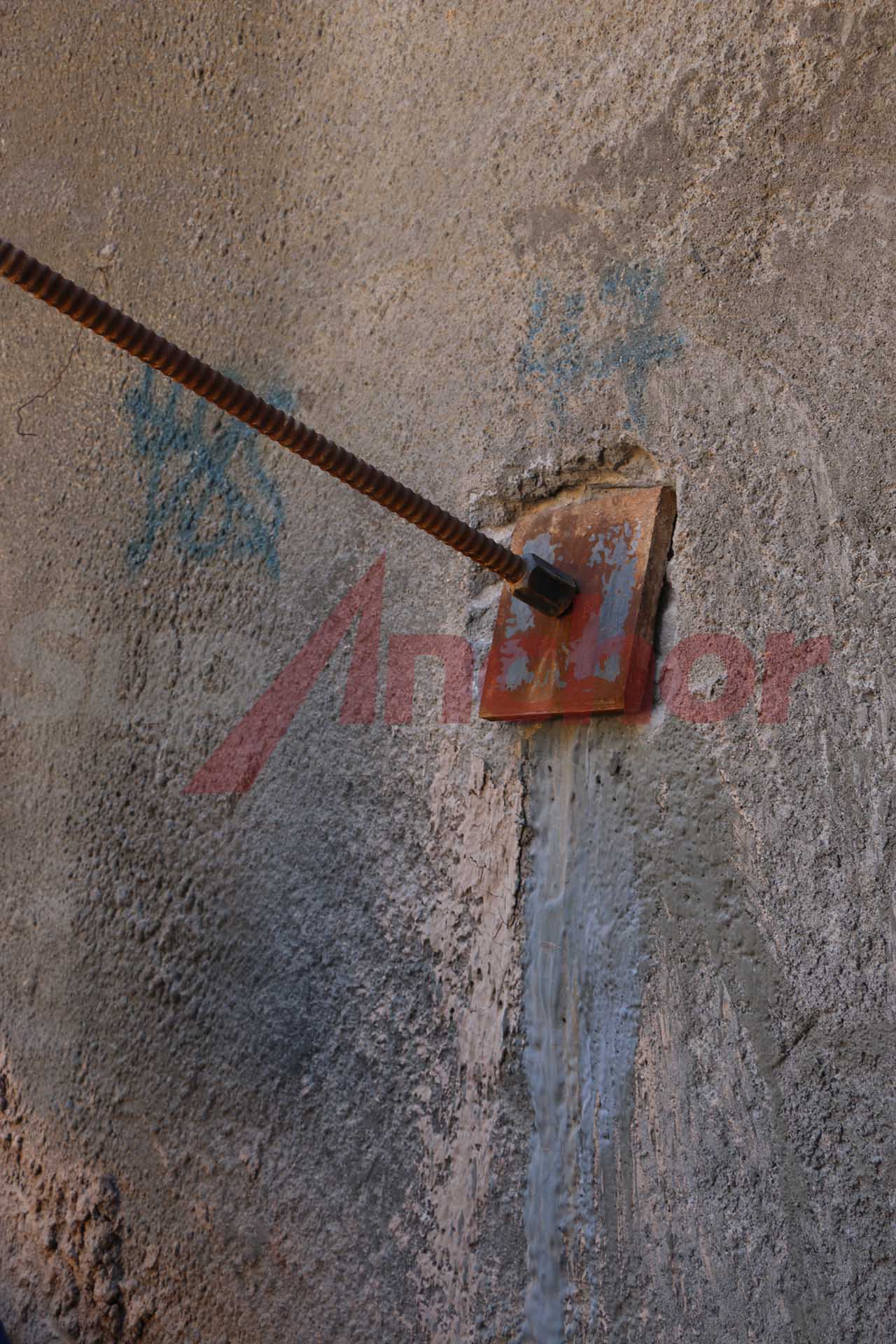

Construction site using SupAnchor self drilling anchor system in a typical geotechnical application.
The self drilling anchor system selected for the works integrates drilling, grouting, and anchoring in a single operation, significantly reducing installation time and improving safety in unstable ground. SupAnchor's hollow injection bolt, a type of hollow bar anchor, allows simultaneous drilling and grout injection, ensuring full encapsulation and immediate load transfer even in collapsing boreholes.
On the Alpine project, ground conditions varied from highly fractured schist to water-bearing alluvial soils. Traditional rock bolts often failed due to borehole collapse and poor grout bonding. The SupAnchor GFRP Hollow Injection Bolt, with its waved thread structure and high-pressure injection capability, provided a robust geotechnical reinforcement system that maintained integrity throughout installation and service life.
The bolt is available in multiple diameters and load capacities, as summarized in the table below. Engineers selected the H25/300 model for most slope stabilization work due to its 300 kN guaranteed tensile load and 30 MPa pressure resistance, which allowed high-pressure grouting to consolidate the surrounding ground. For TBM face support in squeezing ground, the H32/360 model with 360 kN tensile capacity and 15 mm internal diameter proved ideal for rapid installation and reliable face stabilization.
| Model | Outside Diameter (mm) | Internal Diameter (mm) | Guaranteed Tensile Load (kN) | Pressure Resistance (MPa) | Weight (kg/m) |
|---|---|---|---|---|---|
| H22/230 | 22 | 8 | 230 | 18 | 0.58 |
| H25/300 | 25 | 8 | 300 | 30 | 0.79 |
| H28/320 | 28 | 12 | 320 | 5 | 0.88 |
| H32/360 | 32 | 15 | 360 | 5 | 1.20 |
| H38/490 | 38 | 20 | 490 | 5 | 1.50 |
Key technical advantages of the GFRP hollow injection bolt include its waved thread structure, which enhances bonding with grout and surrounding rock, and its glass fiber reinforced polymer (GFRP) composition, providing excellent corrosion resistance in aggressive environments. The bolt's cuttability is particularly valuable for TBM excavation, as it can be easily cut without damaging cutterheads, reducing downtime and maintenance costs.
The waved thread structure is not merely a surface feature; it creates a mechanical interlock with the grout that significantly enhances bond strength. During installation, the hollow core allows grout to be pumped under pressure through the bolt to the bottom of the borehole and then flow back around the bolt, filling all voids and fissures. This process, known as full encapsulation, ensures that the bolt and surrounding ground act as a composite mass, greatly increasing shear resistance and reducing the risk of localized failure. For the Alpine project, this meant that slopes previously deemed too unstable for conventional nailing could be stabilized without excessive excavation or heavy retaining structures.
The SupAnchor hollow injection bolt is a true drill-and-grout bolt, ideally suited for a wide range of geotechnical applications beyond the Alpine project. Its primary uses include slope stabilization, TBM face support, forepoling in weak ground, stabilization of soft rock, and permanent support in confined ground conditions. In each scenario, the bolt's ability to serve as both a drill rod and a tension/compression member simplifies logistics and accelerates installation.
For slope stabilization, the bolt's high tensile load and full grouting capability create a reinforced soil or rock mass that resists sliding and erosion. In TBM tunneling, its low weight and cuttability allow rapid installation through the shield, providing immediate face support in squeezing ground. The bolt's high pressure resistance—up to 30 MPa in select models—ensures that grout penetrates fine fissures and voids, achieving a monolithic bond and improving overall ground strength.
Furthermore, the GFRP material offers a distinct advantage in permanent applications where steel corrosion could compromise long-term performance. The bolt's ultimate strain of 2.0% provides ductility to accommodate ground movements without brittle failure, a critical factor in seismically active regions or areas with ongoing deformation.
The global push for resilient infrastructure and sustainable construction practices has increased demand for advanced ground reinforcement technologies. According to industry analysts, the global geotechnical engineering market is expected to grow steadily, driven by tunneling, mining, and slope stabilization projects. Within this landscape, SupAnchor's self drilling anchor bolt systems have emerged as a preferred choice for contractors seeking reliable, cost-effective solutions in challenging ground.
From a market perspective, SupAnchor's hollow injection bolt addresses a critical need for cost-effective ground support in regions with difficult geologies. The ability to install a drill-and-grout bolt in a single pass reduces labor and equipment costs, while the bolt's long service life lowers lifecycle expenses. In mining operations, the cuttable GFRP material allows for safe extraction in areas where steel bolts would pose a hazard to cutting equipment. This versatility has led to adoption in projects across Europe, North America, and Asia, where contractors report significant time savings and improved safety metrics.
SupAnchor, a leading soil nail system manufacturer and ground anchor bolt factory, has invested heavily in research and development to refine its SupFRP® series. The GFRP hollow injection bolt represents a culmination of years of field feedback and material science innovation. Its ISO 9001-certified production facilities ensure consistent quality, while the company's global project portfolio demonstrates proven performance across diverse geologies—from Alpine tunnels to coastal slope protections.
SupAnchor's commitment to innovation is evidenced by its ISO 9001 quality management system and continuous investment in material testing. The SupFRP® series undergoes rigorous laboratory and field testing to validate its mechanical properties and durability. The company collaborates with universities and engineering firms to refine product designs, ensuring that each self drilling anchor system meets the evolving demands of modern geotechnical engineering. This collaborative approach has earned SupAnchor recognition as a trusted partner in complex infrastructure initiatives.
SupAnchor self drilling anchor bolt with waved thread structure and hollow core for efficient grouting.
Beyond product performance, SupAnchor emphasizes collaborative engineering support, providing technical guidance from design to installation. This approach has fostered long-term partnerships with contractors and consultants worldwide, reinforcing the brand's reputation for professionalism and reliability. As infrastructure projects become increasingly complex, SupAnchor's integrated geotechnical reinforcement systems—including self drilling anchor systems and hollow bar anchors—are positioned to meet evolving industry demands.
In conclusion, the SupAnchor GFRP Hollow Injection Bolt exemplifies the convergence of high-performance materials and practical engineering design. Its successful deployment in demanding projects such as the Alpine slope stabilization and TBM tunneling works underscores its capability to deliver safe, durable, and efficient ground reinforcement. For engineers and project owners seeking a dependable geotechnical reinforcement system, SupAnchor's hollow injection bolt offers a compelling combination of technical excellence and field-proven reliability.
