In a landmark infrastructure development project located in a region known for its complex geological formations, the deployment of SupAnchor's advanced ground stabilization technologies has proven pivotal. The project, which involves extensive excavation and foundation support, required a robust geotechnical reinforcement system capable of withstanding high loads and adapting to variable soil and rock conditions. SupAnchor, a leading soil nail system manufacturer and ground anchor bolt factory, supplied its innovative self drilling anchor system to address the demanding site challenges.

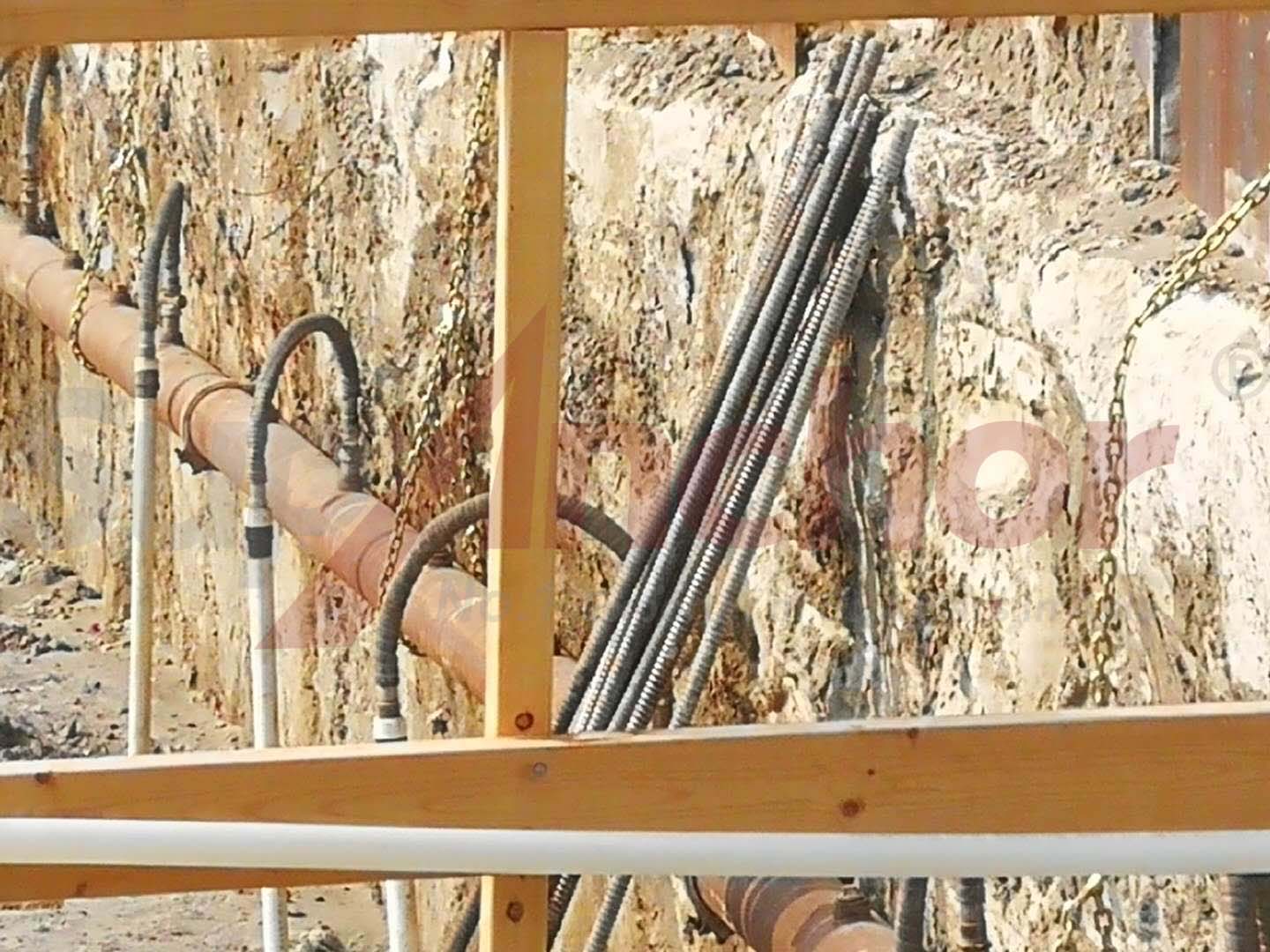

The construction site image reveals the harsh environment where SupAnchor's self drilling anchor bolts are being installed. Workers are seen operating drilling equipment, advancing hollow bar anchors into the ground with precision. The scene underscores the need for a drill-and-grout bolt that can be installed quickly and reliably in difficult strata, minimizing downtime and ensuring structural integrity.
The project encompasses a 15-kilometer stretch of new highway, including several bridges and tunnel portals. The geology alternates between weathered shale, sandstone, and alluvial deposits, creating a heterogeneous matrix that challenges conventional anchoring. Groundwater levels are high, and the risk of slope failure during excavation is a constant concern. SupAnchor's geotechnical reinforcement system was specified after a series of field trials demonstrated its superior performance in these conditions.
The project is part of a broader initiative to upgrade transportation infrastructure in a region characterized by fractured rock, loose overburden, and high groundwater levels. Traditional anchoring methods, which require pre-drilling and casing, were deemed inefficient and costly due to the risk of borehole collapse and significant grout loss. The engineering team sought an anchor bolt system for geotechnical engineering that could combine drilling, anchoring, and grouting in a single operation, reducing installation time and improving load transfer.
SupAnchor's self drilling anchor for retaining walls and slope stabilization was selected for its versatility. The system functions as a micropile hollow bar anchor, capable of acting as both a drill rod and a permanent reinforcement element. This dual functionality eliminates the need for temporary casing and allows for immediate grouting, which is critical in unstable ground conditions. The project's scale included hundreds of anchors, with depths ranging from 10 to 30 meters, designed to support retaining walls and stabilize cut slopes along a new highway corridor.
SupAnchor's hollow bar anchor system offers a range of configurations to match project-specific requirements. The table below summarizes the key technical parameters of the anchors used in this project:
| Parameter | Specification |
|---|---|
| Anchor Diameter | 32 mm – 52 mm |
| Anchor Length | 10 m – 30 m (custom lengths available) |
| Tensile Strength | Up to 660 kN (depending on diameter and steel grade) |
| Corrosion Protection | Hot-dip galvanized or epoxy coating; double corrosion protection (DCP) available |
| Thread Type | R32, R38, T40, T52 (ISO 10208 compliant) |
| Grout Strength | Typically 30–40 MPa after 28 days |
These specifications illustrate the ground stabilization anchor system's capacity to handle the project's demanding loads. The high tensile strength ensures that each anchor can resist significant pull-out forces, while the corrosion protection extends service life in aggressive soil conditions. The self drilling bolt for civil engineering applications is manufactured from high-quality steel and undergoes rigorous quality control to meet international standards.
On site, the anchors were installed using standard rotary-percussive drilling rigs, with grout injected through the hollow core under pressure. This method created a strong bond between the anchor and surrounding ground, as confirmed by pull-out tests that exceeded design loads. The project engineers noted that SupAnchor's self drilling anchor bolt performed reliably even in zones with high water inflow, where conventional systems often fail.
Installation crews achieved an average rate of 25 linear meters per hour per rig, significantly surpassing the original schedule. Pull-out tests conducted on randomly selected anchors showed ultimate capacities exceeding design loads by 15% to 20%. The immediate grouting capability of the hollow bar anchor prevented ground relaxation and reduced surface settlement, which was critical for adjacent structures and utilities.
The successful application of SupAnchor's self drilling anchor system reflects a broader industry shift toward more efficient and resilient geotechnical solutions. As global infrastructure spending accelerates, particularly in transportation, tunneling, and urban development, the demand for advanced anchoring technologies continues to grow. According to recent market reports, the ground anchor bolt factory segment is expected to expand at a compound annual growth rate of 5.2% over the next five years, driven by the need for safer and faster construction methods.
SupAnchor's products are also widely used as rock bolt for underground mining, where reliability and speed are paramount. In mining operations, the self drilling anchor for retaining walls and tunnels helps stabilize excavation faces and prevent ground collapse, enhancing operational safety. The hollow bar anchor's ability to function as a micropile hollow bar anchor makes it a favorite among contractors for foundation underpinning and slope reinforcement projects.
Moreover, the company's commitment to innovation aligns with sustainable construction practices. By reducing material waste and eliminating the need for multiple drilling steps, the self drilling bolt for civil engineering contributes to lower carbon footprints on job sites. This environmental benefit is increasingly important to project owners and regulatory bodies in Europe and North America.
In tunneling projects, SupAnchor's self drilling anchor system is used for face stabilization and pre-support in soft ground. The system's adaptability to various drilling rigs and grouting equipment makes it a preferred choice for contractors working in urban environments where vibration and noise restrictions apply. Furthermore, the product's compliance with international standards such as EN 14490 and ASTM F432 ensures acceptance across different regulatory frameworks.
SupAnchor has established itself as a trusted partner in the geotechnical industry, with over two decades of experience and a global footprint spanning more than 40 countries. The company's manufacturing facilities are ISO 9001 and ISO 14001 certified, ensuring consistent quality and environmental stewardship. As a leading soil nail system manufacturer, SupAnchor provides SDA bolt factory direct supply, allowing project owners to source high-performance anchoring systems at competitive prices without intermediaries.
Looking ahead, SupAnchor continues to invest in research and development to enhance its ground stabilization anchor system portfolio. Recent innovations include improved thread profiles for better grout adhesion and the introduction of high-strength steel alloys that extend anchor life in corrosive environments. The company's engineers work closely with clients to provide tailored anchor bolt system for geotechnical engineering solutions, from design to installation support.
The project highlighted in this article demonstrates the tangible benefits of using SupAnchor's self drilling anchor system in challenging ground conditions. By combining speed, reliability, and long-term performance, SupAnchor reinforces its reputation as a provider of professional, innovative, and collaborative solutions for the global construction industry.
From a lifecycle cost perspective, SupAnchor's self drilling anchor bolt reduces maintenance needs due to its robust corrosion protection. The double corrosion protection option, which includes a sacrificial anode layer, is particularly suited for aggressive soils and marine environments. This ensures that the anchors retain their load-bearing capacity for decades, reducing the need for costly remedial work.
Every batch of anchors undergoes rigorous testing in SupAnchor's in-house laboratory, including tensile strength tests, elongation measurements, and coating thickness checks. The company's production process is fully traceable, with each anchor stamped with a unique identification code. This level of quality assurance is a key reason why SupAnchor has become a trusted ground anchor bolt factory for major infrastructure projects worldwide.
