In geotechnical engineering, projects in corrosive environments such as coastal regions, chemical plants, or high-humidity areas face persistent challenges from material degradation, leading to safety risks and increased maintenance costs. SupAnchor, recognized as the leading manufacturer and exporter of self-drilling anchors in Asia, has developed a innovative solution: the stainless steel self-drilling hollow anchor. This product extends the company's anti-corrosion portfolio, building on the success of its hot-dip galvanizing and SupCoating variants, to provide reliable support for infrastructure requiring long-term stability in adverse conditions.
The stainless steel self-drilling hollow anchor adheres to SupAnchor's core "3-in-1 principle," which integrates the sacrificial drilling rod, injection tube, and reinforcing bar into a single unit. This design eliminates the need for separate casing systems, streamlining installation in unconsolidated or cohesive soils and enhancing efficiency on-site. Key technical features include its inherent corrosion resistance, thanks to the use of stainless steel, which prevents rust and pitting even in saltwater or chemical exposures. The anchor's rib structure is optimized with a relative rib area between 0.21 and 0.33 to maximize bonding with grouting materials, while 45° angled ribs minimize soil splitting forces, keeping crack widths below 0.1 mm under maximum load.
To illustrate the engineering capabilities, here are key parameters for the representative R32SS/15 model, showcasing how this self drilling anchor system addresses specific challenges:
| Parameter | Value |
|---|---|
| Outside Diameter | 32 mm |
| Internal Diameter | 14 mm |
| Ultimate Load | ≥405 kN |
| Yield Load | ≥300 kN |
| Weight | 4.00 kg/m |

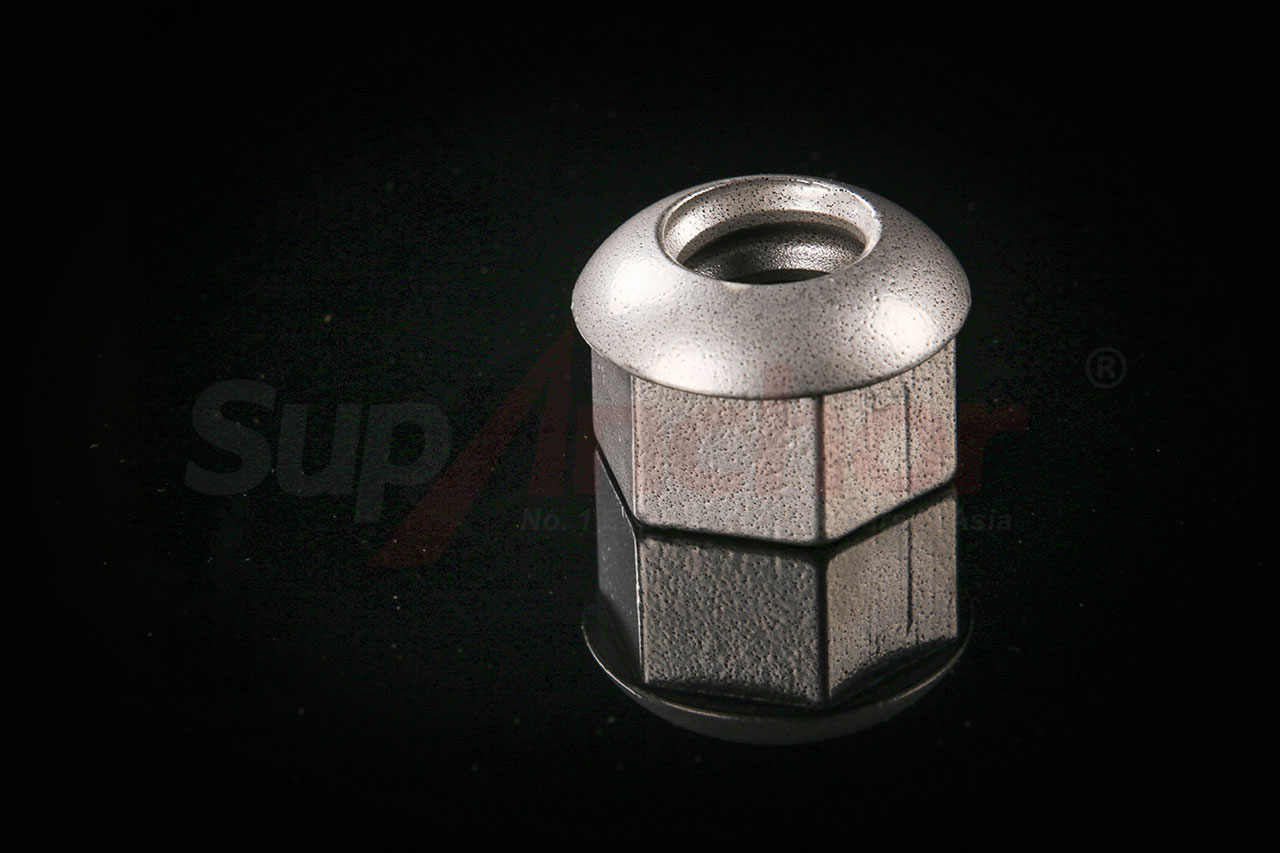

These specifications ensure that the hollow bar anchor maintains mechanical performance comparable to carbon steel models, with high tensile strength and elongation properties (e.g., A100mm ≥6%), making it suitable for heavy-load applications. The compatibility with standard accessories like SW46 nuts and D42 couplers simplifies logistics and installation, reinforcing SupAnchor's collaborative approach to geotechnical reinforcement systems.
The stainless steel variant is ideal for a range of demanding environments where traditional anchors might fail. Key application scenarios include:
This drill-and-grout bolt adapts to various soil and rock conditions, demonstrating SupAnchor's innovative design that prioritizes engineering adaptability and market value.
The introduction of this product underscores SupAnchor's role in advancing global infrastructure safety. As a professional leader in the soil nail system manufacturer space, the company's R&D efforts focus on ISO-certified innovations, such as thread specifications aligned with ISO 10208 standards. This stainless steel self-drilling anchor system contributes to geotechnical safety in tunneling, mining, and urban development projects worldwide, reducing long-term costs and enhancing sustainability. SupAnchor's collaborative ethos is evident in its global project partnerships, which leverage this technology to address complex engineering challenges, reinforcing the brand's message of professionalism and innovation.
In summary, SupAnchor's stainless steel self-drilling hollow anchor represents a significant step forward in geotechnical reinforcement, combining corrosion resistance with robust performance. For engineers and project managers, this product offers a reliable solution for harsh environments, backed by SupAnchor's expertise as a top ground anchor bolt factory. As infrastructure demands grow, such innovations will play a crucial role in ensuring durable and safe constructions globally.
