In the realm of modern infrastructure, geotechnical engineers frequently encounter challenging conditions such as soft rock and clay soils, which pose significant risks to tunnel faces and slopes. These environments demand robust, efficient solutions to ensure safety and stability. SupAnchor's GFRP SDA Bolt has emerged as a pivotal innovation, integrating drilling, grouting, and anchoring into a single, streamlined process. This self drilling anchor system not only accelerates project timelines but also enhances adaptability in diverse geological settings, addressing core engineering hurdles with precision and reliability.

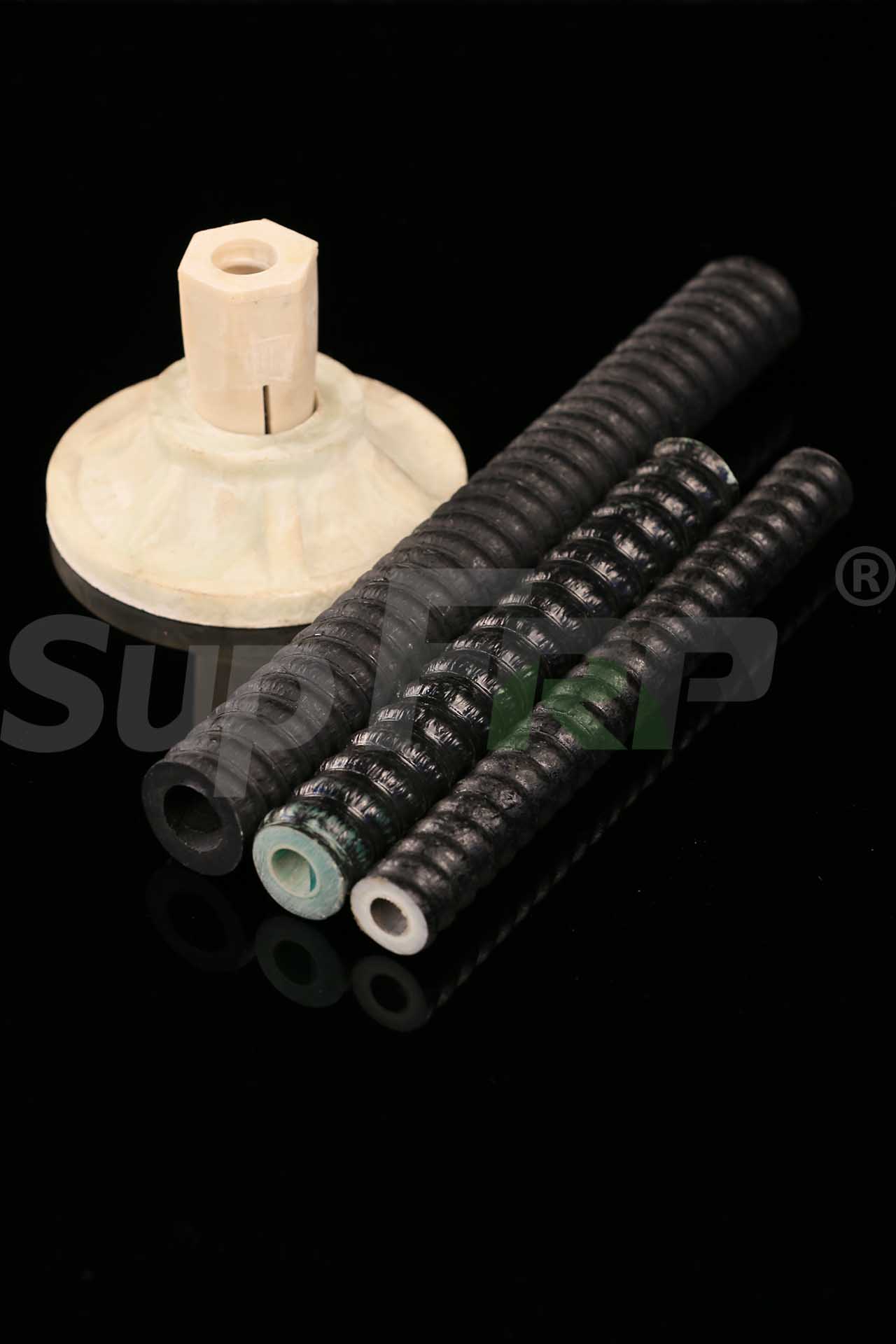

The SupAnchor GFRP SDA Bolt is designed for seamless on-site application, featuring a central hole that facilitates water flushing during drilling and efficient anchor grouting. This drill-and-grout bolt approach minimizes installation time and reduces labor costs, making it ideal for dynamic construction environments. Key technical parameters underscore its engineering prowess, with models like the H32S offering a guaranteed tensile load of 365 kN and torsion strength of 360 Nm, ensuring high performance in demanding scenarios. The product's waved thread structure and ISO standard profiles further enhance its torque resistance and ease of handling, directly tackling issues like machinery obstruction and slow deployment in soft rock formations.
| Model | Outside Diameter (mm) | Guaranteed Tensile Load (kN) | Torsion Strength (Nm) | Weight (kg/m) |
|---|---|---|---|---|
| H25S | 25 | 220 | 180 | 0.63 |
| H28S | 28 | 280 | 250 | 0.86 |
| H32S | 32 | 365 | 360 | 0.99 |
| H38S | 38 | 490 | 450 | 1.33 |
By incorporating features such as high end loading and cuttability, this hollow bar anchor system protects equipment during tunnel enlargement, thereby improving safety and operational efficiency. The consistent tensile E-modulus of 45 GPa across models ensures reliable performance in permanent applications, from slope stabilization to roof bolting, making it a cornerstone of modern geotechnical reinforcement systems.
The versatility of the SupAnchor self drilling anchor bolt extends across numerous critical applications, driven by its ability to handle varied soil and rock conditions. In face stabilization for tunnels, it provides immediate support during excavation, reducing the risk of collapses. For forepoling and slope stabilization, the bolt's rapid installation and high load-bearing capacity prevent landslides and soil erosion, essential in urban development and mining operations. Additionally, its use in ground support for soft rock and wall bolting underscores its role as a comprehensive geotechnical reinforcement system, adaptable to both temporary shoring and long-term structural integrity.
This broad applicability highlights how the self drilling anchor system addresses real-world challenges, such as those in European and American infrastructure projects, where time and safety are paramount.
The introduction of SupAnchor's GFRP SDA Bolt aligns with global trends toward sustainable and efficient infrastructure development. In sectors like tunneling, mining, and geotechnical engineering, this product enhances safety protocols and reduces environmental footprints by minimizing excavation disturbances. Its high tensile strength and durability contribute to longer-lasting structures, supporting international efforts in disaster prevention and urban resilience. As a drill-and-grout bolt, it streamlines processes in large-scale projects, from highway constructions to underground railways, fostering collaboration among engineers, contractors, and regulators to achieve common safety goals.
SupAnchor has established itself as a leader in geotechnical solutions through dedicated R&D and innovation. The company's commitment to professionalism is evident in its adherence to ISO standards and certifications, ensuring that products like the GFRP SDA Bolt meet rigorous global benchmarks. By collaborating with international partners on projects ranging from slope stabilization in mountainous regions to tunnel supports in urban centers, SupAnchor emphasizes a collaborative approach that drives industry advancement. Their focus on innovative designs, such as the integrated drilling and grouting mechanism, reinforces a brand message centered on reliability, efficiency, and forward-thinking engineering.
