As Europe and America ramp up infrastructure development to meet growing urbanization and transportation needs, geotechnical engineers face increasingly complex challenges in soft rock and clay soil conditions. Projects such as tunnel excavations in mountainous regions or slope stabilizations in coastal areas require robust, adaptable solutions to ensure safety and durability. SupAnchor, a leader in geotechnical reinforcement systems, has introduced the SupAnchor® GFRP SDA Bolt, an advanced self-drilling anchor system designed to address these precise engineering demands. This innovative product streamlines construction processes by combining drilling, grouting, and anchoring into a single, efficient operation, reducing installation time and enhancing structural integrity in diverse geological settings.

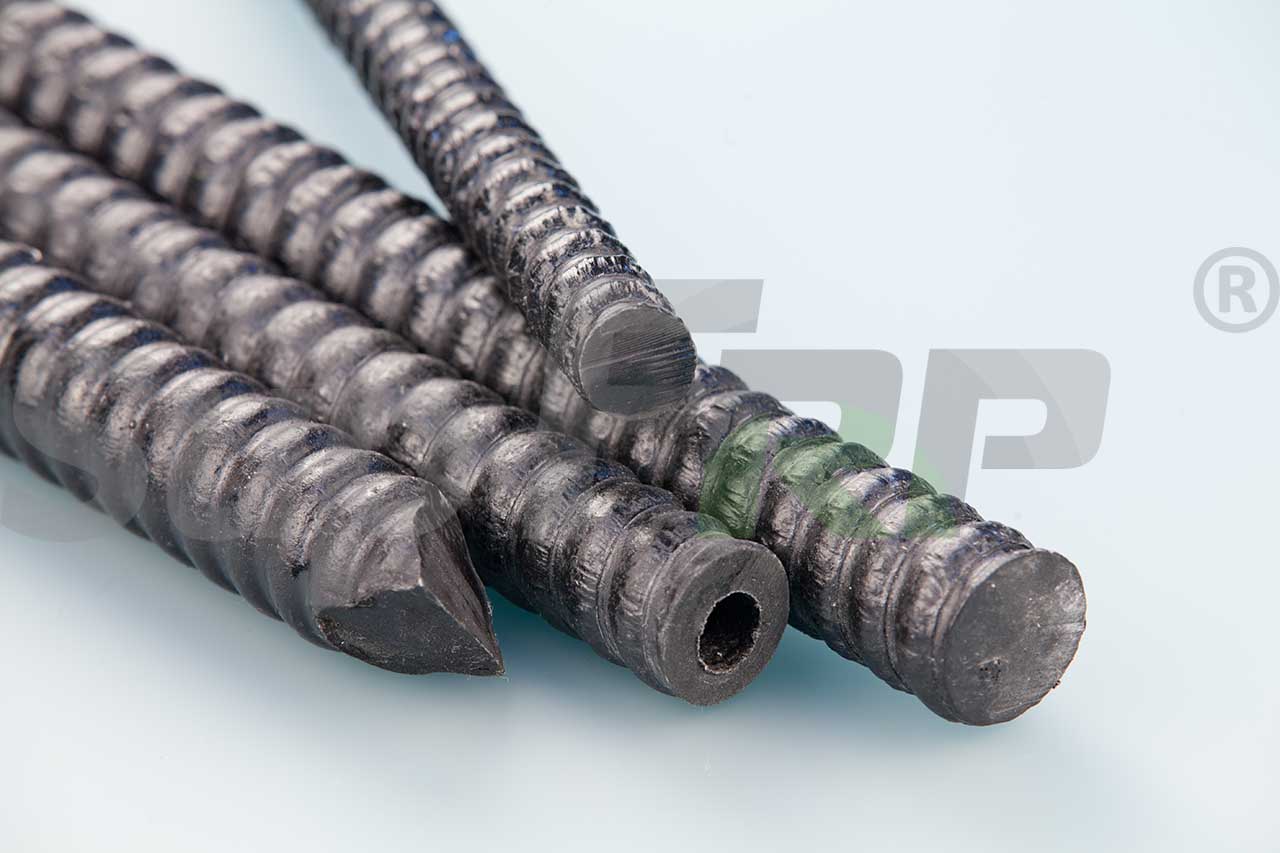

The SupAnchor® GFRP SDA Bolt features a hollow bar design with a central hole that allows for water flushing during drilling and subsequent anchor grouting, making it ideal for applications in soft rock or clay soil. This integration not only accelerates the installation process but also improves bond strength and long-term performance. Key technical specifications, such as high tensile load and torque resistance, directly tackle common engineering challenges like ground movement and load distribution. For instance, in tunnel face stabilization, the bolt's ability to resist high end loading and torsion ensures reliable support during excavation, minimizing the risk of collapses. Below is a detailed table highlighting the critical parameters of the available models, which cater to various project scales and requirements.
| Model | Outside Diameter (mm) | Guaranteed Tensile Load (kN) | Torsion Strength (Nm) | Length Options (m) |
|---|---|---|---|---|
| H25S | 25 | 220 | 180 | 2 to 11 |
| H28S | 28 | 280 | 250 | 2 to 11 |
| H32S | 32 | 365 | 360 | 2 to 11 |
| H38S | 38 | 490 | 450 | 2 to 11 |
These specifications enable the self-drilling anchor bolt to provide permanent reinforcement, with models like the H38S offering up to 490 kN tensile load, suitable for heavy-duty applications in mining or large-scale tunneling. The ISO standard thread profile ensures compatibility with global equipment, facilitating easy handling and reducing on-site labor costs. By addressing specific needs such as high torque resistance and corrosion protection through its GFRP material, SupAnchor's solution enhances engineering adaptability, allowing for reliable performance in varied environmental conditions.
The versatility of the SupAnchor® GFRP SDA Bolt makes it a critical component in numerous geotechnical projects. Primary applications include:
These applications underscore the product's market value, contributing to safer and more sustainable infrastructure development. As global demand for tunneling and mining operations grows, especially in regions with challenging geology, innovations like this self-drilling anchor system are pivotal. They not only reduce project timelines but also lower maintenance costs, aligning with industry trends toward cost-effective and environmentally friendly solutions.
SupAnchor's development of the GFRP SDA Bolt reflects its commitment to advancing geotechnical engineering through continuous research and development. With ISO certifications and a focus on innovation, the company has established itself as a trusted partner in global projects, from European rail tunnels to American slope stabilization initiatives. The self-drilling anchor bolt embodies a collaborative approach, working with engineers to tailor solutions for specific site conditions. This professional ethos drives SupAnchor's influence in the industry, promoting safety and efficiency in infrastructure worldwide. By investing in cutting-edge technologies and adhering to international standards, SupAnchor reinforces its brand message of being professional, innovative, and collaborative, ensuring that its products meet the evolving needs of the construction sector.
In conclusion, the SupAnchor® GFRP SDA Bolt represents a significant leap forward in geotechnical reinforcement, offering a reliable and efficient solution for complex engineering challenges. Its integration of drilling, grouting, and anchoring not only streamlines construction processes but also enhances safety and durability in critical applications. As infrastructure projects continue to expand across Europe and America, this self-drilling anchor system is poised to play a vital role in shaping resilient and sustainable built environments.
