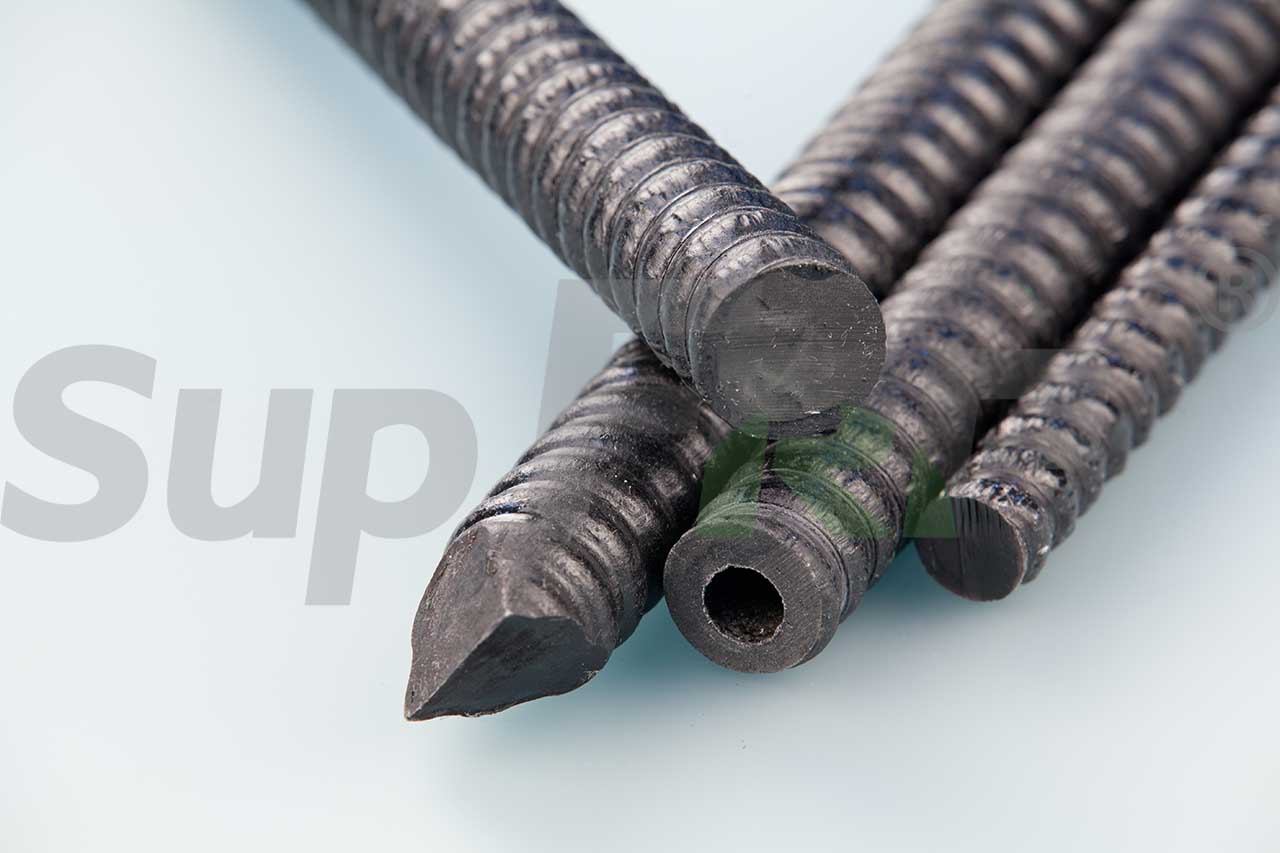

In the challenging terrains of European tunneling and North American slope stabilization projects, engineers often grapple with soft rock and clay soil conditions that demand rapid, reliable ground support. The SupAnchor® GFRP SDA Bolt emerges as a cutting-edge solution, designed to streamline construction processes and enhance safety. This innovative product integrates drilling, grouting, and anchoring into a single operation, enabling fast installation and robust reinforcement. With applications ranging from face stabilization in tunnels to slope support, the self-drilling anchor system addresses critical engineering needs in infrastructure development.
The SupAnchor® GFRP SDA Bolt offers unparalleled efficiency on-site, thanks to its central hole that allows for water flushing during drilling and seamless anchor grouting. This feature is particularly beneficial in soft rock or clay soil, where traditional methods may falter. Key technical parameters, such as high tensile strength and torsion resistance, ensure durability and performance. For instance, the bolt's guaranteed tensile load ranges from 220 kN to 490 kN across models, providing reliable end loading for various geological challenges. Additionally, its cuttability protects machinery during tunnel drifting, reducing downtime and costs.
| Model | Outside Diameter (mm) | Internal Diameter (mm) | Nominal Cross Sectional Area (sq. m) | Guaranteed Tensile Load (kN) | Torsion Strength (Nm) | Weight (kg/m) | Thread Type (ISO) | Available Lengths (m) |
|---|---|---|---|---|---|---|---|---|
| H25S | 25 | 12 | 250 | 220 | 180 | 0.63 | R25 | 2-11 |
| H28S | 28 | 14 | 310 | 280 | 250 | 0.86 | R28 | 2-11 |
| H32S | 32 | 15 | 400 | 365 | 360 | 0.99 | R32 | 2-11 |
| H38S | 38 | 20 | 540 | 490 | 450 | 1.33 | R38 | 2-11 |
This hollow bar anchor system is engineered for permanent application, with super high torque resistance and easy handling, making it a versatile choice for various geotechnical reinforcement scenarios. The ISO standard thread profile ensures compatibility and reliability in international projects.
The self-drilling anchor bolt excels in diverse environments, including:
This geotechnical reinforcement system is designed to meet the demands of modern engineering, offering adaptability across different scales and terrains. For example, in European urban tunneling projects, the drill-and-grout bolt has been deployed to stabilize excavation faces, reducing risks and accelerating timelines.
The introduction of the SupAnchor® GFRP SDA Bolt aligns with global trends in infrastructure development, where safety and efficiency are paramount. As tunneling and mining sectors expand, the need for advanced ground anchor bolt solutions grows. This product contributes to geotechnical safety by providing a reliable self-drilling anchor system that minimizes environmental disruption. Market analysts highlight the increasing adoption of such innovations in North American and European markets, driven by stringent regulations and the pursuit of sustainable construction practices.
SupAnchor has established itself as a leader in the geotechnical reinforcement industry, with a strong focus on research and development. The company's commitment to innovation is evident in the GFRP SDA Bolt, which incorporates cutting-edge materials and design. Holding ISO certifications, SupAnchor ensures that its products, including this self-drilling anchor bolt, meet international standards for quality and performance. Global projects, from tunnel reinforcements in Asia to slope stabilizations in the Americas, showcase the brand's collaborative approach and professional expertise.
Throughout its development, SupAnchor has emphasized a brand message of being professional, innovative, and collaborative, working closely with engineers and contractors to tailor solutions for specific challenges. The company's role as a soil nail system manufacturer and ground anchor bolt factory underscores its dedication to advancing geotechnical engineering worldwide.
In conclusion, the SupAnchor® GFRP SDA Bolt represents a significant advancement in self-drilling anchor systems, offering a robust, efficient solution for geotechnical reinforcement. By integrating drilling and grouting, this hollow bar anchor enhances safety and productivity in critical infrastructure projects, solidifying SupAnchor's position as a key player in the global market.
