In the demanding fields of tunneling and ground engineering, contractors frequently grapple with unconsolidated or cohesive soils that slow down production and compromise safety. Traditional casing systems can be time-consuming and labor-intensive, leading to project delays and increased costs. To address these challenges, SupAnchor, a leading innovator in geotechnical solutions, has developed the R Thread Self-Drilling Hollow Anchor, a key component of its advanced self drilling anchor system. This product is designed to streamline construction processes, enhance safety, and support large-scale infrastructure projects across Europe and the Americas.

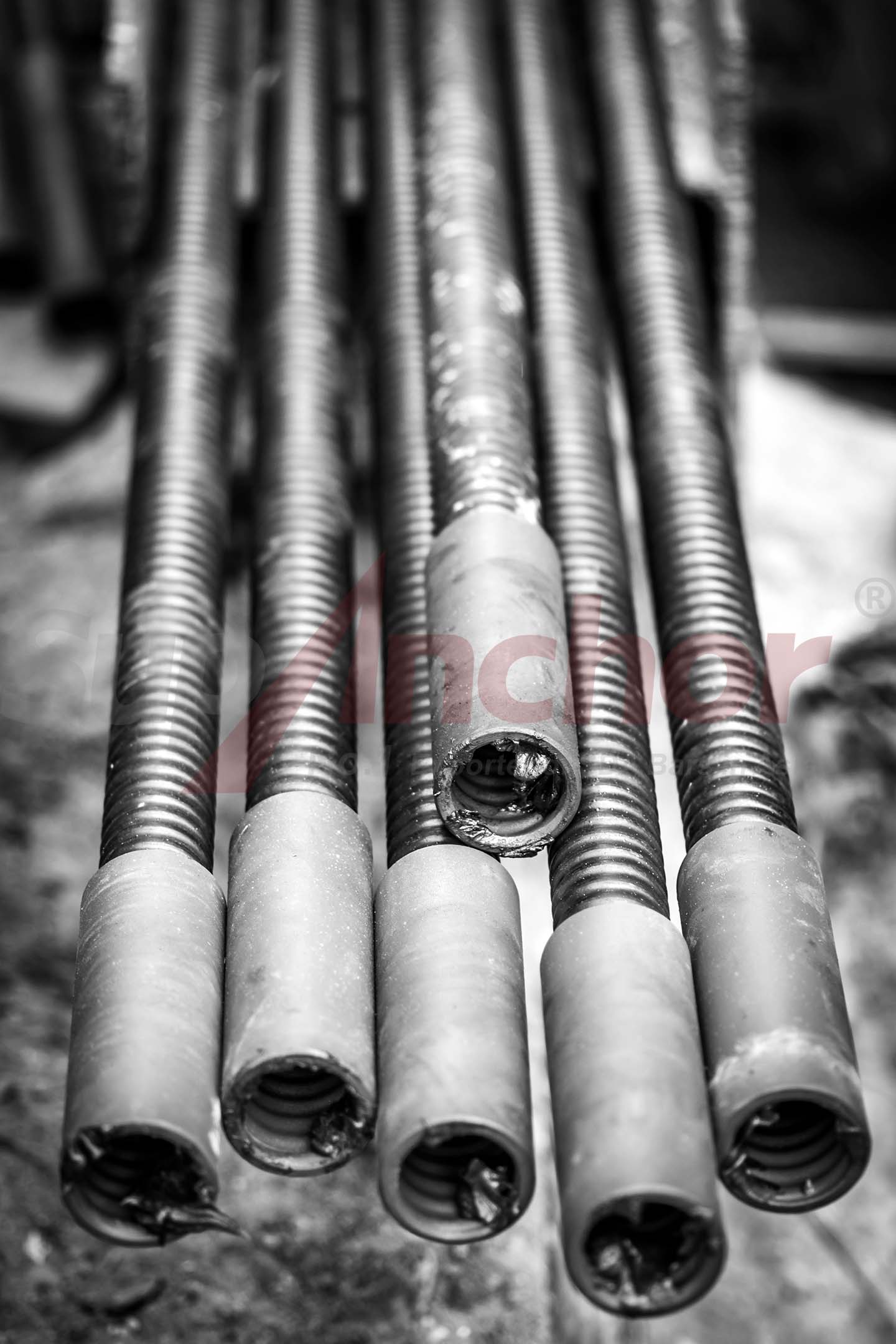

The SupAnchor self drilling anchor system with R thread integrates drilling and grouting into a single operation, significantly improving construction efficiency. At its core is the "3-in-1 principle," where a ribbed hollow steel bar acts as a sacrificial drilling rod, injection tube, and reinforcing bar. This design minimizes on-site setup time and reduces labor intensity, making it ideal for complex geotechnical applications. The R thread is manufactured in compliance with ISO 10208 and ISO 1720 standards, ensuring quick connections and reliable performance in diverse environments.
Key technical parameters highlight the product's robustness. For instance, the R32S/15 model offers an ultimate load of ≥360 kN and a yield load of ≥280 kN, with an outside diameter of 32 mm and an internal diameter of 15 mm. These specifications enable the self drilling anchor bolt to withstand high stresses in soft ground, preventing soil collapse and ensuring long-term stability. The system's versatility is further enhanced by multiple anti-corrosion options: hot-dip galvanizing for dry environments, SupCoating (HDG + epoxy) for moderate corrosion, and stainless steel for highly corrosive areas like coastal zones.
| Model | Outside Diameter (mm) | Ultimate Load (kN) | Yield Load (kN) | Anti-Corrosion Option |
|---|---|---|---|---|
| R32S/15 | 32 | ≥360 | ≥280 | Stainless steel |
| R32N/20 | 32 | ≥280 | ≥230 | SupCoating |
| R25N/12 | 25 | ≥200 | ≥150 | Hot-dip galvanizing |
This geotechnical reinforcement system solves critical engineering challenges by offering tailored solutions for various load capacities and environmental conditions, reducing installation time by up to 30% compared to conventional methods.
The R thread self-drilling hollow anchor is widely used in tunneling engineering for face support and surrounding rock stabilization, ensuring worker safety in underground projects. In ground engineering, it facilitates slope stabilization and foundation reinforcement, preventing soil erosion in urban developments. Other applications include emergency repairs in soft ground and mining operations, where rapid deployment is crucial. This drill-and-grout bolt technology enhances project timelines and reduces overall costs, contributing to safer infrastructure globally.
Globally, the demand for efficient geotechnical solutions is rising with increased urbanization and infrastructure investments. SupAnchor's system has been deployed in over 39 million meters of self-drilling anchor bars worldwide, demonstrating its reliability in high-stakes projects. This track record underscores the product's role in advancing tunneling safety and ground engineering practices, making it a preferred choice for contractors seeking innovative soil nail system manufacturers.
SupAnchor's commitment to research and development has positioned it as a leader in the ground anchor bolt factory sector. The company's adherence to ISO standards ensures product consistency and performance, backed by a collaborative approach with engineering teams to customize solutions. By focusing on professional expertise and technological innovation, SupAnchor fosters partnerships that drive sustainable construction practices. The brand message of being professional, innovative, and collaborative resonates through its global projects, from tunnel expansions in Europe to slope stabilization in the Americas.
