In recent years, the increasing demand for sustainable infrastructure has highlighted the challenges of geotechnical engineering, particularly in regions with soft rock or clay soil. A recent tunnel project in the Swiss Alps, for instance, faced significant stabilization issues due to unstable geological conditions, requiring a robust and efficient solution. SupAnchor, a leader in geotechnical reinforcement systems, stepped in with its innovative GFRP Self-Drilling Anchor Bolt, demonstrating how advanced technology can overcome such hurdles. This product not only streamlines construction processes but also ensures long-term durability in diverse environments.

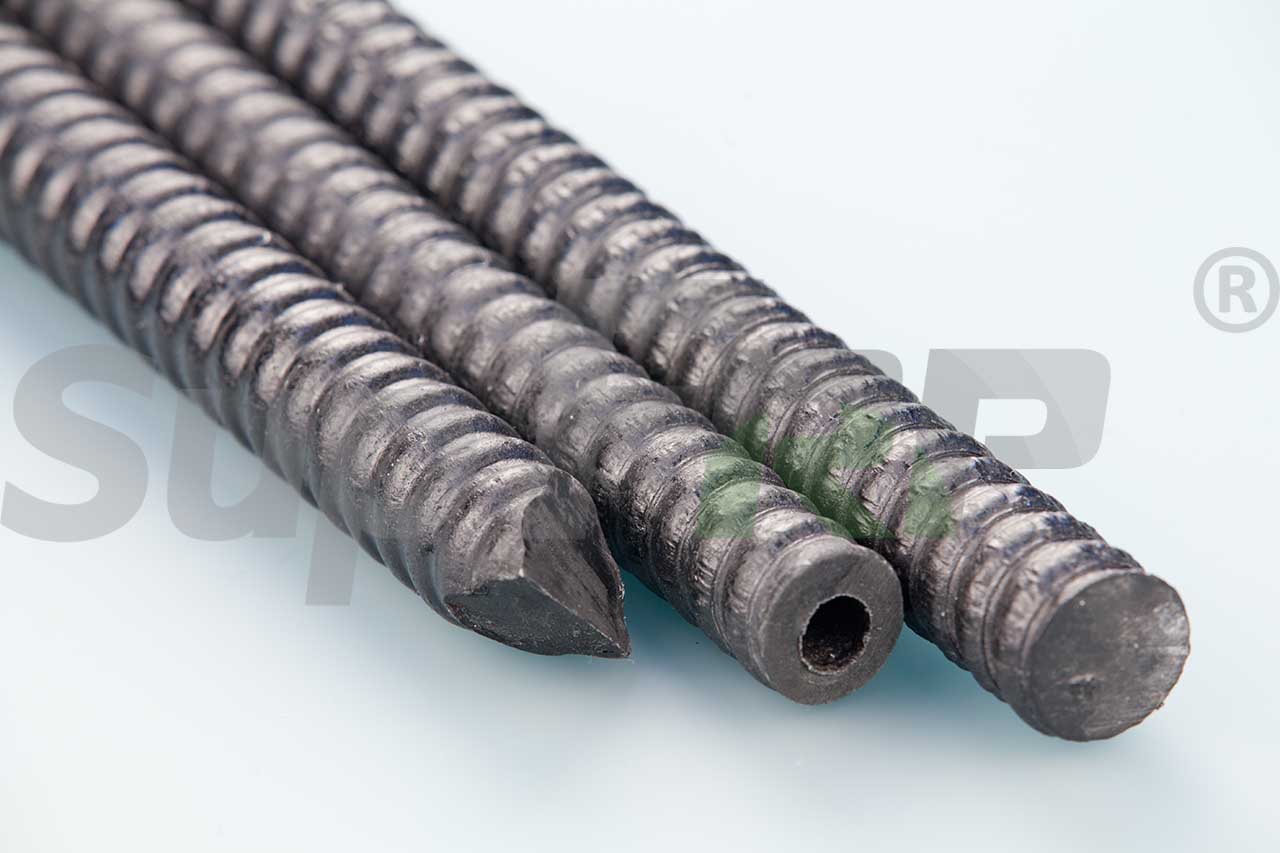

The SupAnchor GFRP Self-Drilling Anchor Bolt is designed to integrate drilling, grouting, and anchoring into a single operation, enabling fast installation and reducing labor costs on sites like the Alpine tunnel. Its central hole allows for water flushing during drilling and efficient anchor grouting, making it ideal for soft rock or clay soil applications. Key engineering challenges, such as the need for high torque resistance and cuttability to protect machinery during tunnel drifting, are addressed through this innovative design. The product's technical specifications, derived from extensive research, include:
To provide a clear overview, the technical data for the various models is summarized in the table below, highlighting critical parameters that solve specific engineering needs, such as tensile load for slope stabilization or diameter for face reinforcement in tunnels.
| Model | Outside Diameter (mm) | Guaranteed Tensile Load (kN) | Length Options (m) | Weight (kg/m) |
|---|---|---|---|---|
| H25S | 25 | 220 | 2-11 | 0.63 |
| H28S | 28 | 280 | 2-11 | 0.86 |
| H32S | 32 | 365 | 2-11 | 0.99 |
| H38S | 38 | 490 | 2-11 | 1.33 |
These specs, such as the high tensile E-modulus of 45 GPa, ensure that the self drilling anchor bolt can withstand significant stress in applications like roof bolting or ground support, enhancing safety and reducing maintenance needs. The hollow bar anchor design further facilitates grouting, making it a versatile drill-and-grout bolt for various soil conditions.

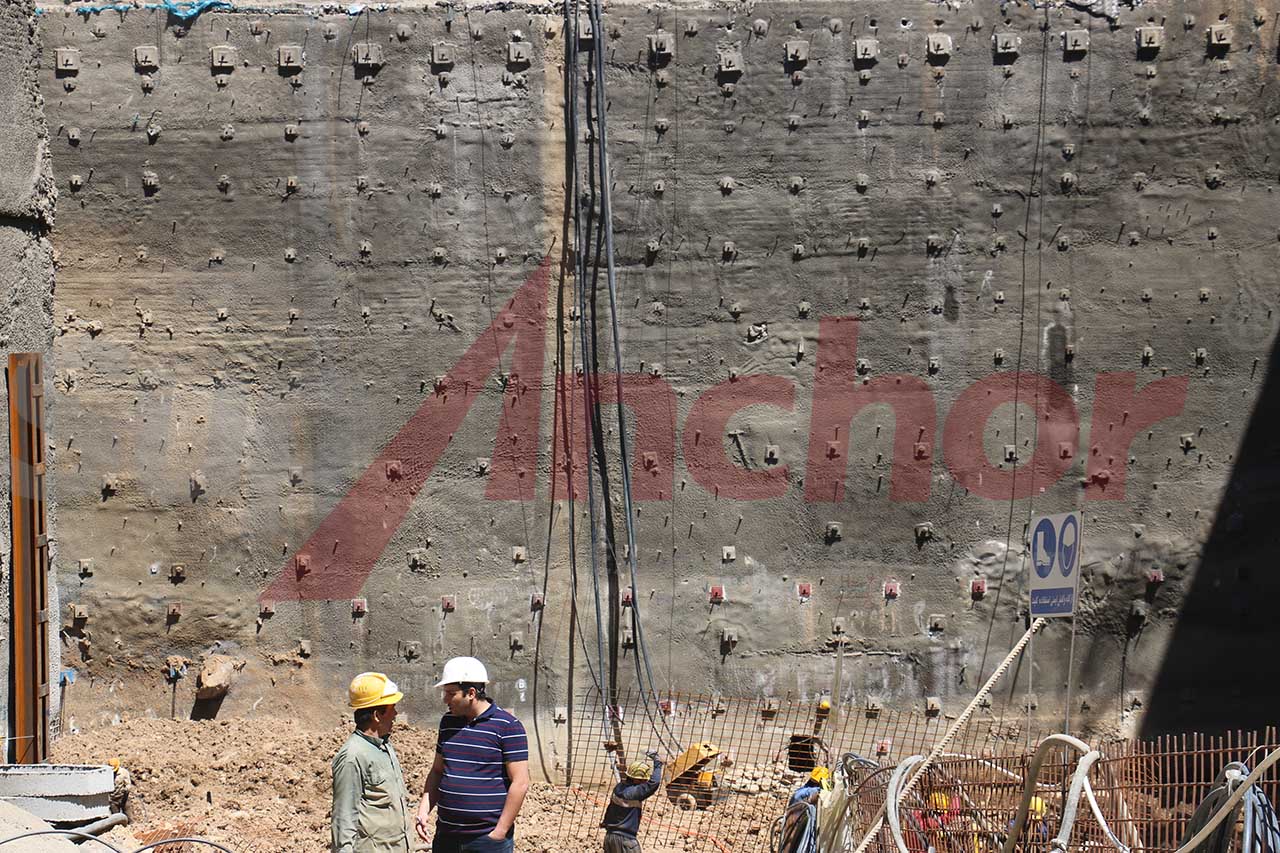

The SupAnchor GFRP Self-Drilling Anchor Bolt finds extensive use in multiple geotechnical scenarios, addressing critical infrastructure needs. In face stabilization for tunnels, its rapid installation minimizes downtime, while in forepoling applications, it provides temporary support during excavation. Slope stabilization projects benefit from its high load-bearing capacity, preventing erosion and landslides in areas prone to instability. Additionally, it is employed in ground support for soft rock formations and roof and wall bolting in mining operations, showcasing its adaptability across industries. For example, in a highway expansion project in California, this geotechnical reinforcement system was used to secure unstable slopes, demonstrating its real-world efficacy and contributing to project timelines and safety standards.
The introduction of this self drilling anchor bolt aligns with global trends in infrastructure development, where efficiency and safety are paramount. In tunneling and mining sectors, the demand for reliable geotechnical solutions is rising due to urbanization and resource extraction. SupAnchor's product offers a cost-effective alternative to traditional methods, reducing environmental impact through faster installation and minimal disruption. By improving stability in challenging terrains, it supports sustainable development goals and enhances public safety in projects ranging from subway constructions to dam reinforcements. The self drilling anchor system is poised to become a standard in the industry, driven by its proven performance in European and American markets.
SupAnchor's innovation in developing the GFRP Self-Drilling Anchor Bolt stems from years of dedicated research and development, focusing on materials science and engineering precision. The company holds ISO certifications for its thread profiles, ensuring compatibility and reliability in global projects. Collaborations with engineering firms worldwide have led to successful implementations, such as in the aforementioned Swiss tunnel and slope stabilization efforts in the Rocky Mountains. This brand influence is built on a core message of professionalism, innovation, and collaboration, positioning SupAnchor as a trusted partner in geotechnical engineering. By continuously refining products like the hollow bar anchor, the company drives industry advancements and sets new benchmarks for quality.
In conclusion, the SupAnchor GFRP Self-Drilling Anchor Bolt represents a significant leap forward in geotechnical reinforcement, offering a blend of technical prowess and practical adaptability. As infrastructure projects grow in complexity, this product provides a reliable solution for engineers and contractors, underscoring SupAnchor's role as an innovator in the field. With its emphasis on safety, efficiency, and sustainability, it is set to shape the future of ground support systems worldwide.
