In the demanding environments of soft rock and clay soils, geotechnical engineers grapple with instability during tunneling and slope stabilization projects. SupAnchor® addresses these challenges with its cutting-edge GFRP Self-Drilling Anchor (SDA) Bolt, a geotechnical reinforcement system that streamlines construction while enhancing safety. This self drilling anchor system is pivotal for projects across Europe and North America, where infrastructure demands robust, efficient solutions.

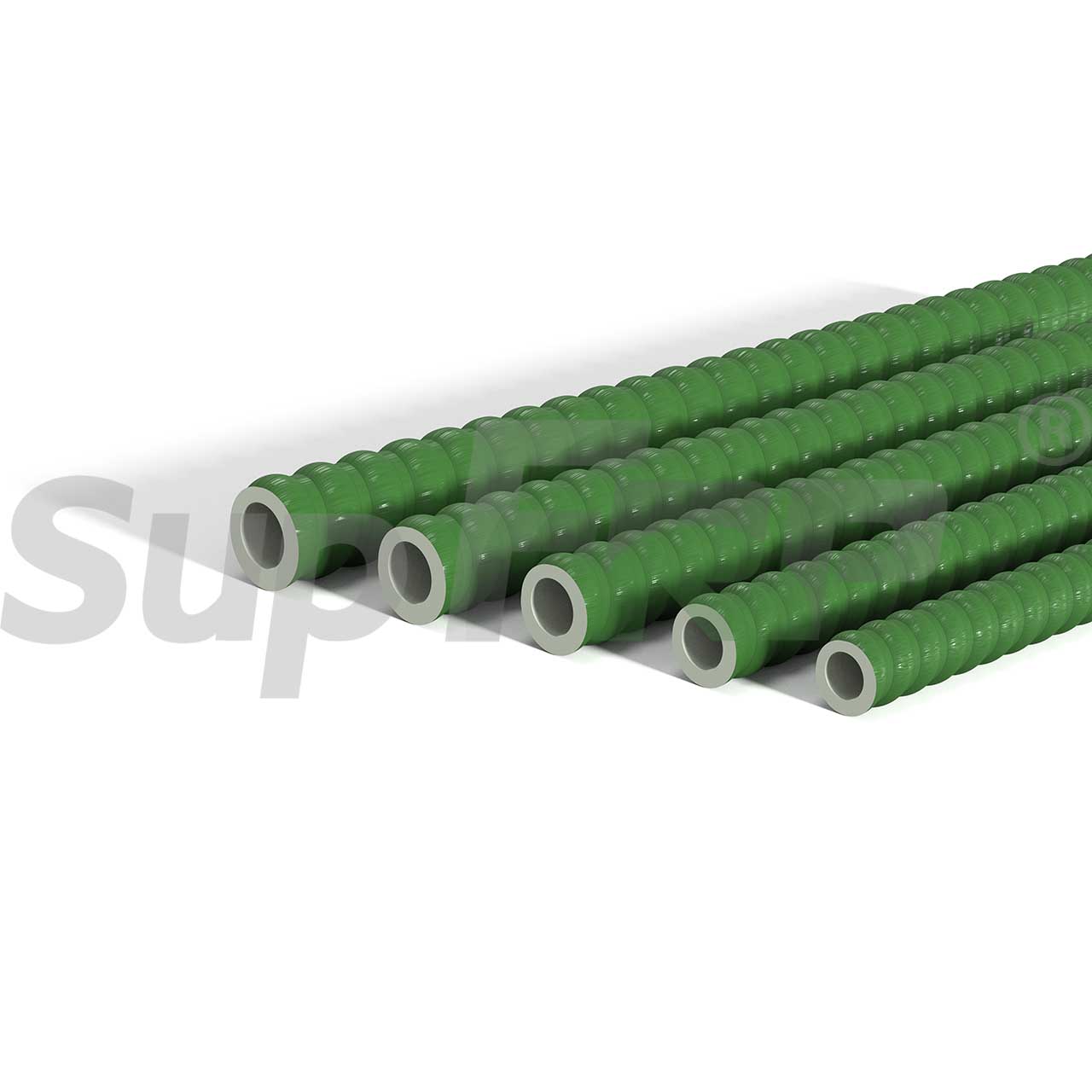

The SupAnchor® GFRP SDA Bolt combines drilling, grouting, and anchoring into a single operation, reducing installation time and labor costs. Its central hole allows for water flushing during drilling and precise anchor grouting, making it ideal for applications such as face stabilization in tunnels or slope reinforcement. This hollow bar anchor design not only improves adaptability but also protects machinery by being cuttable during tunnel enlargement, a key feature for mining and civil engineering sectors.
On-site, the drill-and-grout bolt process begins with rapid drilling into unstable ground, followed by grouting through the bolt's internal channel to secure the anchor. This method meets critical engineering needs for high load-bearing capacity and corrosion resistance. Key technical specifications from SupAnchor's product line include guaranteed tensile loads ranging from 220 kN to 490 kN, outside diameters from 25 mm to 38 mm, and standard ISO thread profiles (R25 to R38). These parameters directly address challenges like soil creep and rock deformation, ensuring long-term stability in soft rock environments.
| Model | Outside Diameter (mm) | Guaranteed Tensile Load (kN) | Tensile E-Modulus (GPa) | Length Options (m) |
|---|---|---|---|---|
| H25S | 25 | 220 | 45 | 2-11 |
| H28S | 28 | 280 | 45 | 2-11 |
| H32S | 32 | 365 | 45 | 2-11 |
| H38S | 38 | 490 | 45 | 2-11 |
This self drilling anchor bolt offers permanent application with super high torque resistance and easy handling, reducing on-site risks. For instance, in tunnel projects, the H32S model's 365 kN tensile load prevents roof collapse, while its 45 GPa E-modulus ensures durability under stress. By integrating these specs, SupAnchor solves engineering hurdles like water ingress and material fatigue, aligning with ISO standards for global compliance.
The SupAnchor® GFRP SDA Bolt is versatile across multiple geotechnical settings. Its primary applications include:
As a geotechnical reinforcement system, it excels in environments with high moisture or variable soil conditions, thanks to its glass fiber reinforced polymer (GFRP) composition that resists corrosion. This adaptability makes it a preferred choice for European projects in Alpine regions or American urban developments, where soil nail systems require precision and reliability.
The introduction of this self drilling anchor system aligns with growing global infrastructure needs, particularly in tunneling and mining sectors. According to industry reports, efficient ground support solutions can reduce project delays by up to 30% and enhance worker safety. SupAnchor's bolt contributes to this by offering a hollow bar anchor that minimizes environmental disruption and material waste. In regions prone to seismic activity, such as the Pacific Rim, its high end loading capacity ensures structural integrity, supporting sustainable development goals. Collaborations with geotechnical firms worldwide underscore its role in advancing safety standards, making it a benchmark for drill-and-grout bolt technologies.
SupAnchor® stands out as a soil nail system manufacturer and ground anchor bolt factory with a commitment to R&D and innovation. The company's investment in research has led to ISO-certified products that meet stringent international standards, fostering trust in global projects from Europe to the Americas. By emphasizing a collaborative approach, SupAnchor works with engineering teams to tailor solutions, reinforcing its message of professionalism and innovation. Recent deployments in cross-border tunnels and coastal slope stabilizations highlight its expanding influence, driven by a focus on cutting-edge materials and user-friendly designs.
In conclusion, the SupAnchor® GFRP Self-Drilling Anchor Bolt represents a significant leap in geotechnical engineering, combining technical prowess with practical applications. As infrastructure demands evolve, this self drilling anchor bolt sets a new standard for safety and efficiency, embodying SupAnchor's core values of being professional, innovative, and collaborative in every project undertaken.
