In the heart of the Swiss Alps, a critical highway expansion project faced an imposing challenge: unstable slopes composed of fractured limestone and loose moraine deposits. The terrain, prone to seasonal freeze-thaw cycles and heavy rainfall, threatened both construction safety and long-term road stability. To address these geotechnical hazards, engineers selected a self drilling anchor system from SupAnchor, a leading soil nail system manufacturer. This decision underscores a growing trend in infrastructure projects to adopt efficient, reliable ground stabilization solutions.

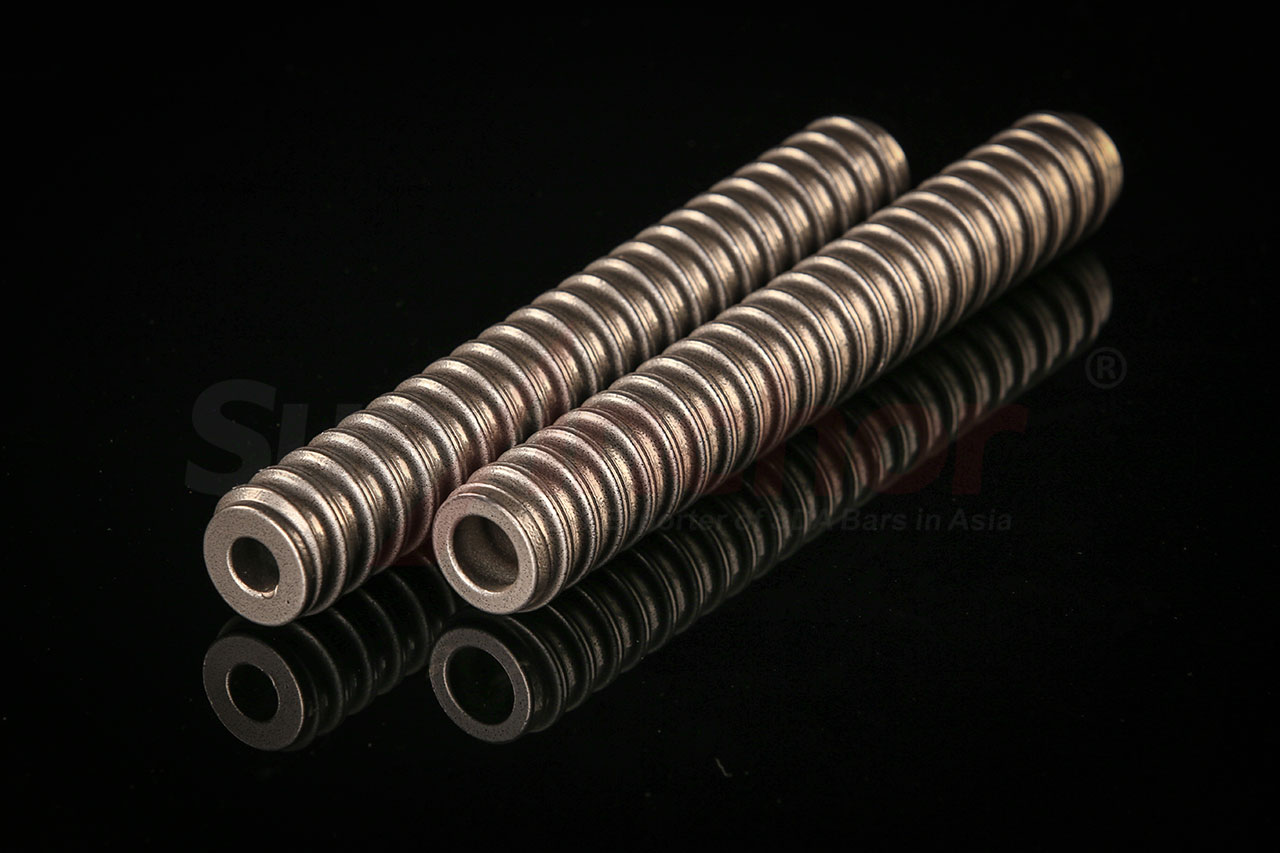

The project required a system capable of rapid installation in loose, collapsing soils. SupAnchor's hollow bar anchor technology allowed simultaneous drilling and grouting—a key advantage. The chosen self drilling anchor bolt model featured a 40mm outer diameter, with lengths varying from 6 to 12 meters depending on the depth of the unstable layer. Tensile strength reached 670 kN, providing ample safety margins. Corrosion protection was achieved through a galvanized coating plus a cementitious grout cover, ensuring durability for a 100-year service life.
| Parameter | Value |
|---|---|
| Outer Diameter | 40 mm |
| Length | 6–12 m |
| Tensile Strength | 670 kN |
| Corrosion Protection | Galvanized + grout |
During installation, crews utilized a high-frequency drill rig to advance the drill-and-grout bolt through the overburden. The hollow section allowed cement grout to be pumped continuously, filling the annulus and forming a geotechnical reinforcement system that immediately provided bearing capacity. In zones with significant groundwater ingress, the system's design prevented washout of grout, ensuring consistent quality.
The self drilling anchor for retaining walls proved particularly effective. Over 2,000 anchors were installed on a 300-meter-long cut slope. The ground stabilization anchor system allowed the contractor to avoid conventional soil nailing, which would have required pre-drilled casing and multiple stages. By using SupAnchor's SDA bolt factory direct supply, the project saved an estimated 30% in installation time. The micropile hollow bar anchor concept also served as temporary support for excavation faces, minimizing the need for shoring.
The anchor bolt system for geotechnical engineering demonstrated resilience under seismic loading simulations. With jointed rock masses, the full-length grouted bars created a composite structure, distributing loads along the entire length. The 40-mm diameter bars were selected to match the rock bolt for underground mining standards, albeit for surface stabilization, highlighting the technology's cross-sector adaptability.
This project exemplifies the increasing reliance on self drilling bolt for civil engineering projects. As aging infrastructure upgrades and new highways penetrate mountainous regions worldwide, the demand for quick, reliable anchoring solutions grows. The ground anchor bolt factory like SupAnchor provides engineered products that comply with European standard EN 1537. The shift from traditional passive anchors to active self drilling anchor system capabilities aligns with the industry's push for mechanized, labor-efficient methods.
The success on this Alpine highway is also a case study for similar projects in the Andes, Himalayas, and Rocky Mountains. The ability of the hollow bar anchor to adapt to variable ground conditions—from clay to rock—reduces design uncertainty. Additionally, the drill-and-grout bolt technique minimizes environmental disruption, as there is no need for large staging areas or excessive spoil removal.
SupAnchor, a prominent soil nail system manufacturer and ground anchor bolt factory, has been at the forefront of geotechnical innovation for over two decades. Certified under ISO 9001 and ISO 14001, the company supplies products that undergo rigorous testing. Their self drilling anchor bolt range includes models with diameters from 25mm to 76mm, accommodating diverse load requirements. With a global network of distributors, SupAnchor has supplied projects in over 40 countries. The company’s philosophy—Professional, Innovative, Collaborative—is evident in their custom engineering support for projects like this highway stabilization.
By providing a complete self drilling anchor system—including drill bits, couplings, and centralizers—SupAnchor ensures compatibility and performance. Their dedicated technical team visited the site to optimize installation parameters, demonstrating a collaborative approach that extends beyond product supply.
The Swiss highway project is a testament to the effectiveness of the self drilling anchor system in challenging geotechnical conditions. As infrastructure investments continue globally, solutions that enhance safety, speed, and sustainability will be paramount. SupAnchor's geotechnical reinforcement system not only solved immediate slope stability issues but also provided a replicable technique for future projects. With their factory-direct supply and engineering expertise, they remain a trusted partner for ground stabilization anchor system needs.
