In modern underground construction, particularly in regions with soft rock and clay soil, traditional anchoring methods often face significant hurdles. The need for stable tunnel faces, slope stabilization, and reliable ground support demands a system that can adapt to changing geological conditions while ensuring worker safety and equipment protection. Enter SupAnchor's SupFRP GFRP SDA Bolt—a self drilling anchor bolt that integrates drilling, grouting, and anchoring into a single, efficient process. This innovative geotechnical reinforcement system is now gaining traction on projects from European metro expansions to North American mining operations.
The self drilling anchor system streamlines installation in challenging ground conditions. Unlike conventional anchors that require pre-drilling, casing, and then grouting, the SupFRP GFRP SDA Bolt serves as a drill rod, injection pipe, and permanent anchor all in one. Its central hollow bar allows water flushing during drilling, reducing clogging and heat buildup. Once the desired depth is reached, grout is injected through the same bore, creating a monolithic bond with the surrounding soil or weathered rock. This drill-and-grout bolt method significantly reduces installation time and eliminates the risk of borehole collapse—a common issue in unconsolidated formations.
The bolt's cuttability is another standout feature. When tunnel boring machines or roadheaders must pass through previously supported sections, the GFRP material can be easily cut without damaging expensive cutting heads. This protects machinery and minimizes downtime, making it an ideal choice for forepoling and face stabilization in sequential excavation methods.

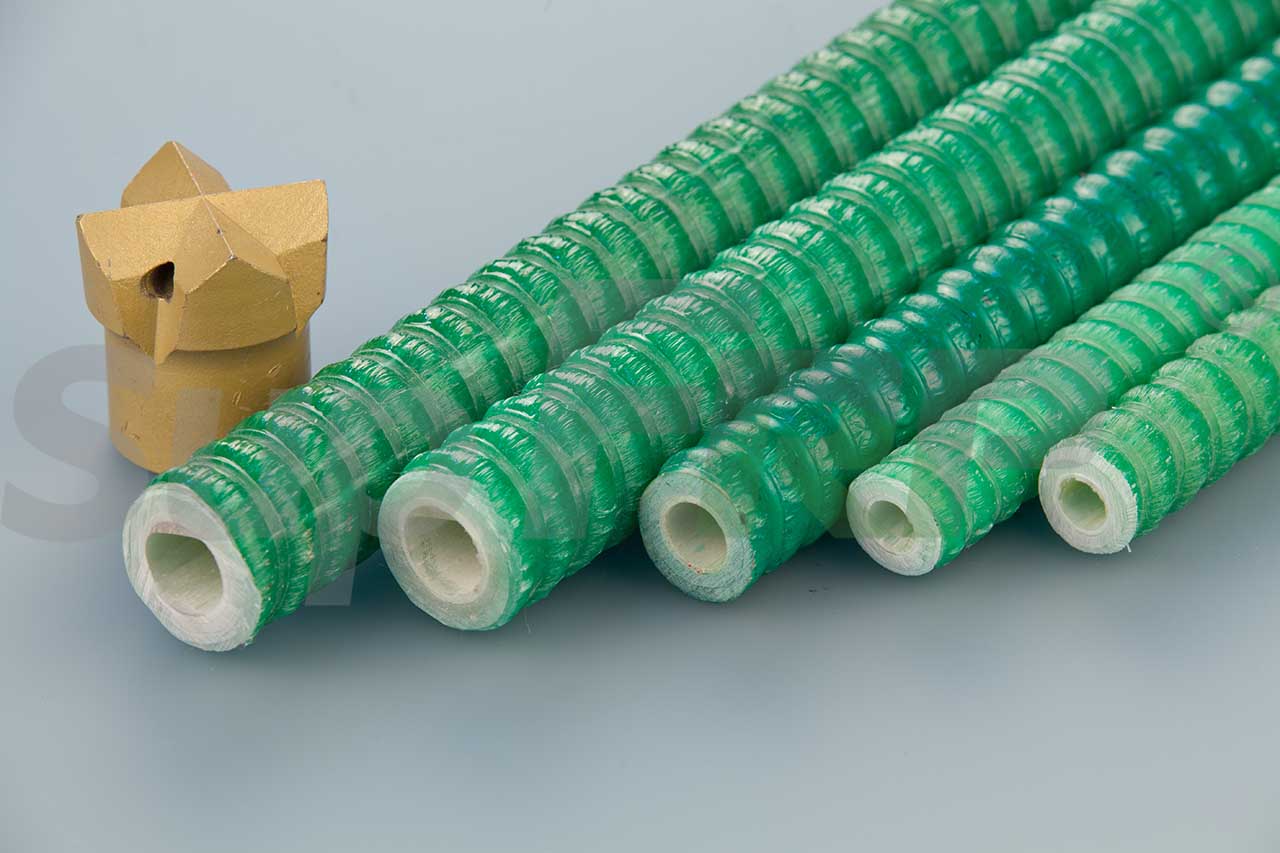

Engineered for permanent applications, the SupFRP GFRP SDA Bolt delivers impressive mechanical properties. It is available in four diameters—H25S, H28S, H32S, and H38S—to suit varying load requirements. The table below summarizes the critical parameters for each size.
| Parameter | H25S | H28S | H32S | H38S |
|---|---|---|---|---|
| Outside Diameter (mm) | 25 | 28 | 32 | 38 |
| Internal Diameter (mm) | 12 | 14 | 15 | 20 |
| Guaranteed Tensile Load (kN) | 220 | 280 | 365 | 490 |
| Torsion Strength (Nm) | 180 | 250 | 360 | 450 |
| Tensile E-Modulus (GPa) | 45 | 45 | 45 | 45 |
| Weight (kg/m) | 0.63 | 0.86 | 0.99 | 1.33 |
| Thread Type (ISO) | R25 | R28 | R32 | R38 |
| Standard Lengths (m) | 2 to 11 | 2 to 11 | 2 to 11 | 2 to 11 |
The high guaranteed tensile loads—up to 490 kN for the H38S variant—make this hollow bar anchor suitable for heavy-duty ground support. The consistent tensile modulus of 45 GPa ensures predictable elongation behavior, while the torsion strength values (reaching 450 Nm) allow the bolt to withstand the rotational forces of drilling without failure. Combined with ISO standard thread profiles (R25 to R38), the system integrates seamlessly with common drilling equipment and coupling accessories.
Manufactured from glass fiber reinforced polymer (GFRP), the bolt offers excellent corrosion resistance, making it a long-term solution for aggressive environments where steel anchors might degrade. Its lightweight nature—ranging from 0.63 kg/m to 1.33 kg/m—reduces handling effort and transport costs, a particular advantage in remote or underground job sites. Moreover, the ultimate strain of 2.0% provides sufficient ductility to accommodate ground movements without sudden brittle failure.

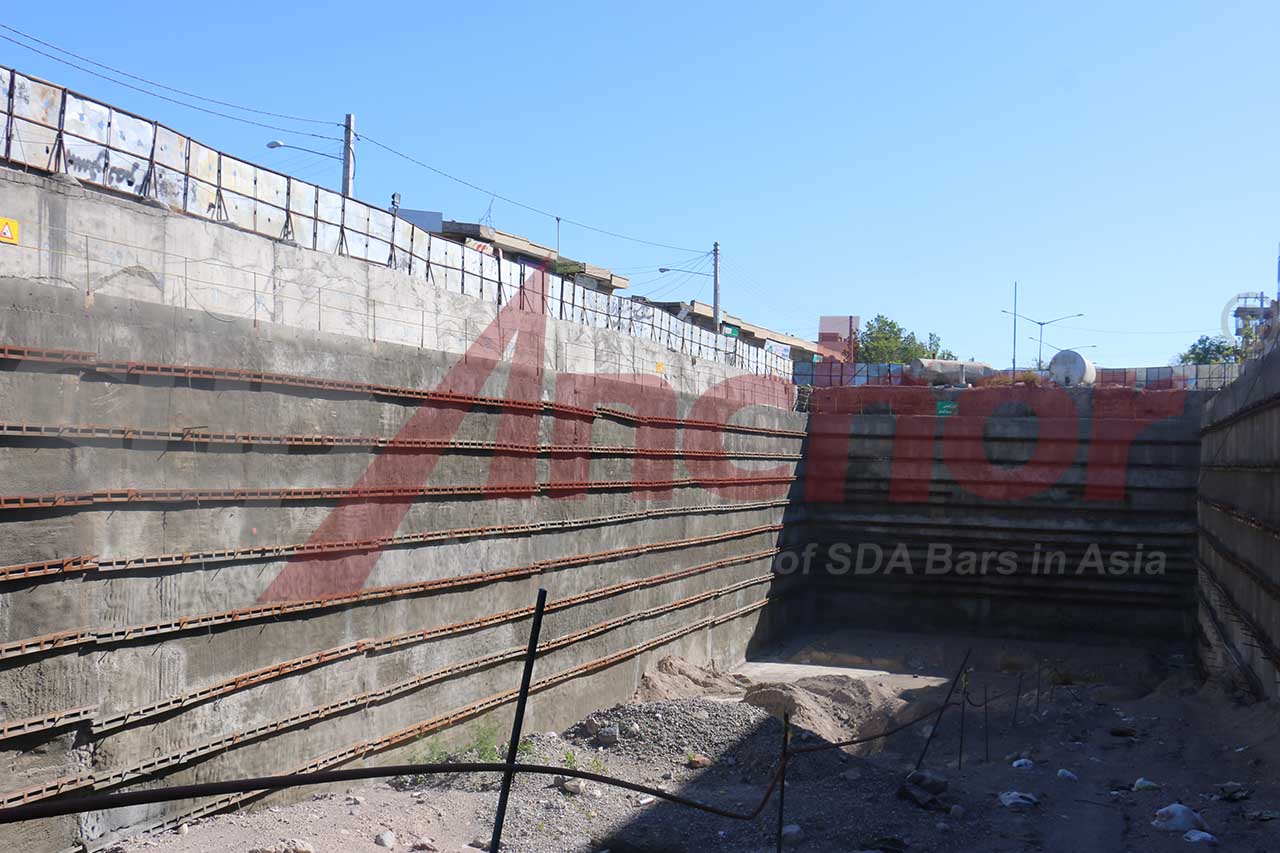

The SupFRP GFRP SDA Bolt is designed for a wide array of subsurface applications. In tunneling, it excels in face stabilization ahead of the excavation front, creating a reinforced zone that prevents collapse. As a forepoling element, it forms a protective umbrella over the tunnel crown, securing the ground in sections before permanent lining is installed. Slope stabilization projects benefit from the bolt's ability to anchor in weathered rock or soil, resisting landslide forces and maintaining structural integrity. Mine operators use this soil nail system manufacturer's product for roof and wall bolting in development drifts, where cuttability is essential to avoid bending or breaking continuous miner bits. Even in soft rock conditions where conventional resin bolts fail due to poor adhesion, the grouted hollow bar provides reliable anchorage.
The self drilling anchor system's versatility also extends to temporary works, such as retaining wall construction and micro-pile foundations, where rapid installation is required without compromising load capacity. By combining drilling and grouting in a single step, site productivity increases markedly, often reducing support cycle times by 30–50% compared to traditional methods.
As global infrastructure investment surges—particularly in urban metro projects and renewable energy-related underground storage—the demand for reliable geotechnical solutions grows. The drill-and-grout bolt market is projected to expand as more contractors recognize the benefits of one-pass installation. SupAnchor's product stands out not only for its technical merits but also for its contribution to sustainable construction. The GFRP material reduces the carbon footprint compared to steel production, and the elimination of separate drilling and casing steps saves fuel and consumable materials. Furthermore, the permanent installation capability minimizes the need for replacement or maintenance, lowering lifecycle costs.
Using these ground anchor bolt factory products, engineers can achieve higher safety factors with less material, as the grout column transfers load efficiently from the bolt to the ground. The consistent quality and traceability of ISO-certified manufacturing ensure predictable performance, which is critical for design reliability. With length options up to 11 meters, the system can be tailored precisely to the required anchorage depth, reducing waste and optimizing cost.
With decades of expertise, SupAnchor has established itself as a leader in anchoring technology. The company's R&D team continuously refines the balance between strength, weight, and workability. The SupFRP GFRP SDA Bolt is a testament to this pursuit of innovation, developed in collaboration with geotechnical engineers and contractors worldwide. Its adoption in major tunneling and mining projects across Europe, North America, and Asia underscores the trust placed in the brand. By adhering to strict ISO standards and maintaining a robust supply chain, SupAnchor ensures that clients receive not just a product, but a comprehensive solution backed by technical support. As the construction industry moves toward faster, safer, and more sustainable practices, the self drilling anchor bolt is poised to become an indispensable tool for the modern geotechnical engineer.
