Set against the dramatic backdrop of the Swiss Alps, a landmark high-speed rail infrastructure project is redefining alpine engineering. The 15-kilometer twin-tube tunnel, a key component of Europe's Trans-European Transport Network (TEN-T), will slash travel times between major cities while traversing some of the continent's most unforgiving geology. With rock conditions ranging from blocky limestone to heavily fractured schist, and groundwater pressures exceeding 10 bar in certain sections, conventional support systems proved inadequate. Contractors turned to an advanced geotechnical reinforcement system from SupAnchor: the self drilling anchor system. This self drilling anchor bolt technology not only streamlined the construction sequence but also delivered unparalleled safety margins, positioning it as an anchor bolt system for geotechnical engineering of the highest order.
The new tunnel is part of the ambitious AlpTransit expansion, designed to shift freight traffic from road to rail and reduce carbon emissions. However, the alignment cuts through a fault zone known for its challenging ground conditions—squeezing rock, water-charged fissures, and the risk of sudden collapse. Early geotechnical surveys revealed that temporary support alone would not suffice; permanent reinforcement was necessary from the outset. The selected self drilling anchor system provided a solution that doubled as a drill-and-grout bolt and a hollow bar anchor, enabling simultaneous drilling, grouting, and anchoring in a single pass. This eliminated the need for casing and reduced the risk of hole collapse, a critical advantage in such adverse conditions. Furthermore, the system's design as a micropile hollow bar anchor allowed it to serve double duty as temporary roof support and permanent ground stabilization anchor system.

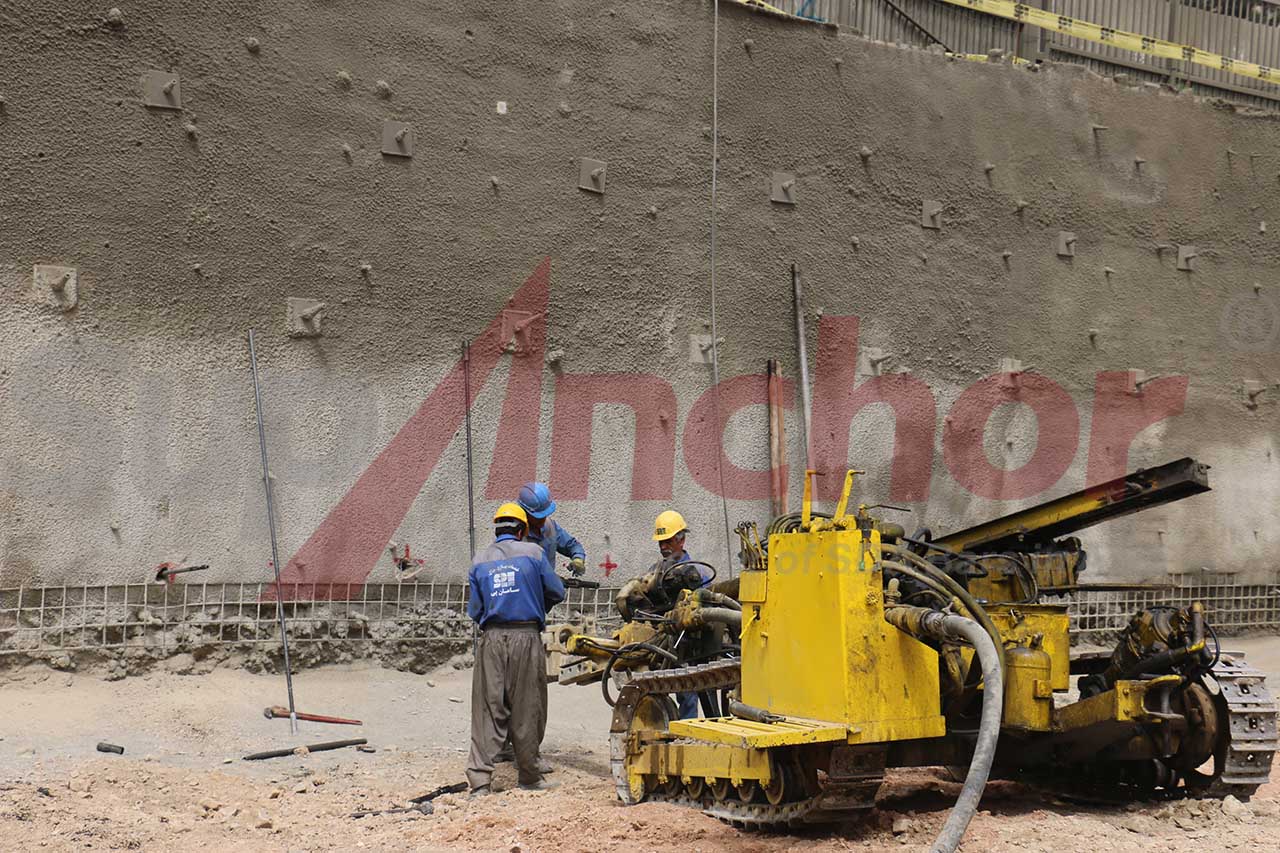

At the tunnel heading, crews worked in a carefully orchestrated sequence. The image captured shows a team installing a self drilling anchor for retaining walls in the portal zone, where slope stability was paramount. These self drilling bolts for civil engineering were installed using hydraulic rotary-percussive rigs. The hollow bar anchor allowed grout to flow through its core under pressure, permeating the surrounding rock and creating a monolithic bond. This drill-and-grout bolt method yielded immediate pull-out resistance, enabling the rapid application of steel arches and shotcrete. The following table outlines the key technical parameters of the self drilling anchor system deployed:
| Parameter | Specification |
|---|---|
| Anchor Type | Hollow bar anchor, continuous thread |
| Steel Grade | 800 MPa ultimate tensile strength |
| Diameter | 32 mm (external) / 20 mm (internal bore) |
| Length | 3 m sections, coupled up to 12 m |
| Corrosion Protection | Hot-dip galvanized (80 μm min) to EN ISO 1461 |
| Thread | ISO 10208 R-thread, full length |
| Grout | Cementitious grout W/C 0.4, injected at 3-5 bar |
The 800 MPa tensile strength ensures that each self drilling anchor bolt can withstand extreme shear and tensile loads. The galvanized coating, applied at the ground anchor bolt factory, guarantees a service life exceeding the 120-year design life of the tunnel. The continuous ISO thread permits on-site coupling to adapt to variable overbreak, while the hollow core serves as the grout conduit. This self drilling bolt for civil engineering behaved as both a sacrificial drill bit and a permanent tendon, substantially reducing cycle times. Because the system is a true soil nail system manufacturer-designed product, it integrates seamlessly with other support elements, such as reinforced shotcrete and steel ribs.

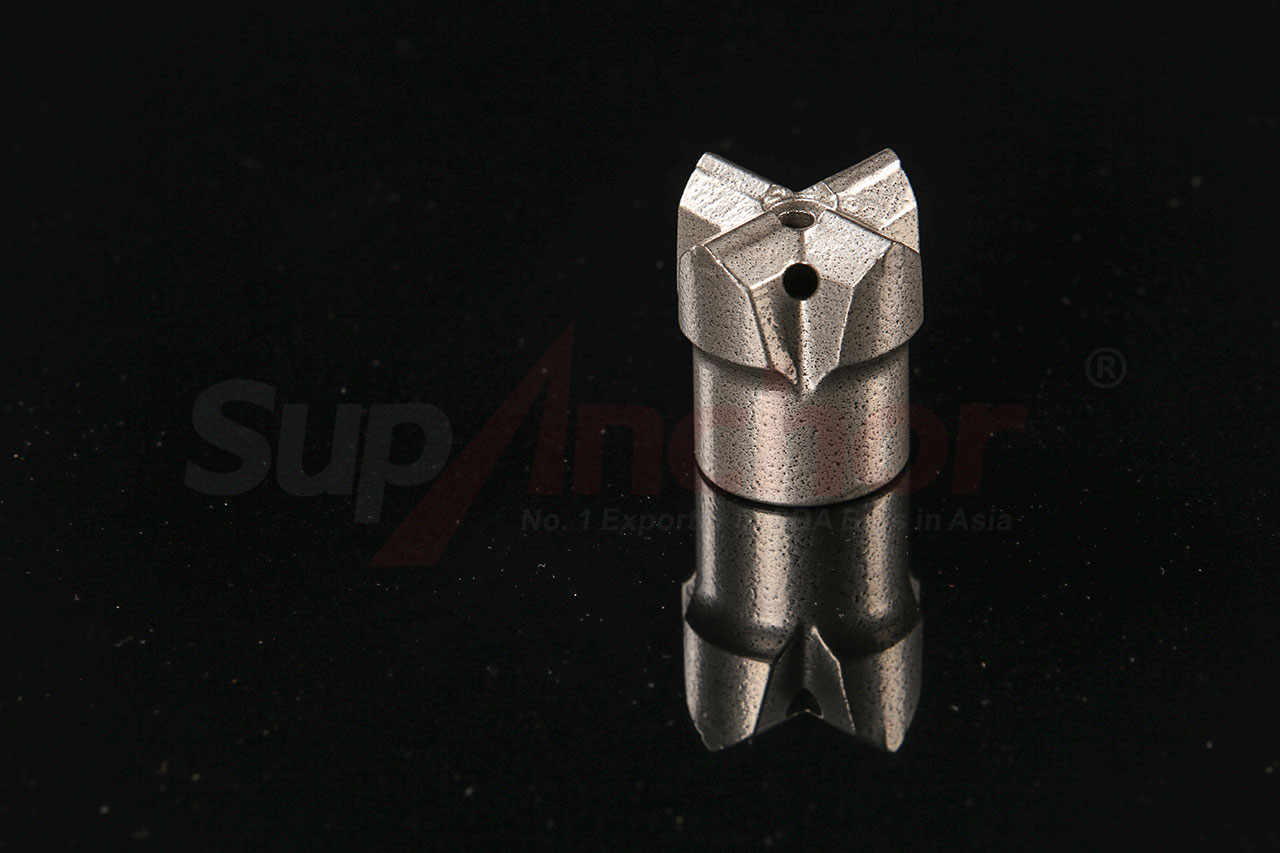

The installation sequence followed a precise pattern: first, the drill rig positioned the hollow bar anchor at the marked spot. A lost drill bit, pre-attached to the anchor tip, rotated and percussed into the rock. As the anchor advanced, grout was pumped through the central bore, filling fissures and bonding the bar to the surrounding geology. Once the designed embedment depth was reached, the rig applied a nut and bearing plate to immediately tension the anchor. This drill-and-grout bolt approach meant that within ten minutes of starting the hole, the tunnel crew could proceed to the next support element, confident in a secure, load-bearing connection. The self drilling bolt for civil engineering thus became an integral part of the rapid excavation method.
The adoption of the hollow bar anchor system proved transformative for the project's bottom line. By combining drilling and grouting into one operation, the crew eliminated the need for separate drill strings and casing, reducing tooling costs by an estimated 25%. The self drilling anchor for retaining walls allowed the team to support the portal cut slopes concurrently with tunnel excavation, preventing delays. Moreover, the immediate grouted bond meant that the next support cycle—shotcreting and bolting—could begin within minutes, cutting cycle times by up to 30%. With a SDA bolt factory direct supply chain, the contractor maintained a steady inventory of components, avoiding costly standstills. This focus on operational efficiency reflects the ethos of SupAnchor as a reliable ground anchor bolt factory dedicated to delivering precision-engineered solutions.
The success of the Alpine tunnel demonstrates the growing indispensability of modern self drilling anchor for retaining walls and other geotechnical reinforcement systems. Across the globe, cities are expanding underground metro networks, and mining operations are going deeper, all requiring reliable rock bolt for underground mining solutions. The micropile hollow bar anchor, once a niche product, has become a mainstay in foundation support for high-rise buildings, especially in urban settings with limited headroom. Its ability to combine drilling and grouting makes it a preferred choice for soil nail system manufacturers aiming to optimize installation efficiency. For hard rock mining, the demand for a high-quality rock bolt for underground mining has never been higher, and SupAnchor's products undergo rigorous dynamic testing to meet this need. Additionally, the ground stabilization anchor system approach is increasingly adopted in slope remediation projects triggered by climate change-induced landslides. By leveraging a proven anchor bolt system for geotechnical engineering, project owners can mitigate risks and deliver infrastructure that withstands extreme weather events.
Behind every SDA bolt factory direct supply lies a commitment to quality that begins at SupAnchor's ISO-certified manufacturing facilities. As a vertically integrated ground anchor bolt factory, SupAnchor controls every step — from raw steel selection to final hot-dip galvanizing. This rigorous process ensures that each self drilling anchor bolt meets the exacting standards required for civil and mining applications. The company's rock bolt for underground mining range, for instance, is subjected to dynamic load testing simulating seismic events, a prerequisite for many Latin American mining projects. Similarly, the anchor bolt system for geotechnical engineering portfolio includes specialized solutions for water-saturated soils, where additional anti-corrosion measures are vital.
SupAnchor's technical support team, embodying the corporate motto "Professional, Innovative, Collaborative," provides on-site training and load-testing protocols. This hands-on approach has fostered long-term partnerships with major contractors worldwide. By offering custom lengths, diameters, and coatings, SupAnchor elevates the concept of a soil nail system manufacturer to a full-service geotechnical partner. Whether it's a self-drilling anchor in a congested European city or a custom anchor solution for a remote hydropower project in Southeast Asia, the company's SDA bolt factory direct supply model guarantees timely delivery and consistent quality.
Beyond immediate project benefits, this geotechnical reinforcement system contributes to sustainability goals by reducing steel waste and cement consumption. Because the hollow bar anchor doubles as a drill rod, there is less tooling scrap compared to conventional systems. The galvanized corrosion protection extends the structural lifespan, minimizing maintenance and repair needs over decades. As infrastructure spending rises under initiatives like the European Green Deal, the demand for sustainable ground stabilization anchor systems will surge. SupAnchor's micropile hollow bar anchor technology is well-positioned to meet this need, particularly in foundation retrofits where minimal vibration and low noise are critical. Looking ahead, the integration of sensor technologies into anchor systems—enabling real-time load monitoring—will further enhance safety and efficiency, with SupAnchor at the forefront of this evolution.
As the Alpine tunnel moves toward its 2026 opening, the performance of this anchor system stands as a testament to engineering ingenuity. For project owners and contractors facing similar challenges, the message is clear: working with a dedicated manufacturer like SupAnchor and opting for factory direct supply are strategic decisions that pay dividends in safety, speed, and reliability. With a heritage of innovation and a portfolio that spans the full spectrum of geotechnical solutions, SupAnchor continues to be the partner of choice for the world's most demanding projects.
