High in the alpine region, where unpredictable rock formations and loose soils pose constant threats to construction, a critical highway expansion is underway. The project, designed to widen a key transit route between northern and southern Europe, faced immediate setbacks when routine geotechnical boreholes revealed heavily fractured shale interbedded with water-bearing silts. Conventional drilling and anchoring methods failed repeatedly, leading to delays, cost overruns, and growing safety concerns. It was then that the project engineers turned to SupAnchor, a globally recognized soil nail system manufacturer and ground anchor bolt factory, for its proven self drilling anchor system.
“We needed a solution that could handle the unpredictable ground without collapsing,” said lead geotechnical engineer Marco Ferrara. “SupAnchor’s self drilling anchor bolt not only eliminated the need for casing, but also provided immediate support during installation, which was critical in those unstable zones.”
The construction scene captured in the accompanying image (above) shows a steep cut slope along the new highway alignment. Workers are operating a specialized drilling rig equipped with a hollow bar anchor, simultaneously drilling through loose overburden and fractured rock while injecting cement grout. This drill-and-grout bolt technique is at the core of SupAnchor’s self drilling anchor system, which integrates drilling, anchoring, and grouting into a single operation. Unlike traditional multi-step methods, this geotechnical reinforcement system maintains borehole stability throughout the process, preventing the cave-ins that had plagued earlier attempts.
At this specific site, the design called for a pattern of 12-meter-long anchors installed at 2‑meter horizontal and vertical spacing across three road levels. The anchors were required to achieve a minimum working load of 200 kN, with an ultimate tensile strength exceeding 300 kN to meet safety factors. SupAnchor’s R38 hollow bar system, one of its signature products, was selected for the task. The table below summarizes the key technical parameters of the anchors deployed:
| Parameter | Specification |
|---|---|
| Anchor Type | Self drilling hollow bar (R38) |
| Nominal Outer Diameter | 38 mm |
| Steel Grade / Tensile Strength | 830 MPa yield / 970 MPa ultimate |
| Working Load Capacity | 200 kN (design); certified to 250 kN |
| Anchor Length | 12 m per unit (field‑coupled as needed) |
| Corrosion Protection | Hot‑dip galvanized (≥85 μm zinc coating) + cement grout encapsulation |
| Drilling Method | Top hammer DTH with simultaneous grouting through hollow core |
| Installation Rate | Average 20–25 m per hour per machine in mixed ground |
Corrosion protection is a paramount concern in alpine environments, where freeze‑thaw cycles and aggressive groundwater can rapidly degrade standard steel. SupAnchor’s solution combines a hot‑dip galvanized hollow bar anchor with a cement grout cover that forms a dense, alkaline barrier. This dual system meets the 100‑year design life specified by European standards for permanent soil nail systems. In addition, the continuous thread along the bar allows precise positioning of load‑bearing plates and nuts, ensuring uniform stress distribution across the slope face.
The job site also employed a series of micropile hollow bar anchors at the toe of the slope to support a retaining wall that will protect the highway from potential debris flows. These micropiles were drilled to depths of 15–20 meters, grouted simultaneously, and tied into a reinforced concrete beam. The ability to use the same equipment and hollow bars for both soil nails and micropiles streamlined logistics and reduced downtime—a key advantage of SupAnchor’s integrated ground stabilization anchor system.
This alpine highway project exemplifies a broader trend in civil engineering: the increasing reliance on advanced anchor bolt systems for geotechnical engineering to overcome complex ground conditions in environmentally sensitive areas. With infrastructure spending rising globally, particularly in transportation and energy sectors, the demand for reliable, fast, and cost‑effective slope stabilization methods has never been higher. SupAnchor’s self drilling anchor for retaining walls and slope reinforcement is directly addressing these challenges by minimizing excavation, reducing concrete and steel usage, and accelerating construction schedules.
The European construction industry alone expects to invest over €500 billion in transport infrastructure over the next decade, much of it in mountainous or urban areas where space is limited and ground conditions are poor. Traditional deadman anchors and bored piles often require large working platforms, deep excavations, and extensive drilling fluids disposal—all of which are problematic in the confined zones typical of road widening projects. The self drilling bolt for civil engineering, by contrast, can be installed from a narrow bench, making it the preferred choice for upgrade projects that must keep traffic flowing during construction.
Furthermore, the environmental footprint of a self drilling anchor bolt is substantially lower than that of conventional methods. The simultaneous drilling and grouting process eliminates the need for temporary casing and separate grouting stages, cutting cement waste and vibration. In the alpine case, engineers also noted that the technique generated minimal spoil, which was a critical factor given the strict environmental protections in the sensitive mountain ecosystem.
Behind the success of this and many other landmark projects is SupAnchor, an ISO 9001‑certified manufacturer with over two decades of experience in geotechnical reinforcement systems. The company operates a state‑of‑the‑art SDA bolt factory direct supply chain, ensuring that high‑quality hollow bar anchors and accessories reach job sites promptly and in full compliance with international standards. Its research‑and‑development team continuously refines thread geometry, steel alloys, and corrosion protection systems, pushing the limits of what self drilling anchor bolts can achieve.
SupAnchor’s commitment to collaboration is evident in its approach to project support. For the alpine highway, its engineers worked hand‑in‑hand with the contractor to optimize anchor spacing, grout mixes, and drilling parameters, ultimately achieving a 30% improvement in installation speed compared to earlier trials. This hands‑on partnership model has been replicated on projects ranging from rock bolts for underground mining in Australia to ground stabilization anchor systems for high‑speed rail corridors in Southeast Asia.

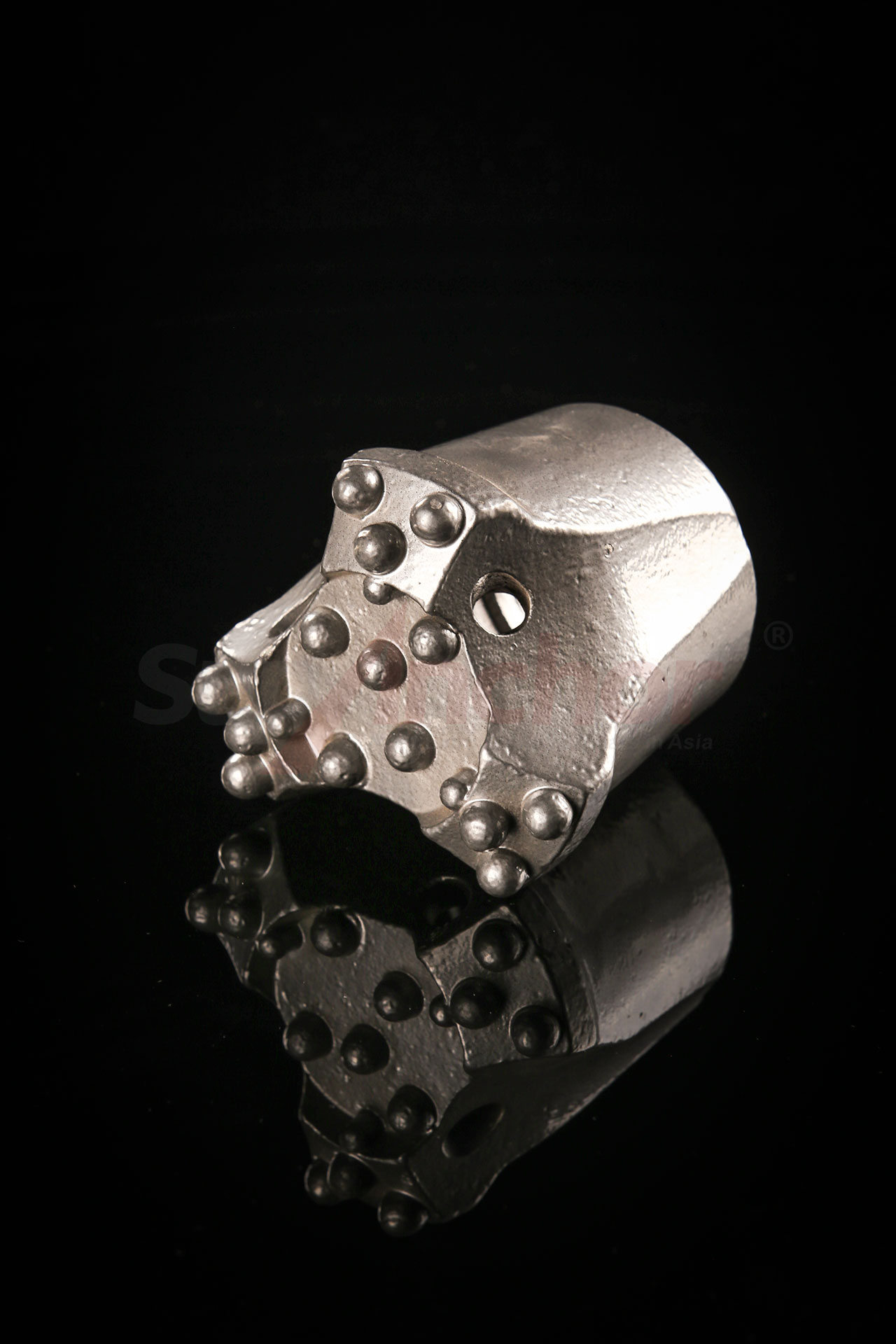

The company’s product portfolio covers a comprehensive range of diameters (R25 to R51), lengths, and yield strengths, alongside couplers, centralizers, and drill bits. This versatility means that a single hollow bar anchor system can be configured as a soil nail, rock bolt, micropile, or even a tie‑back anchor, simplifying inventory and training for multinational contractors. As the construction industry moves toward digitalization, SupAnchor is also exploring sensor‑equipped self drilling bolts that can monitor load and corrosion in real time, delivering data that enhances long‑term asset management.
The alpine highway expansion is scheduled for completion in mid‑2026, with the stabilized slopes already showing excellent performance under heavy rainfall and snowmelt. For the broader geotechnical community, the project serves as a compelling case study in how modern self drilling anchor systems can unlock difficult sites, reduce risk, and deliver durable infrastructure—even in the most demanding geologies. As cities densify and climate change intensifies weather extremes, the need for such robust, adaptable ground support solutions will only grow. SupAnchor, with its relentless focus on innovation and quality, is poised to remain at the forefront of this vital industry.
