In the demanding environments of underground mining and tunneling, ground support systems must combine speed, reliability, and engineering flexibility. SupAnchor, a recognized manufacturer of advanced geotechnical reinforcement systems, has recently highlighted its SupHulk PM series friction rock bolts as a go-to solution for securing excavations in diverse geological conditions. From the rugged tunnels of the Alps to deep-level gold mines in South Africa, these swell friction bolts are proving their worth by providing immediate, full-column support and adapting seamlessly to rock movements.
The SupHulk PM series is engineered around a simple yet robust principle: a steel tube inserted into a predrilled hole, then inflated with high-pressure water to expand against the borehole wall. This creates a continuous friction interlock along the entire anchorage length, enabling the bolt to bear full load immediately after installation. Unlike traditional point-anchored rock bolts, SupHulk bolts distribute carrying force uniformly, absorbing rock shifts without delay—a critical advantage in squeezing ground or high-stress zones.
"Our customers face constant pressure to improve safety and advance rates," explains a SupAnchor senior engineer. "The SupHulk system cuts installation time while delivering consistent performance even in fractured or soft rock masses. The operator simply drills, inserts, and inflates—the pump’s automatic cutoff ensures correct pressure every time, eliminating guesswork."
The Premium line (PM) of SupHulk bolts is designed for tunneling applications requiring high yield load and deformability, but its capabilities extend into mining operations where stiff reinforcement is paramount. Three models—PM12, PM16, and PM24—cover a wide load spectrum. Key mechanical properties are summarized below:
| Parameter | PM12 | PM16 | PM24 |
|---|---|---|---|
| Minimum Breaking Load (kN) | 110 | 160 | 240 |
| Minimum Yield Load (kN) | 100 | 130 | 200 |
| Minimum Elongation A100mm (%) | 10% (all models) | ||
| Inflation Water Pressure (bar) | 300 | 240 | 300 |
| Required Hole Diameter (mm) | 32–39 | 43–52 | 43–52 |
| Profile Diameter (mm) | 27 | 36 | 36 |
| Tube Thickness (mm) | 2 | 2 | 3 |
| Original Tube Diameter (mm) | 41 | 54 | 54 |
| Upper Bushing Diameter (mm) | 28 | 38 | 38 |
| Bushing Head Diameter (mm) | 30/36 | 41/48 | 41/48 |
In addition to these static properties, the bolts’ installation efficiency is a standout feature. The specially designed inflation system includes a pump that automatically stops when the predetermined pressure is reached, ensuring uniform quality. Even in irregular boreholes, the expanding steel adapts to the wall profile, filling fissures and bridging gaps—a property that makes it ideal for fractured rock masses. A 50‑centimeter inflated section alone can generate 100 kN of friction, and the steel profile’s capacity to shear without failure provides a safety net in dynamic ground conditions.
The weight of each bolt varies with length, directly influencing handling and logistics. For example, a 3.0‑meter PM12 weighs just 6.00 kg, while a PM24 of the same length comes in at 10.60 kg. This table presents the weight–length relationship:
| Length (m) | PM12 Weight (kg) | PM16 Weight (kg) | PM24 Weight (kg) |
|---|---|---|---|
| 1.2 | 2.50 | — | — |
| 1.5 | 3.10 | — | — |
| 1.8 | 3.70 | 5.10 | 7.20 |
| 2.1 | 4.30 | 5.80 | 8.40 |
| 2.4 | 4.90 | 6.70 | 9.50 |
| 3.0 | 6.00 | 8.20 | 10.60 |
| 3.3 | 6.60 | 8.90 | 12.90 |
| 3.6 | 7.20 | 9.70 | 14.00 |
| 4.0 | 8.00 | 10.70 | 15.60 |
| 4.5 | 9.00 | 12.00 | 17.40 |
| 5.0 | 9.90 | 13.30 | 19.30 |
| 6.0 | 11.90 | 15.90 | 23.10 |
These specifications underscore the PM series’ scalability—from light-duty support in small cross‑section tunnels to heavy reinforcement in deep mining stopes. The ability to withstand shear movements allows engineers to design support systems with confidence, knowing the bolt will accommodate gradual deformations without brittle failure.
SupHulk friction bolts are employed as pattern bolts in tunneling, where a systematic array secures the excavation profile. In mining, they serve as roof bolts and hanging wall bolts, providing rapid, safe, and high‑performance reinforcement. The installation sequence—drill, insert, inflate—can be executed with standard handheld or rig‑mounted equipment, making it accessible to a wide range of projects.
A recent case study involved a highway tunnel in Switzerland passing through alternating layers of marl and fractured limestone. Conventional resin‑grouted bolts were plagued by inconsistent mixing and delayed setting times. The contractor switched to SupHulk PM16 and PM24 bolts, which allowed immediate support after face advance. “The ability to test every bolt with a simple pull‑out test gave us real‑time quality assurance,” noted the site geologist. The project achieved a 20% increase in advance rate while meeting the strict Swiss safety codes.
In a Canadian hard‑rock mine, the PM12 was used as a temporary hanging wall support in a narrow‑vein operation. The lightweight 3.6‑meter bolts (7.20 kg) could be easily maneuvered by miners in confined spaces, and the fast inflation system cut installation time by half compared to split set bolts. This adaptability to different operational scales makes the SupHulk PM line a favorite among ground control engineers.
The bolts are also equipped with a SupHulk net washer, enabling effective screening of loose rock fragments. Combined with the full‑column friction interlock, this creates a composite support system that reduces the need for secondary meshing or shotcrete in moderate conditions.
SupAnchor has built a reputation as a leading soil nail system manufacturer and ground anchor bolt factory, with a product portfolio that includes self-drilling anchor bars, hollow bar anchors, and drill-and-grout bolts. The SupHulk PM series complements these offerings by addressing niche applications where swelling friction mechanisms excel. The company’s ISO 9001‑certified manufacturing and continuous R&D investment have positioned it as a strategic partner for megaprojects across Asia, Europe, and the Americas.
The global push for infrastructure renewal and sustainable mining practices is driving demand for versatile geotechnical reinforcement systems. SupAnchor’s self-drilling anchor systems, for example, combine drilling, grouting, and anchoring in a single pass, reducing time and cost. The SupHulk friction bolts extend this efficiency philosophy. As underground spaces grow deeper and more complex, the ability to provide immediate, ductile support becomes a differentiator. The PM series’ 10% minimum elongation ensures that even in yielding ground, the bolt remains intact, preserving the load‑carrying capacity.
“Professional, innovative, and collaborative” is not just a tagline at SupAnchor; it is reflected in the technical support offered to clients. From recommending the optimal bolt diameter to designing full support patterns, the company’s engineers work alongside contractors to tailor solutions. This service‑oriented approach has won repeat business from multinational mining houses and civil engineering firms.
Looking ahead, SupAnchor continues to refine its product lines. Ongoing trials of the SupHulk system in highly corrosive groundwater have led to the development of optional protective coatings, further extending service life. As the industry moves toward automation, the simple, repeatable installation of friction bolts makes them adaptable for robotic drilling rigs.
With the SupHulk PM series, SupAnchor reinforces its commitment to engineering excellence and safety. In a world where every centimeter of rock can harbor surprises, having a dependable, instantly reactive support system is not just an operational advantage—it’s a necessity.

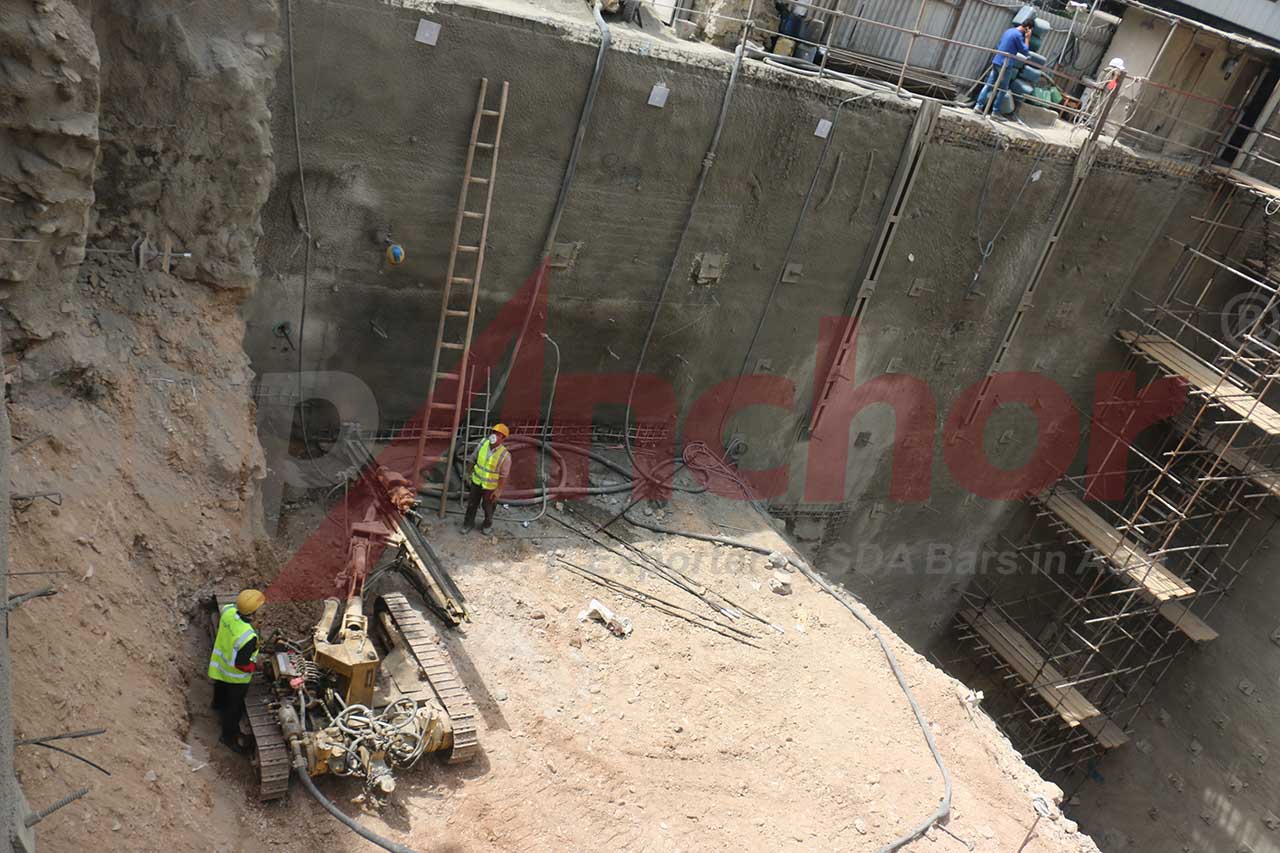

SupAnchor's self drilling anchor system plays a critical role in a challenging European infrastructure project, providing efficient ground stabilization and geotechnical reinforcement in difficult soil conditions.
