The A4 Motorway Expansion between Kraków and Rzeszów represents one of Poland’s most strategic infrastructure initiatives under the EU’s Trans-European Transport Network (TEN-T). The project, budgeted at over €1.2 billion, aims to upgrade a 95-km stretch of motorway to a three-lane cross section, incorporating 28 bridges, 6 tunnels, and extensive slope stabilization works. However, the region’s complex geology—characterized by alternating layers of glacial till, fractured flysch, and karstic limestone—presented formidable challenges for foundation engineering. In multiple sections, conventional passive rock bolts and soil nails proved incapable of achieving the required pull-out capacities due to the presence of groundwater and unstable clay seams. Consequently, the general contractor turned to SupAnchor’s advanced hollow bar anchor technology, a solution that integrates drilling, placement, and grouting into one efficient operation.

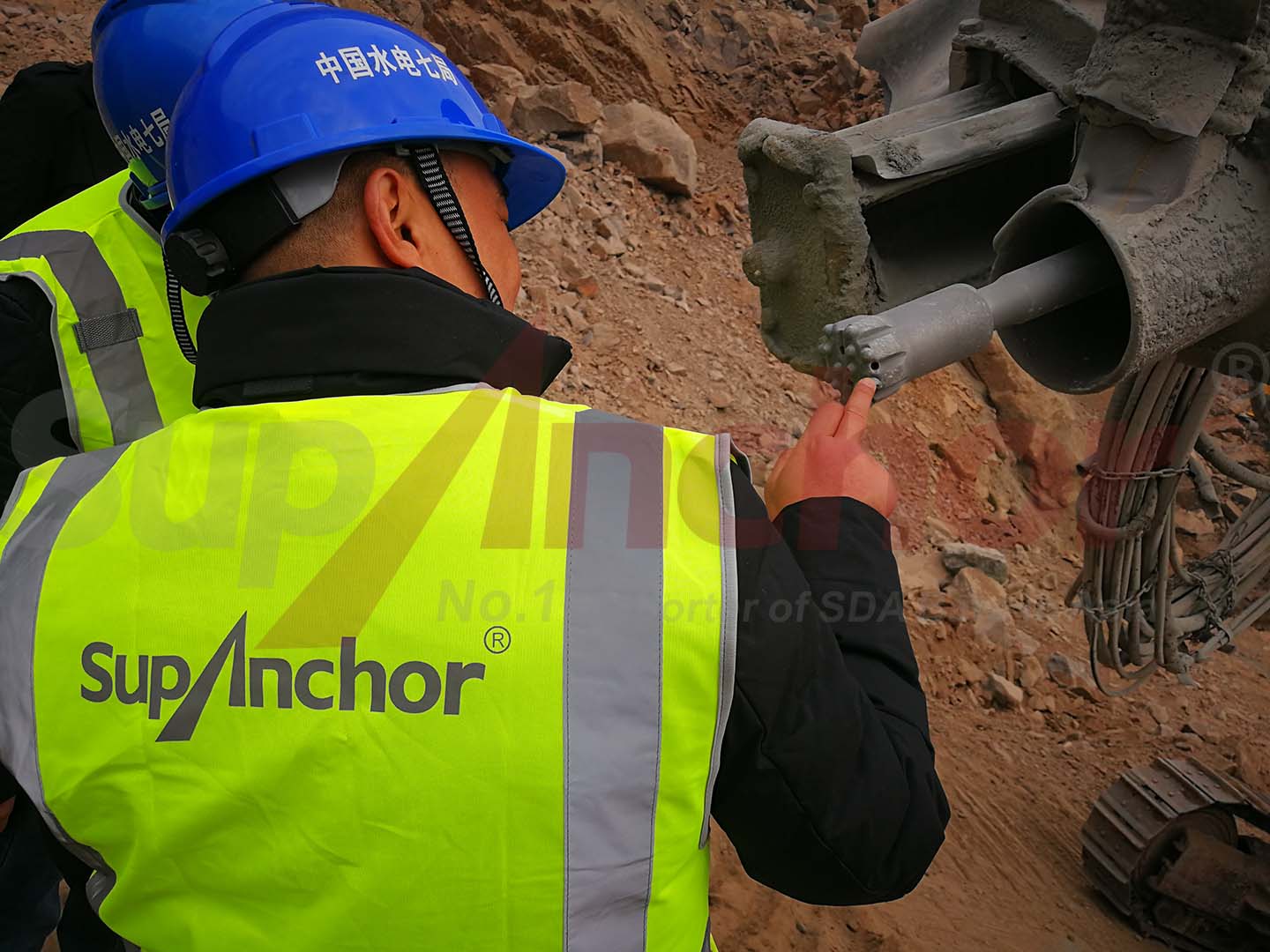

The photo above captures a critical moment during the installation of a self drilling anchor bolt for a 22-meter-high mechanically stabilized earth (MSE) retaining wall that will support the widened embankment. Workers are operating a Klemm KR 806 hydraulic drill rig fitted with an automatic handling system, feeding a 52 mm diameter hollow bar through the platform into the slope. The drill-and-grout bolt technique injects a high-strength grout (w/c ratio 0.35–0.40) as the bar penetrates, simultaneously flushing debris and creating a reinforced composite ground zone. This approach eliminates the need for a two-stage operation and significantly reduces the risk of borehole collapse in the water-sensitive silts encountered at this depth.
The A4 route traverses the Polish Carpathians, an area known for its tectonic deformation and variable rock mass quality. Geotechnical investigations revealed RQD (Rock Quality Designation) values ranging from 20% to 70%, with water inflows exacerbating the instability of clay-rich interbeds. To ensure safety and durability, the design required a ground stabilization anchor system capable of mobilizing ultimate resistances of at least 500 kN in soil and 900 kN in rock over a 100-year design life. Traditional tubular rock bolts fell short due to inability to grout effectively in collapsing ground, making the self drilling anchor bolt the preferred option. SupAnchor’s engineering team collaborated with the contractor to develop a customized specification that met both EN 1997-1 and Polish bridge standards.
Key design parameters included:
Because the site spans different geological zones, a single soil nail system manufacturer could not provide a one-size-fits-all product. Instead, SupAnchor supplied a family of three bar diameters—32 mm, 40 mm, and 52 mm—each tailored to the specific ground conditions and load categories. The versatility of the system allowed engineers to adjust anchor lengths from 6 m to 24 m without changing the basic configuration, simply by adding or removing extension pieces that thread together smoothly.
The heart of the ground anchor bolt factory’s contribution lies in the performance of the bars themselves. The table below presents the key technical data for the three bar types deployed on the A4 project:
| Parameter | SDA Bar 32 mm | SDA Bar 40 mm | SDA Bar 52 mm |
|---|---|---|---|
| Nominal outer diameter (mm) | 32 | 40 | 52 |
| Inner diameter (mm) | 16 | 20 | 26 |
| Ultimate tensile strength (kN) | 660 | 1 050 | 1 300 |
| Yield strength (kN) | 450 | 720 | 900 |
| Drill bit type | Cross-cut, 48 mm ⌀ | Button, 60 mm ⌀ | Button, 76 mm ⌀ |
| Standard lengths (m) | 3, 4, 6 | 3, 4, 6 | 3, 4, 6 |
| Corrosion protection | Hot-dip galvanized (≥85 μm) | Galvanized + epoxy coating | Duplex system (galvanized + epoxy) |
| Grout flow rate (l/min) | 20–30 | 30–50 | 50–80 |
These self drilling anchor bolts deliver exceptional performance in tension, shear, and bond. For instance, the 52 mm bar provides a bond length of 4–6 m sufficient to transfer loads of up to 900 kN into weathered flysch, thanks to the ribbed profile that mechanically interlocks with the grout column. The high grout flow rates ensured complete filling of the annulus, even in zones with open joints where losses could otherwise occur. On multiple test anchors, pull-out tests exceeded the characteristic resistance by at least 20%, confirming the reliability of this geotechnical reinforcement system under real-world conditions.
The A4 site imposed tight tolerances: anchor positions had to be within 50 mm of the drilled hole, and inclination angles within ±2° of the 15° downward slope. In total, over 8,000 anchors were installed. The ability to place them without pre-drilling saved an average of 12 minutes per anchor compared to cased methods, translating into a saving of approximately 1,600 rig hours. This efficiency is a direct product of the drill-and-grout bolt’s integrated design, which also simplifies logistics on congested job sites.
Quality control followed a three-tier protocol: first, all hollow bars underwent factory acceptance tests including tensile, chemical composition, and coating checks. Second, on-site pull-out tests on 3% of production anchors validated the load capacity. Third, installers performed a “grout take” recording to verify that the injected volume matched the theoretical annulus volume, preventing gaps or voids. Any anomalous readings triggered post-grouting through the central bore, a feature uniquely enabled by the hollow core. This capability proved essential in the karstic zones, where initial grout absorption exceeded expectations.
The product image illustrates a typical SDA bolt factory direct supply, featuring the continuous thread, clean bore, and robust corrosion protection. Its simplicity belies the advanced metallurgy that ensures consistent quality—a hallmark of the ground anchor bolt factory’s production line.
One of the most demanding sections of the A4 was a 1.2 km stretch where the alignment cut through a karstic limestone formation riddled with cavities. Conventional drilling encountered sudden loss of flush and bit drop, signalling voids that could compromise the anchor bond zone. The self drilling anchor bolt with its integrated grout injection turned this challenge into an advantage: by increasing the grout flow rate to 80 l/min and adjusting the viscosity, the hollow bar anchor filled the voids in real time, creating a reinforced bulb around the borehole. Post-installation sonic logging confirmed bulb diameters up to 1.5 times the nominal diameter, effectively enhancing load transfer. This adaptive capability exemplifies why the self drilling anchor system is preferred for complex geologies.
Sustainability metrics also favored the self drilling anchor for retaining walls. Compared to a cast-in-place concrete wall, the MSE wall with the hollow bar system consumed 40% less concrete and 25% less steel, aligning with the Polish government’s “Green Infrastructure” targets. The ground anchor bolt factory supplied anchors with Environmental Product Declarations (EPD), allowing the project to earn credits under the CEEQUAL scheme. Furthermore, the low-vibration installation method protected adjacent forest habitats, demonstrating that modern geotechnical reinforcement systems can coexist with ecological sensitivity.
The A4 motorway project underscores a fundamental shift in geotechnical practice: the move from prescriptive to performance-based design using reliable anchoring technologies. As Europe invests heavily in modernizing its transport networks—estimated at €500 billion through 2030—demand for micropile hollow bar anchor and soil nail system manufacturer products will grow. Projects like the Fehmarnbelt Fixed Link, HS2 in the UK, and the Brenner Base Tunnel rely on similar principles, where speed, safety, and adaptability are paramount.
In the mining sector, the rock bolt for underground mining is evolving toward integrated solutions that combine anchoring with water drainage and stress measurement. SupAnchor’s self drilling bolt for civil engineering, with its hollow core, can accommodate such functions, offering a platform for innovation. The company is currently developing sensor-equipped bolts that transmit real-time load data, moving the anchor bolt system for geotechnical engineering into the era of smart infrastructure. Meanwhile, in urban settings, the self drilling anchor for retaining walls is gaining traction for deep excavations and basement retention, where minimal vibration and rapid installation are critical.
Founded in 2000, SupAnchor has grown from a local manufacturer into an internationally respected ground anchor bolt factory with projects spanning 40 countries. Its ISO 9001, ISO 14001, and OHSAS 18001 certifications underscore a commitment to quality, environment, and safety. The company’s R&D center continuously pushes the boundaries of drill bit design, thread coatings, and grout rheology, resulting in products that excel in challenging conditions.
For the A4 project, SupAnchor provided more than just a hollow bar anchor; it delivered a complete technical package that included design calculations, on-site training, and logistical support to ensure just-in-time delivery of the SDA bolt factory direct supply. This hands-on collaboration embodies the “Collaborative” value, enabling the contractor to overcome unforeseen challenges without schedule delays. Recent projects in Istanbul, Colombia, and New Zealand further highlight SupAnchor’s ability to tailor a self drilling anchor system to local codes and geological settings.
As infrastructure demands escalate worldwide, the role of a robust anchor bolt system for geotechnical engineering will only increase. With its self drilling anchor system, SupAnchor stands ready to support the next generation of tunnels, slopes, and foundations—building a safer, more connected world through professional innovation and partnership.
