In a landmark tunneling project beneath the Swiss Alps, engineers faced fractured rock formations, high groundwater pressure, and the urgent need for rapid, reliable ground support. SupAnchor's SupShell Expansion Rock Bolt System—a state-of-the-art self drilling anchor bolt—was deployed to secure the excavation, delivering immediate anchorage and exceptional durability. This application underscores the growing demand for advanced geotechnical reinforcement systems in complex underground environments.
The project, a critical railway expansion requiring a 12 km tunnel through mixed geology, demanded a support solution that could adapt to varying conditions without sacrificing installation speed. Conventional anchor bolts often fail under such scenarios due to delayed curing times or inadequate expansion forces. The SupShell system, however, combines the efficiency of a hollow bar anchor with the instant grip of an expansion shell, enabling one-step drilling and bolting while allowing subsequent grouting for long-term safety.
At the heart of the SupShell system is its innovative expansion shell hollow anchor, engineered to EN 10083 standards for high-strength steel and precision manufacturing. The bolt features a hollow core that serves as a grouting channel, a critical advance over traditional solid anchors. During installation, the expansion shell expands against the borehole wall under torque, providing immediate mechanical anchorage with pull-out resistance exceeding expectations. Grout is then injected through the bolt's center hole, filling the annular space from the bottom up and fully encapsulating the anchor for chemical bonding. A plastic sealing element at the collar prevents grout leakage, ensuring complete hole fill and long-term corrosion protection.
The system is available in multiple configurations to suit various borehole sizes and load requirements. Key technical data are summarized in the table below:
| Model | Specification | Outside Diameter (mm) | Drilling Hole Diameter (mm) | Length (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| R25 | R25/EX36 | 36 | 40-42 | 132 | 0.62 |
| R28 | R28/EX40 | 40 | 44-46 | 136 | 0.84 |
| R32 | R32/EX44 | 44 | 48-50 | 135 | 0.82 |
| R32 | R32/EX46 | 46 | 50-52 | 176 | 1.2 |
| R32 | R32/EX48 | 48 | 52-54 | 165 | 1.45 |
All models feature ISO 10208 thread type R25, R28, or R32 and are manufactured from CK45 steel, ensuring uniform strength and fatigue resistance. For aggressive environments, a hot-dip galvanized option compliant with ISO 1461 is available, extending service life in wet or chemically active ground conditions. This versatility makes the SupShell bolt a robust self drilling anchor system for both temporary and permanent supports.

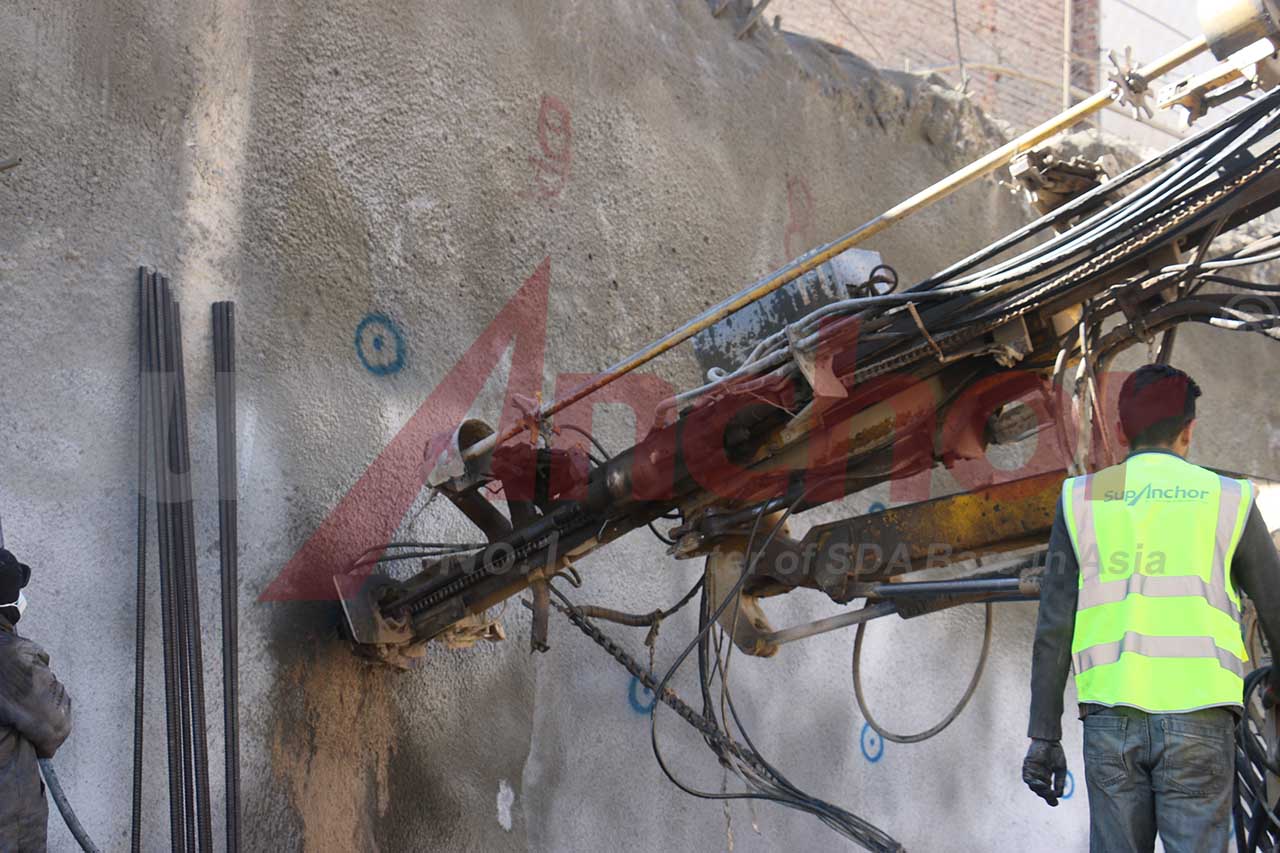

The Alpine tunnel project illustrated the practical benefits of the SupShell system. Crews utilized a single hydraulic drill rig to install 6 m bolts in one pass. The self-drilling feature eliminated the need for pre-drilling and casing, significantly reducing time per installation. As the bolt advanced, the expansion shell engaged immediately, allowing immediate load transfer and enabling workers to proceed to the next bolt without waiting for grout to cure. This improved advance cycles by up to 30%, according to site supervisors, while also enhancing worker safety by minimizing unsupported spans.
Post-installation grout injection was performed through the integrated central channel. The upward flow of grout first filled the bottom of the hole and then completely encased the bolt, creating a drill-and-grout bolt system that offers dual mechanical-chemical anchorage. The plastic sealing element prevented any grout return, confirming a uniform column of protection along the full length. Such reliability is critical in water-bearing strata where even small voids could lead to corrosion or reduced bond capacity.
The system’s user-friendly design also allows for pre-grouting when ground conditions require immediate stabilization before drilling. Operators can inject grout through the hollow bar ahead of the bit, cementing loose material and then drilling through the cured mixture. This flexibility positions the SupShell bolt as a preferred hollow bar anchor solution for complex geologies worldwide.
As infrastructure spending surges globally, tunnel boring, mining, and slope stabilization projects increasingly demand reliable ground reinforcement that keeps schedules and budgets on track. The SupShell Expansion Rock Bolt System addresses these needs by combining speed, safety, and structural integrity. Its dual anchorage mechanism—mechanical expansion for immediate support and chemical grout for permanent bonding—meets stringent requirements in both civil and mining applications. Engineers can now specify a single product for a range of ground conditions, from competent rock to heavily fractured zones, simplifying procurement and logistics.
Moreover, the system contributes to sustainable construction practices by reducing material consumption and waste. Because the bolt serves as both the drill rod and the anchor, there is no need for separate casing or sacrificial components. The hollow core design optimizes steel usage, and the galvanized variant extends service lives, reducing the need for early replacement. These factors enhance the overall value proposition for contractors seeking to lower their carbon footprint.
Leading geotechnical reinforcement system providers note that the ability to install and immediately stress the bolt is a game-changer in squeezing ground conditions. In such environments, delays in achieving full support can lead to convergence and costly remediation. The SupShell bolt’s rapid anchorage effectively halts deformation, preserving excavation profile and stability.
SupAnchor has established itself as a premier soil nail system manufacturer and ground anchor bolt factory, exporting to over 50 countries. The company’s R&D team continuously refines its self drilling anchor bar designs, leveraging feedback from clients engaged in megaprojects like high-speed rail tunnels, hydropower caverns, and deep mine shafts. The SupShell system is the latest evolution, integrating decades of field experience with advancements in materials science and manufacturing precision.
All SupAnchor self drilling anchor systems are produced in state-of-the-art facilities certified to ISO 9001, with rigorous testing for mechanical properties and dimensional accuracy. The company’s commitment to collaboration means it works closely with consulting engineers and contractors to develop customized solutions, ensuring that each project’s specific geological and loading requirements are met. This partnership approach, combined with the inherent reliability of products like the SupShell bolt, has made SupAnchor a trusted partner in global infrastructure development.
Looking ahead, SupAnchor is investing in next-generation hollow bar anchor technologies, including corrosion-resistant alloys and smart monitoring sensors embedded in the bolt, to further enhance safety and lifecycle management. As the industry moves toward digital twins and real-time asset monitoring, such innovations will position SupAnchor at the forefront of geotechnical engineering. In summary, the SupShell Expansion Rock Bolt System represents a significant advance in ground support, delivering unmatched performance in the most demanding environments and building confidence from the ground down.
