In a recent infrastructure development project in a mountainous region of Europe, contractors faced significant geotechnical challenges: unstable rock formations, variable soil conditions, and limited access for heavy machinery. To secure the slope and enable safe construction of a vital transportation corridor, the project team turned to SupAnchor's advanced self drilling anchor system. This system, which combines drilling, grouting, and anchoring in a single operation, proved instrumental in overcoming the geological obstacles while maintaining tight project schedules.
The site, located on a steep hillside adjacent to a new highway alignment, required reinforcement of a 150-meter-long cut slope. Traditional anchored retaining walls were considered, but the presence of fractured rock and groundwater inflows made conventional drilling and casing methods slow and costly. The project's geotechnical consultant specified a hollow bar anchor solution that could be installed rapidly with minimal disturbance. SupAnchor's self drilling anchor bolt, also known as a drill-and-grout bolt, offered the perfect answer: a continuously threaded hollow bar that serves as the drill rod, injection tube, and reinforcement element all in one.
'We needed a geotechnical reinforcement system that could handle unpredictable subsurface conditions without compromising load capacity,' said the site engineer. 'The SupAnchor system allowed us to drill through loose overburden and into competent bedrock, then grout in the same pass—no casing, no hole collapse, and no separate anchor installation.'
This article examines the technical parameters that made the system successful, the broader industry implications for ground stabilization anchor systems, and the role of SupAnchor as a leading soil nail system manufacturer and ground anchor bolt factory.
At the heart of the project's success was the use of SupAnchor's hollow bar anchors, specifically designed for self-drilling operations. The system consists of a high-strength steel hollow bar with a sacrificial drill bit, coupled to standard drilling equipment. Grout is pumped through the hollow core during drilling, filling the annular space and bonding the bar to the surrounding ground. This simultaneous drilling and grouting significantly reduces installation time and eliminates the risk of borehole collapse—a common problem in loose or water-bearing soils.
The construction sequence was straightforward: after positioning the drilling rig, the hollow bar anchor was advanced to the required depth, typically 9 to 12 meters. Continuous grout injection under controlled pressure ensured complete encapsulation and a strong bond. Once the grout reached the design strength, a bearing plate and nut were installed to tension the anchor, transferring load to the structure. In total, the project installed over 800 anchors along the slope, each with a design working load of 350 kN.
The following table summarizes the key technical parameters of the self drilling anchor bolt system used on this project:
| Parameter | Specification |
|---|---|
| Hollow bar diameter | 40 mm (R32-360 type) |
| Ultimate tensile load | ≥ 520 kN |
| Yield strength | ≥ 420 kN |
| Bar length | 3 m sections, coupled to 12 m |
| Thread type | Continuous ISO metric thread, left-hand |
| Corrosion protection | Hot-dip galvanized (80 µm) + optional double corrosion protection |
| Grout type | Cement-based, W/C 0.40–0.50 |
These specifications were chosen to meet the project's design load of 350 kN per anchor, with a safety factor of 1.5. The 40 mm hollow bar provided sufficient cross-sectional area for both tensile capacity and grout flow. The hot-dip galvanized coating offered corrosion protection in the moderately aggressive soil environment, while the continuous thread allowed for easy coupling and length adjustment on site. The left-hand thread is a standard for many drilling rigs, ensuring compatibility and reducing the chance of accidental uncoupling during rotation.
To ensure quality, a series of sacrificial anchors were installed and load tested to verify the bond strength in the actual ground conditions. The tests confirmed that the hollow bar anchor exceeded the design capacity, with no signs of slippage at 1.5 times the working load. The grout mix, a standard cement suspension with a water-cement ratio of 0.45, was continuously monitored for density and flow to ensure consistent injection.

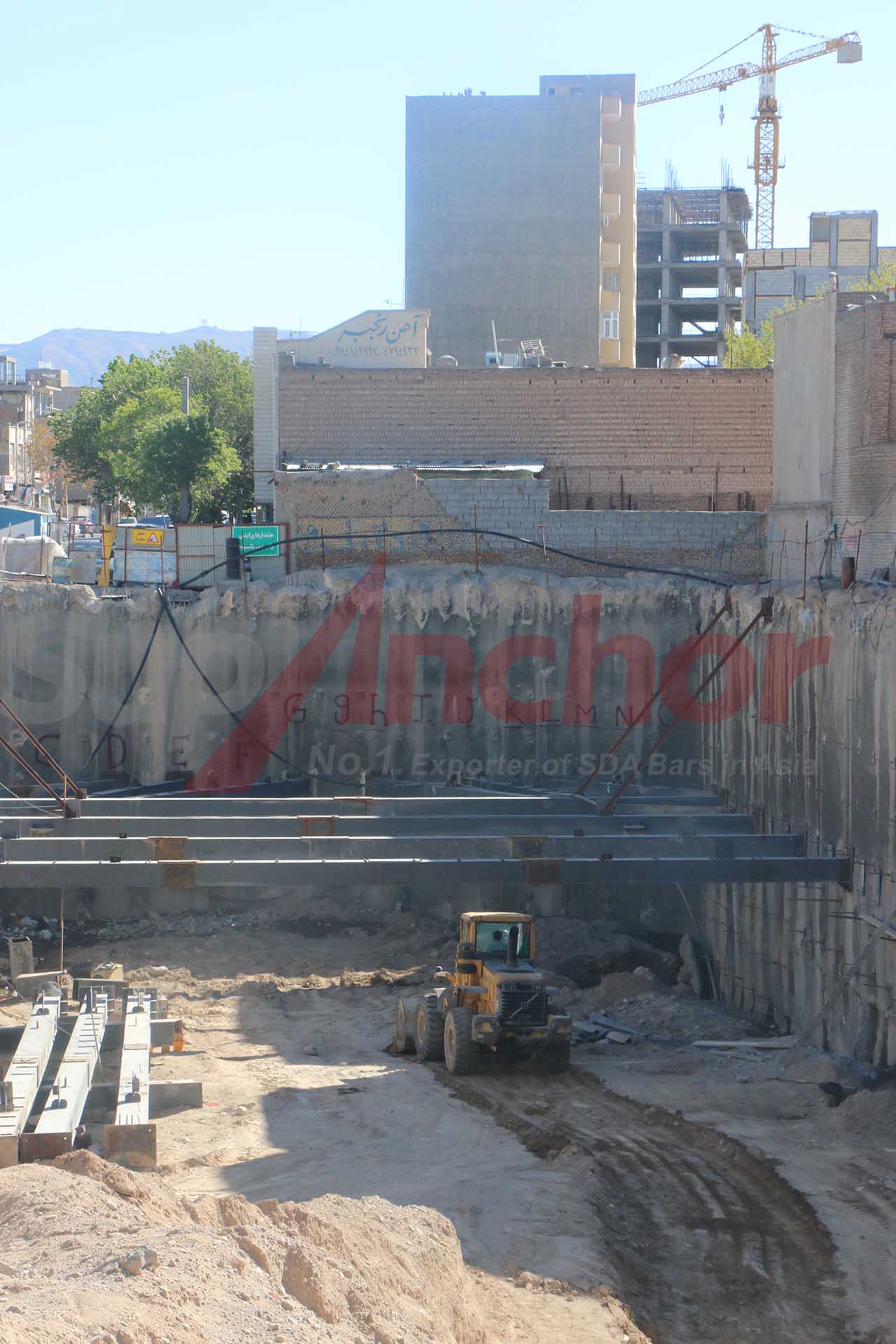

In addition to slope stabilization, the same self drilling anchor for retaining walls was employed to support temporary excavation faces during construction of a bridge abutment. The versatility of the system allowed the contractor to use a single inventory of bars, bits, and couplers for multiple applications, simplifying logistics and reducing costs. The installation rate averaged 15 anchors per day per rig, significantly faster than conventional methods, which often require separate drilling, casing, and anchor insertion.
Key benefits observed on site included:
The project also benefited from SupAnchor's technical support. Company engineers provided on-site training for the drilling crews, ensuring proper installation techniques and troubleshooting any issues with grout flow or bit wear. This collaboration minimized downtime and contributed to the project finishing two weeks ahead of schedule.
The successful deployment of SupAnchor's ground stabilization anchor system on this project reflects a broader shift in geotechnical engineering toward more efficient and reliable anchoring methods. Infrastructure development worldwide—from highway expansions in North America to metro tunnels in Asia—demands solutions that minimize environmental impact, reduce construction time, and enhance long-term safety. Self-drilling anchors are increasingly preferred over conventional rock bolts or soil nails because they eliminate the need for separate drilling and grouting phases, especially in difficult ground.
According to market analysts, the global anchor bolt system for geotechnical engineering market is expected to grow at a compound annual rate of 6.5% over the next five years, driven by investments in transportation, energy, and urban development. Projects in mountainous regions, where slope failures and landslides are common, rely on robust rock bolt for underground mining and tunneling applications as well. SupAnchor's hollow bar anchor technology is well positioned to serve these needs, offering a product that performs in both soil and rock, from micropile hollow bar anchor foundations to large-scale retaining structures.
For underground mining operations, the drill-and-grout bolt provides immediate support after installation, improving worker safety and reducing downtime. In tunnelling, the self drilling bolt for civil engineering can be used for face stabilization, forepoling, and radial support, all with the same equipment. This versatility makes the self drilling anchor system an attractive choice for contractors seeking to standardize their ground support toolkit. Moreover, the system's adaptability to small drill rigs makes it ideal for urban construction where space is limited.
A notable example is the recent extension of a metro line in a European capital, where self drilling anchor bolts were used for temporary face support in soft ground tunneling. The system's ability to install without casing allowed the contractor to maintain a rapid advance rate while controlling ground settlement. Similarly, in Australia, a large open-pit mine adopted hollow bar anchors for pit wall stabilization, citing the product's corrosion resistance and ease of installation as key factors.
The European construction sector, in particular, has seen a rise in the adoption of self drilling anchors for retaining walls due to stringent environmental regulations. The system's low vibration and ability to work in confined spaces reduce the impact on nearby structures and communities. As infrastructure ages and requires rehabilitation, ground stabilization anchor systems offer a cost-effective way to extend the service life of slopes, embankments, and foundations without extensive excavation.
Behind the success of this project is SupAnchor, a company that has built a reputation as a trusted soil nail system manufacturer and ground anchor bolt factory with over 20 years of experience. Headquartered in China but serving clients globally, SupAnchor supplies high-quality anchoring products that meet international standards, including ISO 9001, ISO 14001, and CE certification. The company's product range includes self drilling anchor bolts, hollow bar anchors, rock bolts, soil nails, and related accessories, all manufactured under strict quality control.
'Our philosophy is rooted in three core values: Professional, Innovative, Collaborative,' explained a SupAnchor spokesperson. 'We work closely with geotechnical engineers and contractors to develop solutions that address real-world challenges. This slope stabilization project is a testament to how our products and technical support can make a difference in even the most demanding conditions.'
SupAnchor's commitment to innovation is evident in its continuous improvement of thread geometry, steel alloys, and corrosion protection systems. For projects requiring enhanced durability, the company offers double corrosion protection and epoxy-coated bars. For fast-track projects, they provide pre-cut and pre-assembled bars to reduce on-site labor. Furthermore, as a SDA bolt factory direct supply, SupAnchor can offer competitive pricing and shorter lead times, a critical advantage for time-sensitive infrastructure works.
Manufacturing at SupAnchor's state-of-the-art facility involves automated rolling of continuous threads, heat treatment for optimal strength and ductility, and galvanizing lines with strict thickness control. Each batch undergoes tensile testing and dimensional inspection before shipment, ensuring that every self drilling anchor bolt meets the highest standards.
The company's global footprint includes successful projects in Europe, North America, Australia, and Southeast Asia, ranging from highway slope stabilization to deep foundation micropiles. By combining manufacturing excellence with technical expertise, SupAnchor has become a preferred partner for geotechnical contractors worldwide. Their technical support team assists from design to installation, ensuring that each geotechnical reinforcement system is optimized for the specific site conditions.
As the construction industry continues to prioritize safety, sustainability, and efficiency, the role of advanced anchor bolt systems will only grow. The mountain slope project described here serves as a clear example of how the right geotechnical reinforcement system can overcome natural obstacles and deliver a durable, cost-effective solution. With its robust product line and customer-centric approach, SupAnchor is poised to remain a key player in the evolution of ground engineering.
For more information on SupAnchor's self drilling anchor solutions, visit the official website or contact their technical team. Industry professionals seeking reliable ground stabilization anchor systems will find a partner ready to support their next challenging project.
