The rugged terrain of a new highway corridor presented formidable geotechnical obstacles, including fractured rock masses, loose colluvial deposits, and active groundwater seepage. To secure unstable slopes and provide reliable foundation support, project engineers turned to SupAnchor's self drilling anchor system, a state-of-the-art geotechnical reinforcement system designed for difficult ground conditions. This report explores how the deployment of these advanced anchoring solutions is shaping the project's progress and reflecting broader industry trends.

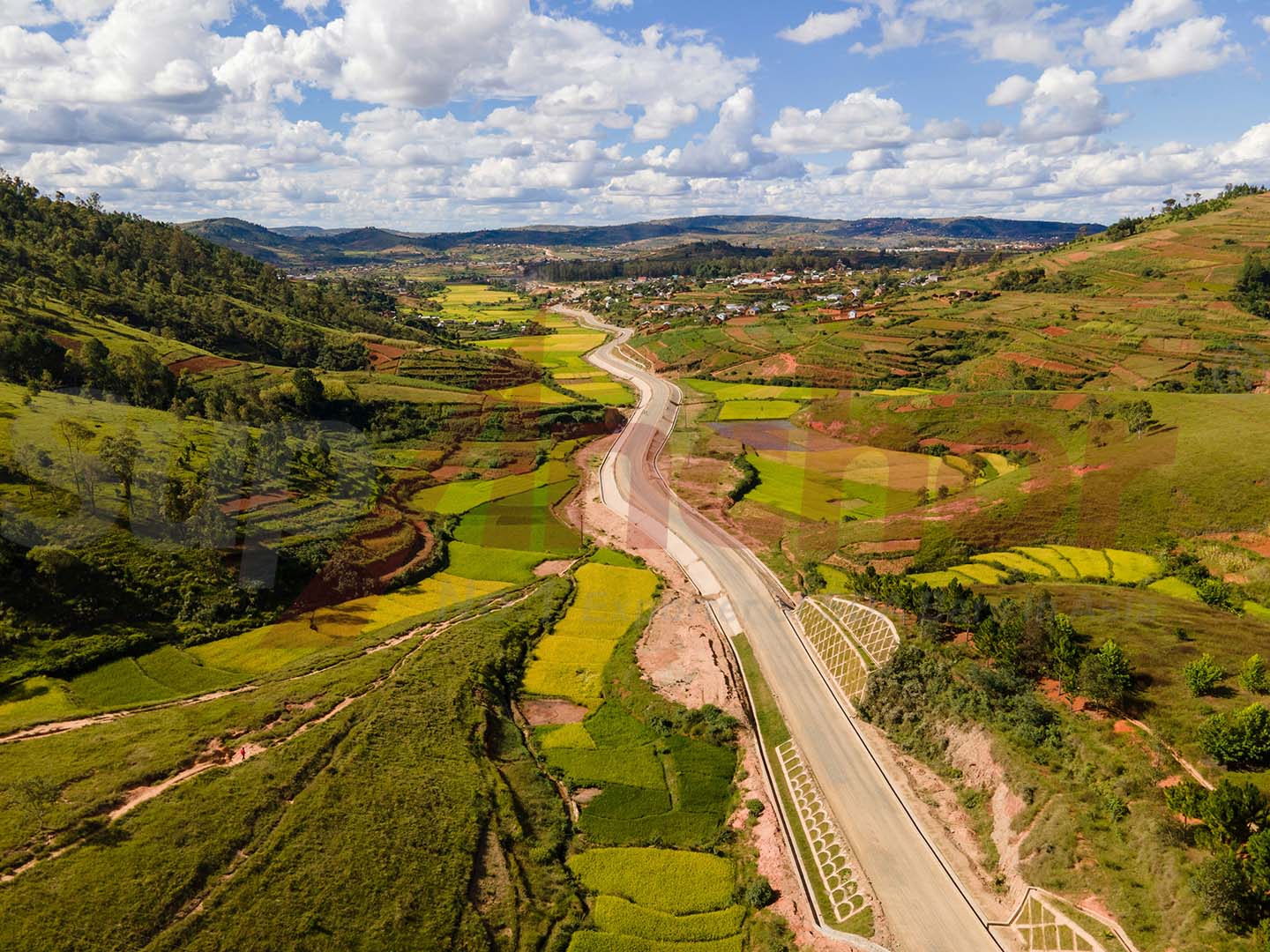

The highway project, spanning 14 kilometers through a mountainous region, is a critical link in the national transportation network. Construction involves extensive cut-and-fill operations, retaining structures, and bridge foundations. The geological profile varies from heavily weathered granite to soft sedimentary layers, creating zones where conventional drilling methods often fail due to borehole collapse. Early site investigations revealed that traditional pre-drilled anchors with separate grouting would be time-consuming and risky, prompting the adoption of a self drilling anchor bolt that combines drilling, grouting, and anchoring in one continuous process.
At the construction site, hydraulic rigs are used to install the hollow bar anchors into steep cut slopes. The hollow bar, equipped with a sacrificial drill bit, is rotated and advanced into the ground while grout is pumped through its central hole. This technique allows the anchor to be installed in a single pass, even in loose or collapsing ground, because the grout immediately stabilizes the borehole. The resulting anchorage provides high load capacity and excellent bond with the surrounding soil or rock.
The project team selected SupAnchor's SDA bolts for their proven performance and adaptability. Key advantages of the self drilling anchor system include rapid installation, minimal disturbance to the ground, high tensile strength, and long-term corrosion protection. These attributes are essential for the highway's design life of 100 years.
The geological challenges on this project are not limited to unstable slopes. The presence of underground water and varying rock hardness required an anchoring solution that could adapt to changing conditions without compromising installation speed or structural integrity. The self drilling anchor system's ability to penetrate through mixed ground while simultaneously grouting has proven to be a decisive advantage, reducing the need for multiple drilling methods and minimizing project delays.
In the image, workers are seen installing a self drilling anchor for retaining walls along a cut slope that will support the highway embankment. The drill-and-grout bolt method eliminates the need for temporary casing, which is particularly beneficial in the fractured and water-charged ground encountered on this project. The self drilling anchor system's ability to drill through cobbles and boulders without hole collapse has significantly reduced downtime and improved safety on site.
The installation process involves several steps: First, the hollow bar anchor is connected to the drilling rig and the drill bit is positioned at the desired location. Second, drilling commences while grout is injected through the hollow bar. The grout exits at the bit and fills the annular space, carrying cuttings to the surface. Third, once the required depth is reached, the bar is left in place and the grout is allowed to cure, forming a strong bond. Finally, a bearing plate and nut are installed to apply the required pre-tension. This streamlined process allows crews to install dozens of anchors per day, significantly accelerating the slope stabilization work.
Quality control is paramount in such critical infrastructure. Each anchor undergoes pull-out testing to verify its load capacity and bond strength. The contractor, in collaboration with SupAnchor's technical team, established a testing protocol that includes both sacrificial and non-destructive tests. The results consistently exceed the design requirements, confirming the reliability of the system in the variable ground conditions.
The following table outlines the technical parameters of the self drilling anchor bolts used on this project, as supplied by SupAnchor:
| Parameter | Specification |
|---|---|
| Product Type | Self Drilling Anchor Bolt (Hollow Bar Anchor) |
| Diameter | 32 mm (R32) |
| Length | 3 m, 4 m, 6 m (custom lengths available) |
| Ultimate Tensile Strength | 525 MPa |
| Yield Strength | 355 MPa |
| Corrosion Protection | Hot-dip galvanized (option for epoxy coating) |
The R32 hollow bar anchor was chosen for its high ultimate tensile strength of 525 MPa, which comfortably exceeds the design load requirements for slope stabilization. The hot-dip galvanized coating provides robust corrosion protection in the aggressive soil environment, where moisture and de-icing salts could otherwise compromise the anchor's integrity over time. This corrosion protection is a critical factor in achieving the project's long service life.
The adoption of SupAnchor's geotechnical reinforcement system on this highway project is part of a global shift toward more resilient and efficient infrastructure construction. As urbanization and economic development push projects into challenging terrains, the need for reliable ground stabilization anchor systems has never been greater. Self drilling anchors are increasingly specified because they offer a practical solution to ground conditions that were previously considered too difficult or too costly to stabilize.
Beyond highway slopes, hollow bar anchors find application in a variety of civil engineering works. For instance, they serve as micropile hollow bar anchor elements for foundation underpinning, as rock bolt for underground mining support, and as self drilling bolt for civil engineering projects such as bridge abutments and tunnel portals. The versatility of the SDA bolt makes it a preferred choice for contractors seeking a single product that can address multiple geotechnical challenges.
From an economic perspective, the use of drill-and-grout bolts reduces the need for extensive site investigation and contingency measures. Projects can proceed faster, with fewer delays due to ground-related issues. This efficiency translates into direct cost savings and earlier project completion, which is critical for public infrastructure budgets. Moreover, the reduced environmental footprint—less spoil, fewer materials, and minimized disturbance—aligns with contemporary sustainability goals in construction.
The global market for ground anchor systems is expected to grow steadily, driven by increased investment in transportation infrastructure, mining, and renewable energy projects. In this context, the demand for advanced anchoring technologies that offer both performance and reliability will continue to rise. SupAnchor's commitment to innovation positions the company to meet these evolving market needs.
SupAnchor has earned a reputation as a leading soil nail system manufacturer and ground anchor bolt factory, supplying high-quality anchoring products to projects on five continents. The company's self drilling anchor system is manufactured under strict quality control, with certifications including ISO 9001 and CE marking. These credentials demonstrate SupAnchor's commitment to delivering professional, innovative, and collaborative solutions that meet the rigorous demands of modern construction.
As a SDA bolt factory direct supply source, SupAnchor offers customized anchor lengths, diameters, and corrosion protection options to suit specific project requirements. Their engineering team provides technical support from design to installation, ensuring that each anchor bolt system for geotechnical engineering performs optimally in its intended application. This close collaboration with clients has resulted in successful outcomes in tunneling, mining, and slope stabilization projects worldwide.
The company's research and development efforts focus on refining the hollow bar anchor design to enhance load transfer, improve grout flow, and increase durability in aggressive environments. Recent innovations include advanced thread profiles that improve coupling strength and new coating systems that extend service life even in highly corrosive soils. These developments underscore SupAnchor's proactive approach to addressing industry challenges.
The success of this mountainous highway project is a testament to the effectiveness of SupAnchor's hollow bar anchors and the expertise behind them. By choosing a reliable partner with a proven track record, the project team has mitigated geotechnical risks and ensured the long-term stability of the infrastructure. The collaborative relationship between the contractor, design engineers, and SupAnchor's technical staff exemplifies the value of integrated solutions in complex construction projects.
As the construction industry continues to evolve, the demand for efficient and durable ground reinforcement solutions will only increase. SupAnchor's self drilling anchor system, with its innovative design and robust performance, is well positioned to meet this demand. For project owners and contractors, investing in proven geotechnical technology is a strategic decision that yields dividends in safety, longevity, and cost-effectiveness. The highway project stands as a current example of how advanced anchoring systems can overcome geological adversity and deliver infrastructure that serves communities for generations.
