In a region known for its unstable slopes and complex geology, a major transportation infrastructure project has successfully employed SupAnchor's self drilling anchor system to secure retaining walls and stabilize the terrain. The project, which involves a new highway corridor through mountainous terrain, faced significant geotechnical challenges including loose overburden, fractured rock, and the need for rapid installation with minimal disturbance. SupAnchor's hollow bar anchor technology proved to be the ideal solution, providing both immediate and long-term ground stabilization.
The self drilling anchor system, also referred to as a drill-and-grout bolt or hollow bar anchor, offers a versatile approach to geotechnical reinforcement. Unlike conventional anchoring methods that require pre-drilling and casing, the self drilling anchor bolt combines drilling, anchoring, and grouting into a single operation. This not only saves time but also enhances bonding with the surrounding ground, making it particularly effective in difficult soil and rock conditions.
The construction site, depicted in the accompanying image, showcases the rugged terrain and the active use of SupAnchor's self drilling anchor system for slope stabilization. The project required the installation of thousands of ground anchors to support retaining walls along a 2.5-kilometer stretch of highway. The geology in the area is characterized by weathered shale, colluvium, and intermittent boulders, which posed a high risk of slope failure during excavation.
Traditional anchoring methods were considered but were deemed inefficient and risky due to the ground conditions. Pre-drilled holes often collapsed in the loose material, requiring extensive casing and slowing progress. The project's geotechnical consultants specified a self drilling anchor bolt that could be installed without casing, reduce grout loss, and provide high load capacity. SupAnchor's self drilling anchor system met these requirements, offering diameters from 25 mm to 51 mm and tensile strengths up to 1,000 MPa.
The decision to use hollow bar anchors also addressed the need for minimal environmental impact. The project traversed a sensitive ecological zone, and the reduced drilling vibration and noise from the self drilling process helped comply with environmental regulations.
At the construction site, SupAnchor self drilling anchor bolts were installed using hydraulic drilling rigs equipped with rotary-percussion heads. The hollow bar, with its continuous thread and sacrificial drill bit, was drilled through the overburden and into competent rock. Grout was then injected through the hollow core under pressure, filling the annular space and creating a strong bond. This drill-and-grout method ensured that the anchor achieved full capacity even in fractured zones.

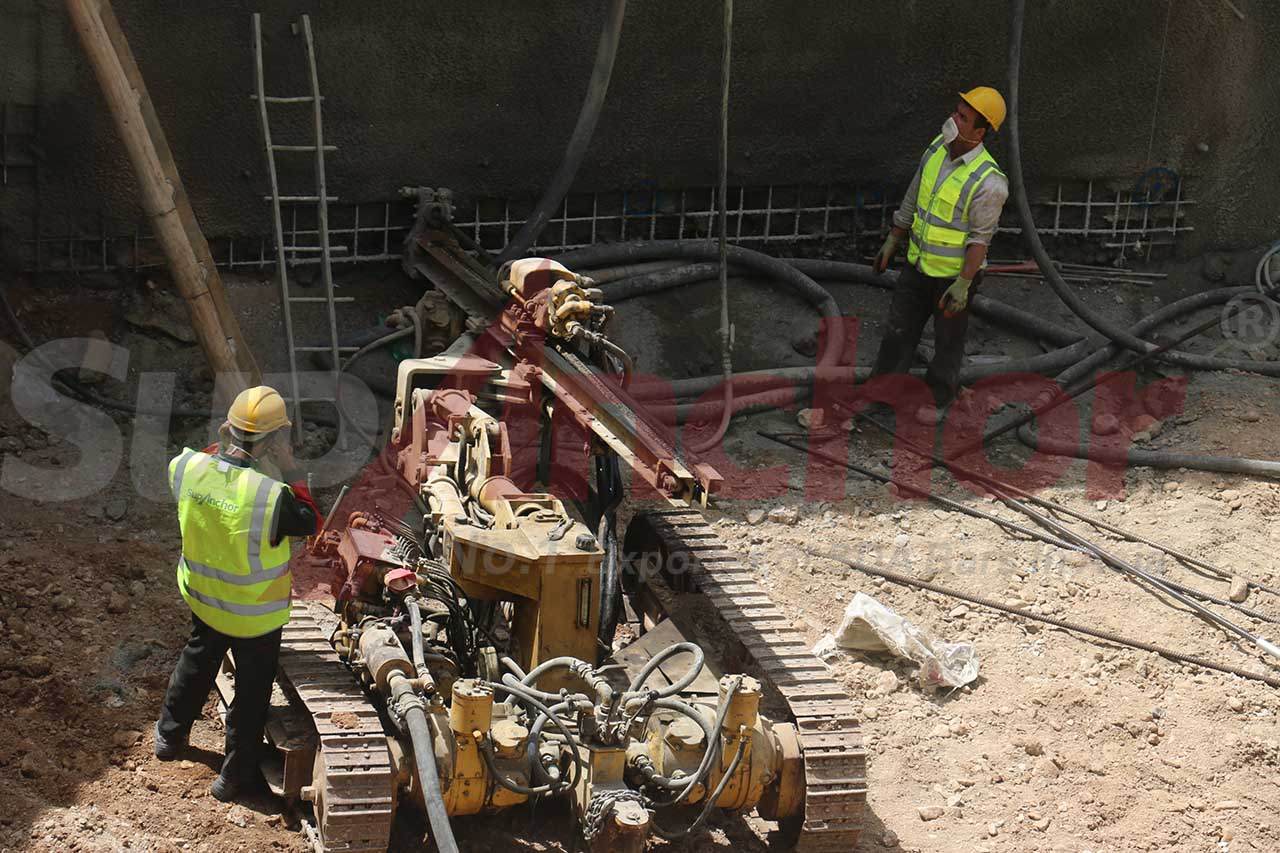

The image shows workers monitoring the installation process, with the self drilling anchor bar visible as it penetrates the slope. The system's efficiency allowed crews to install up to 30 anchors per shift, significantly exceeding the production rates of conventional methods. This accelerated schedule was critical for the project's tight timeline.
Key product parameters for the anchors used on this project are summarized in the table below:
| Parameter | Value |
|---|---|
| Anchor Type | Self drilling hollow bar (R32, R38, R51) |
| Diameter | 32 mm, 38 mm, 51 mm |
| Tensile Strength | 500–1,000 MPa (depending on grade) |
| Length | 3–12 meters (custom lengths available) |
| Corrosion Protection | Hot-dip galvanized or epoxy coated; double corrosion protection option |
| Thread Type | Continuous ISO 10208 thread for couplers and accessories |
| Grout Method | Injection through hollow core at pressures up to 20 bar |
The corrosion protection was a critical factor, as the anchors are designed for a 100-year service life. SupAnchor provided hot-dip galvanized bars for most installations, with epoxy-coated bars used in areas with aggressive groundwater. This attention to durability aligns with the project's goal of long-term resilience.
Additional on-site observations highlight the practicality of the system:
The self drilling anchor system offered several technical advantages that proved decisive on this project. First, the ability to drill and grout simultaneously eliminated the risk of hole collapse, which was a major concern with conventional anchors in the loose overburden. Second, the continuous thread along the entire length of the hollow bar allowed for easy extension using couplers, enabling anchors to be installed to depths exceeding 20 meters where required. Third, the high tensile strength of the steel ensured that the anchors could support the designed loads, which ranged from 100 kN to 500 kN per anchor.
Moreover, the drill-and-grout bolt method produced a rough grout-soil interface, increasing the bond strength compared to smooth boreholes. This was particularly important in the weathered shale layers, where frictional resistance was essential for anchor performance. The system's effectiveness was validated through pull-out tests, which consistently exceeded the design loads by a significant margin.
From a safety perspective, the self drilling anchor system reduced the need for workers to be in precarious positions. The installation process was largely mechanized, with the drilling rig operator controlling the operation from a safe distance. This contributed to an excellent safety record on the project, with zero lost-time incidents during the anchoring phase.
In addition, the system's versatility allowed it to be used for both temporary and permanent support. For the retaining walls, the anchors served as permanent ground stabilization anchor system components, designed to resist lateral earth pressures for the structure's lifespan. The same hollow bar anchors were also used for temporary excavation support in adjacent areas, demonstrating their adaptability.
The successful deployment of SupAnchor's self drilling anchor system on this project underscores a broader trend in the geotechnical engineering industry: the shift toward more efficient, reliable, and environmentally friendly ground reinforcement methods. As infrastructure development expands into increasingly challenging terrains, the demand for advanced geotechnical reinforcement systems continues to grow.
Self drilling anchor bolts are now widely used in a variety of applications, including slope stabilization, retaining walls, tunnel support, and foundation underpinning. Their versatility makes them a preferred choice for contractors and engineers who face difficult ground conditions. In Europe, stringent safety and environmental regulations drive the adoption of technologies that minimize disturbance and maximize performance, and hollow bar anchors fit this profile perfectly.
The market for ground anchor systems is projected to grow steadily, driven by investments in transportation, energy, and urban development. Rock bolt for underground mining and micropile hollow bar anchor applications are also expanding as mining and construction companies seek cost-effective solutions. SupAnchor, as a leading soil nail system manufacturer and ground anchor bolt factory, is well positioned to meet this demand through its global supply network and technical expertise.
The company's self drilling anchor for retaining walls and ground stabilization anchor system have been used in over 50 countries, demonstrating their reliability across diverse geological conditions. From highway projects in the Alps to metro stations in Asia, SupAnchor's products have consistently delivered performance and value. This project is just one example of how the self drilling bolt for civil engineering is transforming the way challenging ground is stabilized.
SupAnchor has established itself as a trusted provider of anchor bolt systems for geotechnical engineering. With ISO 9001 and ISO 14001 certifications, the company adheres to the highest standards of quality and environmental management. Its manufacturing facilities utilize advanced production lines and rigorous testing protocols to ensure that every self drilling anchor bolt meets or exceeds international specifications.
One of SupAnchor's key strengths is its ability to offer SDA bolt factory direct supply, providing customers with competitive pricing and shorter lead times. The company's product range includes self drilling anchor systems, soil nails, rock bolts, and micropiles, all designed to work together as a comprehensive geotechnical reinforcement system. This integrated approach allows engineers to specify a complete solution from a single source, simplifying procurement and ensuring compatibility.
In addition to its product quality, SupAnchor emphasizes technical support and collaboration. The company's engineers worked closely with the project team to optimize anchor design and installation parameters, ensuring that the self drilling anchor system performed as required. This collaborative spirit is a hallmark of SupAnchor's brand, which is built on the values of professionalism, innovation, and partnership.
The project also benefited from SupAnchor's global logistics capabilities, with anchors delivered on schedule despite the remote location. The company's network of distributors and stock points ensures that customers have access to products when and where they are needed. As a ground anchor bolt factory with a strong reputation, SupAnchor maintains rigorous quality control at every stage of production, from raw material inspection to final load testing.
As the industry evolves, SupAnchor continues to invest in research and development, exploring new materials and coating technologies to enhance corrosion resistance and load capacity. The company's commitment to innovation positions it as a leader in the geotechnical anchoring market.
For more information about SupAnchor's self drilling anchor system and other geotechnical reinforcement solutions, please visit the company's website or contact their technical sales team.
Disclaimer: This article is based on a representative project and product information. Specific project details may vary.
