SupAnchor Self Drilling Anchor System Reinforces Challenging Infrastructure Project

The $220 million Ridgeline Corridor Improvement is a flagship highway expansion traversing the Appalachian foothills, where weathered shale, sandstone interbeds, and shallow groundwater have long complicated excavation. Contractors faced slope instability along cut faces up to 18 meters high and fractured rock in two new tunnel portals. Traditional rock bolts and soil nails required pre-drilled holes with casing or open-hole drilling that frequently collapsed in loose overburden, causing lost tools, grout loss, and schedule delays. To overcome these challenges, the geotechnical contractor selected SupAnchor's anchor bolt system for geotechnical engineering. This decision transformed installation, reducing cycle times by over 40% and providing immediate ground support where conventional methods had stalled.

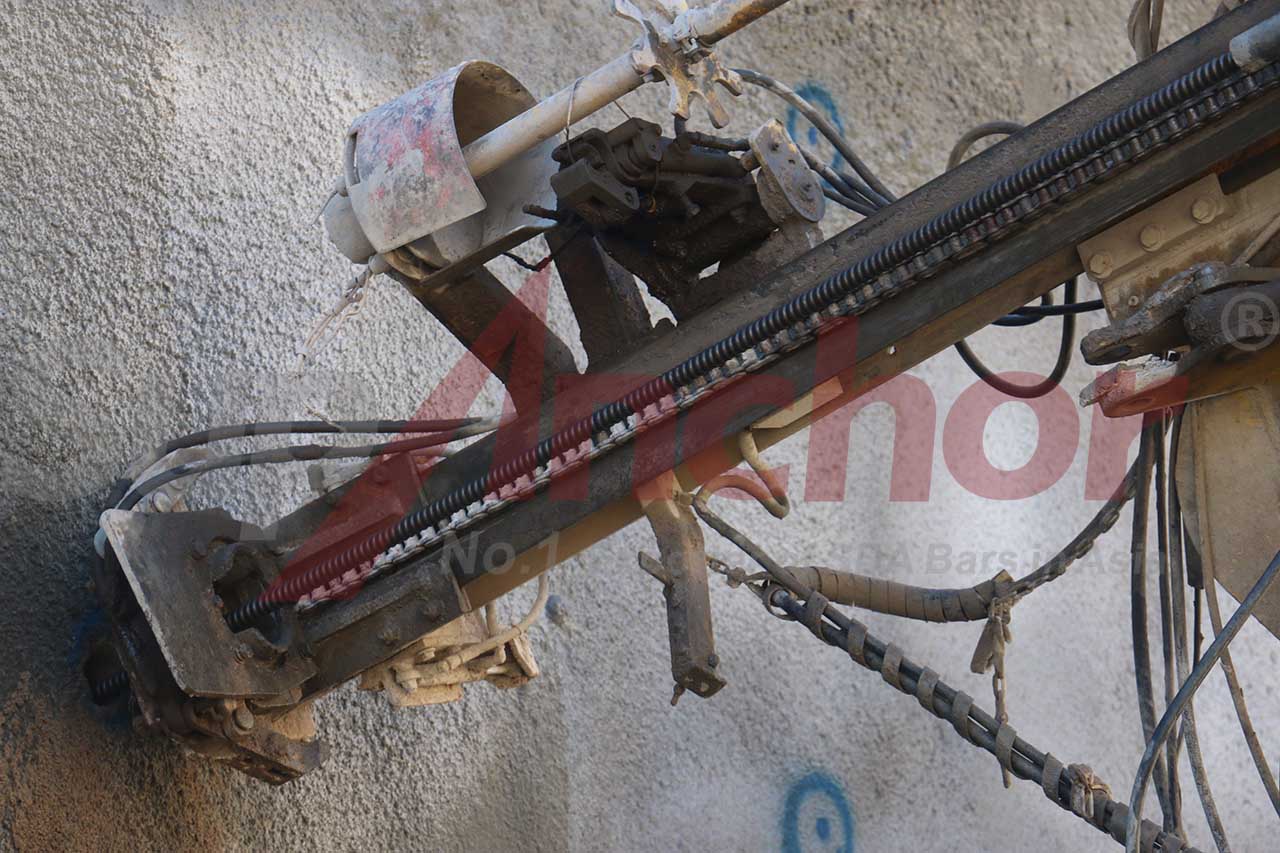

The project, managed by the state department of transportation in partnership with a major European construction group, includes 12.4 km of new four-lane highway, seven bridges, and two twin-bore tunnels. Because the alignment crosses active landslide zones and a protected watershed, environmental restrictions limited open excavation and required minimal disturbance. SupAnchor's self drilling anchor system offered a single-pass installation method that eliminated temporary casing, reduced spoil volume, and allowed precise grout injection even through voids and fractured strata. On-site photographs captured during initial mobilisation show a crawler drill rig positioning a hollow bar anchor at a 30-degree downward inclination on a cut slope. Workers couple additional bar sections while cementitious grout is pumped through the hollow core. The same equipment used for soil nails on upper benches was quickly reconfigured for rock bolt installation in tunnel headings, eliminating the need to swap drilling systems. This operational flexibility is a key advantage of the geotechnical reinforcement system provided by SupAnchor, which has been adopted in more than 40 countries.

Technical Parameters and On-Site Performance

The SupAnchor self drilling anchor bolt is engineered for high-load applications in both soil and rock. The hollow bar features a continuous left-hand rope thread that allows coupling without reducing cross-sectional area, and its hollow core serves as the grout conduit, enabling simultaneous drilling and grouting. Key specifications used on the Ridgeline project are summarised below.

The drill-and-grout bolt installation method proved critical in tunnel portal zones where mixed-face conditions of hard sandstone and soft clay seams challenged conventional drilling. Because the hollow bar anchor acts as a sacrificial drill steel, operators advanced through unstable ground without withdrawing the rod, maintaining continuous support. Grout injection pressures up to 2 MPa filled voids and encapsulated the bar, creating a strong bond. Pull-out tests confirmed bond strengths exceeding 350 kPa in weathered shale, well above design requirements. For high cut slopes, the self drilling anchor for retaining walls was installed in a grid pattern with shotcrete facing and high-strength mesh. The system provided immediate face support after each 1.5 m bench excavation, preventing ravelling and minimising shallow slide risk. The use of a ground stabilization anchor system reduced the need for temporary shoring and allowed year-round work, even during winter freezing conditions that would delay conventional grouting.

In addition to slope support, the same hollow bar was used for micropile foundations beneath three bridge abutments. The micropile hollow bar anchor, installed through cobble-rich alluvium, demonstrated excellent penetration and grout encapsulation, achieving design capacities of 600 kN per pile. This dual use—from temporary tunnel support to permanent foundation elements—highlights the adaptability of the self drilling bolt for civil engineering applications.

Industry Value and Global Infrastructure Trends

The successful application of SupAnchor's system on the Ridgeline Corridor reflects a broader industry shift toward faster, safer, and more sustainable ground improvement methods. As infrastructure budgets tighten and urbanisation pressures increase, project owners seek solutions that reduce construction time, minimise environmental footprint, and improve long-term asset resilience. Self drilling anchor systems address all three by eliminating temporary casing, reducing drill spoils, and providing immediate load transfer. According to a recent industry report, the global geotechnical engineering market is projected to grow at a compound annual rate of 6.2% through 2030, driven by highway expansions, rail modernisation, and renewable energy foundations. In Europe, the Trans-European Transport Network programme calls for €550 billion in investment by 2040, much involving mountain tunnels and deep cuttings where such anchor systems are essential. Similarly, in North America, the Infrastructure Investment and Jobs Act has allocated $110 billion for roads and bridges, with emphasis on resilient slope stabilisation and bridge foundation upgrades.

For underground mining, the on-site performance of the rock bolt for underground mining variant—which shares the same drill-and-grout principle—demonstrates cross-sector relevance. Mining operations in Canada, Australia, and South Africa increasingly specify self drilling anchor bolts for rapid ground support in development headings and stopes, where cycle time directly impacts productivity. The ability to install a fully grouted bolt in one pass without separate drilling and grouting equipment reduces exposure to unsupported ground, a critical safety improvement. Transportation agencies are also adopting soil nail systems for widening existing roadways where right-of-way is constrained. As a leading soil nail system manufacturer, SupAnchor supplies complete packages—including hollow bars, drill bits, couplers, plates, and nuts—that are compatible with standard crawler drills. The factory-direct supply model, often referred to as SDA bolt factory direct supply, ensures consistent quality control and rapid delivery to project sites, a key factor in meeting schedule milestones on publicly funded works.

Climate resilience is another driver. Extreme rainfall events have increased the frequency of slope failures and retaining wall distress. The ground stabilization anchor system installed on the Ridgeline project includes corrosion protection suited for 75-year design life, contributing to long-term infrastructure durability. By incorporating galvanized or epoxy-coated bars, the system resists aggressive groundwater chemistry typical of Appalachian coal-bearing formations, reducing future maintenance costs.

SupAnchor: Professional, Innovative, Collaborative

Behind the technical success on site lies a company culture built on professionalism, innovation, and collaboration. SupAnchor, founded in 2005 and headquartered in China with regional distribution centres in Europe and North America, has grown into a recognised ground anchor bolt factory serving more than 60 countries. The company's ISO 9001, ISO 14001, and ISO 45001 certifications underpin its commitment to quality, environmental stewardship, and occupational safety. Its products carry CE marking and have been tested to EN 14490 and ASTM F432 standards, ensuring compliance with international specifications.

SupAnchor's R&D team continuously refines the self drilling anchor system geometry, thread profile, and heat treatment to push the boundaries of load capacity and installation speed. Recent innovations include a patented left-hand rope thread that reduces coupling torque loss by 15%, and a new sacrificial drill bit design that extends bit life in abrasive quartzite by 30%. These developments emerge from close collaboration with contractors and design engineers, reflecting the company's collaborative ethos. On the Ridgeline project, SupAnchor engineers provided on-site training and daily technical support during the first month of installation, helping the contractor optimise drilling parameters for variable ground. This hands-on approach, combined with reliable logistics from the factory, ensured that material shortages never delayed the work. As a result, the geotechnical contractor reported a 28% reduction in overall support installation costs compared to conventional casing methods, and the project is currently three weeks ahead of schedule.

The product image shows the precision manufacturing and robust threading characteristic of the self drilling anchor bolt. Each bar is full-length heat-treated and dimensionally checked to ensure consistent coupling and predictable load transfer. The hollow core is coated internally to reduce friction during grout pumping, while the external thread maximises bond area with the grout. These details translate directly into the performance documented on site.

Outlook: A Standard for Modern Geotechnical Practice

As construction sites become more complex and environmental constraints tighten, the self drilling bolt for civil engineering is poised to become a standard tool in the geotechnical contractor's arsenal. The Ridgeline Corridor project demonstrates that a well-engineered system can replace multiple conventional systems, delivering speed, safety, and reliability. SupAnchor's continued investment in manufacturing capacity and technical support ensures that projects across Europe and North America can access these solutions without supply chain uncertainty.

Looking ahead, SupAnchor plans to introduce a new generation of high-capacity bars with enhanced corrosion protection for marine and coastal retaining walls, further expanding the range of applications for this versatile geotechnical reinforcement system. The company's participation in industry conferences and collaboration with academic institutions underscores its role as a thought leader in ground engineering. For engineers specifying support systems for challenging ground, the self drilling anchor system from SupAnchor offers a proven, data-backed path to success. In summary, the Ridgeline Corridor Improvement project illustrates how modern ground stabilization anchor systems can overcome geological adversity, reduce project costs, and enhance worker safety. By combining drilling, grouting, and reinforcement in a single component, SupAnchor sets a high benchmark for efficiency and reliability in civil and mining applications worldwide.
