On a rugged construction site located along a mountainous transportation corridor, unstable slopes, fractured rock, and variable overburden presented serious challenges for engineers. The project, a critical segment of a new highway network, required the stabilization of a 40-meter-high cut slope and the construction of a reinforced retaining wall to support the roadway above. Traditional drilling methods proved ineffective due to collapsing boreholes and difficult access on the steep terrain. To overcome these obstacles, the project team selected SupAnchor's self drilling anchor system, a proven geotechnical reinforcement system that integrates drilling, grouting, and anchoring into a single efficient operation.

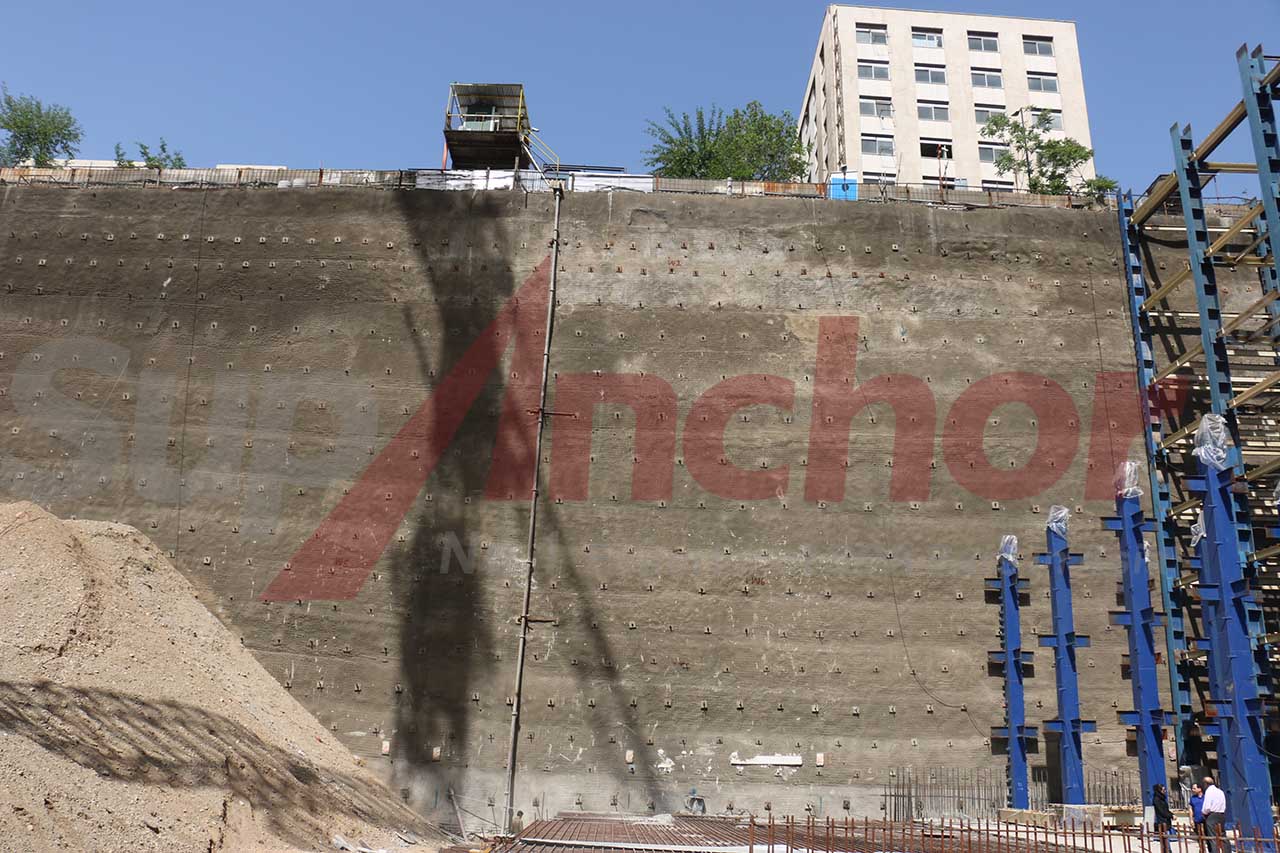

The selection of a hollow bar anchor solution was driven by the need for rapid installation and reliable performance in loose, water-bearing ground. The drill-and-grout bolt technique employed by SupAnchor allows contractors to install a fully grouted anchor in one pass, eliminating the need for temporary casing and separate anchor insertion. This approach not only accelerates construction but also ensures a strong bond between the anchor and the surrounding soil or rock, providing immediate load-bearing capacity. The image above shows the active installation process, with a drilling rig advancing a self drilling anchor bolt into the slope. The continuous thread on the hollow bar serves as both the drill rod and the permanent reinforcement element, a hallmark of SupAnchor's innovative design.
The project's geotechnical challenges included highly weathered shale, groundwater seepage, and the potential for slope movement during excavation. Conventional drilling with casing would have been slow and costly, with a high risk of hole collapse. In contrast, the self drilling anchor system allowed drilling and grouting to occur simultaneously, stabilizing the borehole as the anchor advanced. This reduced the risk of ground disturbance and ensured that design loads could be achieved even in the most difficult sections. For the contractor, the ability to install anchors up to 18 meters deep without interruptions was a game-changer, keeping the project on schedule and within budget.
SupAnchor's self drilling anchor system is engineered to meet a wide range of ground conditions and load requirements. The hollow bar anchors used on this project feature a continuous rope thread along their entire length, allowing for extension with couplers and the attachment of sacrificial drill bits. The following table summarizes the key technical parameters for the self drilling anchor bolt used in slope stabilization and retaining wall support:
| Parameter | Specification |
|---|---|
| Outer Diameter | 32 mm – 76 mm (standard: 32, 38, 51, 63, 76 mm) |
| Ultimate Tensile Strength | ≥ 660 MPa (depending on steel grade) |
| Yield Strength | ≥ 500 MPa |
| Elongation | ≥ 12% |
| Thread Type | ISO 10208 continuous left-hand or right-hand rope thread |
| Corrosion Protection | Hot-dip galvanizing, epoxy coating, or duplex system as per project requirements |
| Standard Lengths | 2 m, 3 m, 4 m, 6 m (couplers allow extension to any depth) |
The specific configuration for this project included 51 mm diameter hollow bar anchors, hot-dip galvanized for long-term corrosion protection, with couplers to achieve design lengths of up to 18 meters. The continuous thread provides a reliable mechanical connection between sections and ensures efficient load transfer from the anchor to the structure. During installation, cement grout is pumped through the hollow core and exits through ports in the sacrificial drill bit, filling the annular space around the anchor under controlled pressure. This simultaneous drilling and grouting creates a strong bond with the surrounding soil or rock, even in loose or water-bearing ground. The result is a high-capacity anchor that acts as a ground anchor bolt factory supplied system, ready for immediate tensioning once the grout reaches sufficient strength.
The use of a self drilling anchor for retaining walls is particularly advantageous in urban environments or areas with limited headroom, as it reduces the need for large drilling equipment and temporary casing. On this project, the contractor achieved installation rates of up to 120 meters per day per rig, significantly accelerating the schedule compared to conventional methods. The ability to install anchors through overburden and weathered rock without hole collapse was critical to maintaining slope stability during construction. Moreover, the system's versatility allowed the same hollow bar anchors to be used for both temporary and permanent support, reducing inventory and simplifying logistics.
Beyond the slope stabilization works, the project also utilized the same self drilling anchor system for the construction of micropiles to support a bridge abutment. In this application, the hollow bar anchors were installed vertically or at a slight rake to create small-diameter piles that transfer structural loads to deeper competent strata. This micropile hollow bar anchor approach provided a cost-effective alternative to traditional drilled shafts, especially in the constrained site conditions. The ability to switch between anchoring and piling with the same equipment further demonstrated the system's flexibility.
The successful deployment of SupAnchor's hollow bar anchor system on this infrastructure project reflects broader trends in geotechnical engineering and construction worldwide. As urbanization accelerates and transportation networks expand into challenging terrain, the demand for reliable ground stabilization anchor systems continues to grow. Self drilling anchor bolts are increasingly specified for slope stabilization, foundation support, tunneling, and underground mining applications because they offer a combination of speed, versatility, and structural integrity that traditional methods cannot match.
In the mining sector, a rock bolt for underground mining must withstand dynamic loading and provide immediate support after excavation. SupAnchor's hollow bar anchors serve this role effectively, as the grout provides early-age strength and the steel bar offers high tensile capacity. The continuous thread allows for quick installation in confined spaces, and the grouting process fills voids and fractures, improving overall ground stability. Similarly, for ground stabilization in tunneling, the drill-and-grout technique minimizes disturbance to the surrounding ground, reducing the risk of collapse in soft ground conditions.
The project also underscores the importance of geotechnical reinforcement systems in managing risk. Slope failures and retaining wall collapses can have catastrophic consequences, including loss of life, property damage, and project delays. By specifying a self drilling bolt for civil engineering works, designers gain a tool that adapts to variable ground conditions without compromising performance. The drill-and-grout bolt method is particularly effective in ground with high groundwater or mixed soil and rock, where conventional drilling often fails. The ability to install a fully grouted anchor in a single pass reduces the number of operations and the associated safety risks.
From an economic perspective, the use of a self drilling anchor system reduces overall project costs. Fewer drilling subcontractors, less casing, and faster cycle times contribute to lower total installed cost. Additionally, the reduced environmental footprint—less spoil, noise, and vibration—aligns with sustainability goals in modern infrastructure projects. Regulators and project owners are increasingly prioritizing methods that minimize disturbance and maximize long-term performance, and hollow bar anchors meet these criteria.
Globally, investments in infrastructure resilience are on the rise, driven by climate change adaptation and the need to upgrade aging assets. Geotechnical solutions like SupAnchor's self drilling anchor system are critical to ensuring that slopes, retaining structures, and foundations can withstand extreme weather events and seismic activity. The continuous development of anchor bolt systems for geotechnical engineering is essential to meeting these challenges, and manufacturers like SupAnchor are at the forefront of innovation.
SupAnchor, a leading soil nail system manufacturer and ground anchor bolt factory, has built a reputation for delivering high-performance anchoring solutions worldwide. With ISO 9001 and ISO 14001 certifications, the company ensures consistent quality and environmental responsibility. Their products are used in over 50 countries, supporting projects ranging from highway slope stabilization to deep excavation support and underground mining. The company's commitment to professionalism is evident in every stage, from design and manufacturing to on-site technical support.
As an anchor bolt system for geotechnical engineering, SupAnchor's portfolio includes hollow bar anchors, self drilling anchor bolts, and related accessories such as drill bits, couplers, nuts, plates, and centralizers. Their SDA bolt factory direct supply model allows project owners and contractors to source directly from the manufacturer, ensuring competitive pricing and technical support. This direct engagement also enables custom manufacturing to meet specific project requirements, such as special lengths, coatings, or thread configurations. Collaboration with geotechnical consultants and contractors ensures that SupAnchor's solutions are not only technically sound but also practical on site.
The company's commitment to innovation is evident in continuous product development. Recent advancements include improved thread profiles for better grout flow and enhanced coupling strength, as well as new corrosion protection systems for aggressive environments. SupAnchor invests in research and development to address emerging challenges, such as anchors for high seismic zones or anchors with long service life for critical infrastructure. Their engineering team works closely with clients to provide value-engineered solutions that balance performance and cost.
The product image above shows a close-up of a SupAnchor self drilling anchor bolt with its continuous thread and sacrificial drill bit. The robust design and quality manufacturing are evident, reinforcing the system's suitability for demanding geotechnical applications. For the project at hand, SupAnchor supplied not only the hollow bar anchors but also the drill bits, couplers, nuts, and plates, ensuring full compatibility and single-source accountability. This level of support simplified procurement and ensured that all components met the same high standards.
In conclusion, the successful application of SupAnchor's self drilling anchor system on this challenging slope stabilization project demonstrates the value of advanced geotechnical reinforcement systems. By combining drilling, grouting, and anchoring into one efficient process, SupAnchor helps contractors overcome difficult ground conditions while delivering safe, durable, and cost-effective solutions. As global infrastructure demands grow, the role of innovative anchoring technology will only become more critical, and companies like SupAnchor are well positioned to lead the industry.
