In a recent large-scale infrastructure development, engineers faced complex geological conditions including fractured rock, loose soils, and high groundwater pressure. The project, which includes tunnel portals and deep excavation support, required a robust and efficient ground reinforcement solution. SupAnchor's self drilling anchor system was selected as the primary geotechnical reinforcement system to secure the ground and ensure long-term stability.

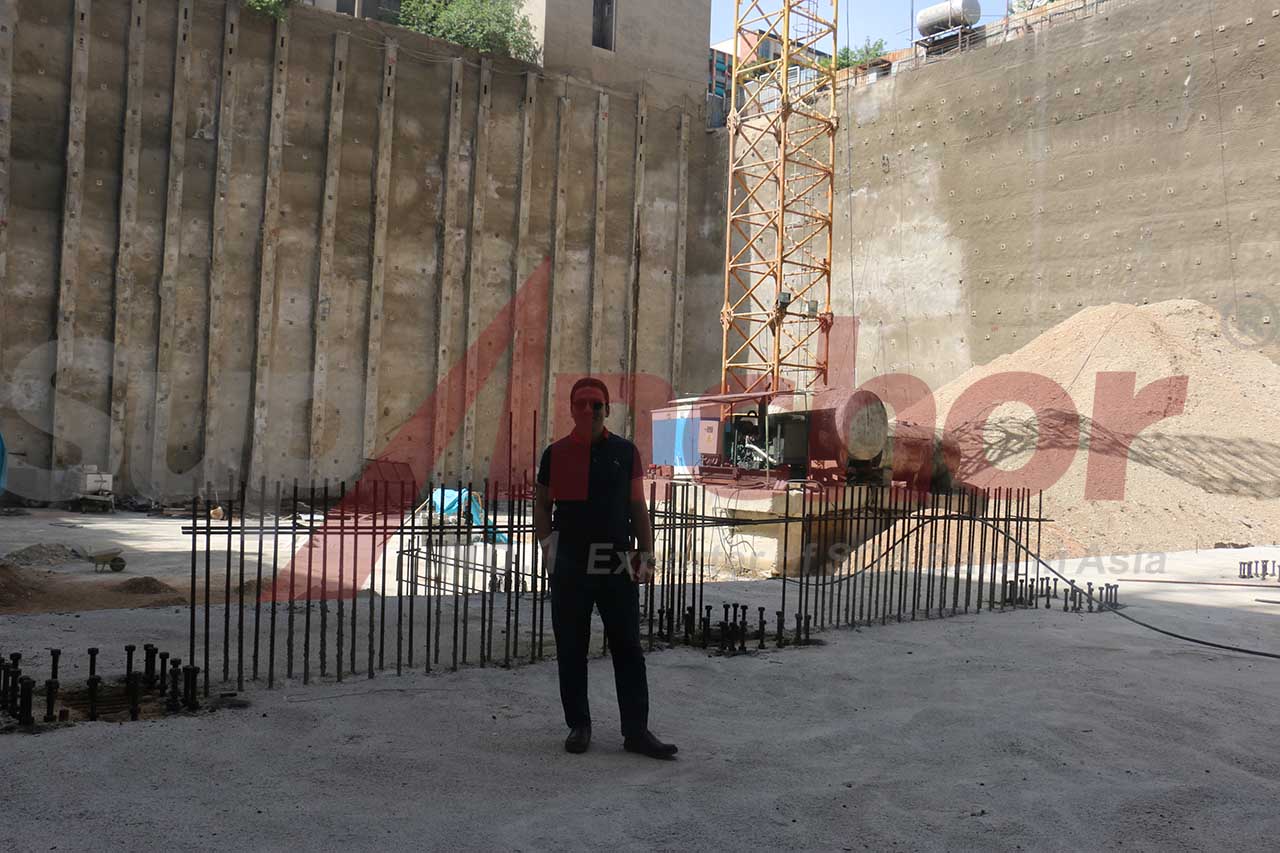

The construction site, located in a mountainous region, presented significant challenges for conventional anchoring methods. The self drilling anchor bolt offered a single-pass installation process, combining drilling, grouting, and anchoring in one operation. This reduced installation time and improved safety on site. Project managers noted that the ability to install anchors without casing in unstable ground was a decisive factor in choosing this technology.

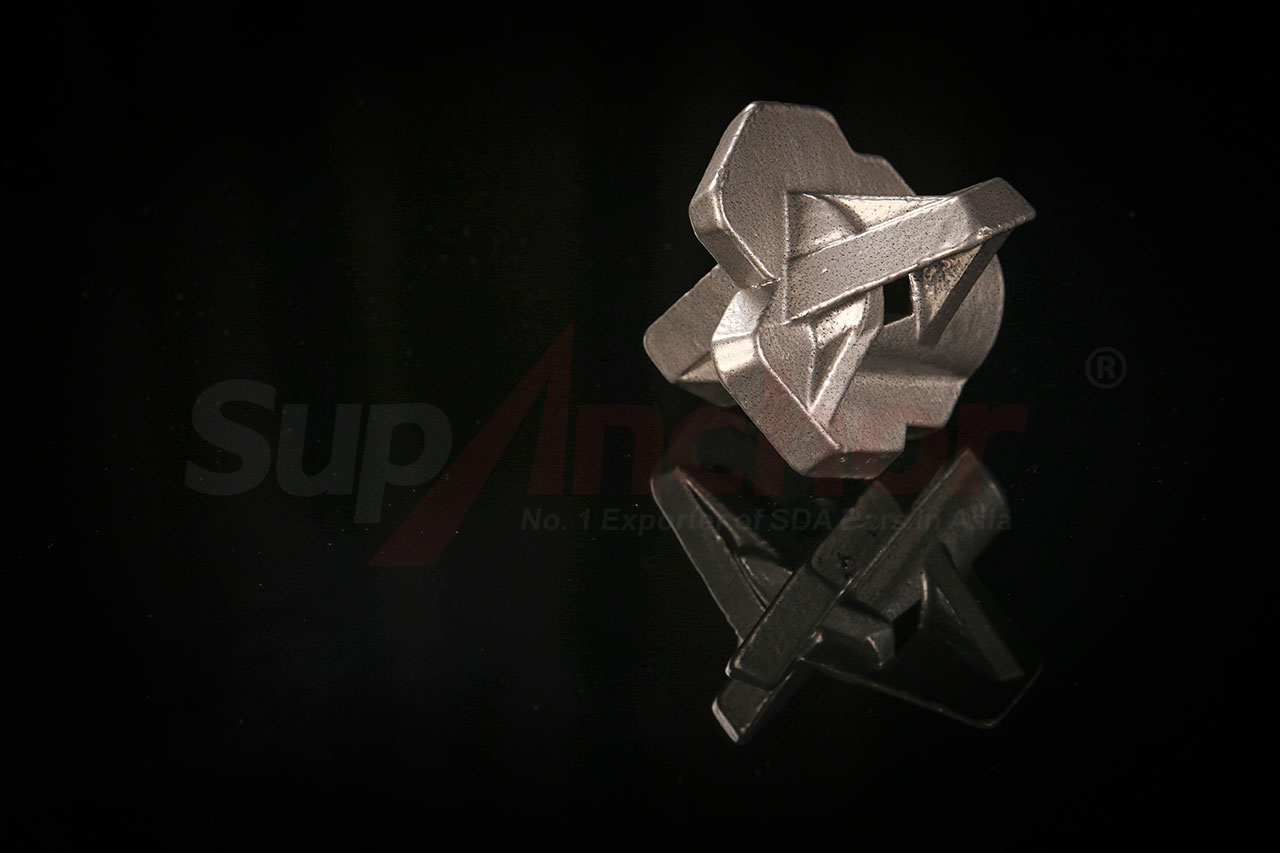

SupAnchor's hollow bar anchor system is engineered to deliver high performance in demanding ground conditions. The drill-and-grout bolt features a continuous hollow core that allows simultaneous drilling and grout injection, ensuring full encapsulation and bond along the entire anchor length. The following table summarizes key technical specifications of the self drilling anchor system used on this project:
| Parameter | Specification |
|---|---|
| Diameter Range | 25 mm, 32 mm, 38 mm, 51 mm |
| Length | Up to 12 m (custom lengths available) |
| Tensile Strength | 550–700 MPa |
| Corrosion Protection | Hot-dip galvanized, epoxy coated, double corrosion protection (DCP) |
| Thread Type | R-thread and T-thread with standard couplers |
The selected configuration, featuring 32 mm diameter bars with hot-dip galvanizing, provided the necessary tensile capacity to resist anticipated loads while ensuring long-term durability against corrosive groundwater. The self drilling anchor for retaining walls application demonstrated excellent performance, with pull-out tests exceeding design requirements. Engineers particularly valued the system's adaptability to varying ground conditions, as the same equipment could be used for both temporary and permanent support.
On-site, the installation process was streamlined. The hollow bar anchor was drilled into the ground using a rotary percussive drill, and cementitious grout was pumped through the hollow core as drilling progressed. This method eliminated the need for casing in unstable ground, reduced the risk of hole collapse, and achieved superior bond strength. The crew reported that the self drilling bolt for civil engineering significantly cut down installation time compared to traditional methods, allowing the project to stay on schedule. The use of a single drilling and grouting operation also minimized the number of personnel required, enhancing overall site safety.
Furthermore, the self drilling anchor bolt's continuous thread allowed for easy coupling and extension, enabling anchor lengths to be adjusted on the fly to accommodate unexpected ground variations. This flexibility proved critical in areas where the depth to competent rock varied significantly across the site.
The use of advanced ground stabilization anchor systems is on the rise globally, driven by increasing infrastructure development in urban and remote areas. The self drilling anchor system has become a preferred choice for projects involving tunnel support, slope stabilization, and foundation reinforcement. This technology addresses key challenges such as variable ground conditions, limited access, and stringent environmental regulations. As a geotechnical reinforcement system, it offers a reliable and cost-effective alternative to traditional methods like driven piles or grouted tiebacks.
As a leading soil nail system manufacturer, SupAnchor has supplied its anchor bolt system for geotechnical engineering to numerous projects worldwide. The company's products are particularly valued in the mining sector, where the rock bolt for underground mining must withstand high stress and corrosive environments. The micropile hollow bar anchor is also increasingly used for underpinning and foundation retrofitting in urban settings, where space constraints demand compact and efficient installation equipment.
Moreover, the demand for ground anchor bolt factory direct supply has grown as contractors seek to reduce costs and ensure consistent quality. SupAnchor, with its state-of-the-art manufacturing facilities and ISO 9001 certification, provides SDA bolt factory direct supply to customers across Europe and North America, ensuring timely delivery and technical support. The company's commitment to research and development has resulted in a range of products that meet or exceed international standards, including CE marking and ETA certifications.
The application of self drilling anchor bolts in this project highlights the importance of innovation in geotechnical engineering. By integrating drilling, grouting, and anchoring, the technology reduces complexity and enhances safety, making it an essential tool for modern construction. In addition, the ground stabilization anchor system contributes to sustainability by minimizing spoil generation and reducing the carbon footprint associated with traditional piling methods.
SupAnchor's commitment to professional, innovative, and collaborative solutions has positioned the company as a trusted partner in the global infrastructure market. With a portfolio of successful projects and a focus on research and development, SupAnchor continues to advance the field of geotechnical reinforcement. The company's technical team works closely with clients from design to installation, offering tailored solutions that address specific site challenges.
In conclusion, the successful deployment of the self drilling anchor system in this challenging environment underscores the value of advanced anchoring technology. As infrastructure demands grow, the role of reliable and efficient ground stabilization anchor systems will only become more critical. Contractors and engineers seeking a dependable partner for complex geotechnical projects increasingly turn to SupAnchor for its proven track record and innovative approaches.
For more information on SupAnchor's product range and project case studies, visit the official website.
