Construction crews working on a vital highway expansion in the mountainous regions of Central Europe have successfully deployed SupAnchor’s self drilling anchor system to stabilize a 200-meter-long cut slope that had threatened to delay the project. The slope, composed of fractured shale and weathered sandstone, presented significant geotechnical challenges, including loose overburden, groundwater seepage, and the risk of shallow landslides. By using SupAnchor’s hollow bar anchor technology, the contractor achieved rapid installation and reliable ground reinforcement without the need for casing, even in collapsing ground conditions.
The project, part of the E65 highway corridor improvement, involves widening a 12-kilometer section to accommodate increasing freight traffic between northern and southern Europe. The challenging terrain required deep excavations into hillsides, creating steep cut slopes up to 25 meters high. Initial geotechnical investigations revealed highly variable ground conditions, with alternating layers of clayey silt, fractured rock, and water-bearing seams. Traditional anchoring methods, including driven soil nails and pre-drilled rock bolts, proved inefficient due to hole collapse and grout washout.
The E65 highway expansion is a critical infrastructure project designed to improve connectivity and safety along one of Europe’s busiest transport corridors. The section under construction traverses a region known for its complex geology, where ancient tectonic activity has left the bedrock heavily faulted and sheared. The cut slope in question was formed by excavating a hillside to create additional lanes, resulting in a near-vertical face that required immediate stabilization. The upper layers consisted of colluvial deposits and weathered shale, which easily disintegrated upon exposure to air and water. Below this, a zone of fractured sandstone with open joints allowed groundwater to flow, further destabilizing the slope. Heavy rainfall during the autumn months exacerbated the situation, triggering small-scale slumps and threatening the safety of the worksite.
Geotechnical engineers determined that a robust ground stabilization anchor system was necessary to prevent slope failure and ensure long-term stability. The design called for a grid of anchors installed at 1.5-meter spacing, each capable of sustaining a working load of 180 kN. The challenge lay in installing these anchors without causing further disturbance to the already fragile ground. Conventional drilling methods often result in borehole collapse, requiring casing and multiple grouting stages, which slow progress and increase costs. The project timeline was tight, with severe penalties for delays during the summer construction season.

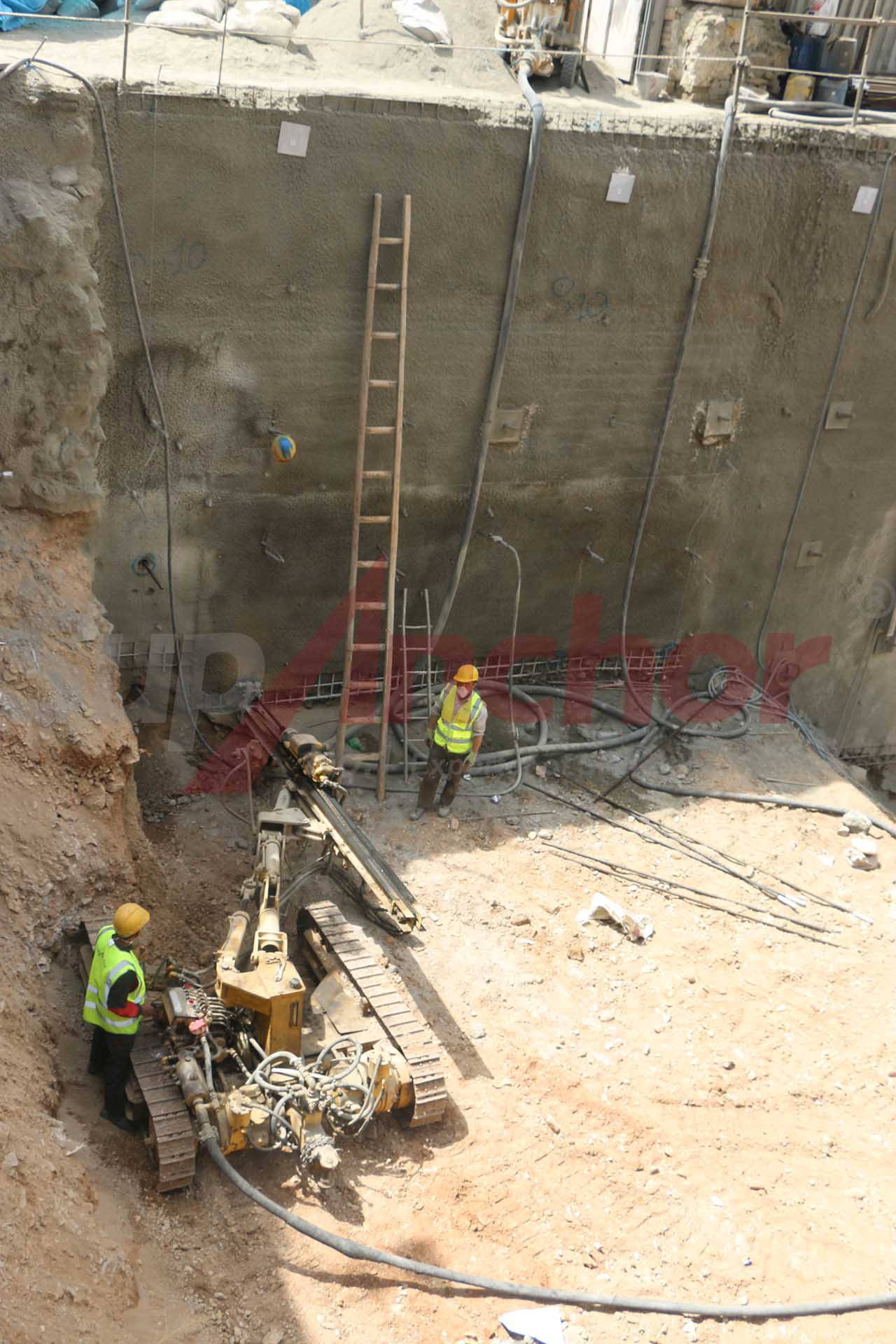

At the construction site, workers can be seen operating compact drilling rigs equipped with SupAnchor self drilling anchor bolts. The image captures the essence of the operation: a crew member guiding the hollow bar into the slope while a grout pump simultaneously injects cementitious grout through the bar’s core. This drill-and-grout bolt technique combines drilling, anchoring, and grouting into a single operation, significantly reducing installation time. Unlike traditional methods, the self drilling anchor system does not require a pre-drilled hole or a temporary casing, making it ideal for unstable ground where boreholes tend to collapse.
The selected rock bolt for underground mining and slope stabilization was a SupAnchor R32 hollow bar, chosen for its balance of strength, flexibility, and corrosion resistance. The table below summarizes the key technical specifications of the product used on this project.
| Parameter | Specification |
|---|---|
| Nominal diameter | R32 (32 mm) |
| Ultimate tensile strength | 280 kN |
| Yield strength | 230 kN |
| Bar length (installed) | 6 m (with couplers extendable to 12 m) |
| Corrosion protection | Hot-dip galvanized (min. 70 µm) |
The R32 hollow bar anchor provided a perfect match for the ground conditions. Its continuous thread allowed for easy coupling and cutting on site, enabling the crew to adapt bar lengths to the varying depth of competent rock. The hollow core served as the grout conduit, eliminating the need for separate casing or injection tubes. In the fractured shale, the drill-and-grout bolt method ensured that the borehole was immediately supported by the grout, preventing collapse and creating a strong bond between the bar and the surrounding soil or rock. The 280 kN ultimate tensile strength comfortably exceeded the design load of 180 kN per anchor, providing a safety factor above 1.5. Hot-dip galvanizing offered long-term corrosion protection in the slightly acidic groundwater typical of the region, ensuring a service life of at least 50 years.
Installation progressed at an average rate of 20 anchors per day per rig, a significant improvement over the 8-10 anchors per day achievable with conventional cased drilling. This efficiency was crucial in meeting the project’s tight deadline and minimizing traffic disruption. Moreover, the reduced number of equipment movements and the elimination of casing handling improved site safety, a key priority for the contractor.
The successful application of SupAnchor’s geotechnical reinforcement system on the E65 project highlights a broader trend in the construction industry: the shift toward more efficient, safer, and environmentally friendly ground stabilization methods. Self drilling anchor systems are increasingly specified for infrastructure projects around the world, from European highway upgrades to North American transit tunnels and Asian hydroelectric dams. Their ability to perform in difficult ground conditions, combined with faster installation and lower overall cost, makes them an attractive alternative to traditional anchoring techniques.
In the tunneling sector, self drilling anchor bolts are widely used for forepoling and face stabilization, where ground conditions are often unpredictable. The micropile hollow bar anchor variant is also gaining popularity for underpinning and foundation support in urban environments, where vibration and noise must be minimized. As governments invest heavily in transportation and energy infrastructure, the demand for reliable ground anchor bolt factory products is expected to grow. A recent report by a leading industry analyst projects the global ground anchor market to reach USD 1.5 billion by 2028, driven by increased spending on road, rail, and renewable energy projects.
Furthermore, the emphasis on sustainability is pushing contractors to adopt methods that reduce material waste and carbon footprint. The self drilling anchor for retaining walls reduces the need for concrete and steel casing, and its single-pass installation consumes less energy than multi-step processes. This aligns with the European Union’s Green Deal objectives and similar initiatives in North America.
As a leading soil nail system manufacturer and ground anchor bolt factory, SupAnchor has built a reputation for delivering high-performance anchoring solutions to demanding projects worldwide. The company’s product range includes self drilling anchor systems, hollow bar anchors, and a variety of rock bolts for underground mining and civil engineering applications. SupAnchor’s products are manufactured under strict quality control, with ISO 9001 certification and CE marking ensuring compliance with international standards. The company also offers SDA bolt factory direct supply, allowing contractors to source materials efficiently and cost-effectively.
SupAnchor’s commitment to innovation is evident in its continuous investment in research and development. The R32 hollow bar used on the E65 project features a proprietary thread design that maximizes load transfer while maintaining excellent drillability. The company collaborates closely with geotechnical engineers and contractors to tailor solutions to specific project needs, embodying its brand values of “Professional, Innovative, Collaborative.” With successful projects on five continents, SupAnchor continues to advance the field of geotechnical reinforcement, ensuring safer and more resilient infrastructure for future generations.
In conclusion, the E65 highway slope stabilization project demonstrates the critical role that advanced self drilling anchor systems play in modern construction. By overcoming difficult ground conditions with speed and reliability, SupAnchor not only helped keep the project on schedule but also ensured the long-term safety of a vital transportation corridor. As infrastructure demands continue to grow, such innovative geotechnical reinforcement systems will remain at the forefront of civil engineering practice.
