As global infrastructure projects push into increasingly complex geological formations, the demand for reliable ground support systems has never been higher. From tunneling beneath urban centers to stabilizing slopes in mountainous terrain, engineers require anchoring solutions that combine rapid installation, immediate load-bearing capacity, and long-term durability. SupAnchor, a leading exporter of self drilling anchor systems, has responded to this need with the SupShell Expansion Rock Bolt System, a versatile drill-and-grout bolt designed for challenging ground conditions.
The SupShell system, centered on SupAnchor expansion shell hollow anchors, provides a mechanical and chemical anchorage solution that is both fast to install and highly effective. Manufactured to the EN 10083 standard, these bolts deliver immediate anchorage through an expansion shell that grips the borehole wall upon installation. This design allows for secure support in fractured rock, loose soil, and other difficult geologies where traditional bolts may struggle.
The SupShell Expansion Rock Bolt System is engineered to meet the rigorous demands of modern geotechnical reinforcement systems. Its core component is a hollow bar anchor, which serves a dual purpose: it acts as both a drill rod during installation and a grouting conduit after placement. This integration eliminates the need for separate drilling and anchoring steps, significantly reducing cycle times and labor costs.
Key technical specifications across five models (R25/EX36, R28/EX40, R32/EX44, R32/EX46, R32/EX48) include outside diameters ranging from 36 mm to 48 mm, drilling hole diameters from 40 mm to 54 mm, and lengths from 132 mm to 176 mm. The bolt’s thread type complies with ISO 10208, and all models use CK45 steel, known for its excellent strength-to-weight ratio and weldability.
| Model | Outside Diameter (mm) | Drilling Hole Diameter (mm) | Length (mm) | Weight per Meter (kg/m) |
|---|---|---|---|---|
| R25/EX36 | 36 | Φ40–Φ42 | 132 | 0.62 |
| R28/EX40 | 40 | Φ44–Φ46 | 136 | 0.84 |
| R32/EX44 | 44 | Φ48–Φ50 | 135 | 0.82 |
| R32/EX46 | 46 | Φ50–Φ52 | 176 | 1.20 |
| R32/EX48 | 48 | Φ52–Φ54 | 165 | 1.45 |
The injection system is another standout feature. Grout is pumped through the center hole of the bolt from the bottom, ensuring complete filling of the borehole and full encapsulation of the anchor. A plastic sealing element prevents grout or resin leakage, which is critical in water-bearing strata or when using post-grouting techniques. This design guarantees a strong bond between the bolt and the surrounding ground, providing both mechanical interlock and chemical adhesion.
Corrosion protection is addressed through an optional galvanized finish compliant with ISO 1461. This extends the service life of the anchor, making it suitable for permanent works in aggressive environments such as coastal areas or chemically active soils.
The following key benefits highlight the system’s engineering value:
The SupShell Expansion Rock Bolt System excels in scenarios where rapid support is essential and ground conditions are unpredictable. In tunneling, for example, the ability to achieve immediate anchorage allows crews to advance the face without waiting for grout to cure. The expansion shell grips the rock instantly, providing temporary support that can later be supplemented with grouting to create a permanent reinforcement.
In mining, the system’s self drilling anchor bolt design reduces the number of steps required for roof and rib support. Miners can drill, install, and grout in one continuous operation, improving advance cycles and reducing exposure to unsupported ground. The hollow bar anchor design also permits pre-grouting in fractured zones, where consolidation of the rock mass is needed before excavation progresses.
Slope stabilization and foundation anchoring are further application areas. The drill-and-grout bolt approach minimizes disturbance to the surrounding soil, preserving the integrity of the slope while providing high pull-out capacity. The galvanized option makes the system ideal for permanent retaining structures and landslide mitigation projects.

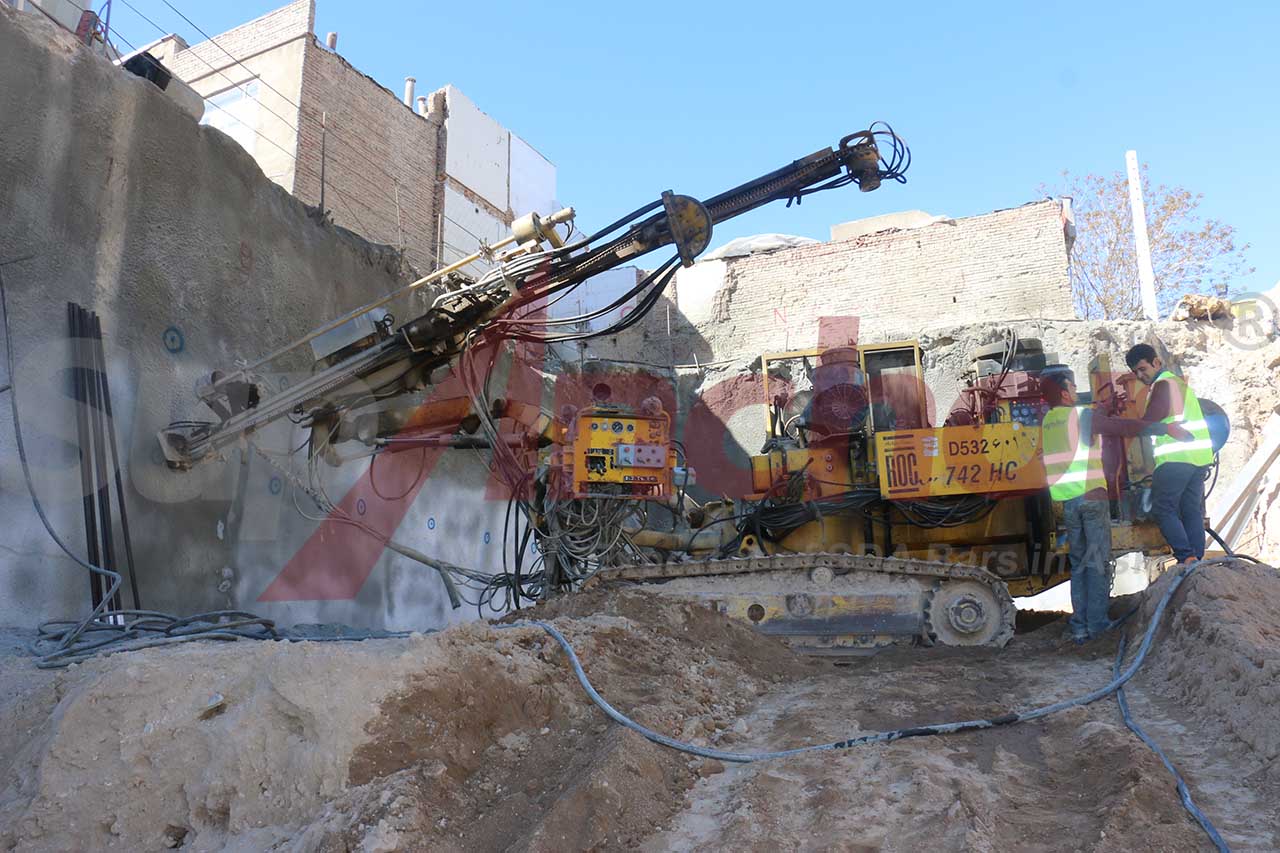

In comparison with traditional rock bolts that require separate drilling and anchoring operations, the SupShell system significantly reduces installation time and labor costs. Its ability to function as a self drilling anchor bolt means that a single machine can complete the entire installation, eliminating the need for multiple pieces of equipment and reducing logistical complexity. For contractors operating in remote or confined sites, this translates into tangible savings and improved safety.
The global geotechnical reinforcement system market is projected to grow steadily as aging infrastructure demands rehabilitation and new projects require advanced support methods. The SupShell Expansion Rock Bolt System addresses multiple pain points: speed of installation, reliability in poor ground, and long-term durability. By combining mechanical and chemical anchorage, it offers a versatile solution that can be tailored to different rock types and project requirements.
SupAnchor’s commitment to quality is reflected in its adherence to international standards such as EN 10083 and ISO 10208. As a major soil nail system manufacturer and ground anchor bolt factory, SupAnchor exports its products to projects across Europe, North America, and beyond. The company’s self drilling anchor system portfolio has been used in high-profile infrastructure developments, including metro tunnels, highway cuts, and deep excavation support.
By investing in research and development, SupAnchor continues to innovate in the field of ground support. The SupShell system is a testament to the company’s dedication to providing professional, innovative, and collaborative solutions that meet the evolving needs of the construction and mining industries. With a focus on durability, efficiency, and safety, SupAnchor remains a trusted partner for geotechnical engineers worldwide.
For engineers and contractors seeking a reliable drill-and-grout bolt, the SupShell Expansion Rock Bolt System offers a proven combination of performance, efficiency, and value. With its immediate anchorage, robust construction, and flexible grouting options, it stands as a competitive choice in the global market for ground reinforcement technologies.
