In the rugged terrain of the European Alps, where fractured rock masses and high groundwater pressures pose constant threats to construction safety, a major highway expansion project has turned to an advanced ground stabilization anchor system to secure portal slopes and foundation zones. The project, part of a transnational transport corridor linking key economic regions, involves the construction of a twin-tube highway tunnel and associated retaining structures. Contractors faced severe geological variability, including weathered schist, fault zones, and water-bearing layers, which made conventional drilling and anchoring methods both time-consuming and unreliable. To address these challenges, the project team selected a self drilling anchor system supplied by SupAnchor, a recognized leader in geotechnical reinforcement technology. This decision has not only accelerated installation cycles but also improved overall ground support quality, reinforcing SupAnchor's reputation as a reliable partner for complex infrastructure projects.

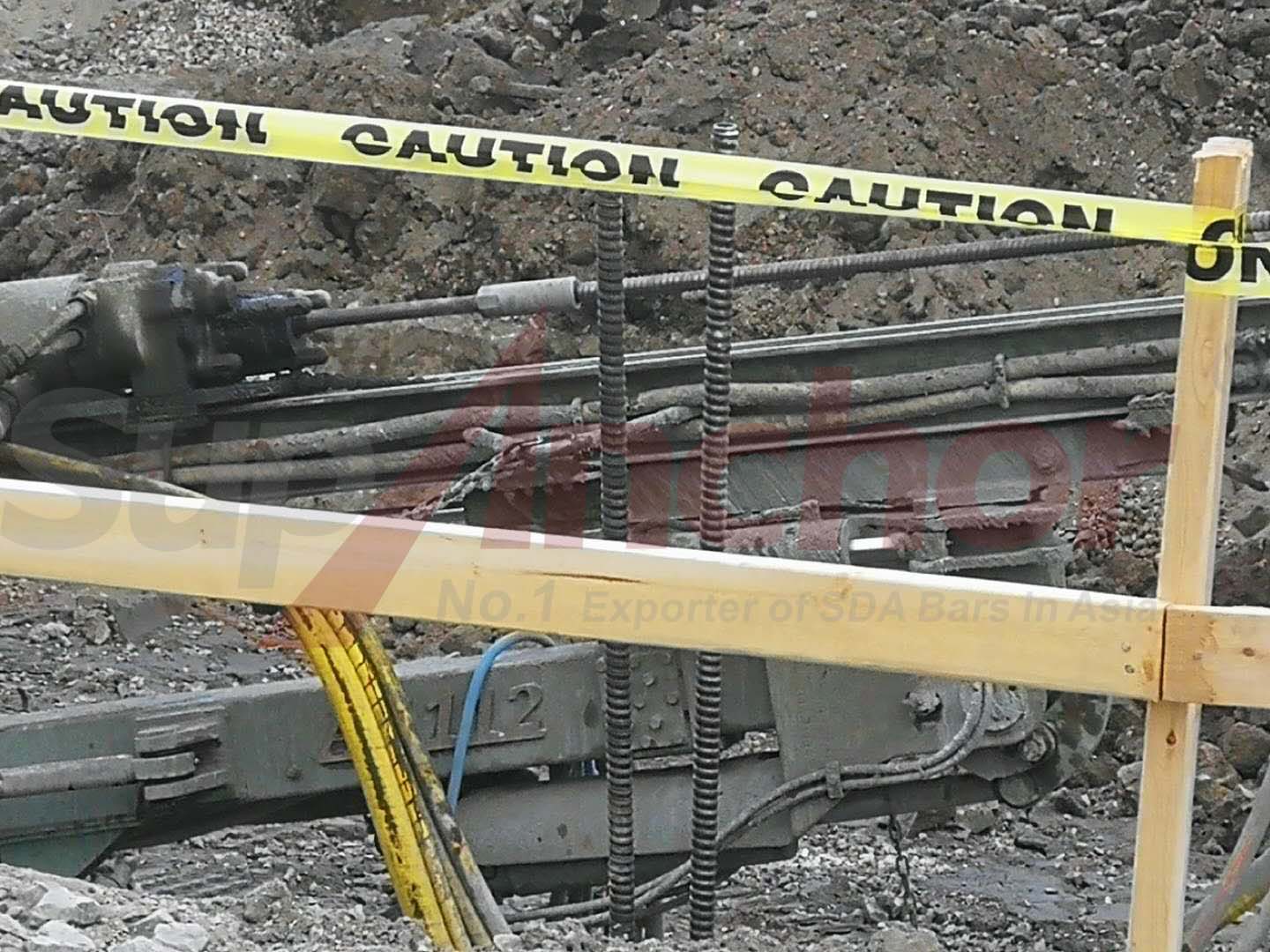

The image above, captured during active drilling and grouting operations, illustrates the seamless integration of SupAnchor's hollow bar anchors into the steep slope stabilization works. Workers are seen installing a drill-and-grout bolt directly through the overburden, eliminating the need for separate casing and reducing the risk of borehole collapse in the unstable ground. This method, known as the one-pass installation technique, is a hallmark of SupAnchor's SDA (Self Drilling Anchor) technology. By combining drilling, anchoring, and grouting in a single operation, the system significantly cuts down construction time and labor costs, while maintaining high load-bearing capacity. The project's consulting engineers noted that the self drilling anchor bolt's ability to penetrate through mixed ground conditions without sacrificing performance was a decisive factor in its selection.
The highway corridor traverses a geologically complex zone characterized by alternating layers of limestone, phyllite, and heavily fractured granite. The tunnel portal area, in particular, presented severe challenges: inclinations ranging from 40 to 70 degrees, loose colluvial deposits, and continuous water seepage from subsurface aquifers. Traditional rock bolting methods required pre-drilling with casing, which often led to hole collapse, excessive water inflow, and equipment jamming. Consequently, the project schedule was at risk, and safety concerns mounted. To overcome these obstacles, the project's geotechnical design team opted for a geotechnical reinforcement system that could provide immediate support while accommodating ground deformation. SupAnchor's self drilling anchor system emerged as the optimal solution, thanks to its ability to act simultaneously as a drill rod, injection tube, and permanent reinforcement element.
The application of hollow bar anchors in this context underscores their versatility. By using a sacrificial drill bit attached to the hollow bar, contractors can drill through unstable strata without the need for a casing. The continuous flushing of grout through the hollow core stabilizes the borehole walls and fills voids, creating a strong bond with the surrounding ground. This one-pass process not only improves efficiency but also enhances the geotechnical integrity of the support system. For the Alpine project, where weather windows are short and access is limited, reducing the number of installation steps translated directly into cost savings and accelerated progress. The self drilling anchor for retaining walls was particularly effective in stabilizing cut slopes adjacent to the tunnel entrance, where space constraints precluded the use of large machinery.
SupAnchor's self drilling anchor bolts are manufactured from high-strength steel conforming to international standards, ensuring consistent mechanical properties and durability. For this project, the most commonly used diameters were R32 and R38, with lengths up to 12 meters, coupled as needed to achieve deeper anchorage. The table below summarizes key technical parameters of the hollow bar anchors deployed on site:
| Parameter | R32 Hollow Bar | R38 Hollow Bar |
|---|---|---|
| Outer Diameter (mm) | 32 | 38 |
| Ultimate Tensile Load (kN) | 280 | 500 |
| Yield Load (kN) | 230 | 430 |
| Tensile Strength (MPa) | 670 | 670 |
| Corrosion Protection | Hot-dip galvanized ≥85 μm | Hot-dip galvanized ≥85 μm |
These specifications were validated through on-site pull-out tests, which confirmed that the anchors achieved design loads with minimal displacement. The hot-dip galvanized coating provided essential corrosion protection in the aggressive Alpine environment, where freeze-thaw cycles and de-icing salts can accelerate steel degradation. Additionally, SupAnchor offered the option of epoxy coating or stainless steel for sections exposed to particularly corrosive groundwater. The anchor bolt system for geotechnical engineering not only met the project's immediate support requirements but also ensured long-term durability, a key consideration for infrastructure with a design life exceeding 100 years.
Field engineers reported that the micropile hollow bar anchor configuration proved highly effective in stabilizing a deep-seated landslide zone near the portal. By installing multiple rows of self drilling anchors at varying inclinations, the team created a reinforced soil mass that resisted further movement. The continuous monitoring data showed a reduction in slope displacement from several millimeters per day to negligible levels within two weeks of installation. This success highlights the adaptability of the system to varying ground conditions and its ability to deliver immediate load-bearing capacity.
The successful deployment of SupAnchor's self drilling anchor system in the Alps reflects a broader global trend toward faster, safer, and more sustainable geotechnical construction. As infrastructure spending rises across Europe and North America, particularly in transportation, renewable energy, and urban development, the demand for reliable ground stabilization anchor systems continues to grow. The self drilling anchor technology aligns perfectly with these needs, offering a solution that reduces environmental footprint, minimizes noise and vibration, and shortens project timelines.
In tunneling and underground construction, self drilling anchors are increasingly replacing traditional rock bolts due to their superior performance in weak rock and soil. For example, in urban metro projects, where settlements must be strictly controlled, the drilling and grouting capabilities of hollow bar anchors provide immediate radial support, preventing deformation and ensuring structural safety. Similarly, in mining operations, the rock bolt for underground mining variant of the SDA system has gained popularity for its high pull-out strength and ease of mechanized installation. The system's versatility positions it as a cornerstone of modern geotechnical practice.
Moreover, the shift toward performance-based design and stricter safety regulations has prompted engineers to specify anchors with verified quality and traceability. SupAnchor, as a soil nail system manufacturer and ground anchor bolt factory, addresses these requirements through rigorous quality control and full documentation of raw materials and production processes. This commitment to transparency builds confidence among contractors and owners alike.
SupAnchor has established itself as a premier provider of self drilling anchor bolts and related ground support products. With a dedicated R&D team, the company continuously refines its product line to meet evolving industry demands. The self drilling bolt for civil engineering is manufactured in an ISO 9001-certified facility, and many products carry CE marking, attesting to their compliance with European safety and performance standards. SupAnchor's global track record includes projects in tunneling, slope stabilization, foundation underpinning, and mining across more than 40 countries.
As a SDA bolt factory direct supply source, SupAnchor offers competitive pricing and fast delivery without intermediaries, a significant advantage for large-scale projects with tight schedules. The company's technical support team works closely with clients from design to installation, ensuring that the correct anchor specifications are selected for each unique application. This collaborative approach has fostered long-term partnerships with leading contractors and engineering firms worldwide.
The product image above showcases the clean threading and uniform galvanization of a typical SupAnchor self drilling anchor bolt. Such attention to detail translates into reliable performance in the field. For the Alpine highway project, the availability of custom lengths and diameters, coupled with technical guidance, enabled the contractor to optimize the anchor layout and reduce material waste. The project is now on track for on-time completion, with the tunnel portal area fully stabilized and ready for subsequent structural works.
Looking ahead, SupAnchor continues to invest in advanced manufacturing technologies and sustainable practices. The company recognizes that the future of geotechnical engineering lies in systems that are not only strong and durable but also efficient to install and environmentally responsible. The self drilling anchor system embodies these principles, offering a single-pass solution that lowers energy consumption, reduces spoil, and improves worker safety. As global infrastructure demands grow, SupAnchor is well positioned to supply the ground stabilization anchor system of choice for the world's most challenging projects.
