In a recent large-scale infrastructure development in the mountainous region of South America, engineers faced significant geological challenges. The site, characterized by loose soil, fractured rock, and high groundwater levels, required robust ground stabilization to prevent landslides and ensure the safety of adjacent highway and railway corridors. The project demanded a geotechnical reinforcement system that could be installed efficiently in difficult conditions while providing immediate load-bearing capacity.
After evaluating multiple options, the project team selected SupAnchor's self drilling anchor system, a proven solution for slope stabilization and retaining wall construction. The system's ability to drill, grout, and anchor in a single operation minimized installation time and reduced the need for temporary support measures. This article examines the technical details of the application and its broader significance for the geotechnical engineering industry.

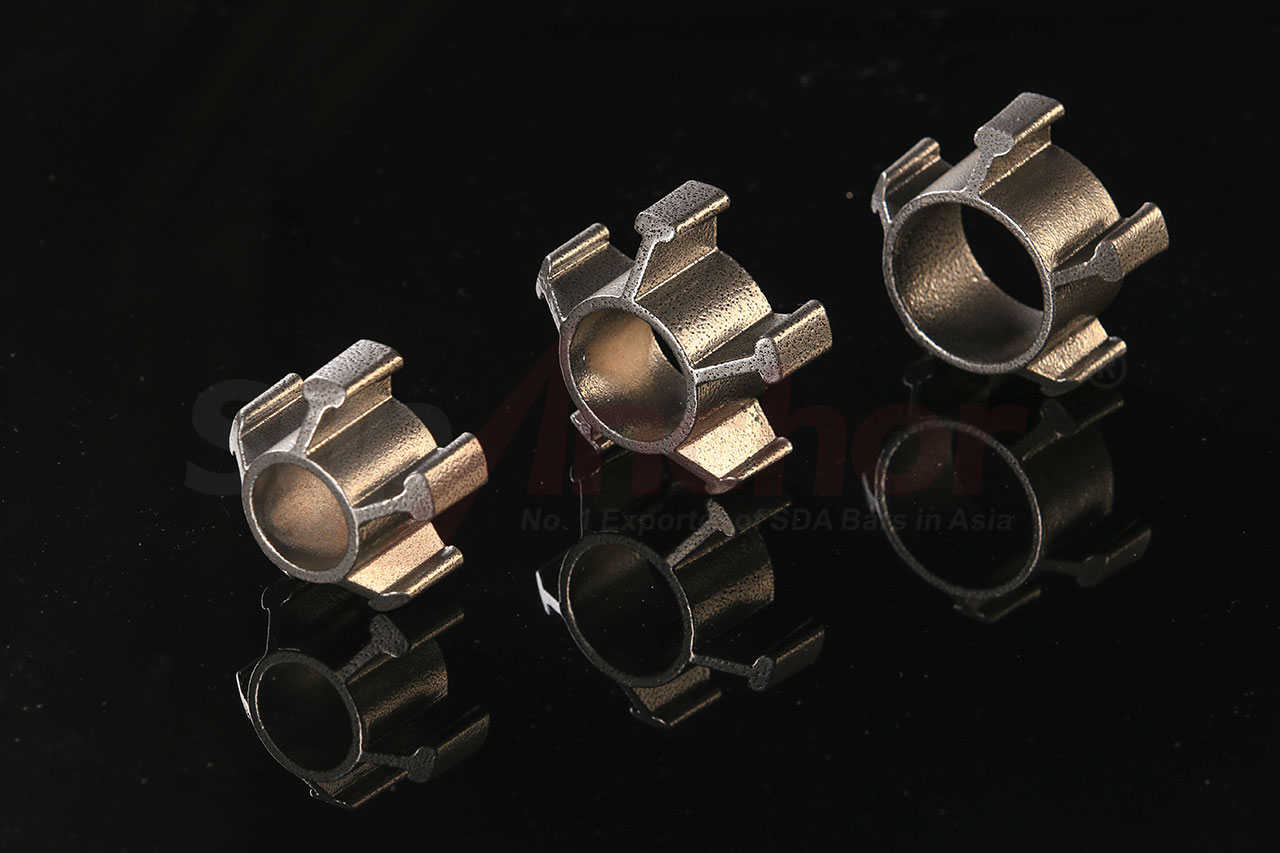

SupAnchor supplied a customized hollow bar anchor system tailored to the site's specific requirements. The key parameters of the self drilling anchor bolt used in this project include:
| Parameter | Specification |
| Diameter | 32 mm |
| Tensile Strength | 670 MPa |
| Yield Strength | 550 MPa |
| Length | 6 to 12 meters (adjustable) |
| Corrosion Protection | Hot-dip galvanized with additional epoxy coating for aggressive environments |
| Thread Type | Continuous spiral thread for efficient drilling and grout flow |
The self drilling anchor system, also known as a drill-and-grout bolt, is designed to penetrate through difficult overburden and loose strata. Its hollow bar anchor allows simultaneous injection of cement grout, which stabilizes the borehole and bonds the anchor to the surrounding ground. This dual function significantly accelerates installation compared to conventional methods, where drilling and anchoring are separate phases. The ground anchor bolt factory at SupAnchor ensured strict quality control, with each bar tested to meet international standards.

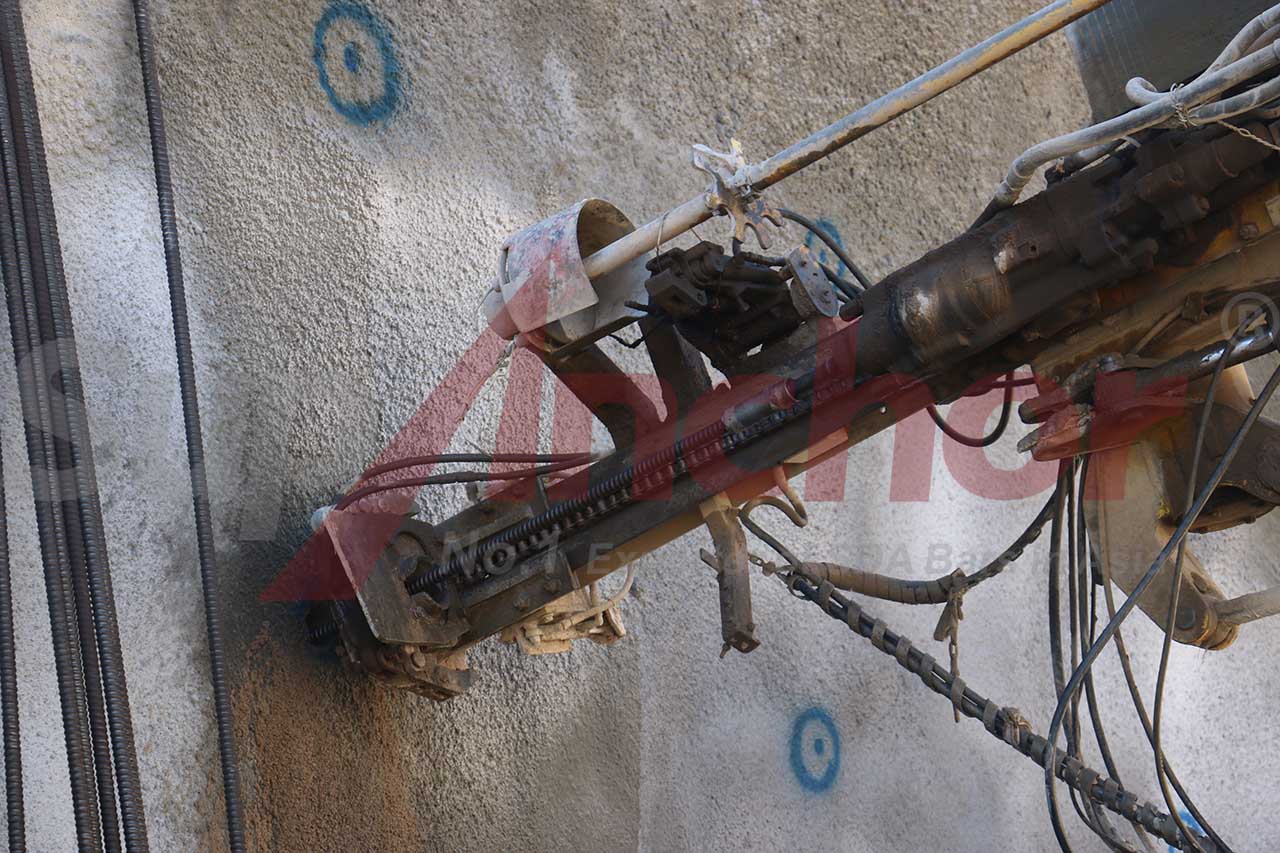

On the construction site, as shown in the image above, crews installed the self drilling anchor bolts at a 20-degree downward inclination along the slope face. The anchors were spaced at 1.5-meter intervals in both horizontal and vertical directions to form a systematic reinforcement grid. The hollow bar anchor allowed the grout to fill the annulus completely, even in cavities and fissures, creating a continuous load transfer mechanism. This performance is critical for soil nail system manufacturer expertise, as the anchors must work immediately after grouting to support the excavation face.
One of the most challenging aspects of this project was the presence of groundwater seepage. The self drilling anchor for retaining walls must resist corrosion and maintain integrity over the design life of 75 years. The selected corrosion protection—hot-dip galvanizing plus epoxy—meets the requirements of aggressive soil environments. The ground stabilization anchor system also provided real-time feedback during installation: drilling torque and grout take were monitored to adjust parameters and ensure full encapsulation.
The geotechnical reinforcement system contributed to a 30% reduction in overall project timeline for the slope treatment phase. Engineers noted that the self drilling bolt for civil engineering applications like this one offers a distinct advantage in variable ground conditions, where conventional methods often require casing or advanced grouting techniques.
This project reflects a broader trend in infrastructure development: the increasing adoption of integrated drilling and anchoring systems. As urban expansion pushes into more challenging terrain, the demand for reliable ground anchor bolt factory products continues to grow. The self drilling anchor system is particularly valued in tunneling, where it serves as a rock bolt for underground mining and tunnel face stabilization. Its ability to install through loose rock and fractured zones makes it indispensable for NATM (New Austrian Tunneling Method) projects.
In addition to slope stabilization, the same system is used for micropile foundations, underpinning existing structures, and landslide remediation. The SDA bolt factory direct supply model ensures consistent quality and availability for large-scale projects. Market analysts predict that the global geotechnical anchor market will expand at a CAGR of 6.8% through 2030, driven by massive investments in transportation and energy infrastructure in Asia, Latin America, and Africa.
SupAnchor's hollow bar anchor technology aligns with the industry's push for faster, safer, and more cost-effective solutions. By eliminating the need for separate drilling and anchoring equipment, the system reduces carbon footprint and on-site risks. The company's ISO 9001:2015 certification and numerous successful projects worldwide reinforce its reputation as a leading soil nail system manufacturer.
The anchor bolt system for geotechnical engineering provided by SupAnchor has been adopted in over 40 countries, with case histories in high-speed rail foundations, dam stabilization, and deep excavation support. This latest project further demonstrates the value of innovation in ground stabilization anchor system design.
The construction project is now in its final phase, with slope monitoring systems indicating negligible movement over the past six months. Engineers are confident that the supAnchor self drilling system will provide long-term stability. As the industry continues to evolve, such integrated solutions will become the standard for challenging geotechnical environments.
