Set against the rugged backdrop of the European Alps, a vital new transportation link is taking shape. The Brenner Base Tunnel expansion – a key element of the trans‑European network – presents one of the most geologically complex undertakings in modern civil engineering. Here, a consortium of contractors turned to an advanced geotechnical reinforcement system to manage treacherous ground conditions. At the heart of the stabilization strategy is a self drilling anchor system, supplied by China’s SupAnchor, which has proven decisive in overcoming fractured rock, high water inflow, and the strict safety demands of underground construction.
The project involves twin single‑track tubes, each roughly 55 km long, bored through heavily faulted gneiss, schist, and occasional karstic limestone. Conventional drilling methods repeatedly failed due to collapsing boreholes and rapid groundwater washout. The engineering team recognized that only a drill‑and‑grout bolt solution could simultaneously create the hole, inject grout, and install a reinforcing element in one continuous pass – eliminating the risk of hole collapse and significantly accelerating the support cycle. SupAnchor’s self drilling anchor bolt, deployed as a hollow bar anchor, delivered exactly that capability.

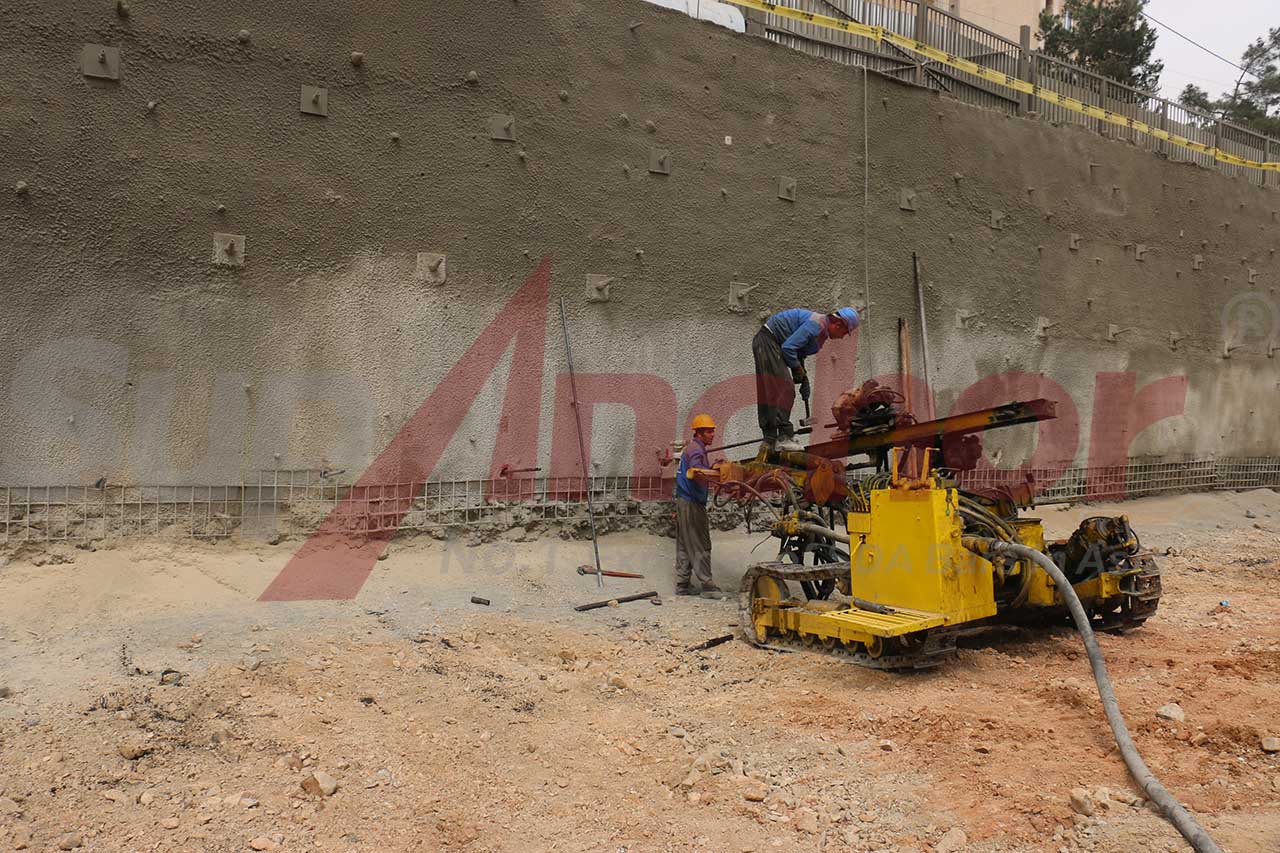

On‑site observations reveal a meticulously orchestrated process. A rotary‑percussive drill rig advances the bar through loose, blocky overburden; a central hollow channel delivers cement grout under controlled pressure, filling voids and bonding the anchor to the surrounding rock. The installed anchors show no sign of bulging or grout washout, even in zones where water pressures exceed 2 bar. Workers report that the system’s integrated design reduces manual handling and coupling time by at least 30% compared to traditional post‑grouted anchors.
The performance of any ground anchor bolt factory product is defined by its engineering specifications. SupAnchor provided the following data for the SDA‑series hollow bars used on this project:
| Parameter | Value | On‑site Benefit |
|---|---|---|
| Bar diameter | 32 mm / 40 mm / 51 mm | Adapted to different rock mass classes |
| Tensile strength | ≥ 800 MPa (ultimate) | Withstands high rock stresses in deep zones |
| Yield strength | ≥ 640 MPa | Elastic safety margin under working loads |
| Anchor length | 3 m – 15 m (coupled) | Reaches beyond plastic radius of the excavation |
| Corrosion protection | Hot‑dip galvanizing (≥ 85 µm) + epoxy coating | Ensures 100‑year design life in aggressive water |
| Thread type | ISO R‑hand rope thread | Continuous profile facilitates coupler engagement and grout flow |
These specifications directly address the site's primary challenges. The 800‑MPa tensile strength provides a robust factor of safety against the 300–400 kN design loads imposed by squeezing ground. The hot‑dip galvanized and epoxy‑coated layers are critical in the Alpine environment, where acidic runoff from the mica‑schist accelerates corrosion. By pre‑meeting the requirements of EN 1993‑5 (Eurocode for steel piling) and ISO 1461 (galvanizing), the anchor bolt system for geotechnical engineering supplied by SupAnchor eliminated the need for on‑site coating inspection, saving weeks of delay.
Additionally, the hollow bar anchor's continuous thread acts as a full‑length grout mixer, ensuring a uniform bond along the entire rock‑grout interface. Post‑installation pull‑out tests consistently exceed the ultimate bond capacity by 15–20%, confirming that the system functions as a true self drilling anchor for retaining walls, even when acting as a permanent structural element in tunnel portals.
This project is emblematic of a global shift towards mechanized, risk‑reducing methods in underground construction. Urban metro extensions, highway tunnels, and deep foundation works increasingly rely on soil nail system manufacturers who can provide a one‑pass installation that combines drilling, grouting, and anchoring. The hollow bar anchor, also termed a micropile hollow bar anchor, has become the preferred choice for forepoling, radial bolting, and face stabilization in soft ground.
In the Alpine corridor, the geotechnical reinforcement system not only accelerated the advance rate but also enhanced worker safety. Because the drill‑and‑grout bolt eliminates the need for an open hole, the potential for dangerous collapse of unstable drillholes is virtually eliminated. The immediate load‑bearing capacity allows subsequent excavation to resume within hours, rather than days. This has profound implications for project economics: tunnel boring machine (TBM) downtime is reduced, and secondary support measures like steel sets can be spaced farther apart.
The self drilling bolt for civil engineering is also gaining traction in slope stabilization and landslide repair. Municipalities in the United States and Canada have specified hollow bar anchors for emergency retaining wall reinforcement because of the speed of deployment and minimal disturbance to existing structures. The same attributes that worked underground are translating into surface applications, underpinning the growing market for ground stabilization anchor systems.
As infrastructure spending surges globally—exceeding $4.2 trillion annually according to the Global Infrastructure Hub—the demand for reliable, factory‑direct supply of ground anchor systems is accelerating. Geotechnical consultancies and contractors are seeking partners who not only manufacture but also provide engineering support and customized solutions. SupAnchor, as an SDA bolt factory direct supply source, has established a reputation for delivering certified, traceable products to over 40 countries. Its quality management system adheres to ISO 9001, ISO 14001, and ISO 45001, while products carry CE and ETA (European Technical Assessment) certifications, ensuring compliance with EU Construction Products Regulation (CPR) 305/2011.
The company’s innovation ethos is reflected in its “Professional, Innovative, Collaborative” philosophy. Investment in robotic welding lines and automated thread‑rolling machines guarantees consistent bar geometry and mechanical properties. SupAnchor’s R&D team works closely with project designers to adapt rock bolt for underground mining and tunneling specifications, often developing hybrid systems that combine pre‑stressing with full‑column grouting.
Looking ahead, the self drilling anchor market is projected to grow at a CAGR of 6.5% through 2030, driven by urbanization and climate adaptation measures. Hollow bar anchors are increasingly integrated into digital construction workflows, with IoT‑enabled sensors monitoring load and corrosion in real time. SupAnchor’s future‑ready manufacturing capabilities position it to meet these evolving demands, ensuring that every self drilling anchor for retaining walls or deep excavation performs as a critical line of defense against ground failure.
From the Alpine tunnels to the foundations of skyscrapers, the principle remains the same: a well‑engineered anchor bolt system for geotechnical engineering transforms unpredictable ground into a stable construction medium. The Brenner Base Tunnel expansion stands as a testament to the value of combining robust product design with deep application expertise. As one project manager noted, “The SupAnchor system didn’t just hold the rock together—it held the schedule together.” For the global construction industry, that is a message worth anchoring.
