In the heart of a bustling European transportation corridor, a critical tunnel expansion project faced unprecedented geotechnical hurdles. The underlying geology—a mosaic of fractured sedimentary rocks interbedded with water-bearing silt seams—threatened excavation stability and worker safety. Traditional anchoring methods faltered, requiring an innovative approach to ground reinforcement. SupAnchor, a global leader in geotechnical anchoring solutions, stepped in with its advanced self drilling anchor system, providing a robust, efficient, and reliable ground anchor bolt that not only secured the excavation but also accelerated the construction timeline. As a premier soil nail system manufacturer, SupAnchor’s hollow bar anchor technology proved indispensable in this challenging environment.
The project, part of a trans-European railway upgrade, involved twin 8.5-kilometer tunnels bored through Alpine foothills. Preliminary investigations revealed highly variable ground conditions: alternating layers of calcareous mudstone, thinly bedded sandstone, and fractured quartzite, with occasional karst cavities filled with soft clay. Groundwater ingress was significant, with artesian pressures exceeding 2 bar in some sections. The original design called for conventional drill-and-inject rock bolts, but trials showed that hole collapse and grout washout rendered them ineffective. “We needed a ground anchor bolt that could be installed quickly without casing, withstand aggressive corrosion, and provide immediate load-bearing capacity,” explained the project’s lead geotechnical engineer. The hollow bar anchor emerged as the ideal solution, and SupAnchor, a trusted ground anchor bolt factory, delivered components that met the strictest performance demands.
SupAnchor’s self drilling anchor bolt was chosen for its unique capability to combine drilling, installation, and grouting in a single pass. This drill-and-grout bolt eliminates the need for pre-drilling, casing, and secondary grouting, drastically cutting installation time and reducing the risk of hole collapse in unstable ground. The system’s sacrificial drill bit is advanced through the hollow bar, which serves both as the reinforcing element and the grout conduit. By injecting cement grout simultaneously, the soil nail system manufacturer ensured intimate bond with the surrounding strata, creating a monolithic soil–grout–steel column that acts as a permanent geotechnical reinforcement system.

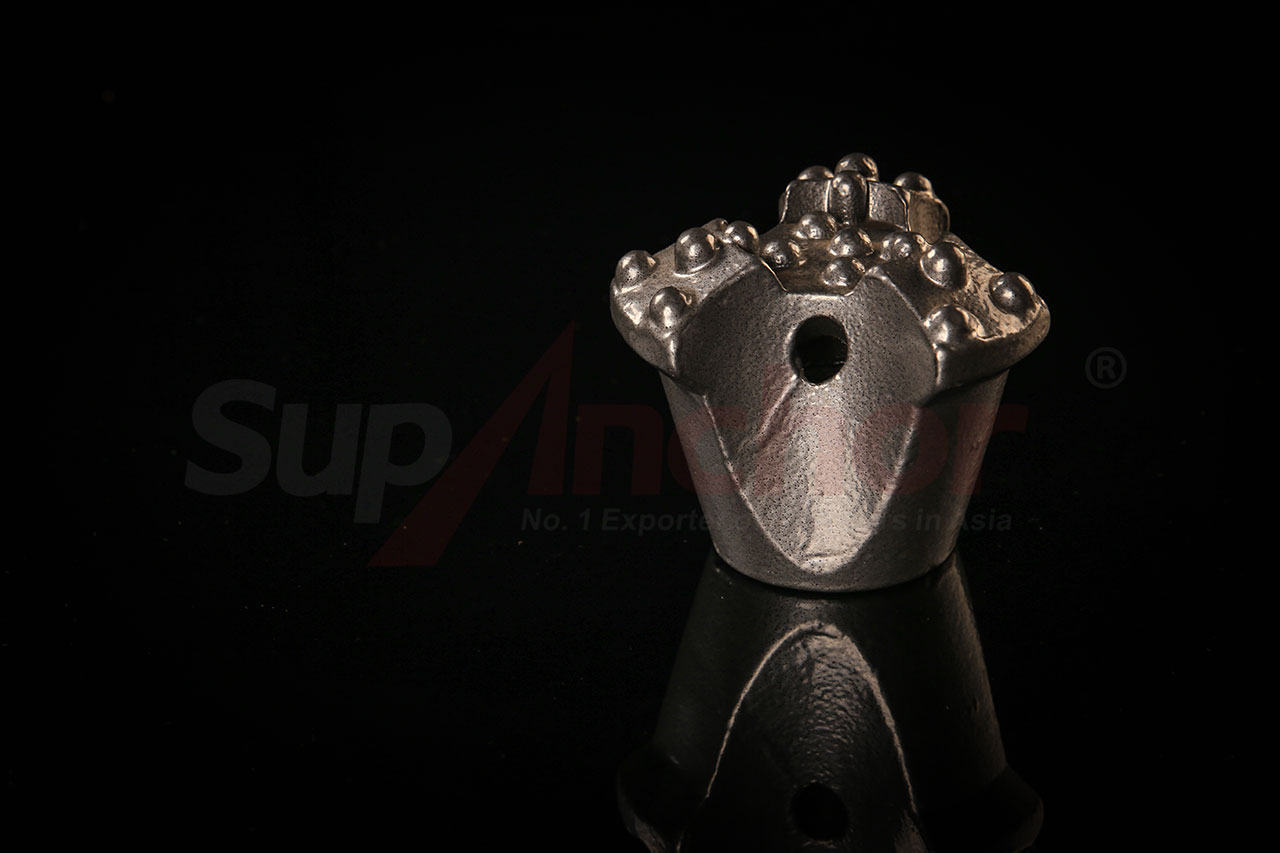

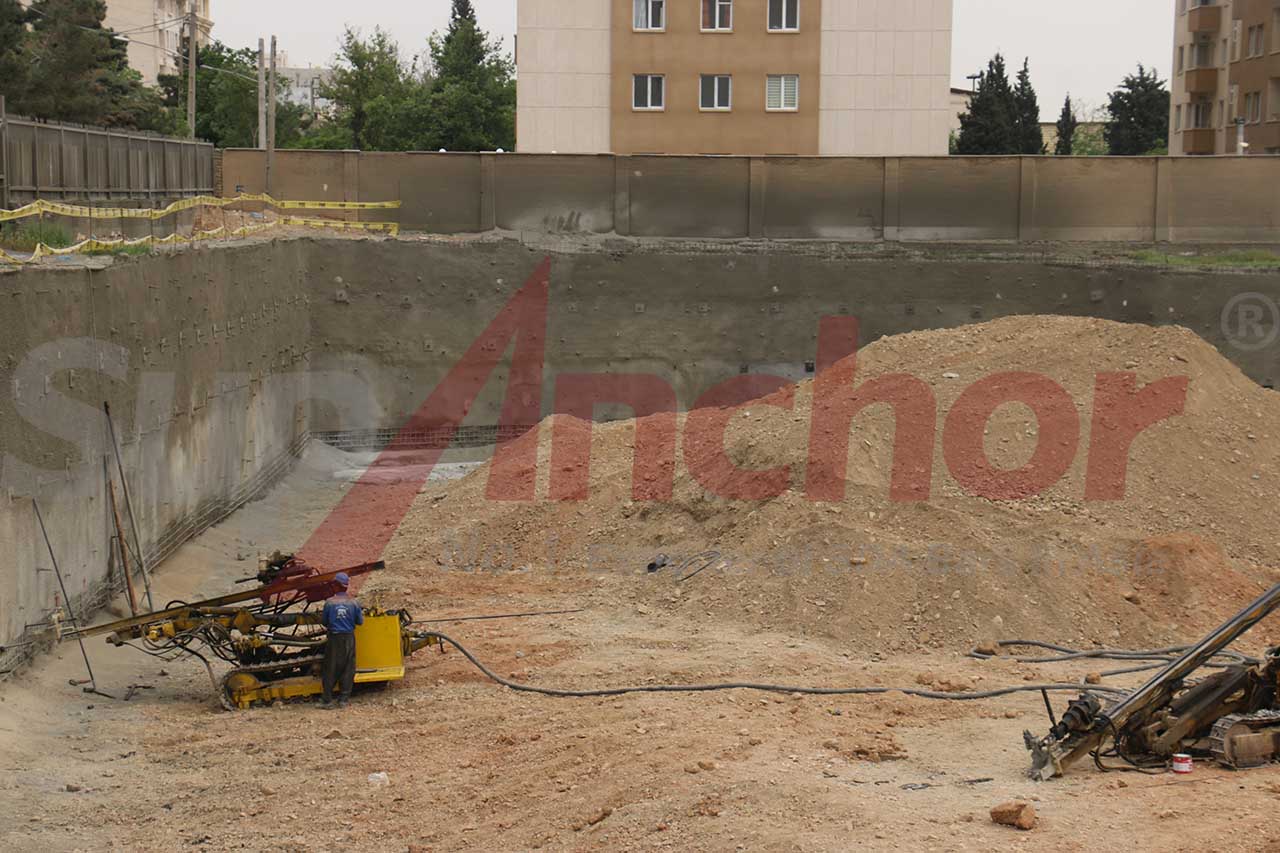

At the construction face, crews deployed track-mounted rotary percussion rigs fitted with SupAnchor SDA hollow bars. The process began by attaching a carbide cross-cut drill bit to the leading end of the first hollow bar segment. The bar was then rotated and hammered into the face, grout pumping initiated as soon as the bit reached the design depth. Couplers connected successive lengths, allowing anchors up to 25 meters long to be installed without interruption. The on-site image captures a technician monitoring grout return at the collar, ensuring full encapsulation and verifying the integrity of the ground stabilization anchor system. The visual record underscores the system’s cleanliness and the controlled working environment—a stark contrast to the chaos often associated with difficult ground fixing.
One of the defining features of the SupAnchor self drilling anchor for retaining walls is its versatility in adjusting length and diameter to match local ground conditions. For the tunnel crown, 32 mm hollow bars with 51 mm drill bits were used at 1.2 meter center-to-center spacing, delivering a design working load of 250 kN per anchor. In the bench and invert zones, where weaker mudstone prevailed, the specification shifted to 38 mm bars with 64 mm bits, achieving 400 kN working loads. This adaptability is a hallmark of the self drilling bolt for civil engineering, enabling value engineering that saved the contractor an estimated 15% on material costs compared to a uniform design. The micropile hollow bar anchor array performed exceptionally well in underpinning a nearby heritage bridge pier, where vibration limits precluded driven piles.
The table below summarizes the key technical parameters of the SupAnchor self drilling anchor bolt range deployed on the project, showcasing the mechanical properties and dimensional options that underpin its performance.
| Parameter | Typical Value / Range |
|---|---|
| Hollow Bar Outer Diameter (mm) | 25, 32, 38, 51 |
| Drill Bit Diameter (mm) | 42, 51, 64, 76, 90, 115 |
| Ultimate Tensile Strength (MPa) | ≥ 670 (for grade B500B steel) |
| Yield Strength (MPa) | ≥ 500 |
| Elongation at Fracture | ≥ 14% |
| Standard Section Length (m) | 2.0, 3.0, 4.0, 6.0 |
| Coupler Connection | Full-strength threaded sleeve |
| Corrosion Protection | Hot-dip galvanized (≥ 85 µm) or epoxy coating, plus cement grout cover ≥ 20 mm |
| Grout Compressive Strength (28d) | ≥ 30 MPa |
| Compliance Standards | EN 14490, ISO 9001, CE Marking |
The corrosion protection system deserves special mention given the aggressive groundwater chemistry encountered. The hollow bars were hot-dip galvanized to an average thickness of 90 µm, and a centralizer attached every 1.5 meters ensured a minimum grout cover of 25 mm around the bar. For sections where chloride content was elevated, a dual corrosion protection was applied: an epoxy coating over the galvanizing, combined with a corrugated plastic sheath grouted-in place. This robust defense guarantees a service life exceeding 100 years, meeting the stringent requirements for permanent rock bolt for underground mining and underground infrastructure. The drill-and-grout bolt thereby becomes a lifetime solution, not a temporary fix.
Frontline installation rates consistently exceeded 20 anchors per shift per rig, a testament to the streamlined SDA bolt factory direct supply chain that delivers ready-to-drill components. Because the hollow bar itself acts as the drill rod, consumables are minimal—only the sacrificial bit and couplers. The grout take was monitored via flow meters, with typical volumes 10–20% above the theoretical annular volume, confirming effective penetration into surrounding fissures. Post-installation proof testing to 133% of the working load confirmed minimal creep and full elastic recovery, validating the anchor bolt system for geotechnical engineering’s design assumptions. This rigorous quality assurance regime is why many engineers specify SupAnchor’s geotechnical reinforcement system as their default choice.
The successful deployment of the self drilling anchor system on this flagship project resonates far beyond a single tunnel. It signals a paradigm shift in underground construction, where integrated, time-efficient reinforcement methods are becoming non-negotiable. Urban tunnels, metro stations, and cross-rail passages increasingly operate under tight schedules and in sensitive environments. The self drilling anchor bolt reduces spoil generation, minimizes vibration, and eliminates the double-handling of drill casings—factors that align perfectly with sustainable construction practices. Moreover, the SDA bolt factory direct supply model allows contractors to reduce inventory costs and avoid supply-chain bottlenecks.
Global infrastructure spending is projected to exceed $9 trillion annually by 2025, with a significant portion allocated to tunneling and slope remediation. The demand for reliable geotechnical reinforcement system components is soaring, particularly in regions prone to landslides and seismic activity. The micropile hollow bar anchor variant has found renewed application in underpinning historic structures and constructing foundation piles in restricted-access sites. Its ability to transfer axial loads through a combination of shaft friction and end bearing makes it a versatile foundation element, often replacing traditional bored piles in congested urban settings. For slope stabilization, the self drilling anchor for retaining walls has become the go-to choice, allowing rapid installation of tie-backs even in boulder-rich colluvium where conventional drilling would be impossible.
The construction of retaining walls along steep highway cuts and deep excavations also benefits enormously from the self drilling anchor for retaining walls. Unlike conventional tie-backs that require a separate hole-drilling phase, the hollow bar anchor can be installed in a single step, even in boulder-strewn colluvium. This capability recently prevented a major road closure in an Alpine pass widening project, where a 18-meter-high cut required 1,200 permanent anchors. SupAnchor’s solution provided the ground stabilization anchor system with a safety factor of 1.5 against pull-out, while reducing the installation program by four weeks. The use of self drilling bolt for civil engineering in such scenarios demonstrates its superiority in difficult access and environmentally sensitive areas.
Mining operations, too, are increasingly turning to the rock bolt for underground mining from the self drilling family. In block caving and sublevel stoping mines, rapid support of draw-point brows and drift intersections is critical to productivity. The drill-and-grout bolt’s immediate load capacity allows miners to resume mucking within minutes, and the grout injection ensures long-term stability against stress-induced fracturing. A copper mine in Chile’s Atacama Desert recently standardized on SupAnchor’s 38 mm SDA bars for long-hole stoping support, reporting a 30% reduction in ground support downtime. As a dedicated rock bolt for underground mining, the SDA bar outperforms split sets and expansion shells in fractured, squeezing ground, proving that a well-designed ground anchor bolt factory can transform mine safety.
Behind these achievements stands SupAnchor’s nearly two-decade corporate philosophy of “Professional, Innovative, Collaborative.” As an anchor bolt system for geotechnical engineering innovator, the company holds ISO 9001:2015 certification and complies with the European EN 14490 standard for hollow bar anchor systems. Its products carry CE marking, assuring project stakeholders of the highest quality control. The company operates a network of strategic warehouses in Europe and North America, offering SDA bolt factory direct supply with lead times as short as four weeks for custom sizes. This responsiveness is crucial for projects facing sudden ground condition changes or schedule accelerations.
SupAnchor’s collaborative approach was evident throughout the tunnel project. Engineers from SupAnchor provided on-site training to the contractor’s crews, optimized the anchor layout using finite element analysis, and conducted pull-out tests to refine the design. “We don’t just ship components; we deliver a working solution,” said a SupAnchor technical manager. This ethos has won the trust of Tier 1 contractors on iconic projects worldwide: from metro expansions in Stockholm to slope stabilization along the Pacific Coast Highway. As a ground anchor bolt factory that invests heavily in R&D, SupAnchor continually refines its hollow bar anchor geometries and steel chemistries to push the limits of what a self drilling anchor system can achieve.
Looking ahead, the industry’s focus on digitalization and green construction will favor systems like the self drilling anchor system that minimize material waste and installation energy. SupAnchor is already developing smart grout monitoring sensors and high-yield steel grades to push working loads beyond 600 kN. In an era where subsurface challenges grow more complex, the simple brilliance of drilling, grouting, and anchoring in one operation—embodied by the hollow bar anchor—promises to remain a cornerstone of geotechnical engineering. As the European tunnel nears completion, the 12,000 installed self drilling anchor bolts stand as silent sentinels, locking the ground in a balanced arch of reinforced earth. The project is on schedule, under budget on ground support, and has recorded zero lost-time injuries related to ground falls—a triple win that underscores the transformative value of the anchor bolt system for geotechnical engineering. For stakeholders across the civil engineering spectrum, the lesson is clear: when the ground says no, a self drilling anchor says yes.
