On a $2 billion high‑speed rail project cutting through the Alps, engineers confronted squeezing rock and high groundwater pressures that made conventional anchor installation nearly impossible. Collapsing boreholes threatened months of delay until the contractor switched to a radically different approach: a single steel element that drills, grouts, and reinforces all in one pass. That element is the new SupAnchor® SupUTS self‑drilling anchor bolt, the latest in a line of high‑performance geotechnical reinforcement systems built for the most demanding infrastructure challenges.
SupAnchor, already recognized as Asia’s largest manufacturer and exporter of self drilling anchor bolts, developed the SupUTS series specifically to close the gap between standard hollow bar anchors and the soaring load requirements of modern heavy civil projects. With ultimate tensile capacities reaching 930 kN, the SupUTS turns the classic drill‑and‑grout bolt into a genuine substitute for expensive post‑tensioned cables or bundled strand anchors—while preserving the rapid, casing‑free installation that makes self drilling anchor systems so attractive.

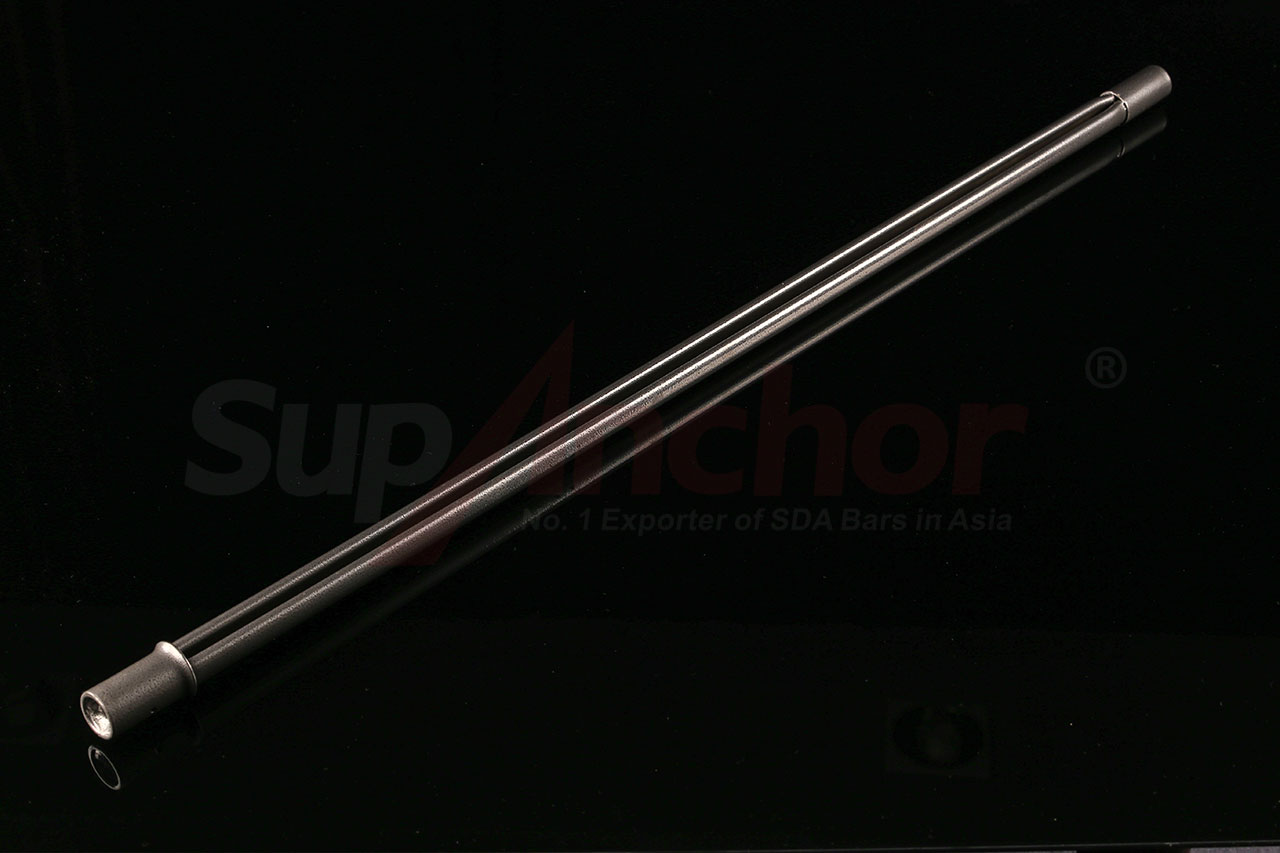

At the core of every SupUTS anchor lies a continuously threaded, ribbed hollow steel bar. During installation, the bar is rotated with a percussive or rotary‑percussive drifter, cutting through soil and weak rock with a sacrificial drill bit at its tip. Once the design depth is reached—typically 6 to 15 meters for heavy‑duty retaining walls or tunnel face supports—cement‑based grout is injected through the bar's central hole. The grout exits at the bit, fills the annular space, and permeates the surrounding ground, creating a reinforced grout body. After curing, the same hollow bar becomes the permanent load‑bearing element.
This 3‑in‑1 functionality eliminates separate casing, injection pipes, and post‑grouting operations. On a large slope stabilization job, a crew can install 30 to 50 SupUTS anchors per shift, compared to perhaps 15 with traditional methods. The continuous thread allows couplers to extend bars on the fly, meaning even deep anchors in limited headroom sites—like urban basement excavations—can be installed without specialized equipment. Because the borehole is never unsupported, the method excels in unconsolidated sands, soft clays, and fractured rock where collapsing holes would otherwise force expensive polymer‑based drilling or full‑face casing.
Equally important is the rib geometry. The bar’s ribs are angled at 45° and spaced to give a relative rib area (fR) between 0.21 and 0.33, values that maximize mechanical interlock with the grout column while keeping splitting stresses on the host ground to a minimum. Under test loads that approach the bar’s ultimate tensile strength, crack widths in the surrounding soil or rock are held below 0.1 mm, preserving the structural integrity of the anchor system over decades of service. For geotechnical engineers, these are the hallmarks of a true hollow bar anchor that functions predictably as a soil nail system or rock bolt.
The SupUTS range offers three core diameters, each engineered to a specific ultimate tensile strength target—far beyond what standard R or T thread hollow bars achieve. The table below lists the key parameters, based on minimum guaranteed values from the manufacturer. (Note: dimensions and weights are nominal; consult the factory for exact figures.)
| Model | Nom. Dia. (mm) |
Cross‑Sect. Area (mm²) |
Ultimate Load (kN) |
Yield Load (kN) |
Weight (kg/m) |
|---|---|---|---|---|---|
| SSTR32/360 | 32 | ~480 | ≥360 | ≥280 | ~3.8 |
| SSTR38/660 | 38 | ~830 | ≥660 | ≥520 | ~6.5 |
| SSTR51/930 | 51 | ~1175 | ≥930 | ≥730 | ~9.2 |
All SupUTS models share the following characteristics:
These specifications position the SupUTS as a premier ground anchor bolt factory solution. On a recent deep basement excavation in sandy soil, the SSTR38/660 anchors eliminated the need for strand tendons, cutting the anchor count by 30% while delivering a working load of 400 kN per anchor—a direct result of the high yield‑to‑ultimate ratio and reliable bond performance.
Long‑term durability of any geotechnical reinforcement system depends on resisting chemical attack. SupAnchor offers three levels of protection for the SupUTS series, aligning with international standards for aggressive environments:
Specifying the corrosion protection is straightforward: the same anchor cross‑section is used, so mechanical design is unaffected. Early contractor involvement allows SupAnchor to deliver pre‑coated bars with the appropriate level of protection, minimizing site‑applied coatings and quality risks.
Because the SupUTS self drilling anchor bolt combines high strength with installation speed, it has already found a place in a wide array of infrastructure disciplines:
Beyond technical metrics, the SupUTS series contributes to sustainability goals. By eliminating steel casing that would normally be lost or left in the hole, material consumption per anchor is cut by roughly 30–40%. The rapid installation reduces site energy use and operator exposure to dusty, high‑risk environments. For a typical 10,000‑anchor project, the switch to a self drilling anchor system can save several weeks of construction time and hundreds of truckloads of steel casing destined for recycling—or worse, landfill.
From a logistics perspective, the SupUTS bars are shipped in standard containers with the same thread protection and packaging as the entire SupAnchor product family, simplifying import processing and on‑site inventory management. Regional distribution hubs in Europe, the Middle East, and North America ensure short lead times for even the most customized orders.
With over two decades of dedicated R&D, SupAnchor has grown from a niche soil nail system manufacturer into a global partner for some of the world’s most challenging ground engineering projects. The company’s ISO‑certified factories employ robotic welding, automated threading, and in‑line tensile testing to guarantee that every SupUTS anchor meets declared strength values. Continuous investment in product innovation—driven by feedback from consulting engineers and contractors—ensures that the SupUTS series will continue to evolve, with even higher strengths and advanced corrosion alloys planned for the near future.
“We don’t just sell anchors; we deliver geotechnical confidence,” said a senior SupAnchor engineer during a recent site visit. “With SupUTS, we’re giving the industry a tool that makes the impossible affordable—whether that’s holding back a mountain or securing a skyscraper foundation in saturated soil. That’s the essence of why we exist.”
For detailed technical datasheets, load‑test reports, and pricing, contact SupAnchor’s regional support team or visit the official website. The SupUTS series is in full production and available now for orders worldwide.
