In a landmark infrastructure project spanning the rugged alpine corridors of central Europe, geotechnical engineers confronted a series of daunting challenges that threatened the viability of a critical transport link. The expansion of a national highway through steep, unstable terrain demanded an innovative ground stabilization anchor system capable of performing under variable and often adverse geological conditions. After extensive evaluation, the project consortium selected SupAnchor’s self drilling anchor system—a proven hollow bar anchor technology that integrates drilling, grouting, and tensioning into a single, efficient operation.
The construction site, nestled at an altitude of over 1,800 meters, presented a complex stratigraphy dominated by closely jointed phyllite and weathered schist, interspersed with water‑bearing shear zones. Slope gradients exceeded 45 degrees, and access for heavy machinery was severely limited by narrow switchbacks and environmental restrictions. Conventional anchored retaining structures, which require pre‑drilling, casing, and subsequent anchor insertion, proved impractical due to the risk of borehole collapse and the time‑intensive nature of sequential operations. The project required a robust, adaptable ground stabilization anchor system and a soil nail system manufacturer with a proven track record of delivering engineered solutions to difficult sites. SupAnchor, a leading ground anchor bolt factory, provided its SDA bolt factory direct supply, ensuring timely logistics and rigorous quality control from its ISO‑certified production facilities.
The accompanying image captures a typical installation sequence on the exposed mountainside. A crew of three operators, positioned on a compact crawler‑mounted drill rig, guides a 3‑metre starter rod into the fragmented bedrock. Because each self drilling anchor bolt serves simultaneously as a drill string and a permanent tension element, there is no need to extract temporary casing or to align separate tendon assemblies. The hollow core of the bolt allows high‑pressure grout to be injected through the bit during advancement, immediately filling fissures and consolidating loose material around the borehole. This single‑pass technique—often called a drill‑and‑grout bolt method—reduced the installation time per anchor to less than 25 minutes, a crucial advantage when working through short alpine weather windows.
Once the desired bond length was reached—typically 8 to 10 metres, depending on the mapped rockhead profile—the grouting pressure was increased to 2 MPa to ensure complete encapsulation. A continuous R32 left‑hand thread along the entire bar permitted on‑site coupling to extend lengths up to 15 metres for deeper instability zones. Temporary spiles and wire mesh were installed between anchor rows to provide immediate surface protection, while the permanent self drilling anchor for retaining walls transferred tension loads deep into competent bedrock.
The versatility of the self drilling bolt for civil engineering was particularly evident in the transition zones between overburden and rock. In these areas, loose colluvium would have collapsed a conventional open‑hole; however, the hollow bar anchor penetrated and grouted simultaneously, creating a micropile hollow bar anchor that functioned both as a structural column and a drainage element. This dual functionality helped mitigate pore‑water pressure build‑up, a common trigger for slope failures in the region. Over 1,200 anchors were installed along the 800‑metre‑long cut, with installation rates peaking at 40 anchors per day—a figure that would have been unattainable with traditional anchored systems.
For this project, SupAnchor supplied a customized specification of its 32 mm hollow bar anchors, selected after a detailed design‑build analysis. The table below summarises the primary technical properties of the anchor bolt system for geotechnical engineering deployed on site:
| Parameter | Value / Description |
|---|---|
| Nominal outer diameter | 32 mm |
| Inner diameter (hollow core) | 18 mm |
| Ultimate tensile strength | 660 kN (≥800 N/mm² steel grade) |
| Yield load (0.2% offset) | 520 kN |
| Corrosion protection | Hot‑dip galvanized per ISO 1461, minimum coating thickness 550 g/m² |
| Thread profile | R32 rope thread, continuous left‑hand |
| Available lengths | 2, 3, 4, 6, 9, 12, 15 m |
| Grout injection pressure (typical) | 1–2 MPa (variable by pump setting) |

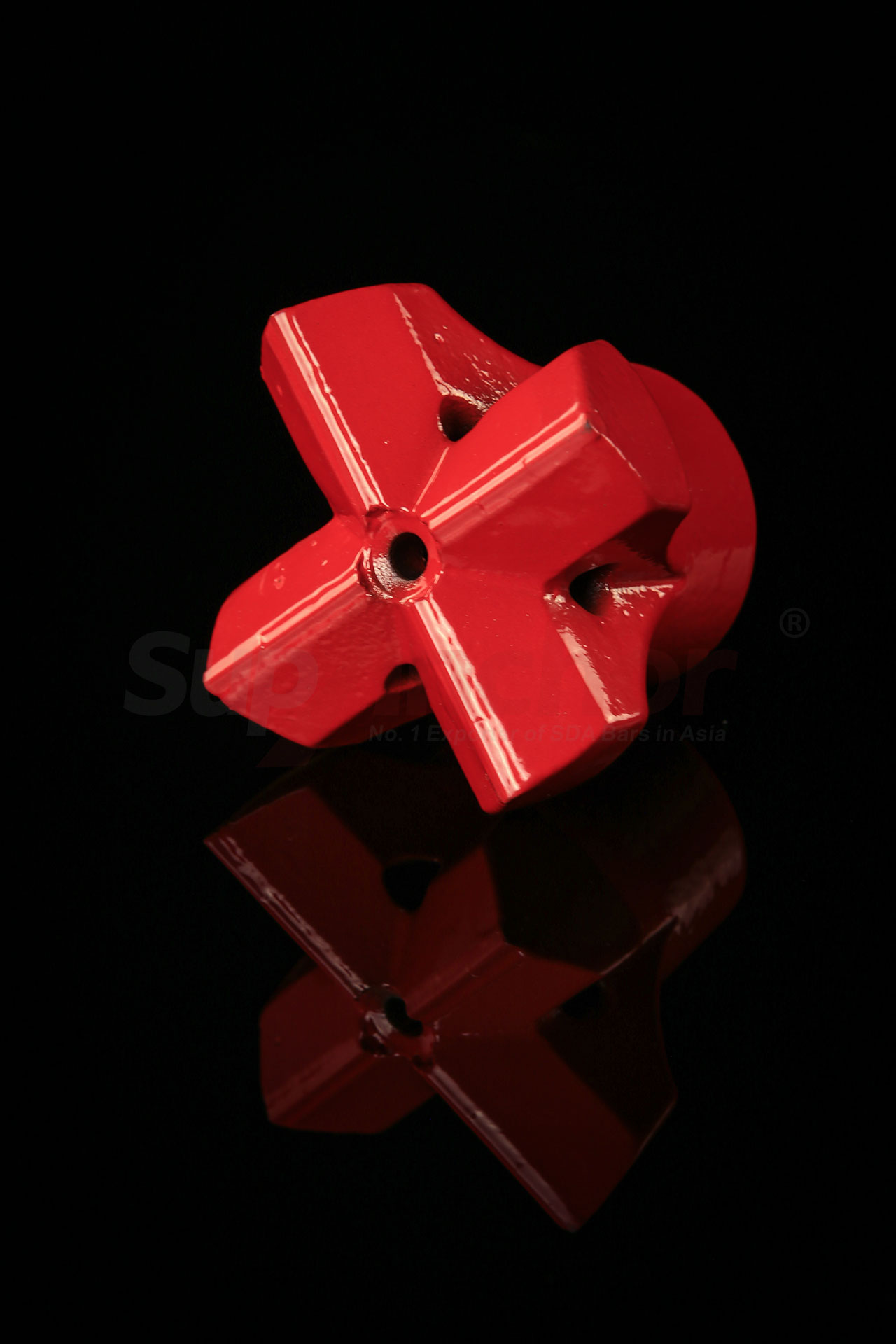

| Bit diameter | 42–51 mm (sacrificial cross‑cut or button bit) |
These rock bolt for underground mining‑grade components guaranteed a robust factor of safety against both static and pseudo‑static (seismic) loads, as required by Eurocode 7. The hot‑dip galvanizing provided a design service life exceeding 100 years in the mildly aggressive alpine environment, satisfying the owner’s sustainability and maintenance‑free targets. By adjusting the grout mix design—using a water‑cement ratio of 0.4 with a superplasticiser—the bond strength along the rock‑grout interface exceeded 2.5 MPa, confirmed by a programme of sacrificial creep and pull‑out tests conducted at the start of the works. The continuous thread profile was instrumental in maintaining full mechanical interlock even after coupling extension rods, eliminating the weak point typical of threaded‑and‑coupled systems.
The successful execution of this motorway widening scheme mirrors a wider shift in European infrastructure practice toward integrated, low‑waste construction methods. With the European Union’s TEN‑T programme allocating over €30 billion to core network corridors through 2027, owners are demanding ground engineering solutions that minimise traffic disruption and environmental footprint. Self‑drilling anchor technology, as part of the family of geotechnical reinforcement systems, aligns perfectly with these objectives by condensing multiple construction steps into one quiet, vibration‑free process. The drill‑and‑grout bolt technique reduces spoil generation—often a logistical headache in sensitive alpine parks—and eliminates the noise and fumes associated with conventional pneumatic drilling and casing installation.
The SDA bolt factory direct supply model further contributes to programme certainty. Because the bolts are manufactured and tested under one quality‑controlled roof, materials arrive on site with full traceability and pre‑assembled accessories. This contrasts sharply with typical supply chains where bars, couplers, and bearing plates are sourced from disparate vendors, risking mismatched thread tolerances or delayed deliveries. In this project, the factory‑direct approach allowed the contractor to receive weekly shipments calibrated to the evolving site plan, avoiding any stock‑out or over‑inventory costs.
Looking beyond Europe, the versatility of the anchor bolt system for geotechnical engineering is driving its adoption in mining operations in the Andes, where rock bolt for underground mining applications demand high productivity and reliable corrosion resistance in acidic water. In dense urban environments, self drilling anchor for retaining walls is gaining popularity for deep basement support adjacent to historic structures, as the hollow bar anchor obviates the need for massive piling rigs and lengthy soil improvement campaigns. Designers are increasingly specifying micropile hollow bar anchor configurations for foundation underpinning and seismically resilient bridge piers—applications where the combination of drilling, grouting, and reinforcement in one element provides a clear advantage over conventional bored piles or driven H‑piles.
“The self drilling anchor system was the right choice for this challenging site,” noted the project’s lead geotechnical engineer. “The ability to install a fully grouted anchor through running ground, with the same equipment we use for shotcrete and mesh, gave us a level of flexibility we simply don’t get with traditional stressed anchors. SupAnchor’s technical support, from initial site trials to final proof testing, was exceptional.”
SupAnchor operates from a network of ISO 9001:2015‑certified manufacturing plants equipped with robotic welding, automated threading, and in‑line ultrasonic testing. Every hollow bar anchor undergoes a battery of tests—tensile, elongation, flare, and bending—before receiving its CE marking and batch-specific mill certificate. The company maintains a permanent stock of over 200,000 linear metres of self drilling anchor bolt in standard diameters, allowing expedited dispatches to projects in over 60 countries. Its R&D team continuously refines alloy compositions to boost fatigue resistance and hydrogen embrittlement thresholds, while also pioneering new duplex coating systems for marine environments.
Innovation is central to SupAnchor’s ethos. The current design of the self drilling bolt for civil engineering has evolved through more than two decades of iterative improvement, resulting in a product that offers higher load‑bearing capacity and easier handling than its predecessors. Recent developments include a patent‑pending “one‑step” bit that eliminates the need for a separate drill bit coupling, further simplifying on‑site assembly. The company’s collaborative approach—working alongside consultants and contractors from the early planning phase—has been a cornerstone of its brand. For this alpine project, SupAnchor’s engineers participated in weekly design review meetings, adapted batching schedules to the unpredictable weather, and even developed a modified bearing plate geometry to better accommodate the steep slope angle.
Together, these attributes embody the brand values that SupAnchor champions: Professional, Innovative, Collaborative. Projects that demand a reliable soil nail system manufacturer or a high‑capacity ground anchor bolt factory turn to SupAnchor for its proven products and partnership model. The company’s portfolio includes landmark assignments such as the São Paulo Metro extension, the Dali‑Ruili Railway in Yunnan, and the Panama Canal’s east‑west causeway strengthening. Each project, irrespective of scale, benefits from the same rigorous engineering and service ethos that defined the European alpine success.
In conclusion, the deployment of SupAnchor’s self drilling anchor system on this alpine motorway project illustrates the transformative potential of modern geotechnical reinforcement systems. By enabling safe, rapid construction in one of Europe’s most demanding geological settings, the technology not only delivered an on‑time and on‑budget solution but also set a benchmark for future infrastructure endeavours. As the global community continues to invest in resilient transportation networks, products like the hollow bar anchor and its associated drill‑and‑grout bolt methodology will remain at the heart of sustainable civil engineering. For asset owners and contractors seeking a versatile ground stabilization anchor system, SupAnchor’s factory‑direct supply model and unwavering commitment to quality offer a dependable path from design to completion.
