Green Valley, Colorado — The rugged terrain of the Rocky Mountains has long posed formidable challenges to civil engineering. On a recent highway expansion project along State Route 72, steep cut slopes and highly fractured schist required a ground stabilization solution that could not be compromised. After evaluating multiple alternatives, the project team turned to SupAnchor’s advanced geotechnical reinforcement systems and specified a robust self drilling anchor system to ensure long-term slope stability. The decision was driven by the system’s ability to drill, grout, and reinforce in a single pass—eliminating the need for temporary casing and reducing installation risk in unpredictable ground.
The self drilling anchor system, also known as a hollow bar anchor or drill-and-grout bolt, is engineered for exactly these conditions. On the Green Valley site, crews encountered zones of weathered clay-filled joints and occasional water inflow, making traditional rock bolting methods unfeasible. The anchor bolt system for geotechnical engineering provided by SupAnchor allowed the anchors to be advanced through collapsing ground while simultaneously injecting high-strength grout, effectively stabilizing the borehole wall and creating a reinforced composite zone. This process not only enhanced bond strength but also dramatically reduced construction noise and vibration—a critical factor near a residential area adjacent to the highway alignment.
“We needed a solution that could handle the variability without slowing down production,” said Mark Laramie, the lead geotechnical consultant. “SupAnchor’s self drilling anchor bolt technology proved to be exactly that. The ability to customize anchor lengths and diameters on the fly meant we could adapt to changing rock mass conditions without switching equipment.”
A closer look at the self drilling anchor bolt specifications reveals why it excelled in this application. The anchors were supplied in diameters of 25 mm, 32 mm, and 40 mm, with lengths up to 12 meters using thread-coupled extensions. The continuous rope thread profile ensured uniform stress distribution and allowed for easy connection of couplers and plates, while the sacrificial carbide drill bit eliminated the need for retrieval after drilling—an important advantage when working in loose material where re-entering the hole could cause collapse. As a self drilling anchor for retaining walls, the system allowed for tie-back lengths to be adjusted in the field.
Key technical parameters of the deployed self drilling bolt for civil engineering are summarized in the following table:
| Parameter | Specification | On-Site Benefit |
|---|---|---|
| Tensile Strength (Ultimate) | 660–800 MPa | High load capacity for deep seated slope failures |
| Yield Strength | ≥500 MPa | Ductility that allows stress redistribution |
| Diameter Options | 25, 32, 40 mm (OD) | Selectable based on required tensile capacity and drillability |
| Length | 3 m to 12 m (extendable with couplers) | Ability to anchor beyond the weathered zone into competent rock |
| Corrosion Protection | Hot-dip galvanized (ISO 1461, coating ≥85 µm) | Design life exceeding 50 years in aggressive environments |
| Thread Type | Left-hand rope thread (R-type) | Strong mechanical interlock; resists rotational loosening |
| Drill Bit Configuration | Carbide cross-cut bits, sacrificial | Efficient penetration in abrasive schist; the bit remains in the hole, enhancing bond area |

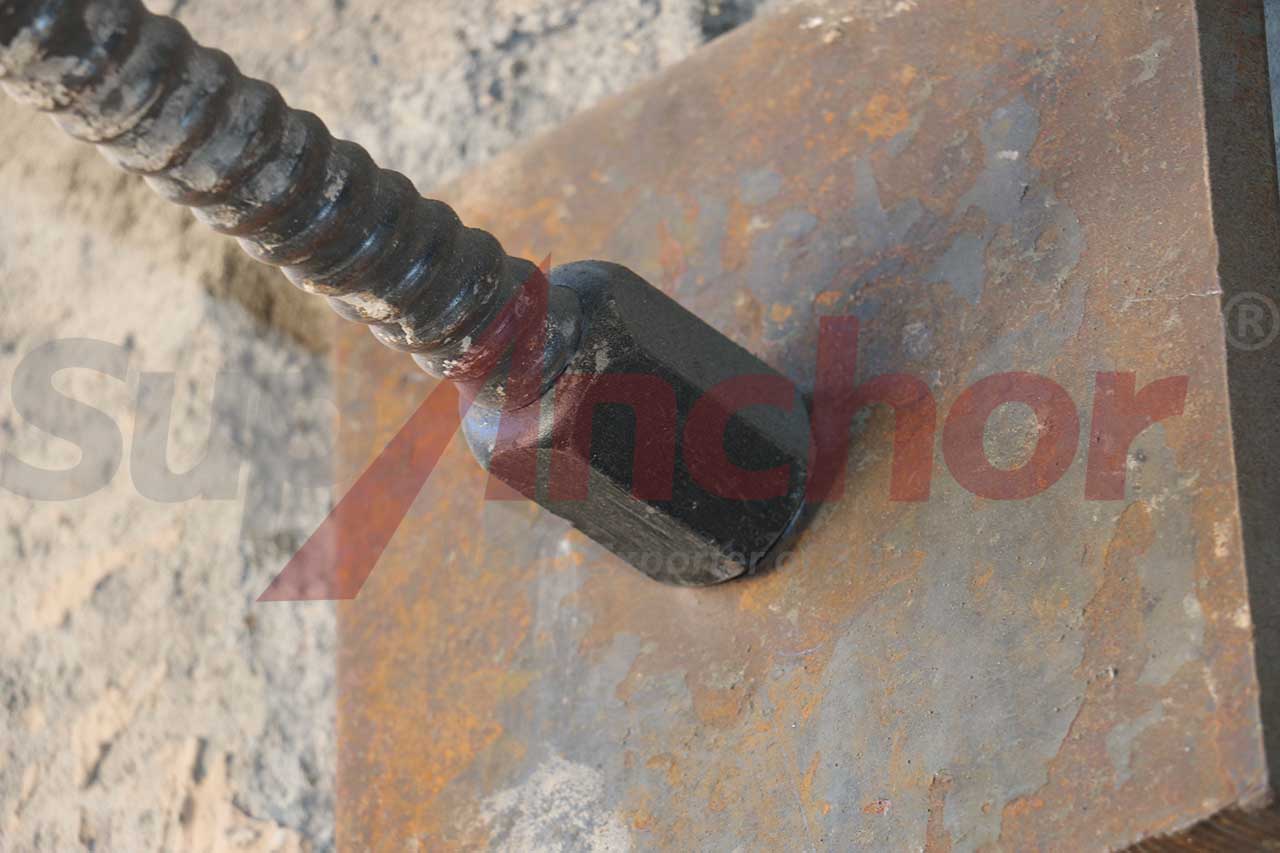

The self drilling anchor bolt’s ability to perform as both a rock bolt and a soil nail made it particularly versatile on this project, where the transition from soil to weathered rock occurred unpredictably. Installation of each self drilling anchor for retaining walls was carried out using a track-mounted hydraulic drill, as captured in the site photograph. The anchor was rotated and hammered into the slope while grout was pumped through the hollow core. This simultaneous drill-and-grout bolt action created an instantaneous bond, preventing hole collapse and minimizing grout loss, and formed a durable ground stabilization anchor system that works in harmony with the natural rock. As a result, anchor pull-out tests consistently exceeded the design load, providing confidence in the structural integrity of the retaining system.
“The drill-and-grout bolt method is a game-changer for fractured ground,” noted Tomás Herrera, the project superintendent. “With conventional methods, we’d have spent hours fighting collapsed holes. Here, we were producing anchors at a rate of 15–20 per shift, and the immediate reinforcement meant we could continue excavation without waiting.”
The success of the Green Valley project mirrors a global trend: infrastructure agencies are increasingly adopting geotechnical reinforcement systems that offer rapid installation, minimal environmental disturbance, and high reliability. These geotechnical reinforcement systems are becoming essential tools in the civil engineer’s kit. From motorway widening in the United Kingdom to seismic slope stabilization in Japan, the self drilling anchor system is becoming a standard solution. The system’s inherent flexibility allows it to be used as a tensioned tie-back, a fully grouted rock bolt, or a micropile hollow bar anchor for foundation support, making it ideal for complex, multi-phase projects. The self drilling bolt for civil engineering applications continues to gain regulatory acceptance worldwide.
In the mining sector, the demand for rock bolts for underground mining continues to rise as operations go deeper and encounter higher stress. SupAnchor’s rock bolt for underground mining product line shares the same thread technology and corrosion protection, ensuring seamless integration for contractors working across both civil and mining applications. The micropile hollow bar anchor variant, in particular, has gained traction for underpinning bridges and historic structures in urban settings, where low-vibration installation and small equipment footprint are critical.
The broader adoption of ground stabilization anchor systems is also driven by sustainability goals. By allowing steeper cut slopes and reducing the volume of excavation and concrete needed, the method lowers the carbon footprint of projects. Furthermore, the long service life of galvanized anchors reduces lifecycle costs, a key consideration for publicly funded transportation networks. As Dr. Elena Marchetti, a geotechnical researcher at Politecnico di Milano, recently stated, “The evolution of self drilling bolt for civil engineering use has bridged the gap between temporary reinforcement and permanent structural support. We are now seeing these systems specified not just for slope repair but as primary elements in new tunnel portal design.”
Behind the successful deployment of the hollow bar anchor technology is SupAnchor, a company that has grown from a specialized soil nail system manufacturer into a global leader in anchor bolt systems for geotechnical engineering. As a soil nail system manufacturer, SupAnchor provides a full catalogue of soil nails, plates, and nuts for both temporary and permanent applications. With ISO 9001 and ISO 14001 certifications, the company’s ground anchor bolt factory operates with rigorous quality control, ensuring that every self drilling anchor bolt meets or exceeds international standards. The ground anchor bolt factory’s output consistently meets international demand. SupAnchor’s SDA bolt factory direct supply model shortens the procurement chain, allowing contractors to obtain high-quality products at competitive prices without intermediary markups. The SDA bolt factory direct supply chain is streamlined for efficiency. The company’s global network of distribution centers ensures rapid delivery, as evidenced by the Colorado project where specialized self drilling anchor for retaining walls components were delivered within a two-week window.
“We don’t just sell anchors; we provide a geotechnical reinforcement partnership,” explained Sarah Lin, SupAnchor’s international sales director. “From the initial design phase, our engineers worked with the project team to optimize the anchor layout, select the right corrosion protection, and even arrange on-site training for the drilling crews. That’s the value of dealing with a ground anchor bolt factory that understands the science behind its products.” In the mining sector, the rock bolt for underground mining is critical for safety. The micropile hollow bar anchor is available in various diameters for underpinning work.

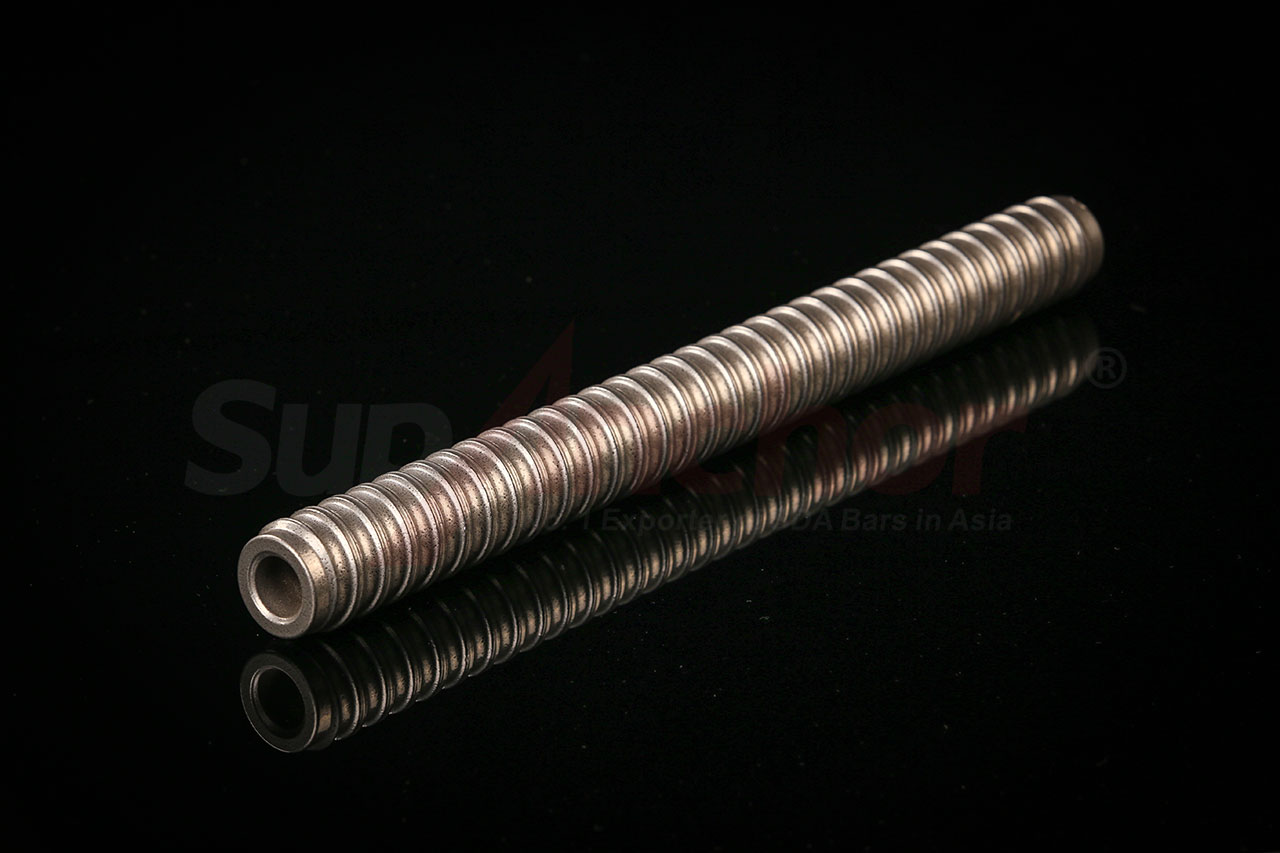

The photo below shows one of SupAnchor’s high-strength hollow bar anchors ready for shipment. With a manufacturing capacity of over 100,000 meters per month, SupAnchor supports large-scale projects worldwide, from the Alps to the Andes. The company’s investment in R&D continues to push the boundaries of ground stabilization anchor systems, with upcoming innovations in smart anchors that integrate fiber optic sensors for real-time load monitoring. Such advances promise to make anchor bolt systems for geotechnical engineering even more reliable and data-driven.
As the construction industry faces ever more ambitious projects in challenging ground conditions, the demand for versatile, cost-effective reinforcement solutions will only intensify. The Green Valley highway slope stabilization stands as a testament to what can be achieved when advanced manufacturing meets field-proven engineering. With its comprehensive range of ground reinforcement technologies and a commitment to innovation, SupAnchor is well positioned to support the next generation of resilient infrastructure.
