In the demanding world of underground construction and slope stabilization, ground support systems must deliver reliability, speed, and adaptability. SupAnchor, a leading geotechnical reinforcement system manufacturer, has introduced its latest innovation—the SupFRP GFRP SDA Bolt—a self-drilling anchor bolt that streamlines the installation process while offering exceptional mechanical performance. This product is already making waves on major infrastructure projects across Europe and North America, where soft rock and clay soil conditions often challenge conventional anchoring methods.
With infrastructure spending on the rise globally, the need for reliable ground anchor systems that can cope with unpredictable subsurface conditions has never been greater. The SupAnchor self drilling anchor system bridges the gap between rapid installation and long-term performance, a combination that project owners and contractors increasingly demand. Its glass-fiber-reinforced polymer composition provides not only high strength but also immunity to corrosion, a critical factor in tunnels and slopes exposed to moisture and chemical attack.
On a recent high-speed rail tunnel project in the Alps, engineers faced severe face stability issues in weathered schist and marl. Traditional drilling and anchoring required separate steps, causing delays and increasing safety risks. The SupAnchor self-drilling anchor system was deployed as a forepoling and face stabilization solution. Its integrated hollow bar anchor design allowed drilling, flushing, and grouting in a single pass, dramatically reducing installation time and improving worker safety. "The ease of handling and high torque resistance of these bars enabled us to complete the forepoling sequence 30% faster than planned," said the project's geotechnical manager.

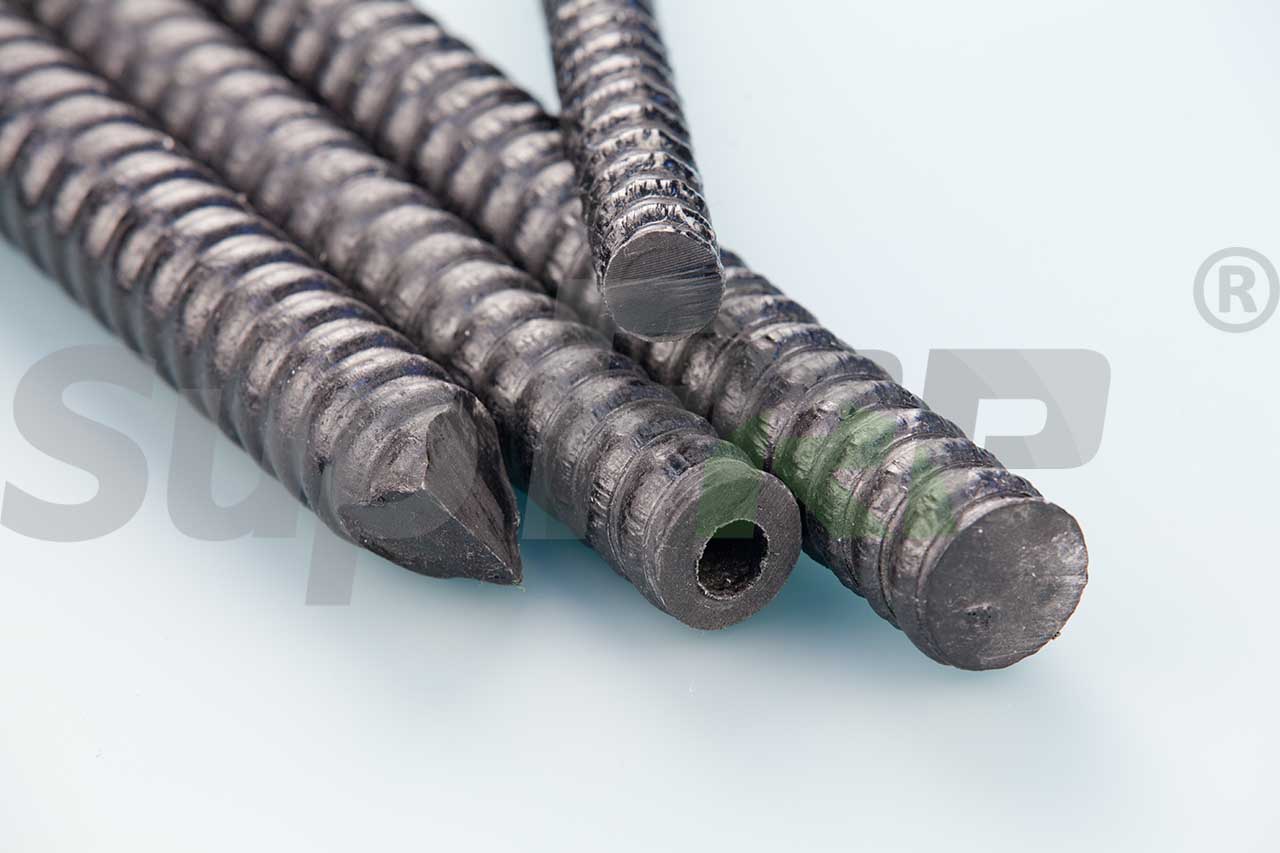

The SupFRP GFRP SDA Bolt is engineered as a permanent hollow bar anchor that excels in ground conditions where cuttability and corrosion resistance are crucial. Unlike steel, the glass-fiber-reinforced polymer (GFRP) material eliminates the risk of corrosion, making it ideal for aggressive environments or where long-term durability is non-negotiable. The bar’s central hole serves a dual purpose: it allows water flushing during drilling to remove cuttings and, subsequently, serves as the grout injection channel, creating a full bonding with the surrounding soil or rock.
The waved thread structure on the outside diameter enhances mechanical interlock with the grout, reducing the risk of debonding under cyclic loads—a common failure mode in dynamic environments such as traffic tunnels or seismic zones. Laboratory pull-out tests have consistently shown that the bond strength exceeds design expectations, providing a high factor of safety for permanent installations.
Key technical parameters for the available sizes are summarized below, showcasing the balance between ruggedness and lightness that makes these bars easy to transport and install even in confined spaces:
| Parameter | H25S | H28S | H32S | H38S |
|---|---|---|---|---|
| Outside Diameter (mm)* | 25 | 28 | 32 | 38 |
| Internal Diameter (mm) | 12 | 14 | 15 | 20 |
| Guaranteed Tensile Load (kN) | 220 | 280 | 365 | 490 |
| Torsion Strength (Nm) | 180 | 250 | 360 | 450 |
| Weight (kg/m) | 0.63 | 0.86 | 0.99 | 1.33 |
* Including waved thread structure; all threads comply with ISO standards R25, R28, R32, and R38. Standard lengths available from 2 meters up to 11 meters in 1-meter increments.
These specifications underpin the system’s robust performance. The guaranteed tensile loads, ranging from 220 kN for the H25S up to 490 kN for the H38S, combined with torsion strengths up to 450 Nm, mean the bolts can withstand the high installation torques and long-term loads typical in deep excavations or high-stress tunneling. The lightweight design—as low as 0.63 kg/m—further simplifies handling and reduces fatigue for installation crews. Moreover, the GFRP material exhibits an ultimate strain of 2.0%, offering a degree of ductility that is critical in squeezing ground conditions where rigid supports might fail prematurely.

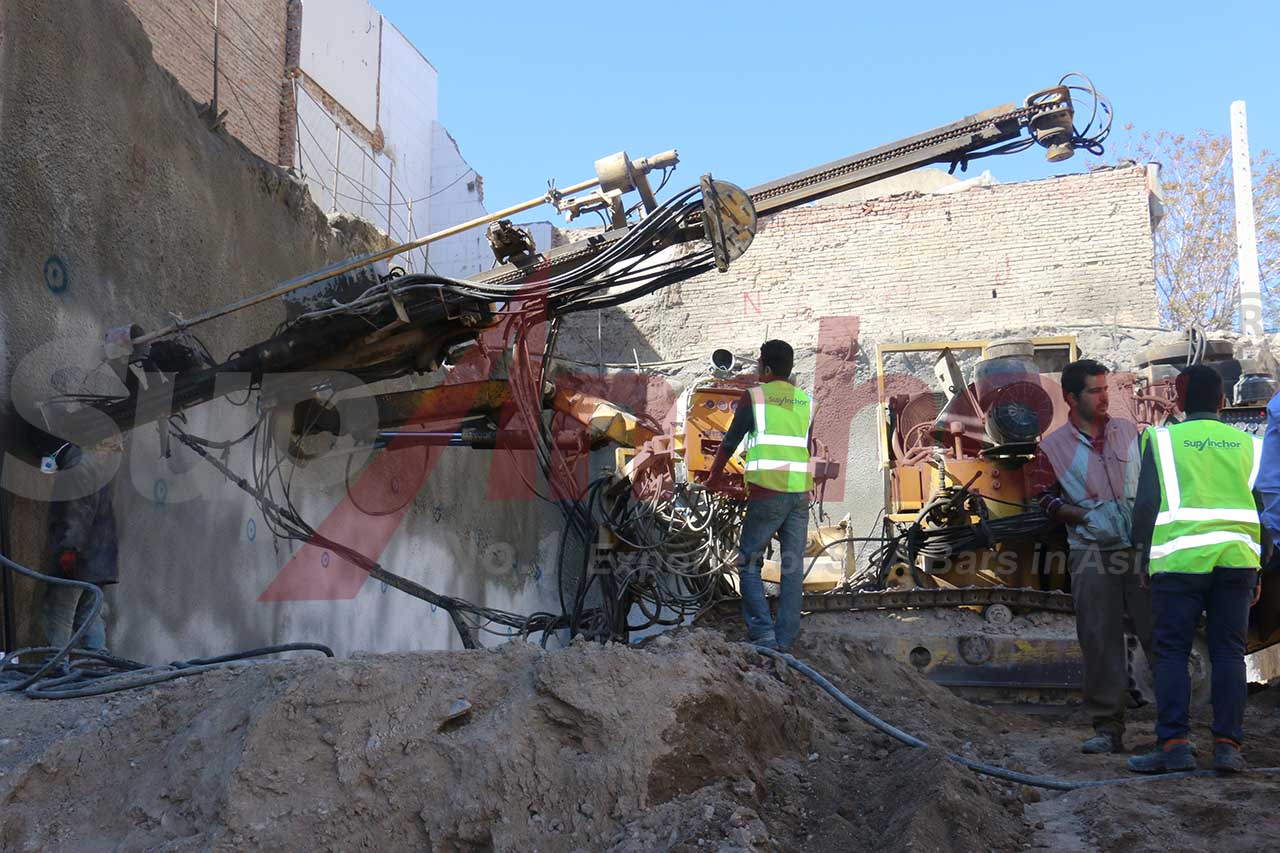

The self-drilling anchor bolt is not a one-trick pony; its design caters to a wide array of geotechnical challenges. In tunneling, it is employed for face stabilization, forepoling, and as roof and wall bolts. The ability to drill through clay, silt, and weathered rock without requiring a casing makes it especially valuable in soil nail systems for slope reinforcement. On a coastal highway widening project in California, the H32S variant was used as a permanent soil nail system to reinforce a steep cut in soft sandstone. The integrated grouting ensured full bonding, preventing erosion and surface sloughing during the rainy season.
In mining, the drill-and-grout bolt serves as both temporary and permanent support. For instance, in a Canadian nickel mine, H25S bars were installed as roof bolts in a stope with active squeezing ground. The self-drilling capability eliminated the need for separate drilling and grouting equipment, and the GFRP cuttability allowed safe extraction during subsequent mining phases without damaging machinery. "The black round hollow bar is easy to cut, and we didn't have to worry about sparks or damaged picks," noted a site supervisor from a European mining operation. This feature is particularly valuable when drifting or enlarging tunnels, as it protects cutter heads and reduces maintenance downtime.
Another growing application is in urban infrastructure rehabilitation. Aging retaining walls and bridge abutments often require soil nailing to improve stability, but access is frequently limited. The lightweight, easy-handling nature of the SupFRP bars, available in lengths up to 11 meters, makes them ideal for such confined jobsites. Their corrosion-free longevity aligns with the 100-year design life increasingly specified for critical infrastructure.
As a premier soil nail system manufacturer and ground anchor bolt factory, SupAnchor has built its reputation on delivering products that push the boundaries of engineering. The development of the SupFRP GFRP SDA Bolt involved extensive research into composite materials and wave-thread technology, resulting in a hollow bar anchor that sets new benchmarks for load capacity and installation speed. All production is conducted under ISO 9001 and ISO 14001 certified management systems, with full traceability from raw material to final product.
Industry analysts note that the global ground anchor market is projected to grow at a CAGR of over 5% this decade, driven by urbanization and the need to repair aging infrastructure. Products that can reduce installation time and improve safety are well-positioned to capture this demand. "The value of a self-drilling system goes beyond the bolt itself; it’s about reducing the number of operations on site, which directly lowers risk and cost," commented a geotechnical consultant. SupAnchor’s integrated approach—from design support to on-site training—further enhances the value proposition for contractors.
Looking ahead, SupAnchor continues to invest in innovation that addresses the evolving needs of the construction industry. The new GFRP SDA Bolt is not just a product; it is a strategic tool for engineers who demand reliability without compromise. By combining drilling, grouting, and anchoring into a single, cuttable, corrosion-free unit, SupAnchor empowers project teams to overcome the toughest geological challenges—collaboratively, professionally, and innovatively.
