High in the Alpine passes of central Europe, a critical highway expansion project recently confronted some of the most challenging geological conditions imaginable. The winding mountain route, a lifeline for transalpine trade and tourism, required widening to accommodate increasing traffic volumes and modern safety standards. However, the steep slopes flanking the road comprised loose, fractured rock and unstable overburden, threatening to delay construction and jeopardize long-term slope stability. To overcome these obstacles, engineers turned to an advanced geotechnical reinforcement system: the SupAnchor self drilling anchor system. Known for its ability to combine drilling, grouting, and anchoring in a single operation, this solution proved instrumental in stabilizing the precarious slopes and ensuring the safety of the vital transportation corridor.
The project, part of a transnational highway improvement initiative funded jointly by European transport authorities, involved widening an existing two-lane road carved into steep mountain slopes. With elevations exceeding 2,000 meters, the site experienced harsh winters with heavy snowfall and seasonal freeze-thaw cycles that exacerbated rock fracturing. A detailed geotechnical investigation revealed a complex geology comprising highly fractured schist interbedded with loose colluvial deposits, a legacy of ancient glacial activity. Groundwater seepage through the rock mass further complicated stability. Conventional anchoring methods—such as pre-drilled rock bolts with separate grouting—carried high risks of borehole wall collapse, excessive water ingress, and incomplete grout encapsulation. The contractor needed a reliable, rapid, and robust ground stabilization anchor system that could perform under such demanding conditions without compromising worker safety or environmental integrity.
Enter the SupAnchor self drilling anchor bolt—a hollow bar anchor that integrates drilling, flushing, and grouting simultaneously. This drill-and-grout bolt eliminates the need for casing, drastically reduces disturbance to the surrounding ground, and creates an intimate bond with the soil or rock as the grout forces its way into cracks and fissures. The system belongs to a broader anchor bolt system for geotechnical engineering, designed for versatile applications ranging from soil nailing and rock reinforcement to micropile foundations. For this Alpine project, SupAnchor provided customized anchor lengths and a robust corrosion protection package to match the aggressive mountain environment, ensuring long-term durability.
The self drilling anchor system's design features a continuous thread along the hollow bar, which allows coupling multiple rods for deep anchor installation and ensures uniform load transfer. The drill bit, typically a tungsten carbide cross-cut or button bit, is selected based on the ground conditions. In fractured rock, a button bit provides faster penetration and reduced wear, while a cross-cut bit is suited for mixed ground. The hollow core, with a typical internal diameter of 16–20 mm for a 32 mm bar, serves as the grout pathway. During installation, high-pressure grout is injected through the bar, exiting at the bit and filling the annular space between the bar and the borehole wall. This simultaneous grouting process not only reinforces the ground but also acts as a flushing medium, efficiently removing drill cuttings.
Key technical parameters of the SupAnchor self drilling anchor system used on site are summarized below:
| Parameter | Value / Specification |
|---|---|
| Nominal Tensile Strength | ≥ 660 MPa (minimum ultimate load ≥ 200 kN for 25 mm bar) |
| Anchor Bar Diameter | 25 mm – 32 mm (selected: 32 mm for primary anchors) |
| Anchor Length | Up to 12 m (custom lengths available) |
| Corrosion Protection | Hot-dip galvanized (ISO 1461) & optional duplex coating |
| Drill Bit Type | Tungsten carbide cross-cut or button bit, suitable for fractured rock |
| Grout Injection | Simultaneous or sequential via hollow core |
The 32 mm diameter bars delivered high tensile capacity, essential for restraining the large forces exerted by the unstable slope. In pull-out tests, these self drilling anchor bolts consistently achieved bond strengths exceeding 1.5 MPa in the fractured rock mass. Hot-dip galvanizing provided long-term corrosion resistance against de-icing salts and moisture, while the optional duplex coating—a fusion-bonded epoxy over galvanizing—offered an additional barrier for extreme environments. The ability to inject grout through the bar's hollow core as the drill advanced created a continuous bond zone, even in fractured ground where traditional casings would have been problematic. This self drilling bolt for civil engineering applications enabled the crews to install anchors up to 12 meters deep in a single pass, dramatically reducing installation time compared to conventional methods by eliminating separate drilling and grouting stages.

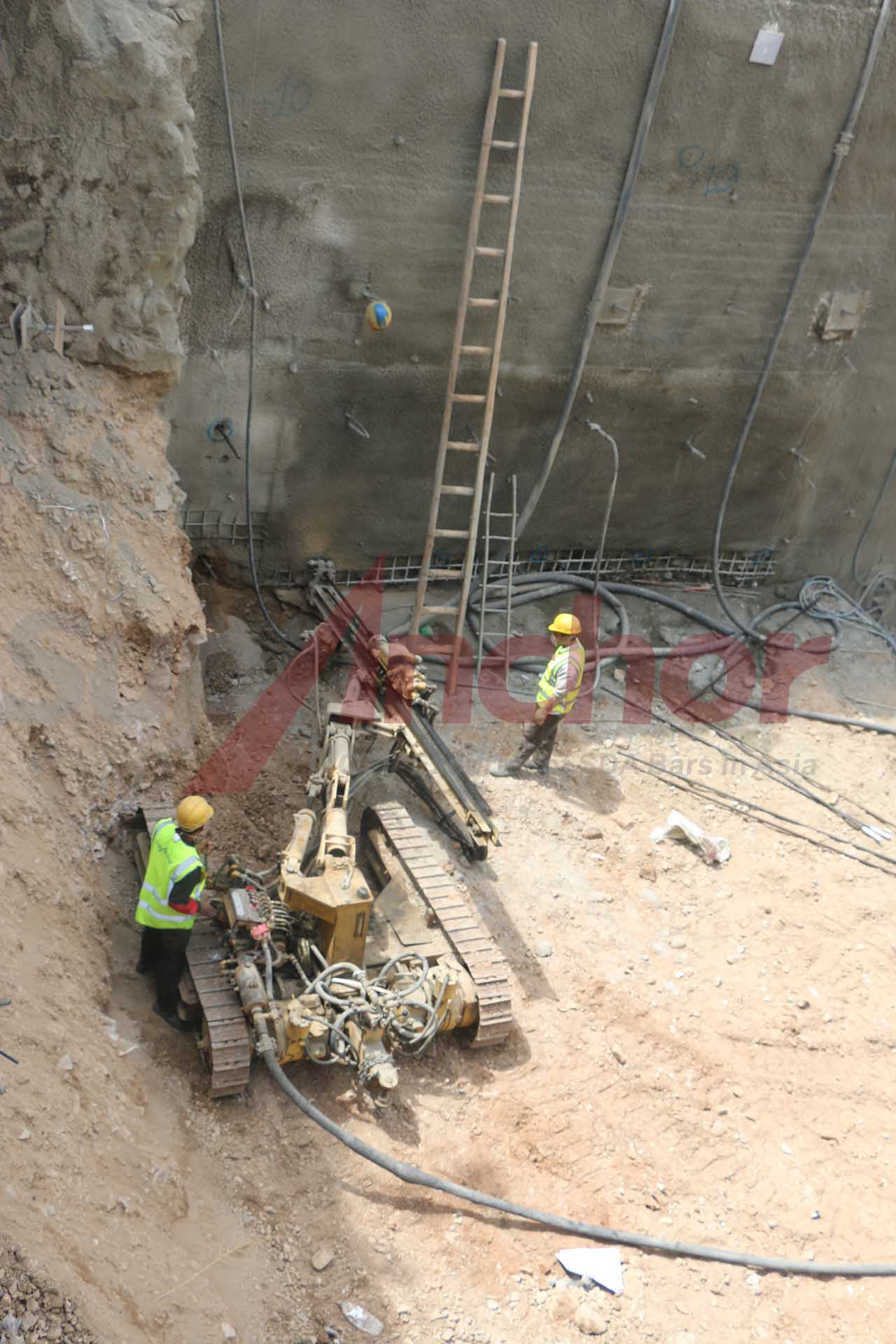

Construction crews mobilized SupAnchor's self drilling anchor system on the steep slope, as captured in the accompanying photo. The operation employed track-mounted drill rigs equipped with high-torque rotation heads and dedicated grout pumps. Each rig was positioned on a bench cut into the slope, with safety harnesses and fall protection measures in place. A self drilling anchor bolt was coupled directly to the drill string, and drilling commenced without pre-coring. As the hollow bar anchor rotated and penetrated the fractured rock, grout was pumped through the bar at pressures up to 30 bar, flushing out cuttings and immediately filling any voids. This 'drill-and-grout' technique prevented borehole collapse and ensured full encapsulation of the anchor within the ground. Special attention was paid to grout mix design; a high-fluidity, rapid-strength-gain cementitious grout was selected to allow rapid installation of subsequent anchors without waiting for full cure. The result was a highly efficient ground stabilization anchor system that could be installed at rates exceeding 50 linear meters per day per rig, even in the most fractured zones. Throughout the installation, random pull-out tests and torque readings confirmed that the anchors met the specified design loads, providing confidence in the long-term stability of the reinforced slope. This quality assurance protocol, combined with real-time monitoring of drill parameters, allowed the engineering team to adapt the anchor layout dynamically, ensuring optimal reinforcement density where ground conditions were most critical.
The drill-and-grout bolt system's efficiency was evident in the speed of installation and minimal disruption to the surrounding environment. Vibration and noise levels were significantly lower than those of percussive drilling methods, an important consideration given the proximity of sensitive alpine ecosystems. As a leading soil nail system manufacturer and ground anchor bolt factory, SupAnchor delivers factory-direct supply (SDA bolt factory direct supply), ensuring consistent quality and traceability. The bolts arrived on-site ready for immediate use, with all necessary accessories including hard-faced tungsten carbide drill bits, high-strength couplers, and load-distributing face plates. This streamlined logistics and reduced material handling time, a critical advantage on a remote mountain site with limited access.
The Alpine slope stabilization project exemplifies the growing global demand for reliable anchor bolt system for geotechnical engineering. Infrastructure networks in mountainous regions worldwide—from the Andes to the Himalayas—face similar geohazards, often exacerbated by extreme weather events linked to climate change. The self drilling anchor for retaining walls, rock bolt for underground mining, and micropile hollow bar anchor solutions developed by manufacturers like SupAnchor are becoming standard for such critical works. These systems enable safer construction in difficult access and environmentally sensitive areas, minimizing the ecological footprint while maximizing structural integrity. Moreover, the ability to install without casing in unstable ground reduces the need for large temporary works, cutting project costs and durations.
Beyond highway slopes, the same self drilling anchor technology is extensively used in tunneling, underground mining, and deep excavation support. The ability to function as a soil nail, a rock bolt, or a micropile makes the hollow bar anchor a versatile tool in the geotechnical engineer's arsenal. For example, in underground mining, rock bolts for ground support must withstand high dynamic loads and exposure to corrosive groundwater; SupAnchor's high-strength steel grades and ductile behavior meet these rigorous demands, as evidenced by their widespread adoption in Australian and Scandinavian mines. Similarly, as a micropile hollow bar anchor, the system provides foundation reinforcement in confined urban sites, where low-headroom installation and minimal vibration are paramount. The self drilling bolt for civil engineering has revolutionized slope stabilization, offering a one-pass solution that cuts project timelines by up to 40% compared to traditional methods. The drill-and-grout bolt principle also finds application in micropile construction and underpinning, further demonstrating its versatility. The global trend toward resilient infrastructure necessitates integrated geotechnical reinforcement systems that offer speed, safety, and durability—qualities inherent in SupAnchor's self drilling anchor system.
Behind the success of this project is SupAnchor's unwavering commitment to quality and innovation. The company holds ISO 9001, ISO 14001, and ISO 45001 certifications, reflecting its dedication to management excellence, environmental stewardship, and occupational health. Its products undergo rigorous testing—from chemical analysis of raw steel to full-scale tensile and fatigue tests—to ensure compliance with international standards such as EN 14490 and ASTM A615. Through continuous R&D, SupAnchor has evolved its self drilling anchor into a sophisticated geotechnical reinforcement system that addresses the most complex slope stabilization challenges. Renowned as a global soil nail system manufacturer and ground anchor bolt factory, SupAnchor's integrated approach ensures that every product meets the unique demands of each project. The same high-strength materials used in the Alpine project are also employed in SupAnchor's rock bolt for underground mining applications, which are certified to relevant mining standards. The micropile hollow bar anchor configuration is particularly popular for foundation underpinning, while the self drilling anchor for retaining walls is widely specified for urban excavations. SupAnchor's anchor bolt system for geotechnical engineering embodies this commitment, delivering unmatched performance in the field.

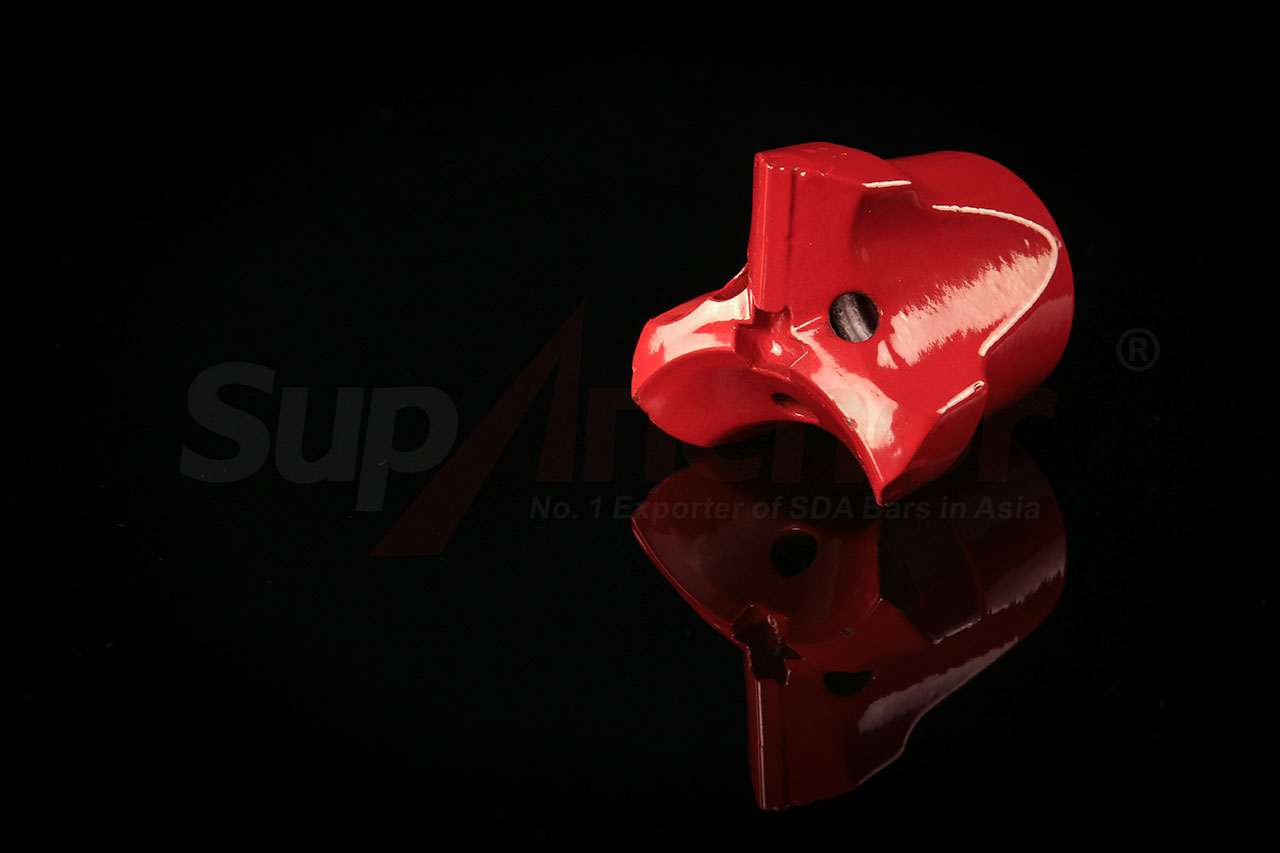

With a global footprint spanning more than 30 countries, SupAnchor has established itself as a trusted SDA bolt factory direct supply partner for contractors and engineering firms. The company's collaborative approach involves working closely with clients to customize anchor solutions for specific site conditions, from adapting corrosion protection to designing specialized drill bits. This customer-centric philosophy, combined with a robust supply chain and technical support, has earned SupAnchor a reputation for reliability and innovation. As infrastructure projects become more ambitious and geological challenges more daunting, SupAnchor remains dedicated to advancing geotechnical engineering, one self drilling anchor bolt at a time. The image below illustrates the precision-engineered features of a typical SupAnchor hollow bar, underscoring the quality that defines the brand.
As infrastructure continues to expand into challenging terrain, the role of advanced ground stabilization anchor systems will only grow. From motorway widening in the Alps to metro tunnels in dense urban centers, the demand for integrated, efficient anchoring solutions continues to rise, and SupAnchor is at the forefront of meeting this demand. SupAnchor's self drilling anchor system offers a proven, cost-effective method to conquer geotechnical hurdles, ensuring that vital transportation links remain safe and operational for decades. With a strong focus on research and development, the company is poised to meet future challenges, delivering innovative products that redefine what is possible in geotechnical engineering.
