Geneva, Switzerland – In the heart of the Alps, a landmark urban tunnel project is redefining geotechnical engineering standards, thanks in large part to the deployment of a robust self drilling anchor system. The ambitious undertaking, aimed at alleviating chronic traffic congestion and enhancing regional connectivity, faced a formidable obstacle: notoriously unstable ground conditions comprising fractured rock, loose overburden, and high groundwater pressure. Engineers on the project turned to a proven solution supplied by SupAnchor, a globally recognized ground anchor bolt factory and soil nail system manufacturer, whose self-drilling anchor bolts have become synonymous with reliability in difficult terrain.
Spanning over 3.2 kilometers with twin bores traversing mixed-face geology, the tunnel is a critical component of the European Union’s Trans-European Transport Network (TEN-T). Early geotechnical site investigations revealed that conventional drilling and grouting methods would be both time-consuming and risky, with the potential for borehole collapse and inadequate bond strength. The project owner and consulting consortium therefore specified a geotechnical reinforcement system capable of delivering immediate ground support while minimizing disturbance to the surrounding environment. SupAnchor’s hollow bar anchor technology, also known as a drill-and-grout bolt, was selected after rigorous field trials demonstrated its superior performance and cost-efficiency.
The tunnel alignment passes through a geological mélange of weathered schist, block-in-matrix rock, and water-bearing fault zones. Traditional anchoring approaches, where a borehole is first drilled, cased, and then filled with grout before inserting a tendon, would have required extensive overburden drilling and multiple passes, increasing both the schedule and the risk of collapse. The self drilling anchor system eliminates these steps by combining drilling, grouting, and anchoring into a single operation. This not only accelerates the construction timeline but also ensures continuous grout injection under pressure, filling fissures and improving the overall rock mass integrity.
Because the tunnel is located beneath densely populated residential and commercial areas, settlement control was a paramount concern. Any ground movement could damage existing structures, trigger utility disruptions, or compromise safety. The design called for a comprehensive ground stabilization anchor system, incorporating a dense pattern of radial forepoling umbrellas, face stability spiles, and systematic rock bolts along the entire excavation profile. SupAnchor’s engineers worked closely with the contractor to tailor the self drilling anchor for retaining walls and portal structures, ensuring that the system could withstand both static and dynamic loads during the construction phase and over the 100-year design life of the tunnel.

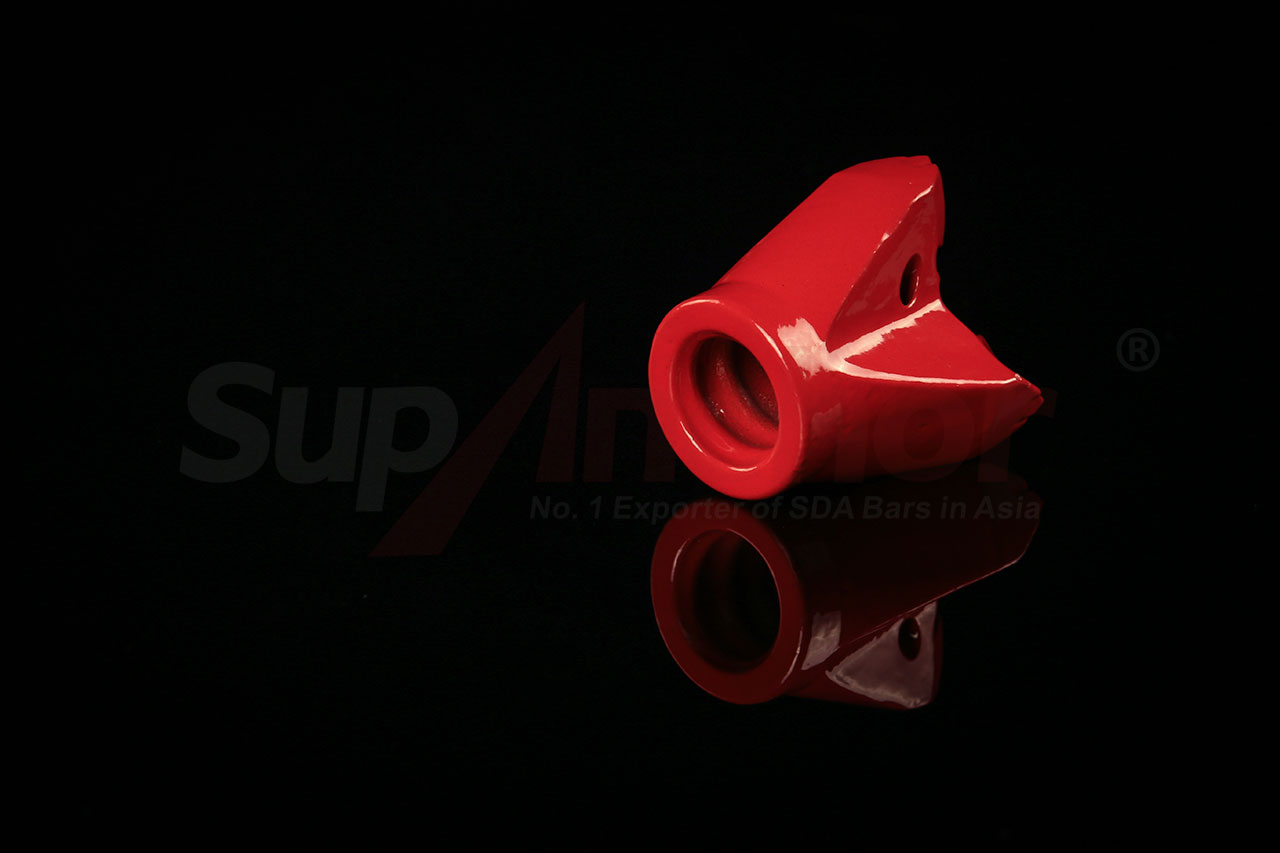

The self drilling anchor bolt offers several distinct advantages in this type of environment. First, the drill bit is directly attached to the hollow bar anchor, so advancement and grouting happen simultaneously. This results in a tight grout-to-ground interface with zero casing-related annular gaps. Second, the continuous thread along the entire bar length provides multiple anchoring points and permits post-grouting (tube-à-manchette) through the hollow core, further enhancing bond strength. Third, the system is fully instant torque-driven, allowing the hollow bar to be rotated and penetrated even through boulder-rich strata without buckling, thanks to its high-yield steel construction.
For the Geneva tunnel, the self drilling bolt for civil engineering applications offered additional benefits. Because the urban site was constrained by noise and vibration ordinances, the low-vibration drilling method used with SupAnchor bars proved essential. Contractors were able to operate in shifts with minimal nuisance to residents, while the integration of automated surveying equipment ensured precise placement according to the 3D finite-element design model. This level of precision is critical when a micropile hollow bar anchor is used as a structural element for umbrella arch support, where concentricity and alignment directly affect load transfer.

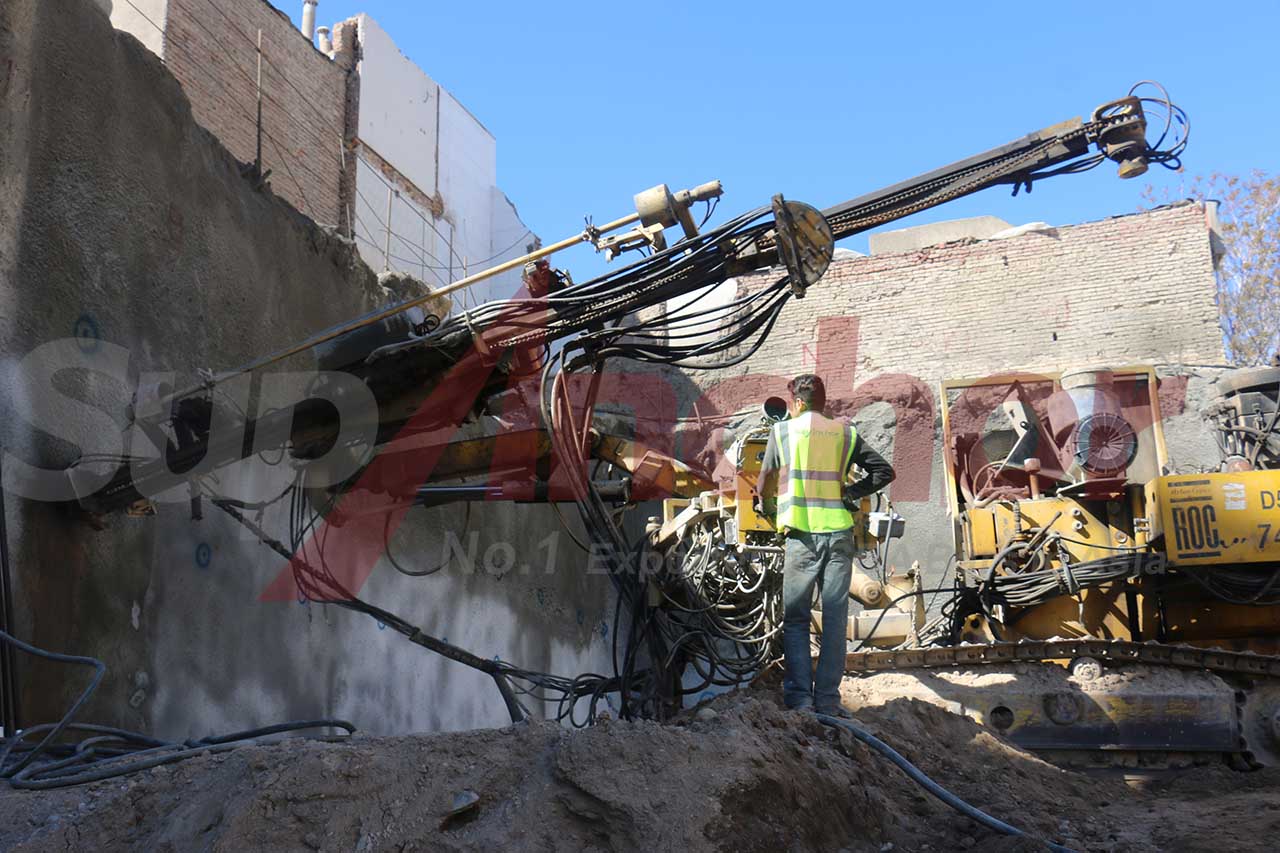

Images captured at the face of the tunnel show teams installing a pattern of approximately 60 self-drilling anchors per round, each measuring up to 12 meters in length. The forepoling canopy, installed on an optimized drill jumbo, creates a temporary protective arch that allows safe excavation of the next 1.0–1.5 meters. As the face advances, the hollow bars work as both a ground reinforcement system and a drainage conduit, relieving pore pressure and preventing water-induced face sloughing.
The following table summarizes the key properties of the SupAnchor self-drilling anchor system deployed on this project:
| Parameter | Specification |
|---|---|
| Outer diameter | 32 mm to 76 mm (project selected 40 mm for umbrella arches) |
| Hollow core diameter | 14 mm to 45 mm (allows high-flow grout injection) |
| Tensile yield strength | ≥ 500 MPa (depending on steel grade) |
| Ultimate tensile capacity | 190 kN to 1160 kN (based on diameter and thread profile) |
| Corrosion protection | Double protection: inner hot-dip galvanizing (≥ 70 µm) + outer epoxy coating (≥ 200 µm), tested to ISO 12944 C5-M |
| Grout flow rate | Up to 40 liters/min at 10 bar, enabling full encapsulation in fractured ground |
| Coupler strength | Exceeds bar yield strength; designed with oversize thread to resist bending during rotation |
These values enabled the design team to optimize safety factors back-calculated from the Q-system and RMR rock mass classifications. The high tensile capacity of the self drilling anchor system meant that fewer bars were needed per segment compared to conventional alternatives, reducing material handling time and overall cost. The double corrosion protection was especially critical given the aggressive chemical composition of the Alpine groundwater, which contains elevated sulfates and chlorides that can rapidly degrade unprotected steel. By employing this anchor bolt system for geotechnical engineering, the project ensures long-term durability without the need for additional sleeving or field-applied coatings, which are prone to inconsistencies.
The success of the Geneva tunnel project resonates far beyond Switzerland. Across Europe, aging infrastructure and the push toward sustainable mobility are driving an unprecedented wave of tunneling and slope stabilization works. Governments in Italy, Germany, and Scandinavia are investing billions into high-speed rail corridors, hydropower caverns, and urban underground logistics networks—all of which demand reliable ground stabilization anchor systems that can perform in the most challenging conditions. Similarly, in the Americas, major cities are expanding their subway and sewer systems, often requiring construction directly beneath active urban landscapes, where a self drilling anchor for retaining walls becomes indispensable for secant pile walls and shaft reinforcement.
Geotechnical consultants and contractors increasingly favor the drill-and-grout bolt approach because it harmonizes with observational design methods such as the New Austrian Tunneling Method (NATM) and the ADECO-RS approach. These methods rely on real-time monitoring and flexible support selection. The self drilling anchor bolt fits perfectly into this philosophy: if deformation readings exceed thresholds, additional anchors can be rapidly installed without the delay of drilling separate holes and inserting tendons. This responsiveness has been shown to reduce face collapses and improve overall safety, directly contributing to lower insurance premiums and fewer lost-time incidents—a critical metric for modern infrastructure projects.
Moreover, environmental regulations are becoming tighter, mandating minimization of disturbance to aquifers and ecosystems. The hollow bar anchor system’s ability to grout the ground in situ without removing cuttings aligns with “dry” excavation techniques that reduce water contamination and spoil disposal volumes. In the Geneva project, nearly 97% of the grout was retained within the tunnel envelope, with only a minimal amount of flush water requiring treatment, setting a new benchmark for eco-friendly construction.
With decades of specialized experience, SupAnchor has evolved into a premier SDA bolt factory direct supply, offering a comprehensive range of self drilling anchor systems, rock bolts for underground mining, micropile hollow bar anchors, and customized accessories. The company’s state-of-the-art manufacturing facilities operate under ISO 9001, ISO 14001, and ISO 45001-certified management systems, ensuring product traceability from raw material to final assembly. Rigorous full-scale tensile testing, salt-spray corrosion evaluation, and fatigue cycling are performed on every production batch, guaranteeing consistency that engineers demand on critical projects.
SupAnchor’s in-house R&D team has pioneered numerous innovations, including high-torque couplers, sacrificial drill bits optimized for different rock types, and smart grouting adapters that enable real-time pressure monitoring. These advancements translate directly to field performance: in the Geneva tunnel, average installation time per anchor was reduced by 35% compared to conventional rock bolts, while pull-out tests consistently exceeded design requirements by a margin of 20–30%. Such results not only shorten construction schedules but also provide tangible evidence of the Professional, Innovative, and Collaborative ethos that defines the brand.
Beyond this urban tunnel, SupAnchor’s products have proven themselves on iconic infrastructure ventures worldwide—from the deep shafts of the Hong Kong-Zhuhai-Macau Bridge to the landslide stabilization works on the Trans-Canada Highway. The company’s ground anchor bolt factory supplies over 70 countries, supported by a network of technical service engineers who provide on-site training and design support. This global perspective ensures that lessons learned in one environment are rapidly transferred to others, benefiting all stakeholders.
As the industry moves toward deeper, longer, and more complex underground spaces, the demand for a geotechnical reinforcement system that combines strength, versatility, and ease of installation will only grow. The self drilling anchor system deployed in Geneva serves as a compelling case study of how modern ground support technology can meet the challenges head-on, delivering safety, sustainability, and value for money. With its unwavering commitment to quality and innovation, SupAnchor is poised to remain at the forefront of this dynamic field.
