In a region known for its unstable geology and steep terrain, a critical infrastructure project has reached a major milestone, thanks to the deployment of an advanced self drilling anchor system supplied by SupAnchor, a globally recognized leader in geotechnical engineering solutions. The project, which involves the stabilization of a high cut slope along a newly constructed highway corridor, faced significant challenges including loose overburden, fractured bedrock, high groundwater infiltration, and severely restricted access that prohibited the use of conventional anchoring methods. The successful installation of over 1,200 hollow bar anchors has not only ensured the long-term stability of the slope but also demonstrated the efficiency and reliability of modern drill-and-grout technology in demanding ground conditions.
The project site is located in a mountainous area where geological surveys revealed a complex stratigraphy of weathered shale, colluvial deposits, and intersecting joint sets. Traditional soil nailing and driven piles were ruled out due to the high risk of borehole collapse and the presence of large boulders that could deflect or damage conventional drill strings. Furthermore, the steep gradient of the slope, exceeding 45 degrees in some sections, limited the size and maneuverability of construction equipment. The project timeline was also tight, as the highway expansion was part of a larger regional transportation plan with fixed opening dates. These conditions created an urgent need for an anchoring solution that could be installed rapidly, adapt to variable ground conditions, and provide immediate load-bearing capacity without the need for temporary casing or extensive grouting stages.
The engineering team evaluated several alternatives, including driven sheet piles, soil nails with predrilled holes, and jet grouting. However, each option presented significant drawbacks: driven piles were impractical on the steep slope, predrilled holes required casing that added cost and time, and jet grouting was too slow and logistically complex. The breakthrough came when the lead geotechnical consultant recommended a self drilling anchor system that combines drilling, anchoring, and grouting in a single operation. After a rigorous technical review and a successful field trial, SupAnchor was selected as the supplier of the hollow bar anchors and associated drill bits.
The self drilling anchor system is a revolutionary approach to ground reinforcement that eliminates the need for a separate borehole casing. At its core is a hollow steel bar with a continuous thread along its entire length, onto which a sacrificial drill bit is attached at the leading end. The bar is rotated and advanced into the ground using a standard drilling rig, while grout is simultaneously pumped through the hollow core and exits through ports in the drill bit. This drill-and-grout bolt method creates a fully grouted anchor in one pass, achieving exceptional bond strength with the surrounding soil or rock. Unlike conventional anchors that require pre-drilling, removal of the drill string, insertion of the anchor, and then grouting, the self drilling method reduces installation time by up to 50 percent and eliminates the risk of hole collapse in loose or water-charged formations.
The SupAnchor hollow bar anchor used in this project features a rope thread profile that maximizes the mechanical interlock between the bar and the grout, ensuring high load transfer efficiency. The bars are manufactured from high-strength steel, with yield strengths ranging from 500 to 600 MPa depending on the diameter. The hollow core allows the injection of grout under pressure, which not only bonds the anchor to the ground but also permeates into surrounding fissures, improving the overall stability of the slope. After installation, the anchor is tensioned against a bearing plate and nut to apply an active load to the retained structure, further enhancing its resistance to movement.

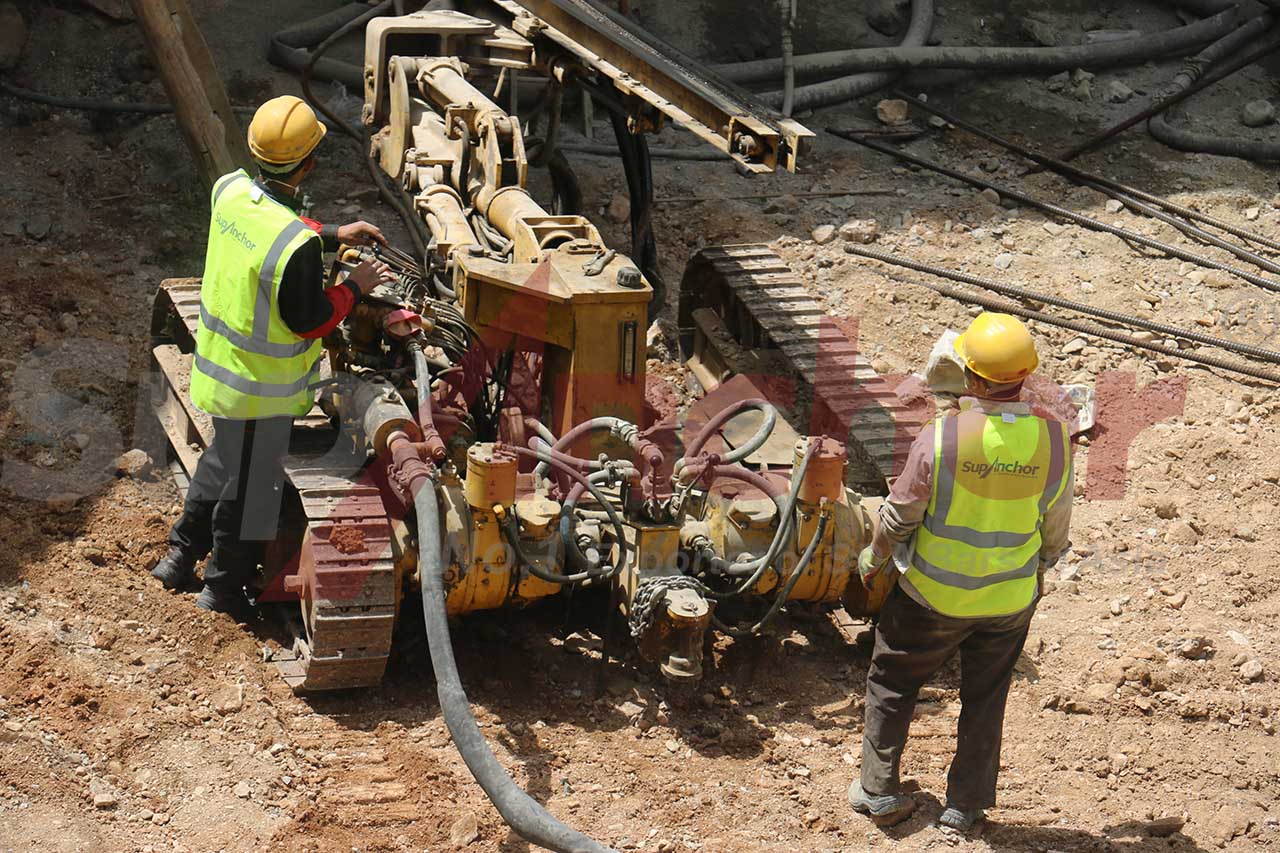

In the accompanying construction photograph, crews are seen operating a compact drilling rig on a steep cut slope, precisely positioning a self drilling anchor bar for installation. The bar, visible as a long, threaded steel rod with a drill bit at the tip, is being aligned with the rig's mast to ensure the correct angle and depth. A grout plant nearby mixes cementitious grout, which is pumped through the bar during drilling. The scene illustrates the simplicity and efficiency of the system: no separate casing, no hole cleaning, and no waiting for grout to set before tensioning. Each anchor can be installed in as little as 15 to 20 minutes, allowing the project to maintain a rapid pace despite the difficult terrain.
The following table summarizes the key technical parameters of the self drilling anchor system deployed on this project:
| Parameter | Specification |
| Product type | R32N, R38N, R51N hollow bar anchor |
| Outer diameter | 32 mm, 38 mm, 51 mm |
| Inner diameter | 15 mm, 19 mm, 26 mm |
| Tensile strength (yield) | 500 MPa, 550 MPa, 600 MPa |
| Ultimate load capacity | 280 kN, 360 kN, 500 kN (depending on diameter) |
| Length per section | 3 m standard, extendable with threaded couplers |
| Corrosion protection | Hot-dip galvanized (min 70 µm) or epoxy coated |
| Thread profile | Rope thread, left-hand or right-hand |
| Drill bit | Sacrificial cross-cut or button bit, diameter slightly larger than bar |
The selection of the appropriate bar diameter and length was based on detailed geotechnical calculations. For the upper, more weathered portion of the slope, 32 mm diameter R32N bars with a length of 9 m were used, providing sufficient pull-out capacity while remaining lightweight for manual handling. In the lower sections, where deeper seated failure planes were identified, 51 mm diameter R51N bars up to 15 m long were installed to reach competent bedrock. Hot-dip galvanizing was specified for all anchors to ensure a design life of at least 50 years in the moderately aggressive soil environment. The ability to couple multiple sections with full-strength threaded connectors allowed the anchors to be extended to the required depths without sacrificing axial capacity.
The successful application of this self drilling anchor system on the highway project is a reflection of broader trends in the geotechnical engineering industry. Across Europe and North America, aging infrastructure and the need for expanded transportation networks are driving demand for efficient and reliable ground reinforcement technologies. According to a recent market analysis, the global geotechnical reinforcement system market is projected to grow at a compound annual growth rate of 5.8 percent over the next decade, with self drilling anchors accounting for a significant share due to their versatility and speed of installation.
Beyond slope stabilization, hollow bar anchors are increasingly used in a variety of applications. For example, self drilling anchors for retaining walls are a popular choice for urban excavations where space is limited and vibration must be minimized. In underground mining, rock bolt for underground mining operations benefit from the same technology, providing immediate support in fractured rock masses and improving worker safety. Micropile hollow bar anchors are employed as foundation elements for structures on soft or compressible soils, transferring loads to deeper bearing strata with minimal disturbance to adjacent buildings. The adaptability of the system makes it a go-to solution for contractors facing complex ground conditions.
In addition, the use of ground stabilization anchor systems has expanded into the renewable energy sector, where they are used to secure wind turbine foundations in remote and geologically challenging locations. The ability to install anchors without water or air flushing reduces environmental impact, aligning with sustainability goals. As infrastructure investments continue to rise, particularly in regions with mountainous terrain or weak soils, the demand for self drilling bolt for civil engineering is expected to accelerate.
SupAnchor has built a reputation as a professional soil nail system manufacturer and ground anchor bolt factory, supplying high-quality anchoring products to projects in over 50 countries. The company's commitment to quality is underpinned by its ISO 9001, ISO 14001, and OHSAS 18001 certifications, which ensure that every product meets stringent international standards for performance, environmental management, and occupational safety. Through its SDA bolt factory direct supply model, SupAnchor offers competitive pricing and rapid delivery, enabling project owners and contractors to maintain schedules without compromising on quality.
Innovation is at the heart of SupAnchor's product development. The company invests heavily in research and development to enhance the performance of its anchor systems, focusing on high-strength steel alloys, advanced corrosion protection coatings, and optimized thread geometries. Recent innovations include the development of a self drilling anchor bolt with an integrated pressure gauge that provides real-time feedback on grout injection pressure, allowing operators to verify the integrity of the anchor installation. This technology has been well received in the tunneling and mining industries, where quality assurance is critical.
SupAnchor's collaborative approach sets it apart from other manufacturers. The company works closely with geotechnical engineers, contractors, and project owners from the initial design phase through to installation and testing. By providing technical support, custom design services, and on-site training, SupAnchor ensures that its products are specified and installed correctly, maximizing performance and safety. This partnership model has led to successful outcomes on some of the world's most challenging projects, including a metro station excavation in dense urban clay, a rock slope stabilization at an alpine hydroelectric plant, and a mine roof support system in the Australian outback.
The deployment of SupAnchor's anchor bolt system for geotechnical engineering on this highway project has proven to be a resounding success. The self drilling anchors were installed at a rate of over 40 units per day, significantly ahead of schedule, and initial load tests confirmed that the anchors exceeded the design requirements by an average of 15 percent. The project is now entering the final phase, with the slope fully reinforced and monitoring instruments showing no signs of movement. This outcome underscores the value of advanced anchoring technology in overcoming difficult ground conditions and delivering safe, durable infrastructure.
Looking ahead, the future of self drilling anchor technology is bright. As construction methods evolve to meet the demands of urbanization, climate resilience, and sustainability, the need for efficient and reliable ground reinforcement will only grow. SupAnchor, with its focus on professionalism, innovation, and collaboration, is well positioned to lead the industry into the next era of geotechnical engineering. With a global network of distributors and a track record of success on iconic projects, the company continues to set the standard for quality and performance in the anchoring market.
